Parameter Details
LED Module Compatibility Designed for LG LED modules (3030/2835 chip options, high CRI ≥ 80)
Power Options :30W, 50W, 80W, 100W, 150W, 200W
Light Source Efficiency Up to 180–200 lm/W (LG module)
Color Temperature :3000K (warm white), 4000K (neutral white), 5000K–6500K (cool white)
CRI (Color Rendering Index): ≥ 80 (Ra ≥ 80)
Input Voltage: AC 100–277V / 200–240V, 50/60Hz
Power Factor: ≥ 0.95
THD (Total Harmonic Distortion) :≤ 10%
Beam Angle: 60°×120° / 90°×140° (asymmetric optical lens for road lighting)

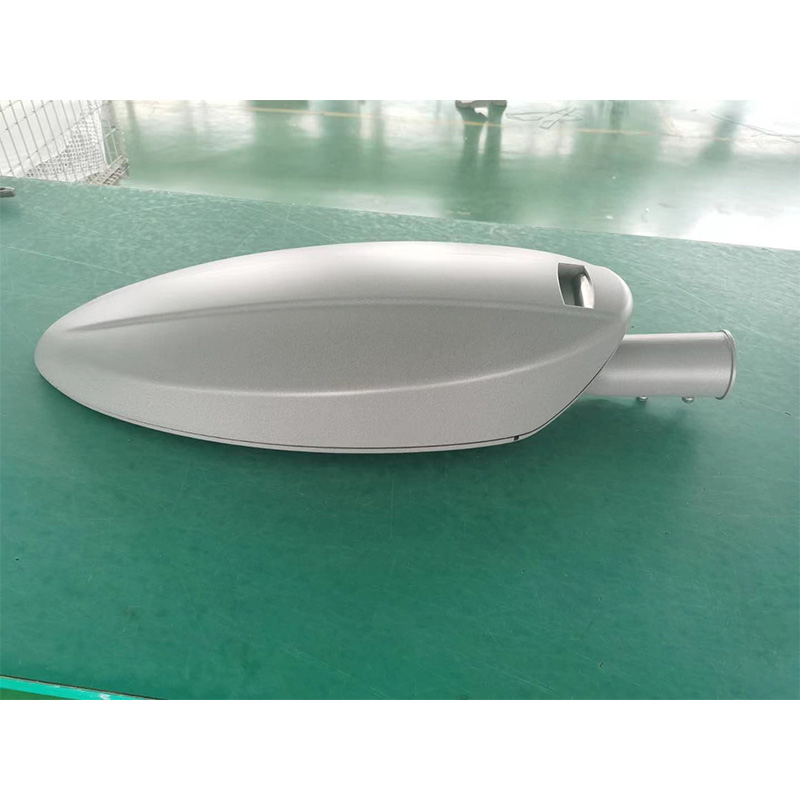

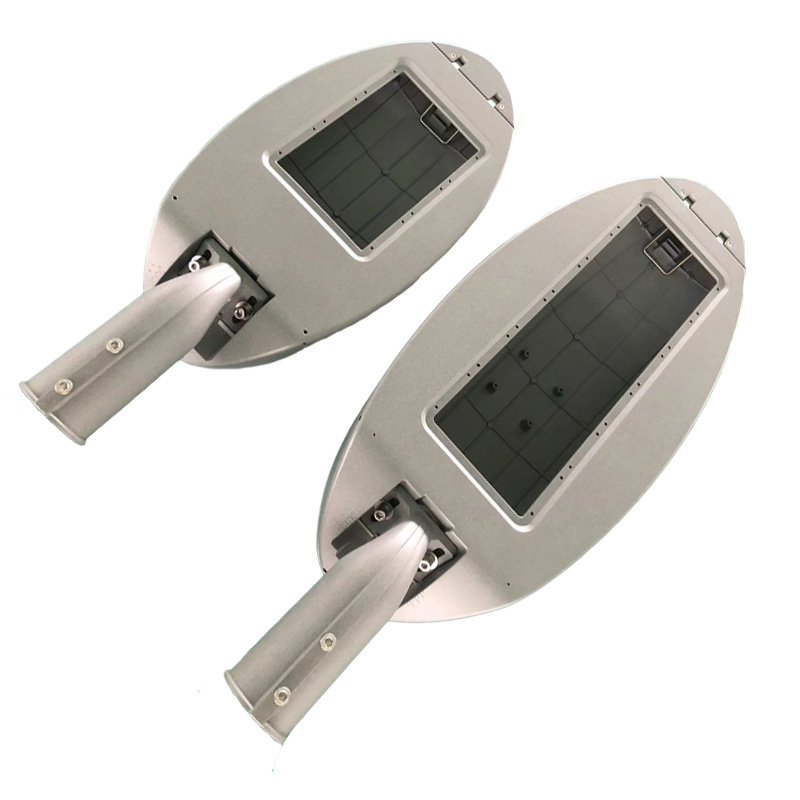

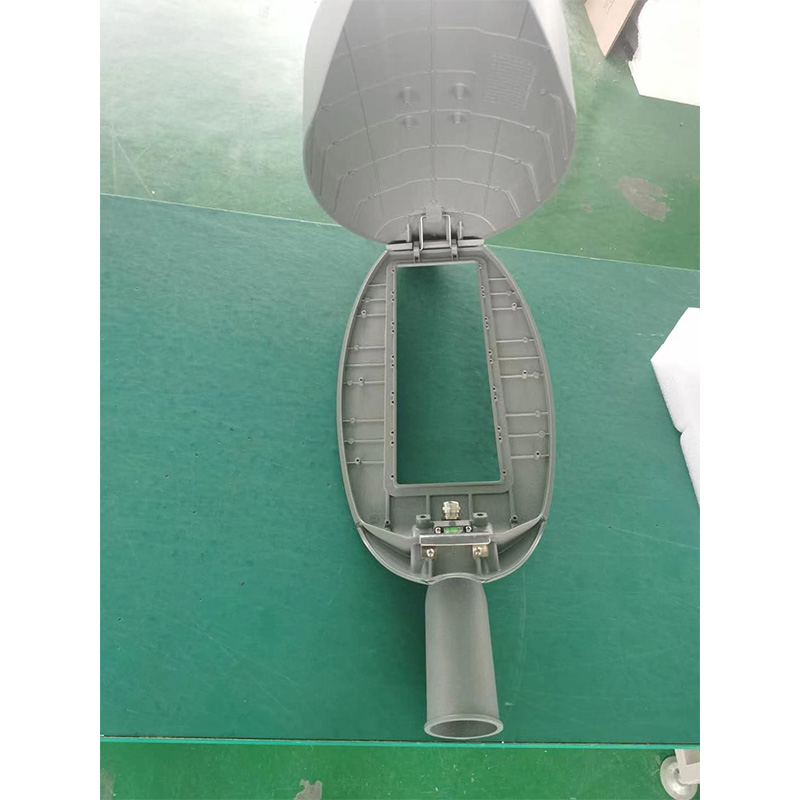

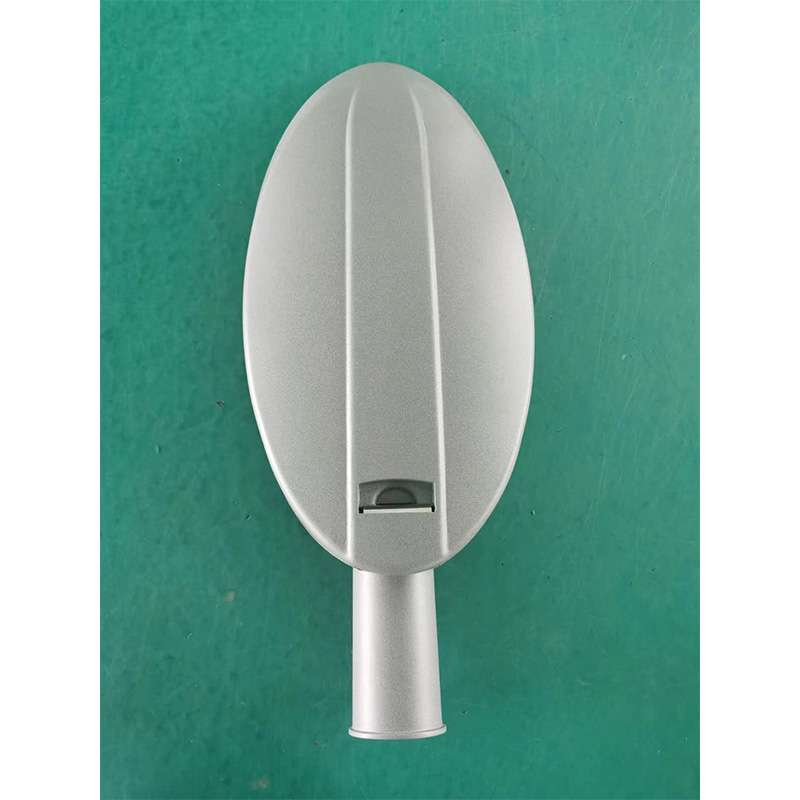

Housing Material:Die-cast aluminum ADC12, corrosion-resistant
IP Rating:IP66 (waterproof & dustproof)
IK Rating:IK08–IK10 (impact resistance)
Working Temperature -40°C to +65°C (-40°F to 149°F)
Lifespan:≥ 50,000 hours (LG LED module)

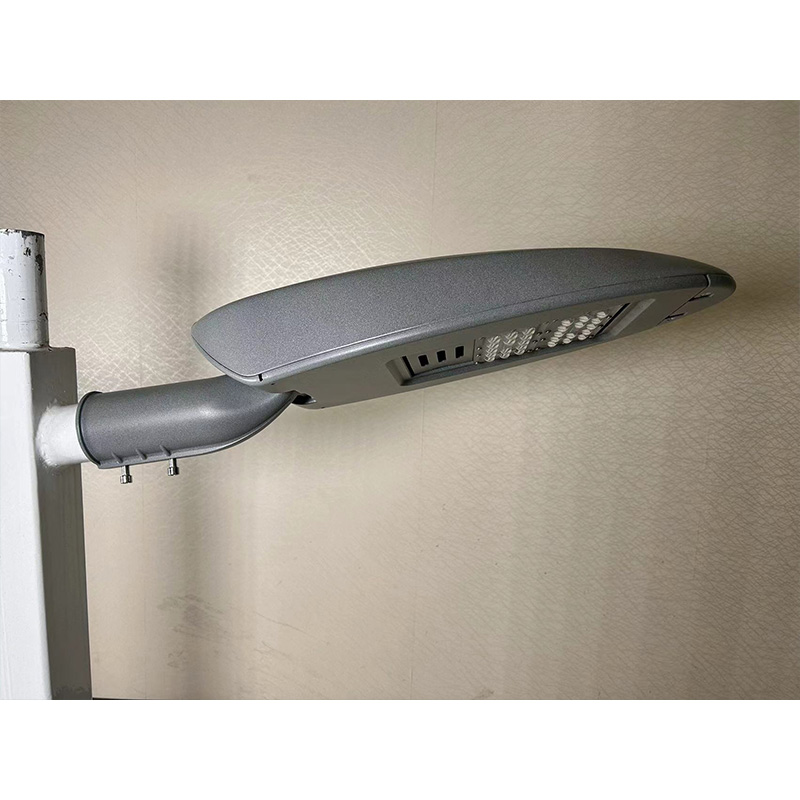

Mounting Type :Pole-mounted (φ60–φ80mm pole diameter)
Dimming Options 0–10V dimming, DALI, Zigbee, photocell (dusk-to-dawn)
Certifications:
LG Module LED Street Light – Engineered for seamless integration with LG LED modules, ensuring superior luminous efficacy and color consistency.High-Efficiency Outdoor Lighting – Delivers up to 200 lm/W, reducing energy consumption by up to 60% compared to traditional HPS street lights.Durable Die-Cast Aluminum Housing – Corrosion-resistant, IP66-rated, and designed for optimal heat dissipation to extend LED lifespan.Smart Dimming & Control – Supports 0–10V, DALI, and wireless dimming for smart city lighting management.Long-Lasting & Low Maintenance – 50,000-hour rated life, reducing replacement and maintenance costs for municipal and commercial applications.
Certified & Safe – CE, RoHS, and ENEC certified for global compliance, with IK08–IK10 impact resistance for harsh environments.CE, RoHS, ENEC, UL (optional)
