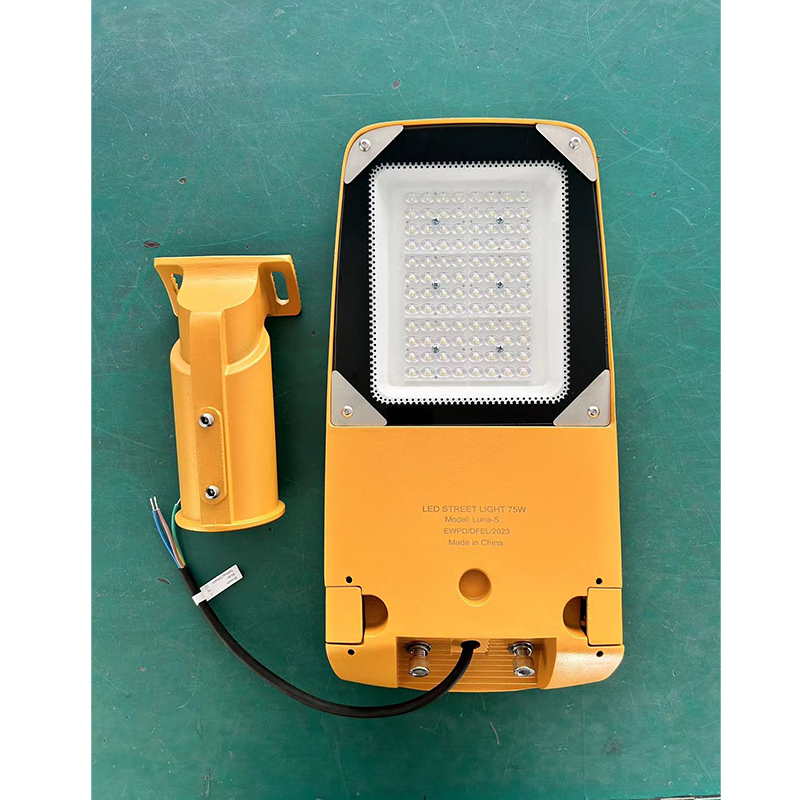

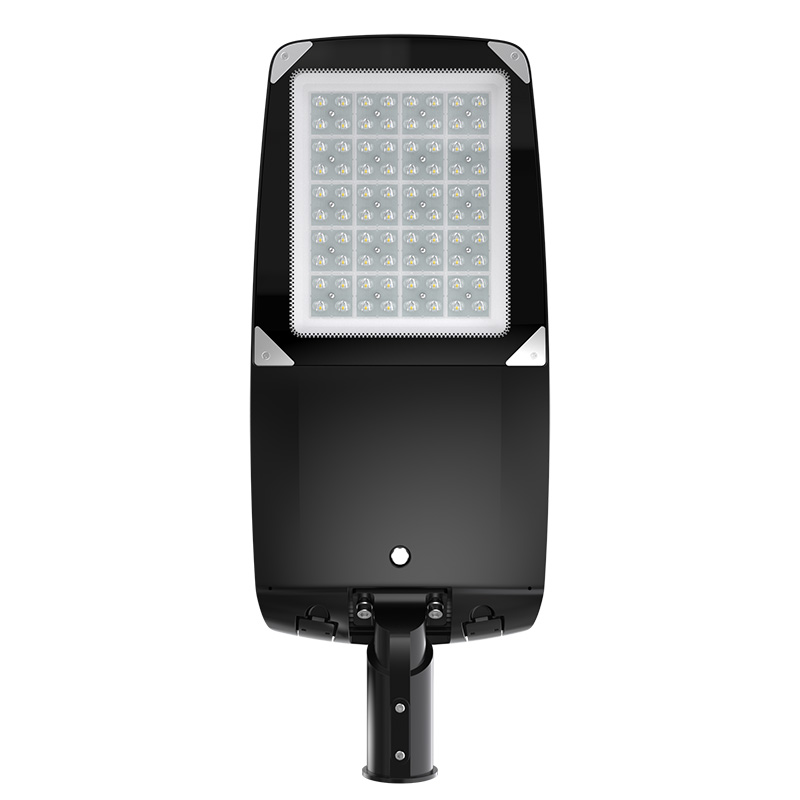

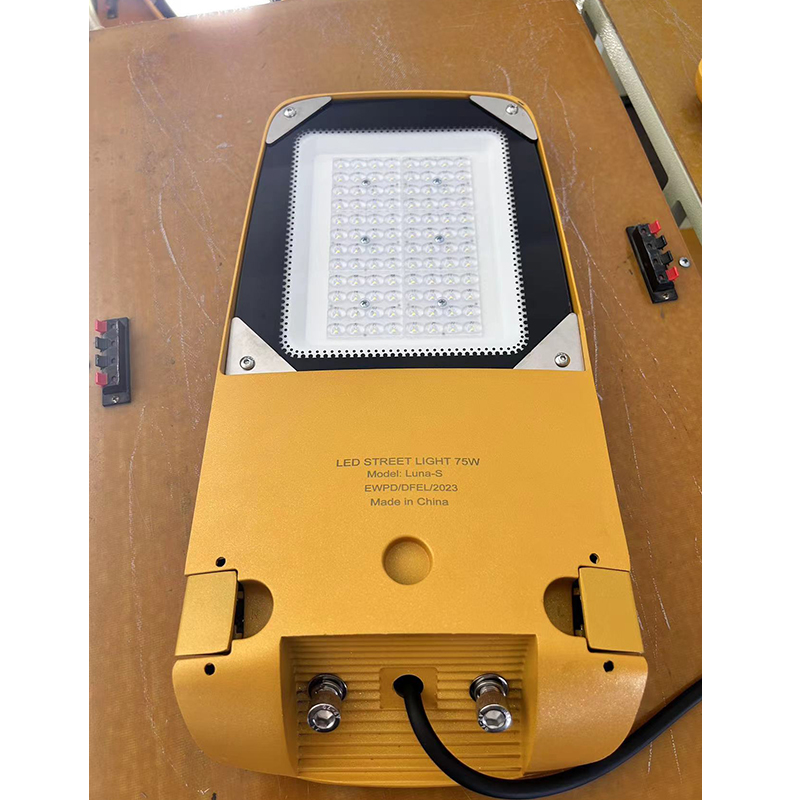

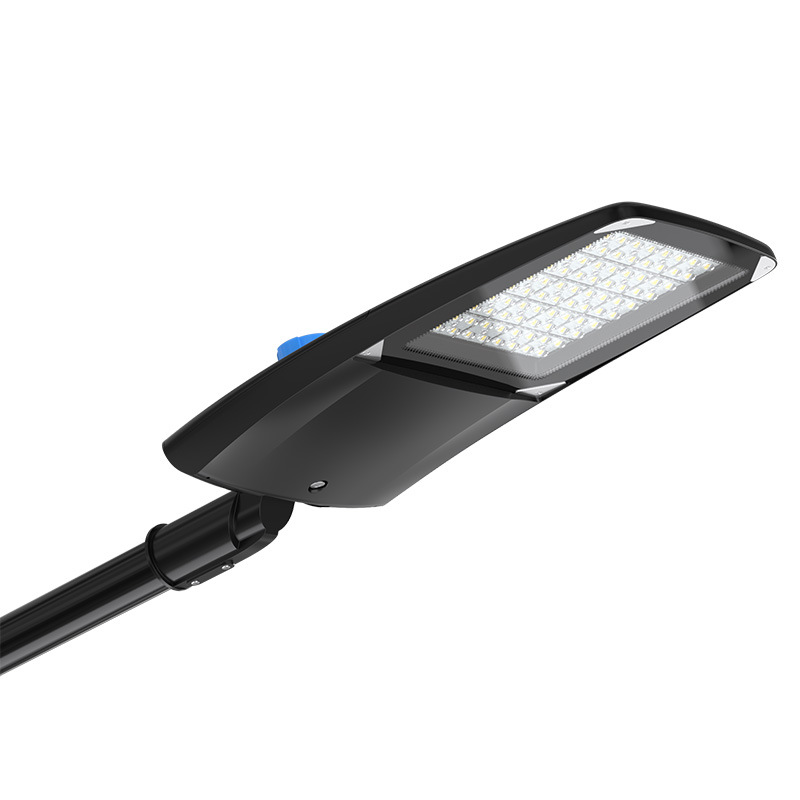

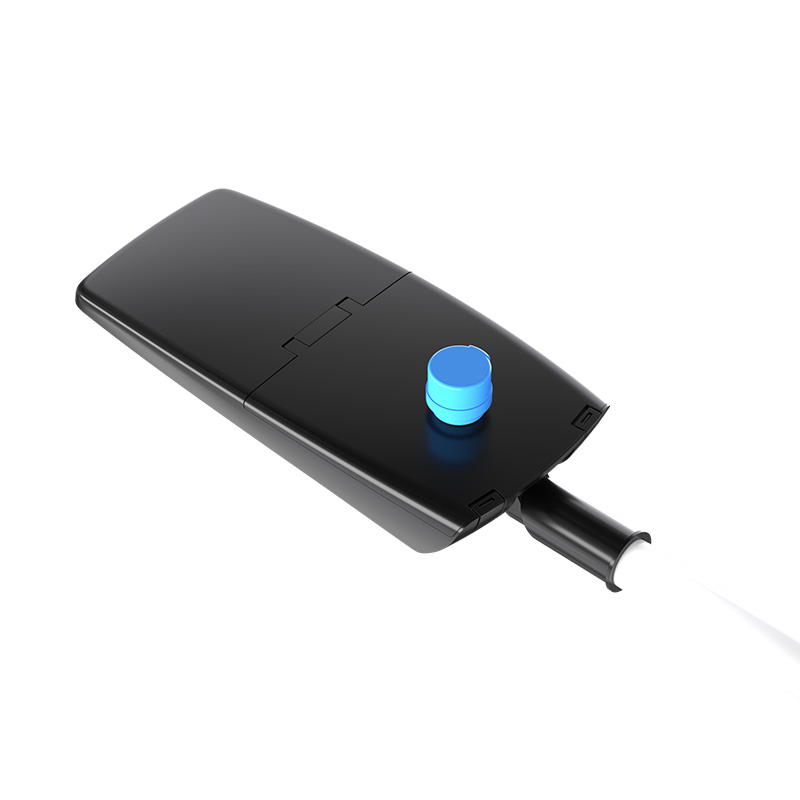

Led Street Light Model LUNA

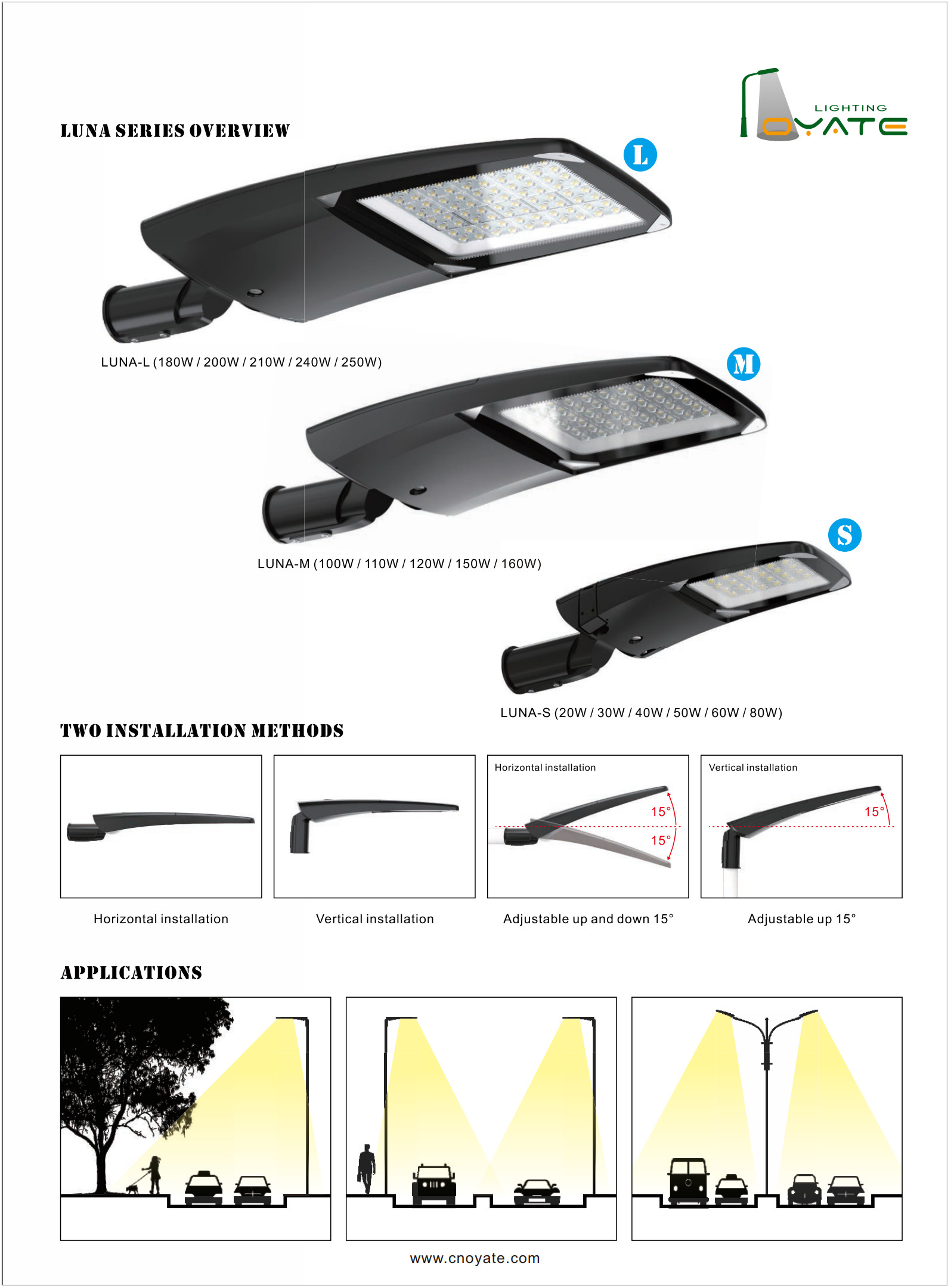

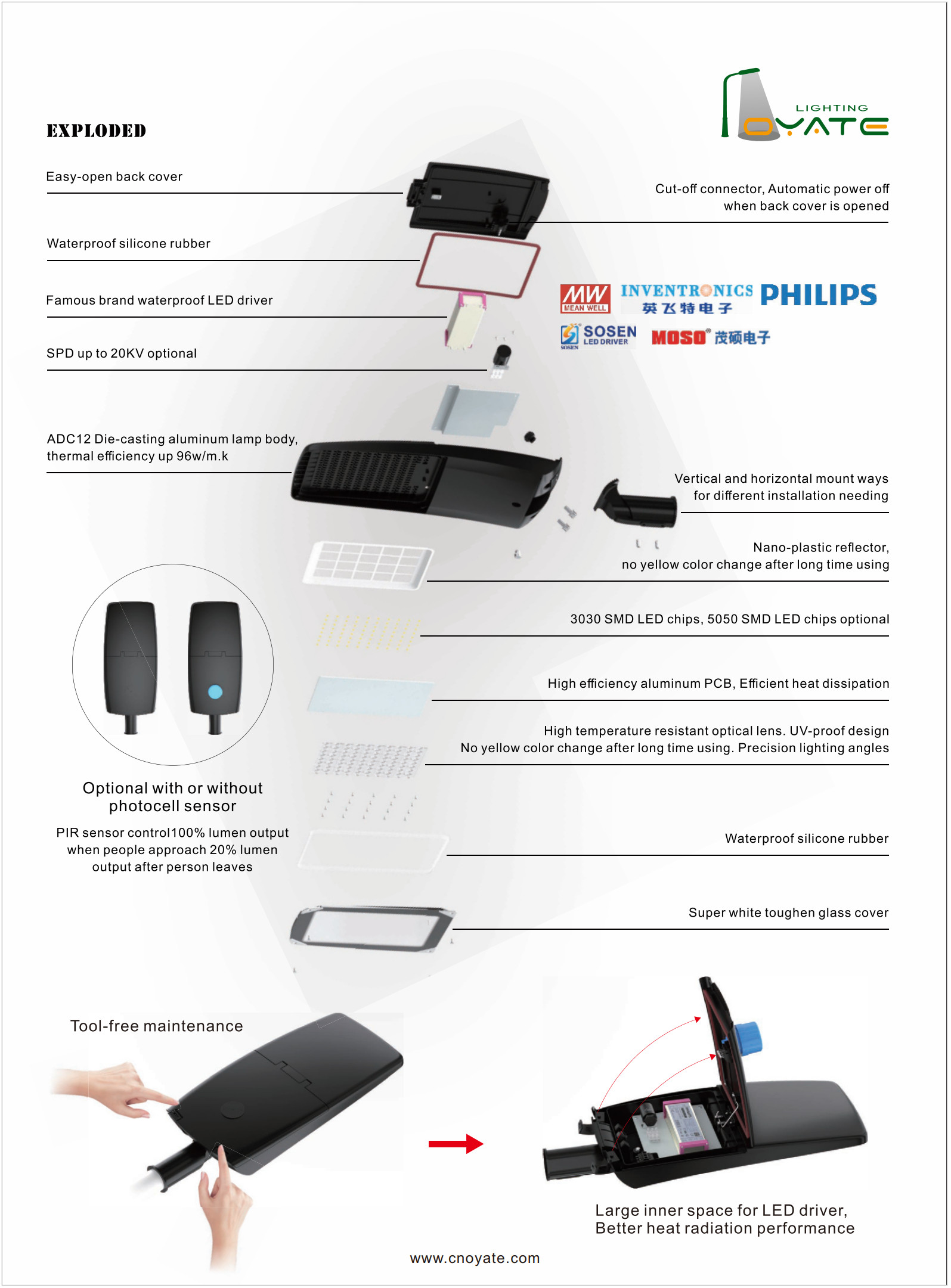

- 3 sizes aluminum die-casting housing design from 20-250w with super white tempered glass and white Nano reflector.

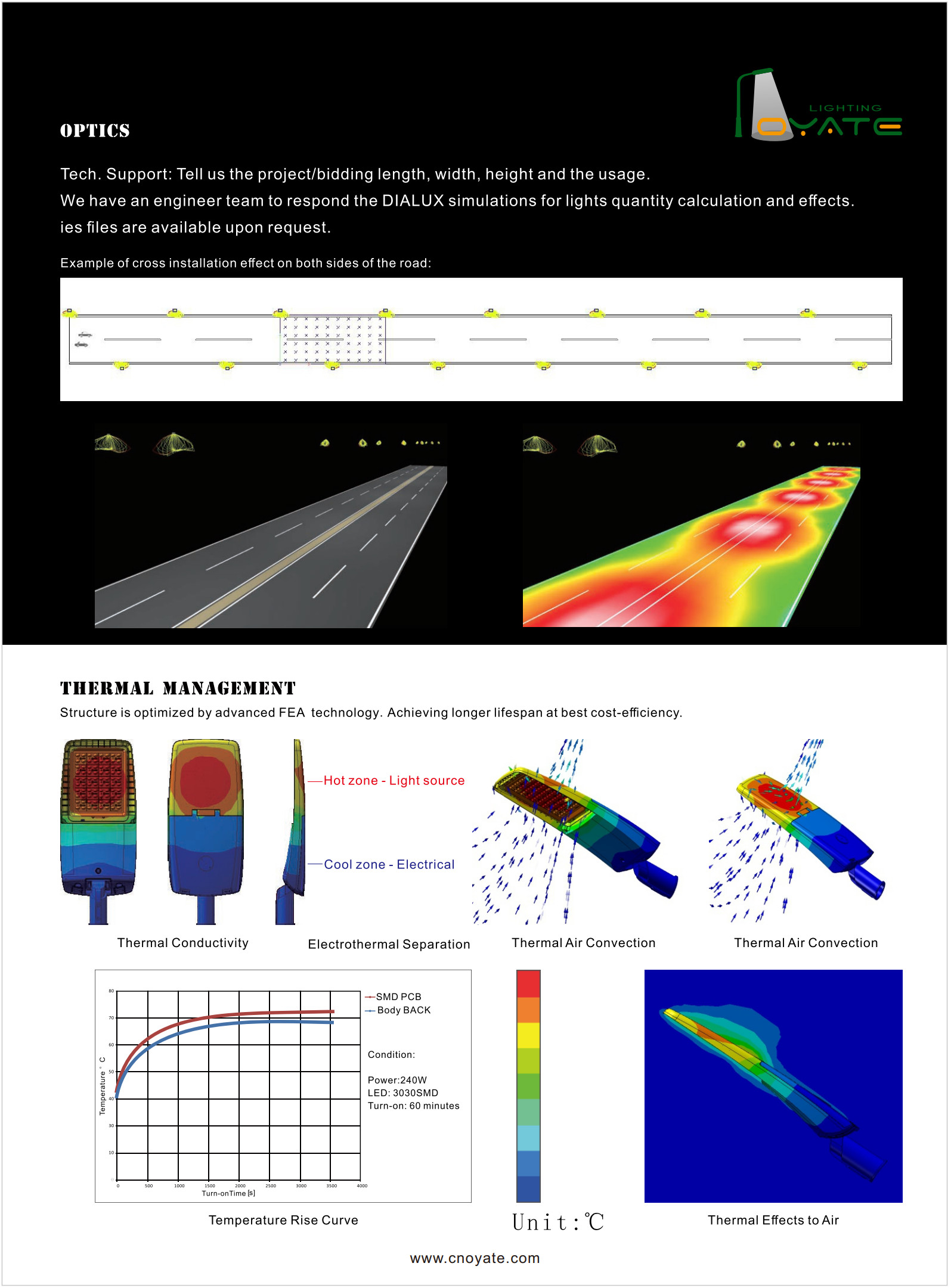

- New excellent thermal radiation and build-in imported breather design,outstanding for lower lighting decay.

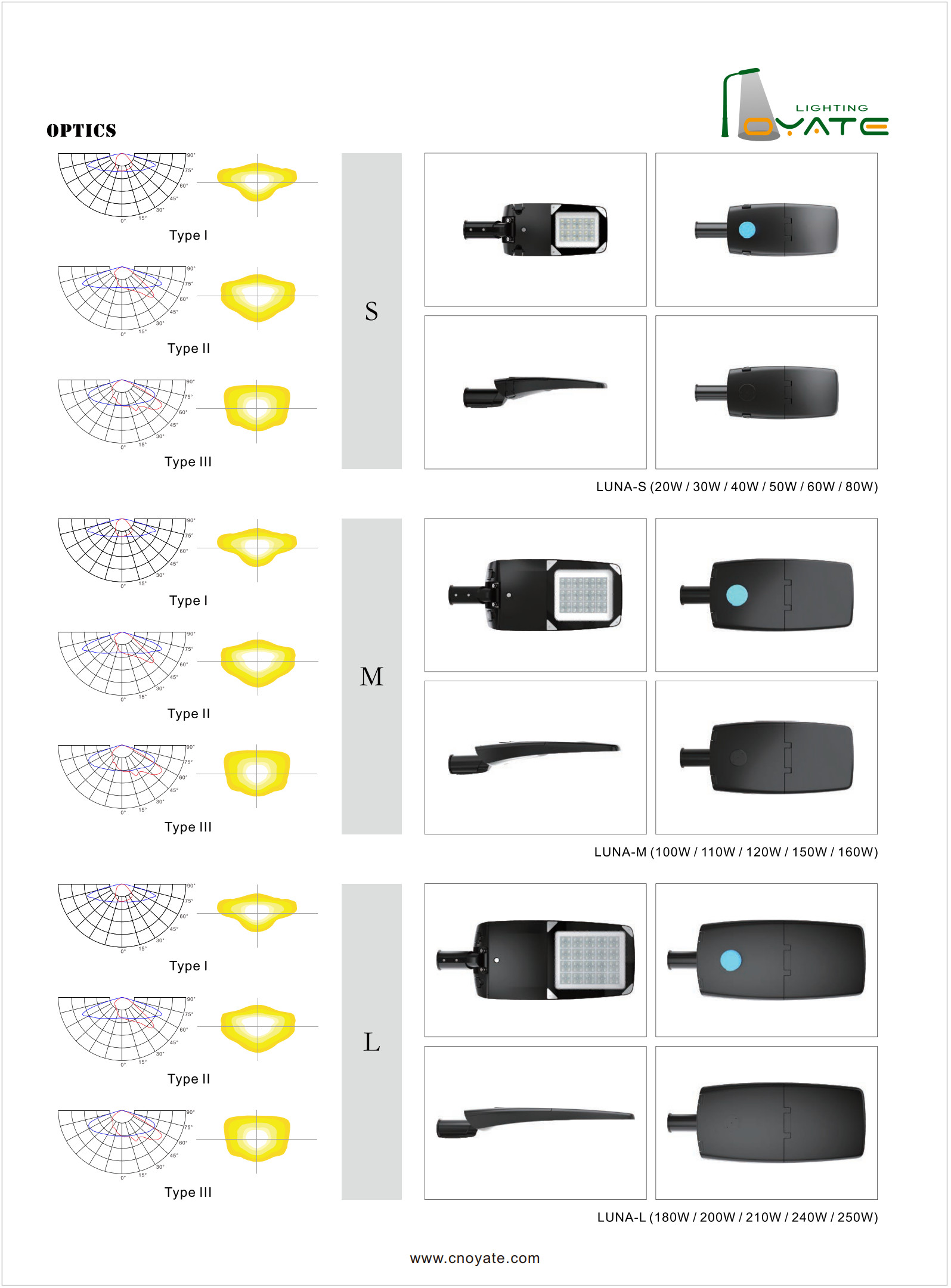

- Tens of beam angle PC lens with hiah visual comfortable and uniform lighting distribution to meet different optics requirement.
- High quality LED chips, Driver (0-10v/DALI/programmed upon requests), 10kv/20kv spd.
- Class I/Class II is available upon request.

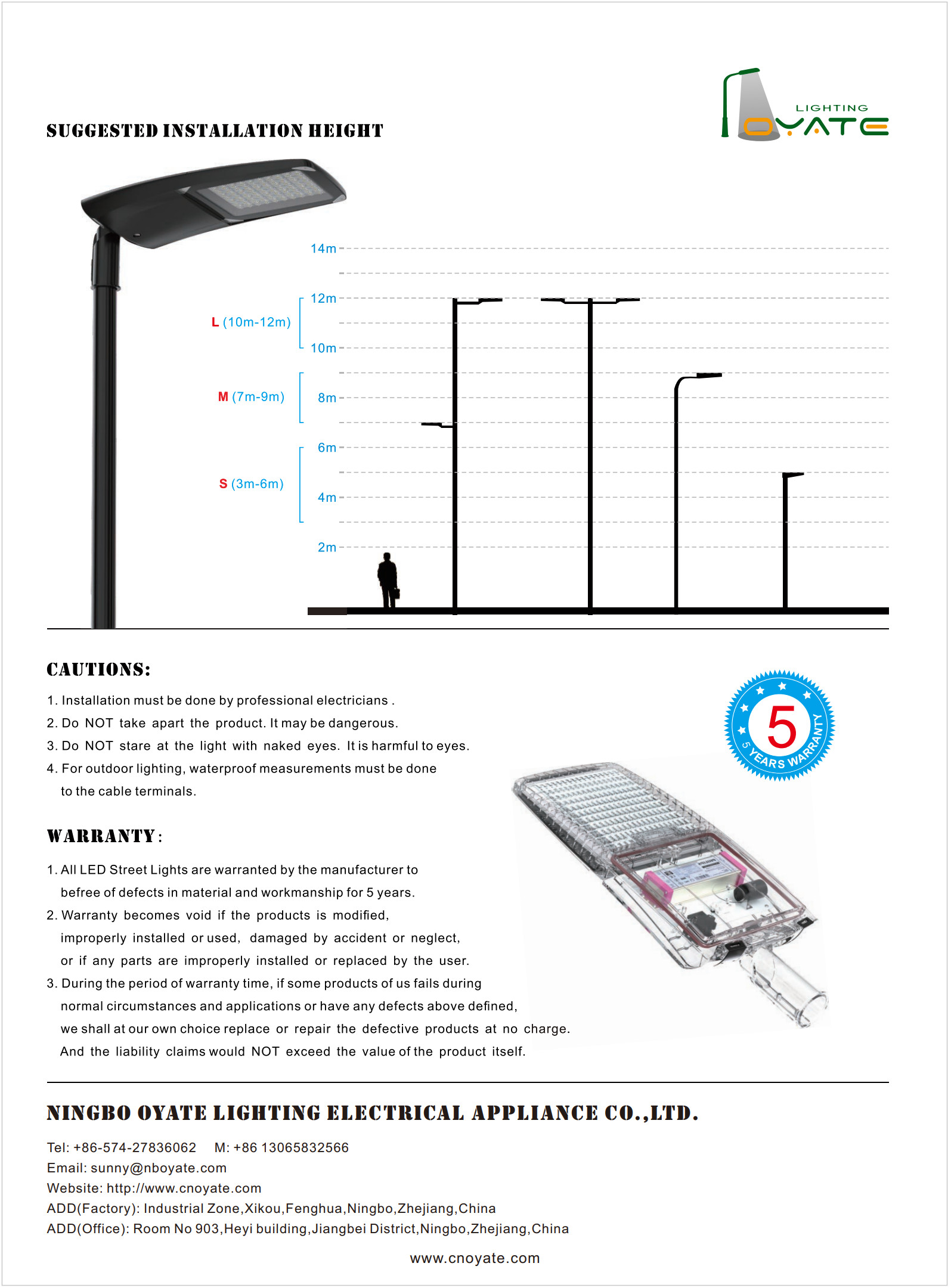

Top-post and side-entry mounting, angle can be adjustable,installation diameter Φ60mm.

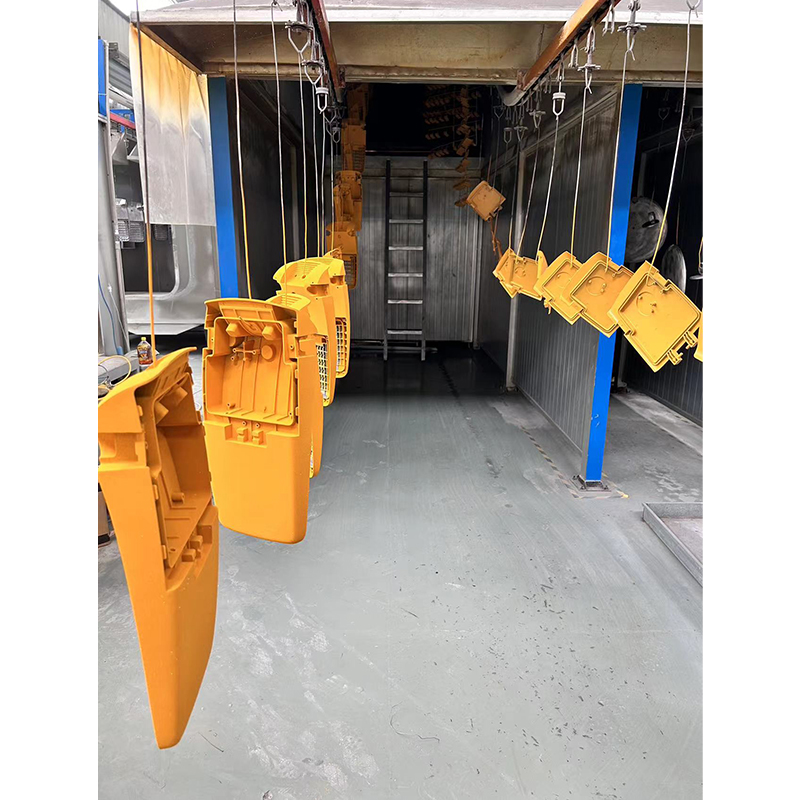

- Akzo Anti-uv pure polyester powder painting.
- No photo-biological risk(no risk linked to infrared, blue light or UV) in accordance with EN 62471.
- With Nema/Zhaga socket, could work with smart-city control technology.

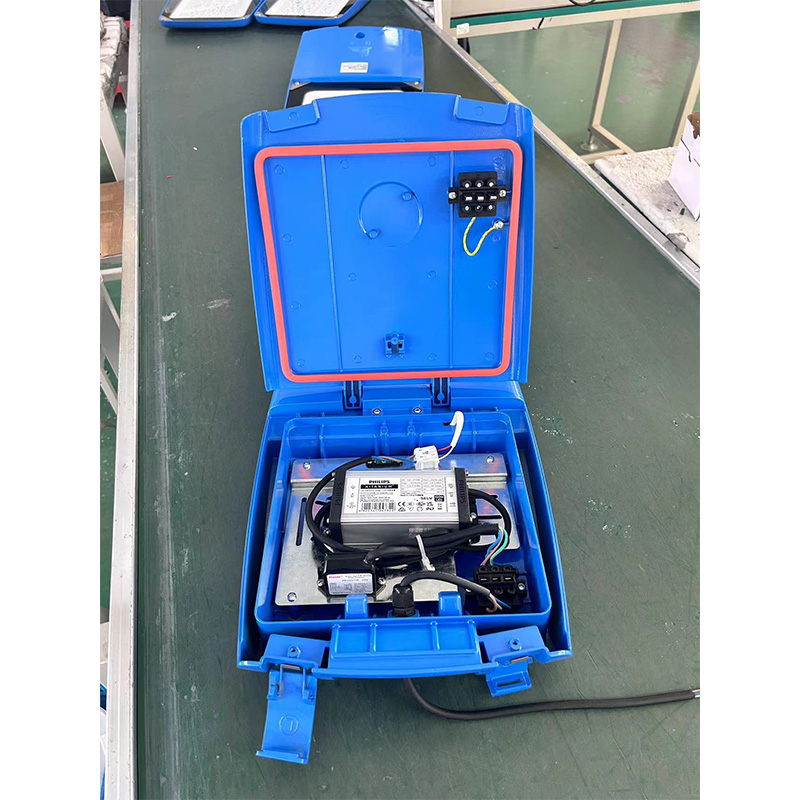

- Tool free maintenance.

sunny@nboyate.com
whatsapp:0086 15888595371

Description

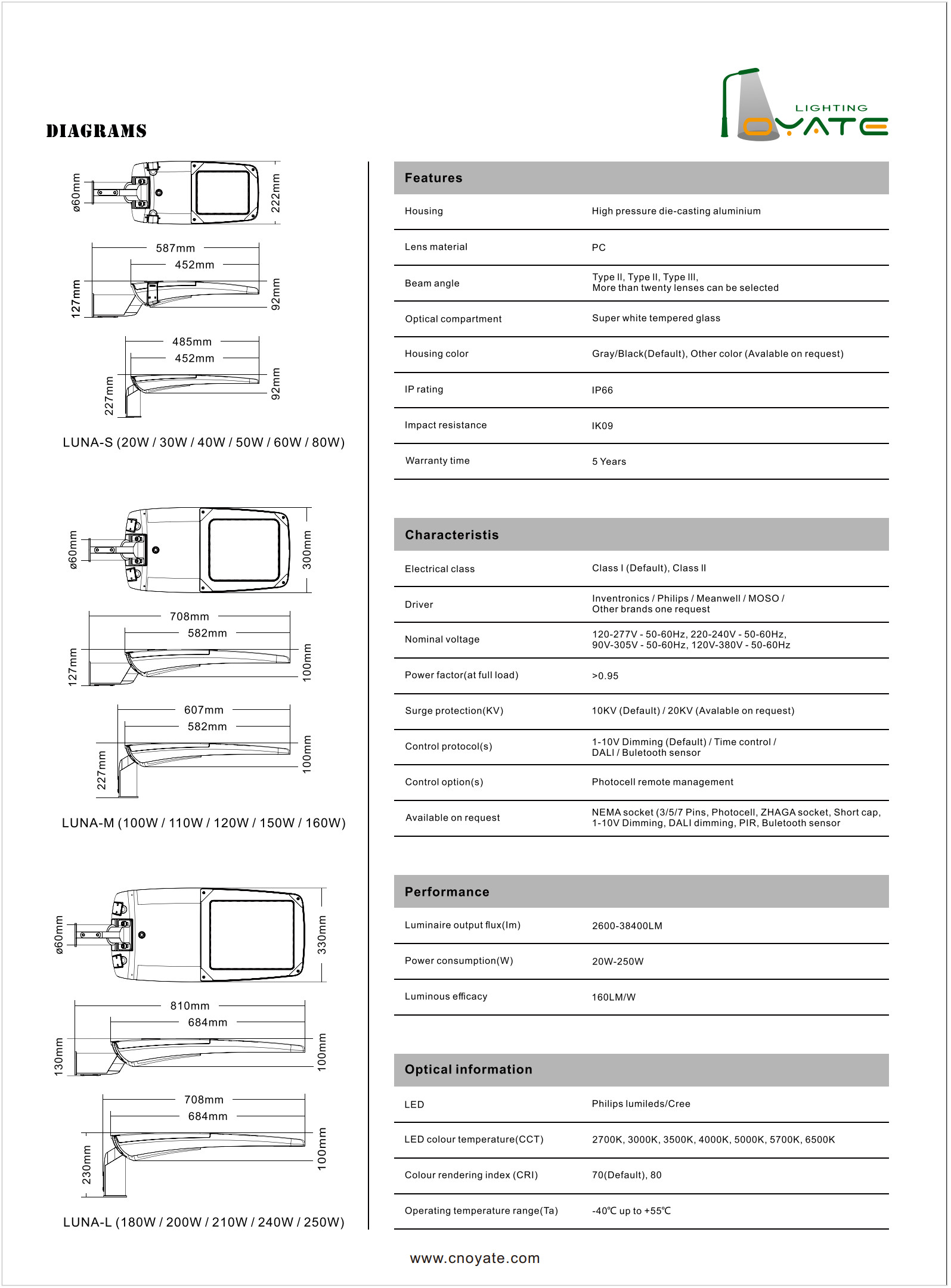

Features:
Model:Luna(Private Mould)

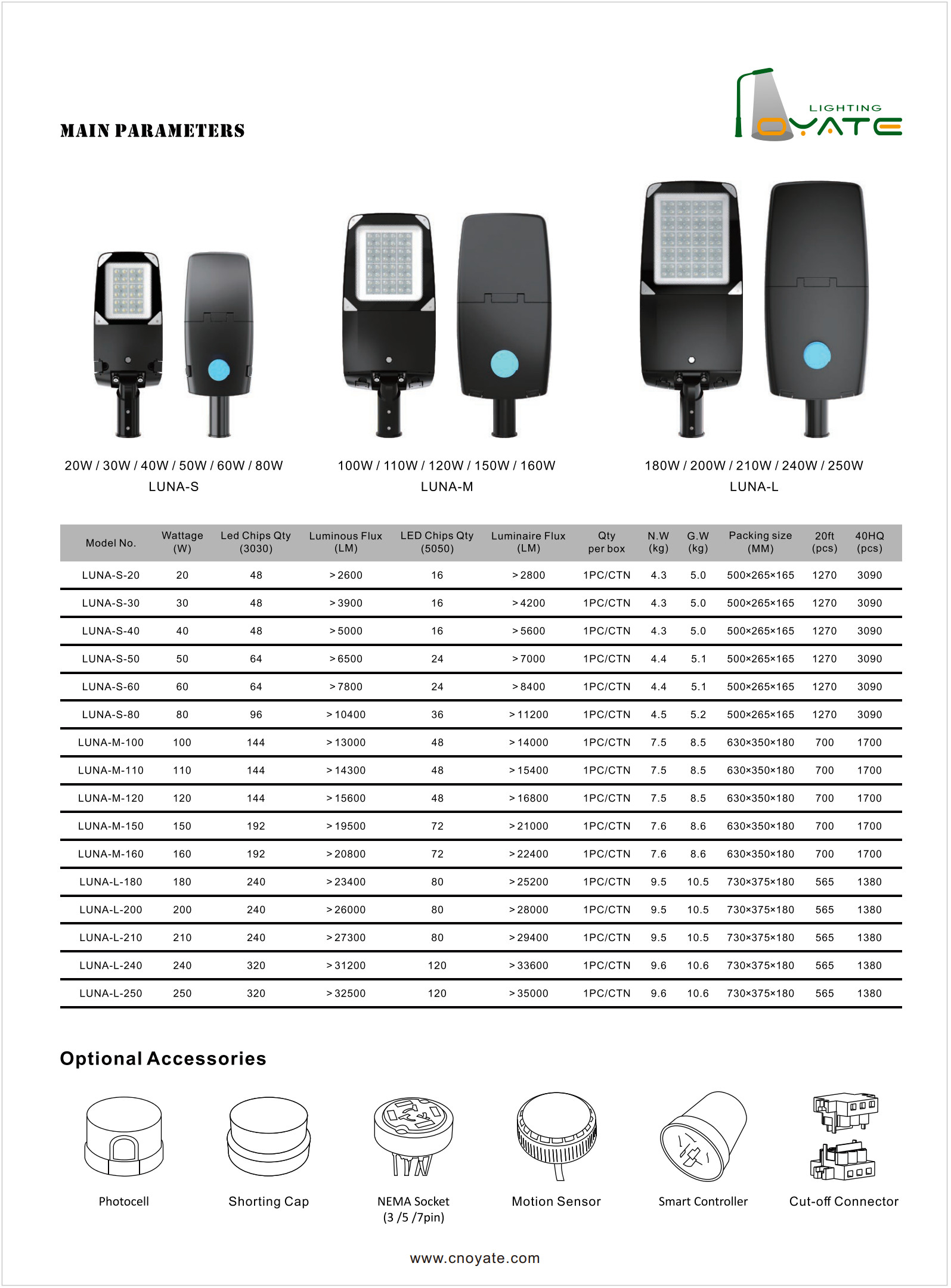

Power:20w/30w/40w/50w/60w/80w/100w/110w/120w/150w/160w/180w/200w/210w/240w/250w
Housing：High pressure die-casting aluminium
Lens material:PC
Beam angle:ype ll, Type ll, Type Il, More than twenty ienses can be selected
Optical compartment：super white temoered glass
Housina color:Gray/Black(Default), Other color (Avalable on request)
IP rating:IP66
Impact resistance:IK09
Warranty time:5 years
Characteristis:
Elnctrical dlass:Class I (Default), Class ii
Driver:Inventronics /Phillips /Meamwel/MOSO(Other brands one request
Nominal voltage：120-277V-50-60Hz, 220-240V-50-60Hz,90V-305V-50-60Hz.120V-380V-50-60Hz
Power facton(at full load)：>0.95
Surge protection(KV)：10KV (Default)/20KV (Avalable on request)
Control protocol($)：1-10V Dimming (Default}/ Time control/DALI/ Buletooth sensor
Control option(s)：Photocell remote managemen
Available on request：NEMA socket (3/5/7 Pins. Photocell. ZHAGA socket. Short cap,1-10V Dimming. DALI dimming, PIR. Buletooth sensor
Performance
Luminaire output lux(Im)：600-38400L1
Luminous elmicacy：160lm/w
Optical information:
LED:Philips Iumileds/Cree
LED colour temperature(CCT):2700K.3000K.3500K.4000K,5000K.5700K,6500K
Colour rendering index (CRI):70(Default).80
Operating temperature range(Ta)：.40C upto +55C
