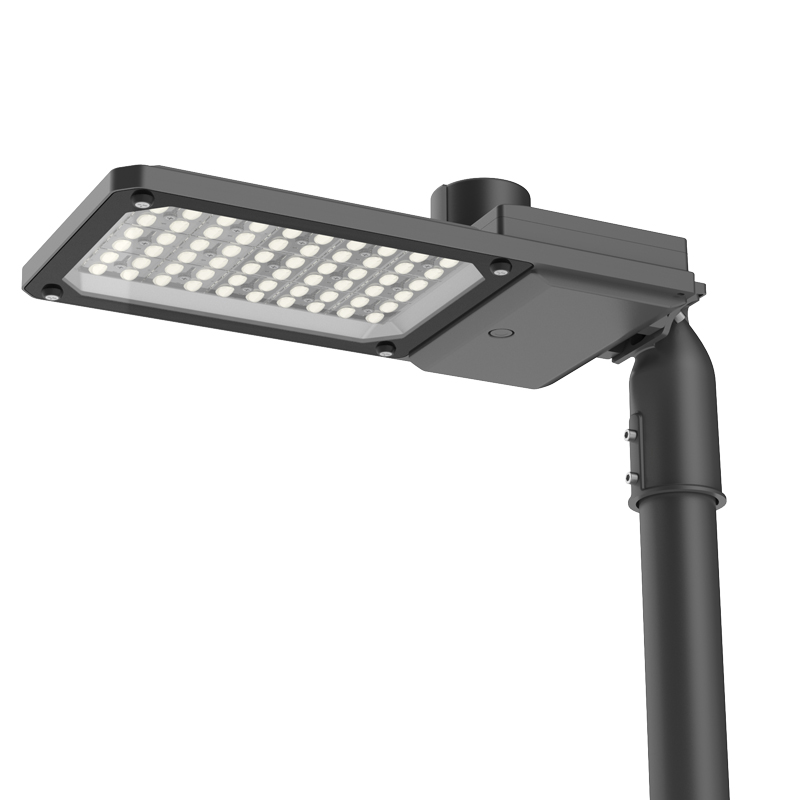

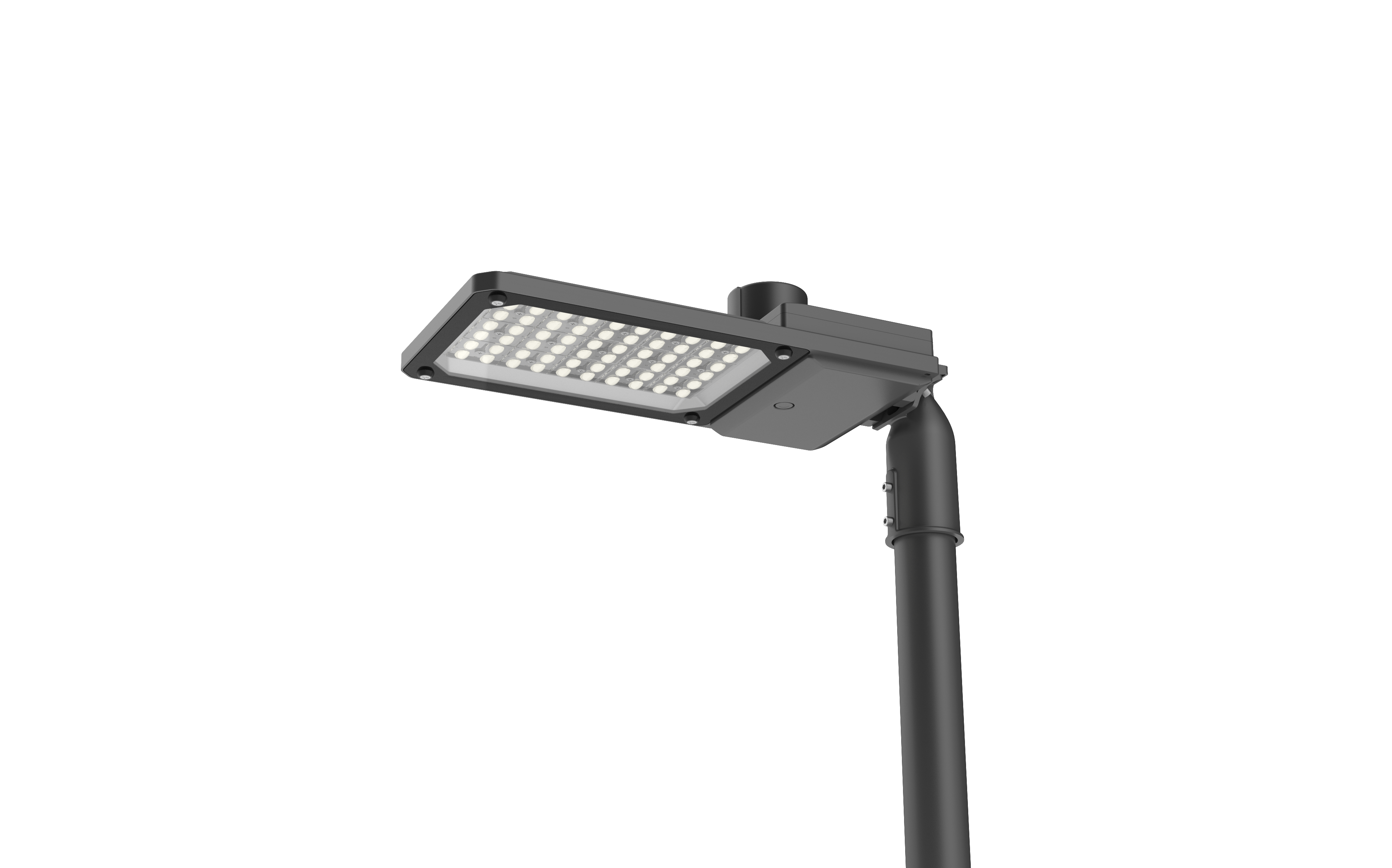

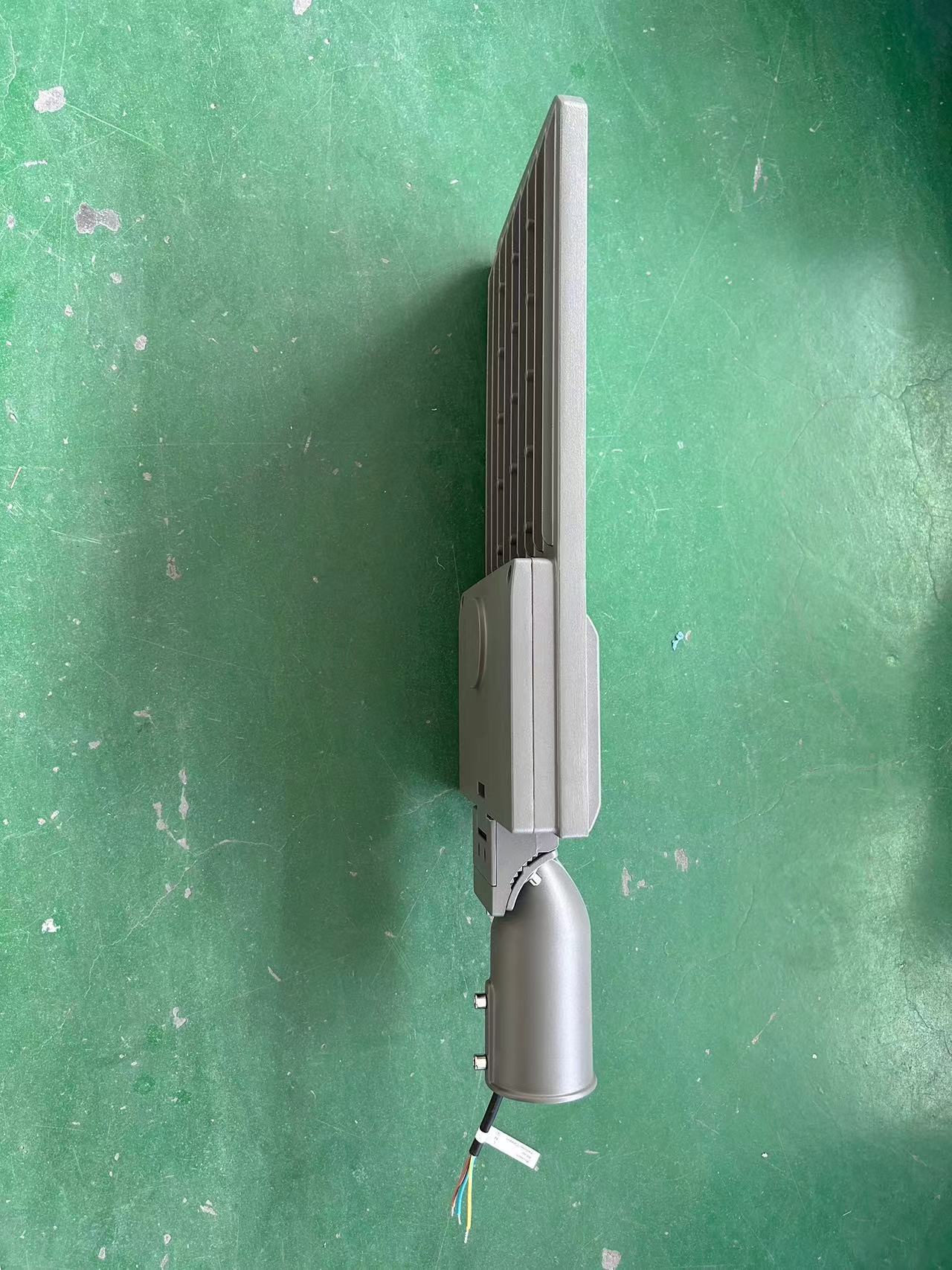

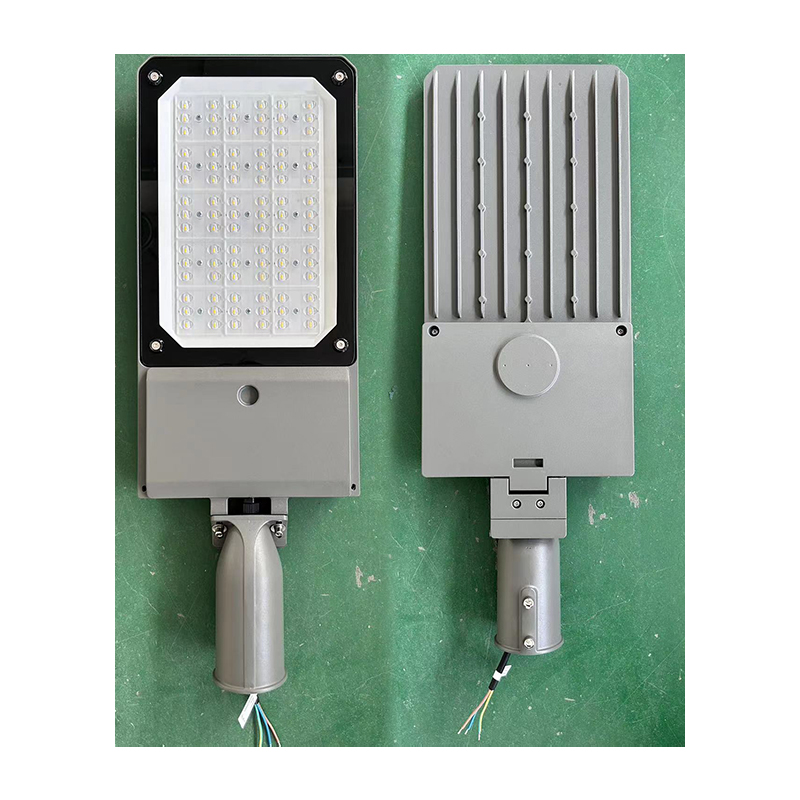

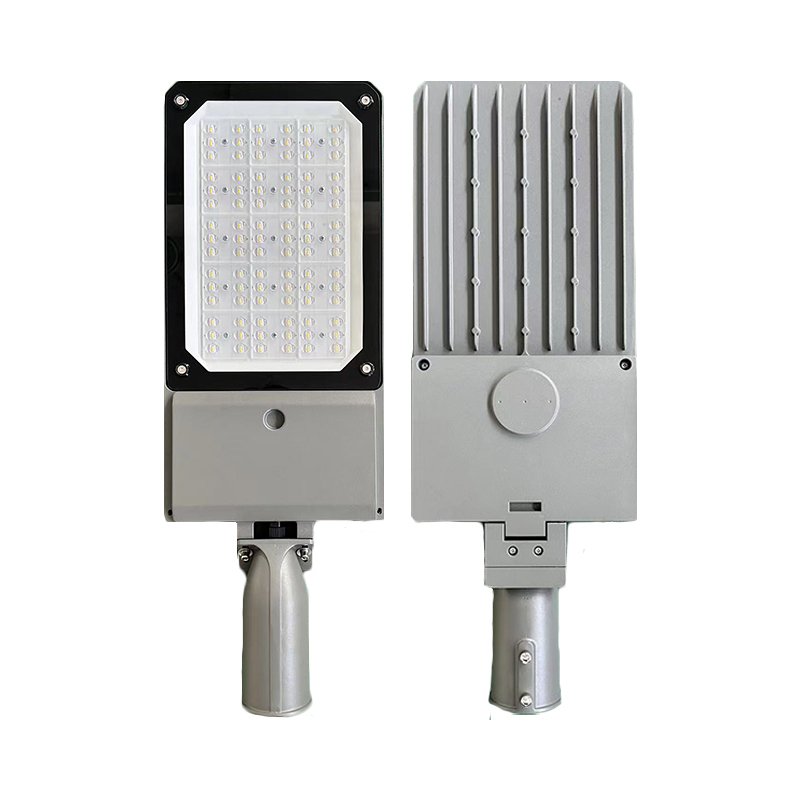

Led Street Light Model VENUS-GLASS

–4 sizes aluminum die-casting housing design from 20-250W;
– Tens of beam angle PC lens with high visual comfortable and
uniform lighting distribution to meet different optics requirement;
– High quality LED chips, Driver (0-10V/DALI/programmed upon requests), 10kv/20kv spd;
– Class I / Class II is available upon request;
– Top-post and side-entry mounting, angle can be adjustable, installation diameter Φ60mm;
– Akzo Anti-UV pure polyester powder painting;
– No photo-biological risk (no risk linked to infrared, blue light or UV) in accordance with EN 62471;
– With Nema/Zhaga socket, could work with smart-city control technology;
–Luminaire efficacy: Up to 150 lm /w or 185lm/w
– Lifetime more than 100, 000 hours
– Impact resistance: IK10
– Type of protection: IP66

sunny@nboyate.com

whatsapp:0086 15888595371

Description

Model No:
VENUS-GLASS
Power:
30w.40w,60w,75w,80w,100w,120w,150w,180w,200w,250w
Led:
Lumileds /Other brands on request
Driver:
Philips / Inventronics / moso / Other brands on request
Power Factor:
>0.95
THD:
<15
SPD:
10KV / 20KV
Optics:
T1,T2,T3,T4,T5
Standard Deviation of Color Matching:
<5 SDCM
CRI:
Ra>70 (Default) / Ra>80(available on request)
CCT:
2200K,3000K, 4000K, 5000K, 5700K,6500K
Body Material:
High pressure die-cast aluminum
Housing Color:
Available on request
Cover Material:
Super white tempered glass
Lens Materials:
UV-resistant Polycarbonate
Working Environment:
40°C ~ +50°C, 10%～90%RH
Lifespan L70 at 25 °C:
>100, 000 h
Dimmable:
Non-dimming (Default) /1-10v(available on request)
Protection Class:
Class I (Default) /Class II
Available on reques：
NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor,NTC, OLC, Solar Compatible, 1-10V/DALI Dimming

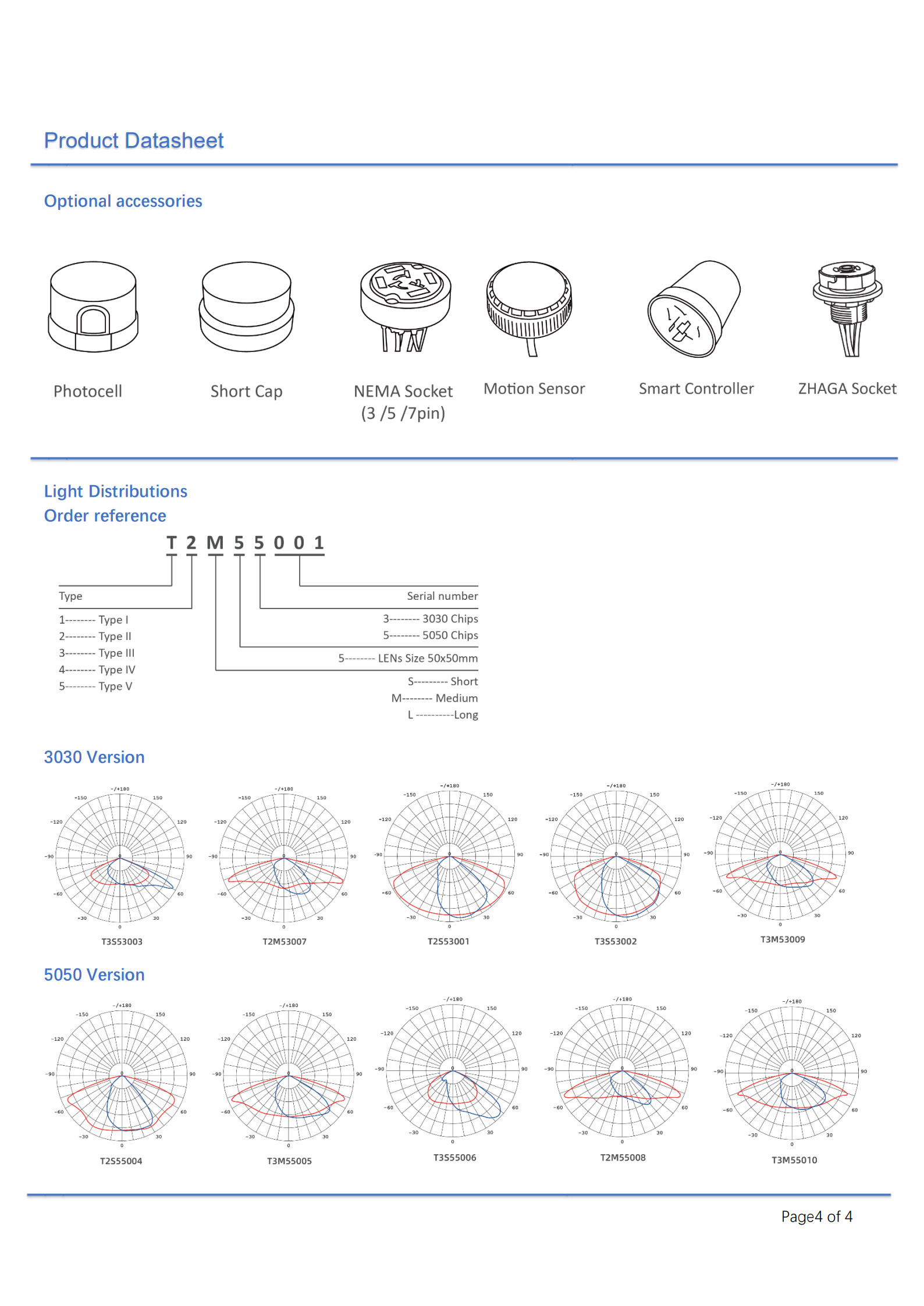

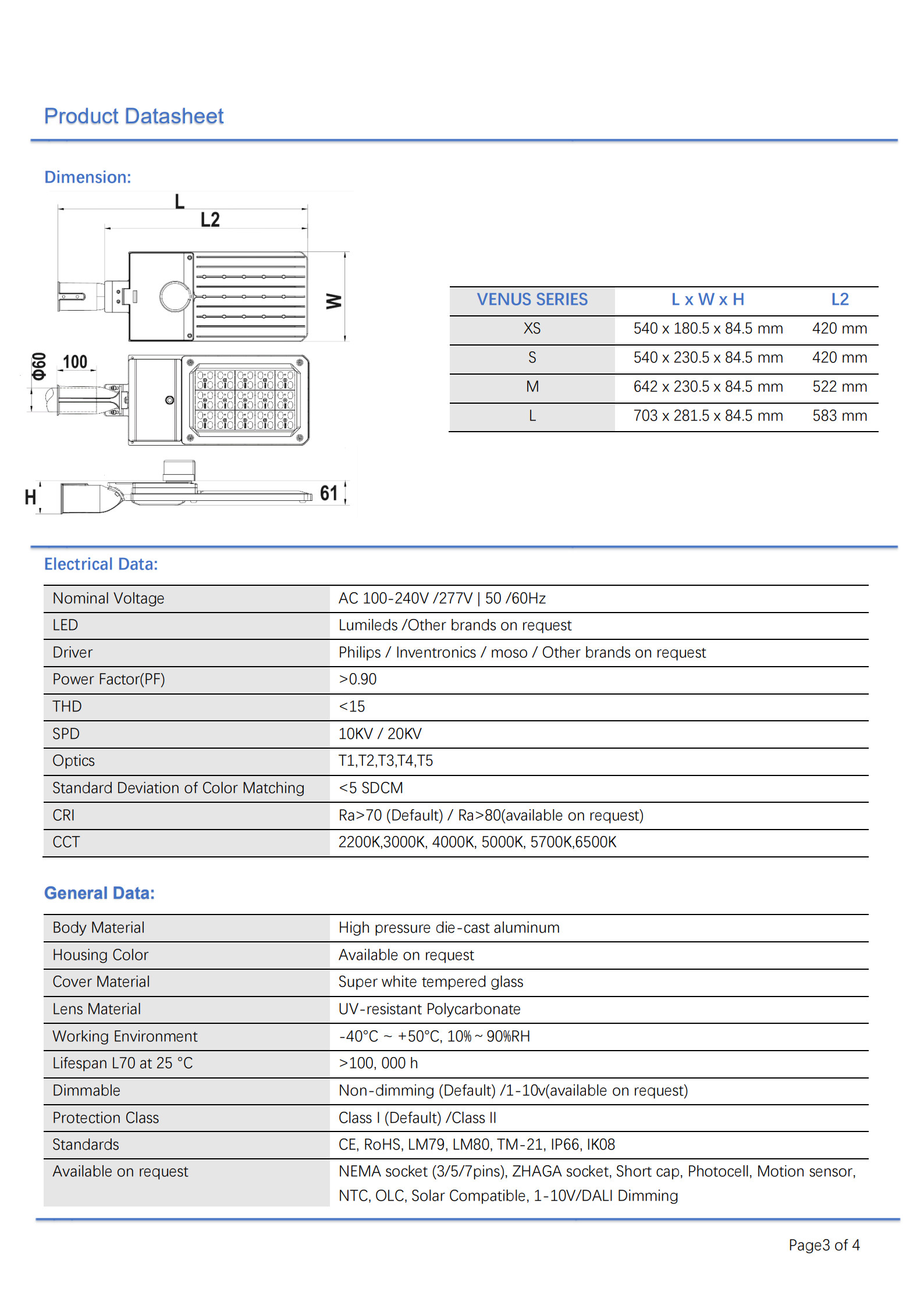

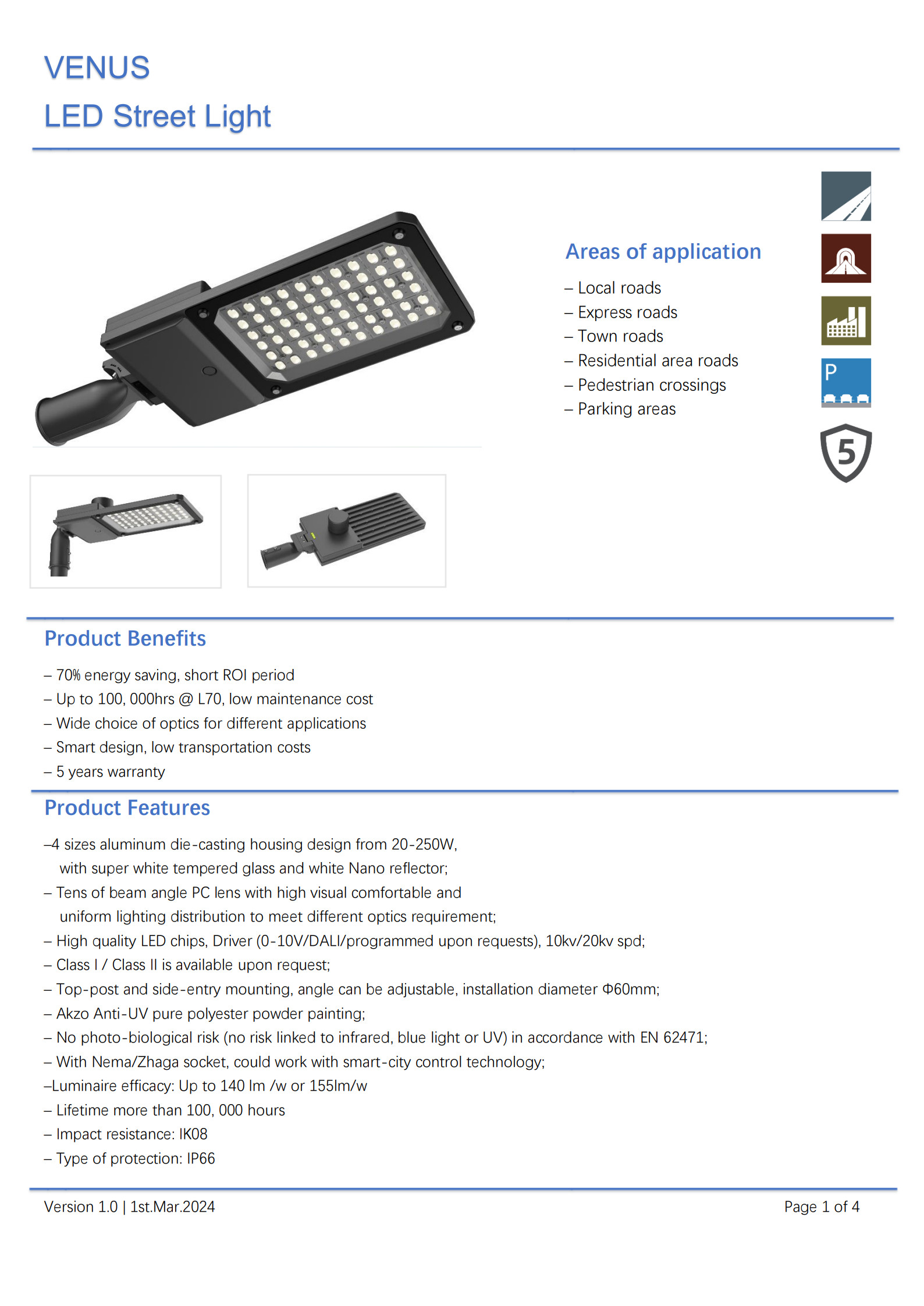

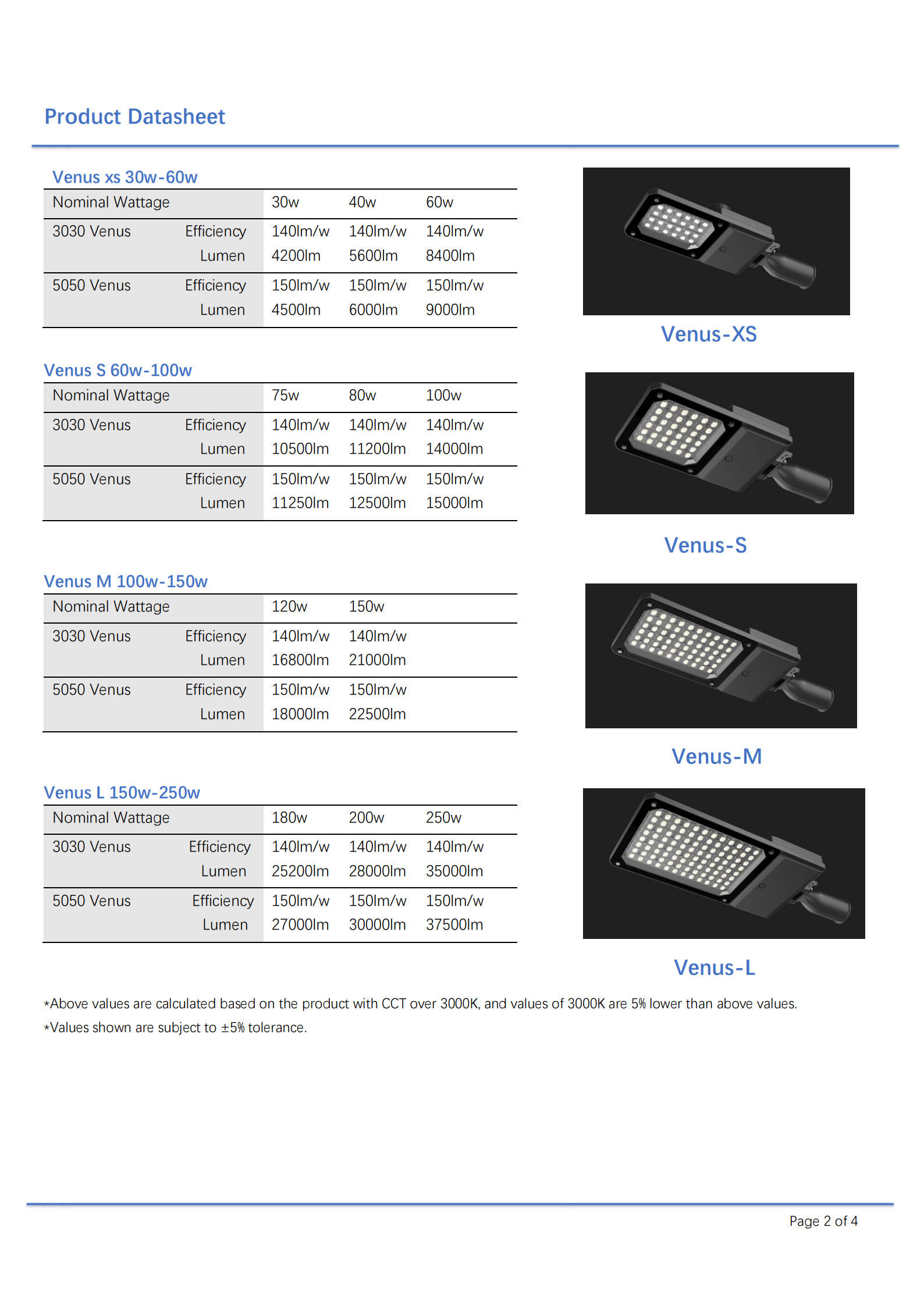

VENUS Glass diffuser_4 VENUS Glass diffuser_3 VENUS Glass diffuser_1 VENUS Glass diffuser_2

Model No:	VENUS-GLASS
Power:	30w.40w,60w,75w,80w,100w,120w,150w,180w,200w,250w
Led:	Lumileds /Other brands on request
Driver:	Philips / Inventronics / moso / Other brands on request
Power Factor:	>0.95
THD:	<15
SPD:	10KV / 20KV
Optics:	T1,T2,T3,T4,T5
Standard Deviation of Color Matching:	<5 SDCM
CRI:	Ra>70 (Default) / Ra>80(available on request)
CCT:	2200K,3000K, 4000K, 5000K, 5700K,6500K
Body Material:	High pressure die-cast aluminum
Housing Color:	Available on request
Cover Material:	Super white tempered glass
Lens Materials:	UV-resistant Polycarbonate
Working Environment:	40°C ~ +50°C, 10%～90%RH
Lifespan L70 at 25 °C:	>100, 000 h
Dimmable:	Non-dimming (Default) /1-10v(available on request)
Protection Class:	Class I (Default) /Class II
Available on reques：	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor,NTC, OLC, Solar Compatible, 1-10V/DALI Dimming
