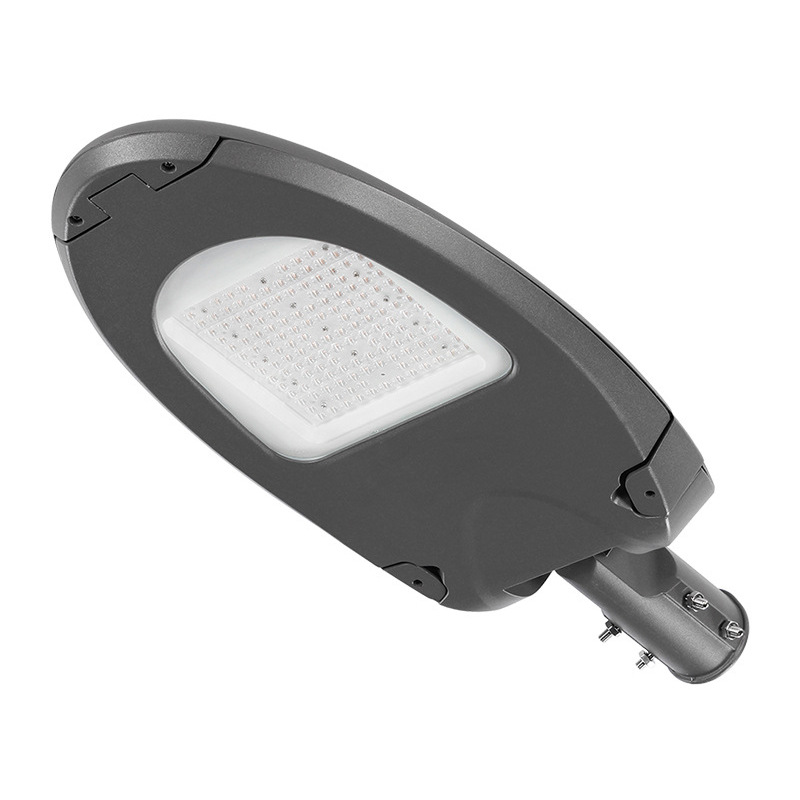

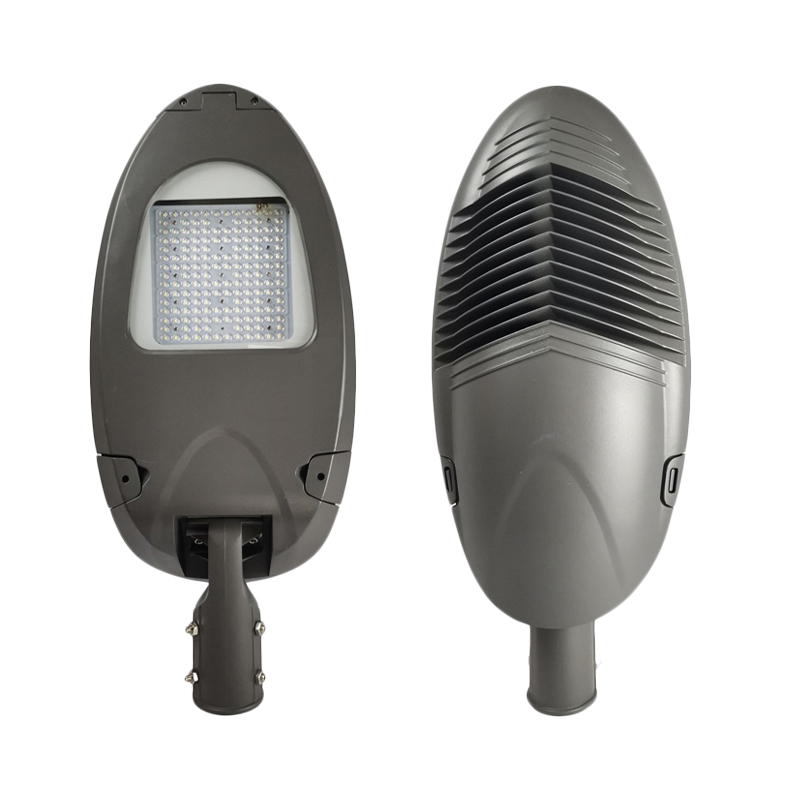

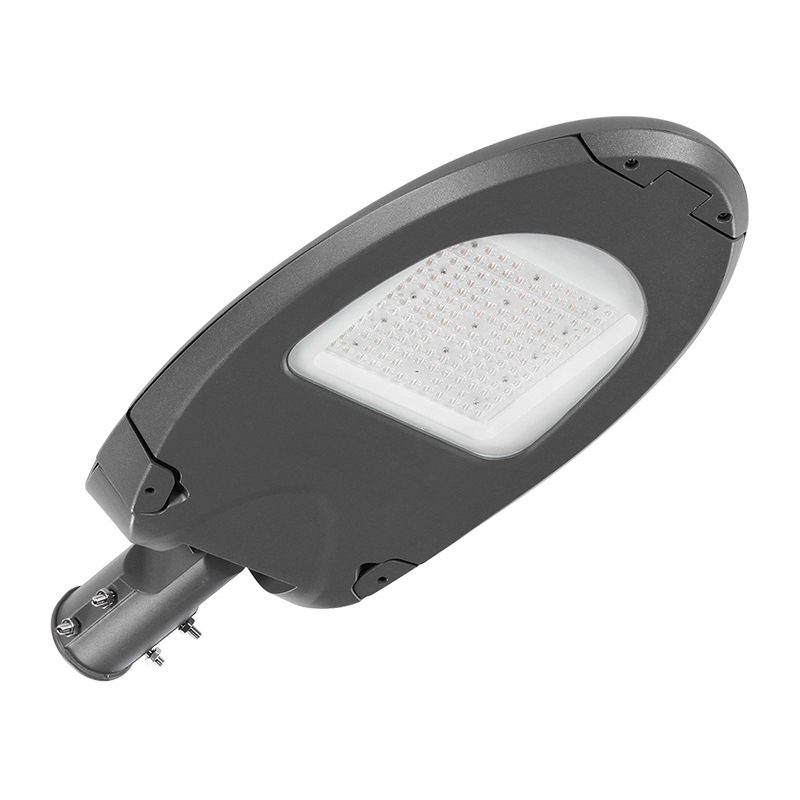

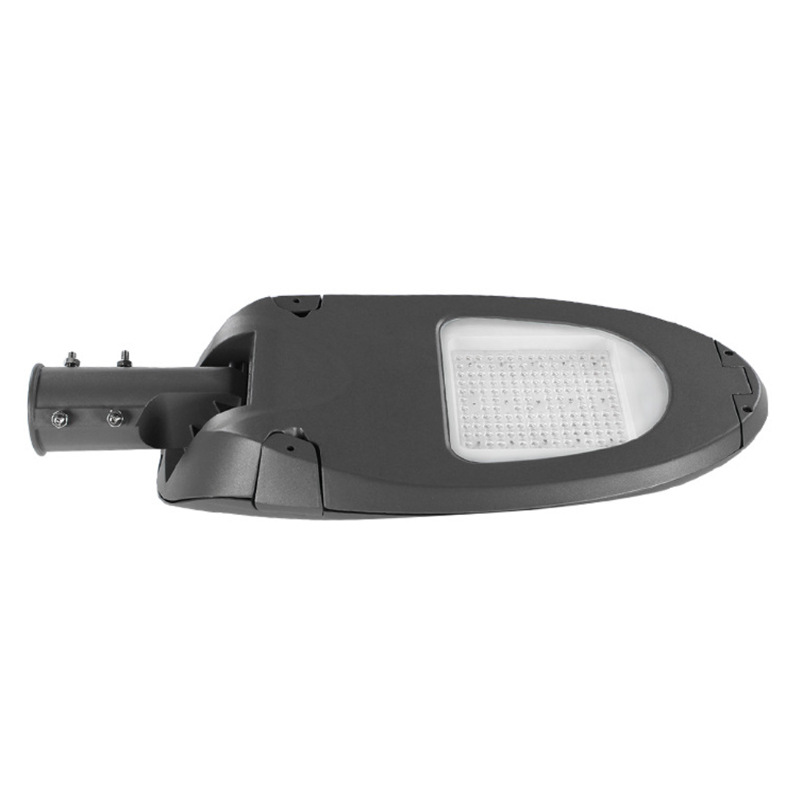

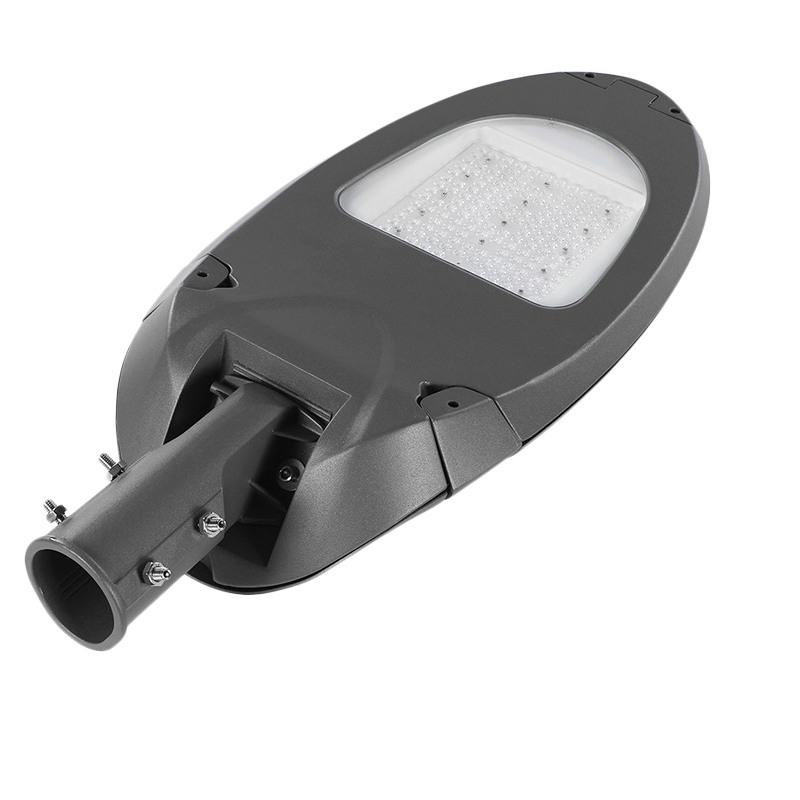

Led Street Light OYLS-188

Features:
-1.Independent research and development.
2.Modern streamline shape, less wind resistance and typhoon resistance;
3.90% aluminum is involved in heat dissipation, the effective area is significantly increased, and it can reach IP66 waterproof level;
4.1 buckle on the top to open the back cover without tools to open the power supply cavity, which can be maintained with electricity check the power supply and the internal controller, which is more convenient for disassembly and maintenance,
5.There are NEMA and ZHAGA interfaces on the top and the ZHAGA interfaces on the bottom, which can add radar motion sensor and photocell control system,
6.The arm of the lamp holder can be adjusted by up-down 15 degrees, and it can be installed vertically at 90 degrees;

Product Model	OYLS-188
Input Voltage /Frequency	AC110-240V 50/60Hz
Input current	0.41A	0.55A
Total Power	30w/40w/60w/80w/100w/120w/150w/200w/240w
LED Model	CREE
LED Quantity	40pcs	54pcs
Light Efficiency	130lm/w	130lm/w
Luminous Flux	7800-19500lm
LED Color temperature	4000K/5000K/5700K(±300K)
Color Rendering Index(CRI)	Ra≥65
Light Distribution	Type II short
Operating Temperature	- 40 ℃ ~ 45 ℃
Operating Humidity	10 % ~ 90 % RH
Storage Temperature	-20 ℃ ~ 40 ℃
Lifespan	30,000 Hrs
Shell Material	Aluminum+PC+Class
IP Rating	IP66
Pole Diameter Size	60mm/76mm
Adjustable angle ( Vertical/ level)	±15°
Mounting Height	6m	8m
Maximum projected area subjected to wind force	0.21mm²
Dimension	A:830*385*165MM   B:775*305*134MM
Packing Dimension	780×350×215mm
Net Weight	7.0±0.2Kg
Total Weight	7.5±0.2Kg
