Features:

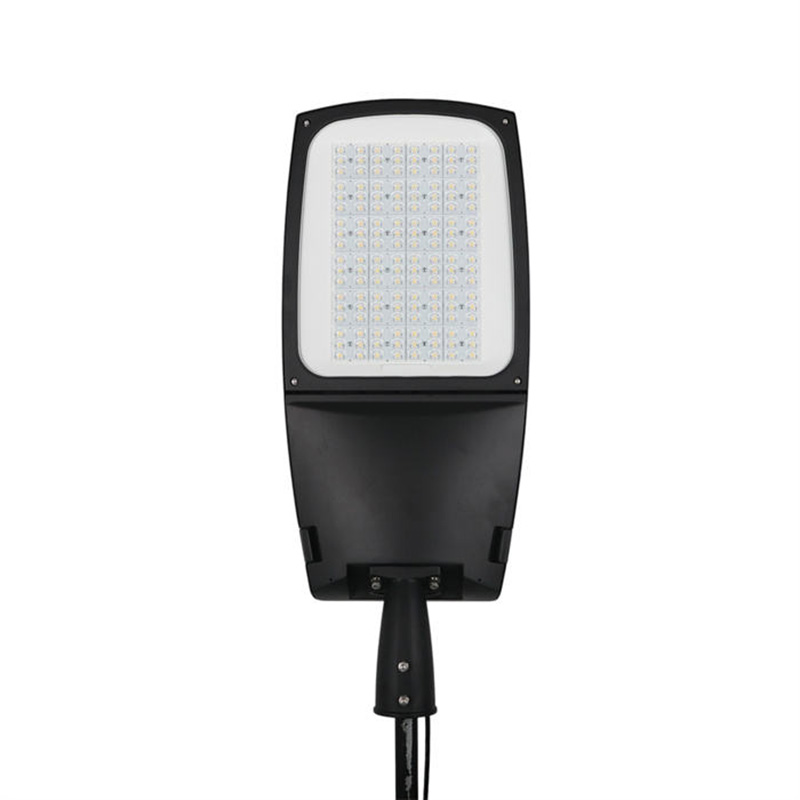

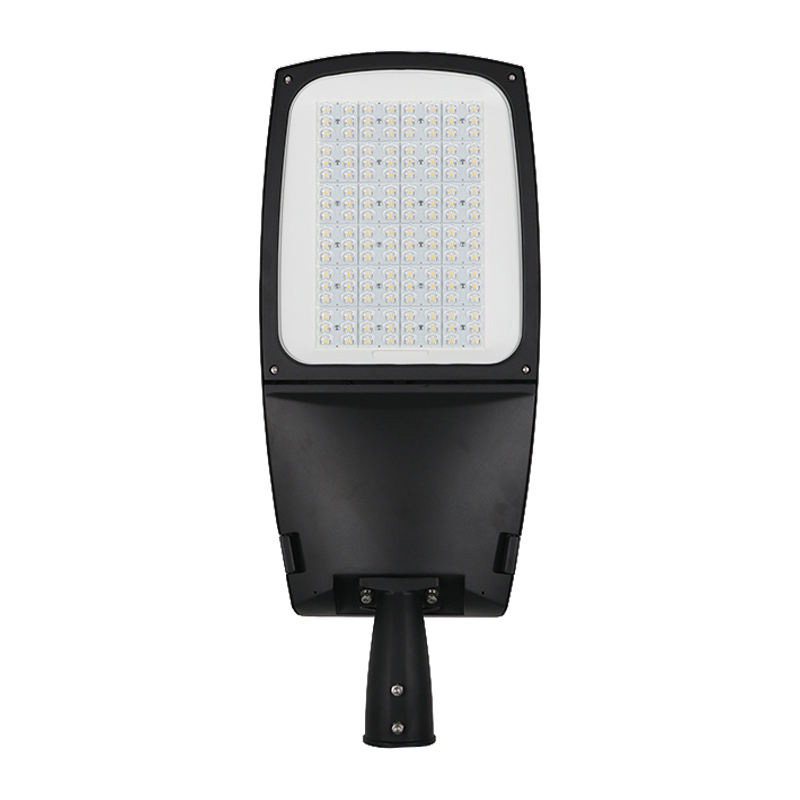

- 5 sizes aluminum die-casting housing design from 40-240w with super white tempered glass and white Nano reflector.
- New excellent thermal radiation and build-in imported breather design,outstanding for lower lighting decay.

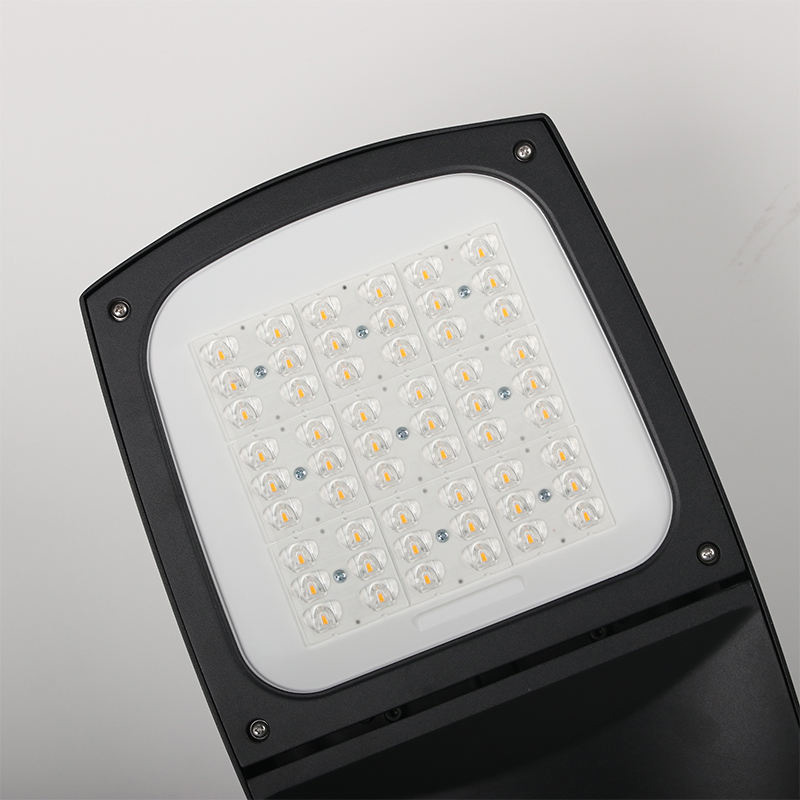

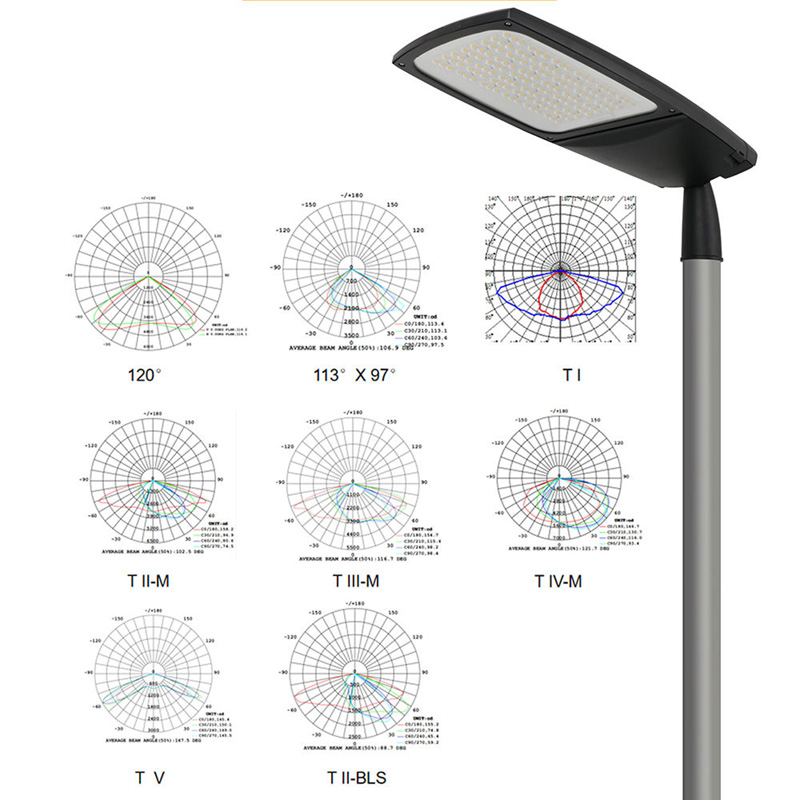

- Tens of beam angle PC lens with hiah visual comfortable and uniform lighting distribution to meet different optics requirement.

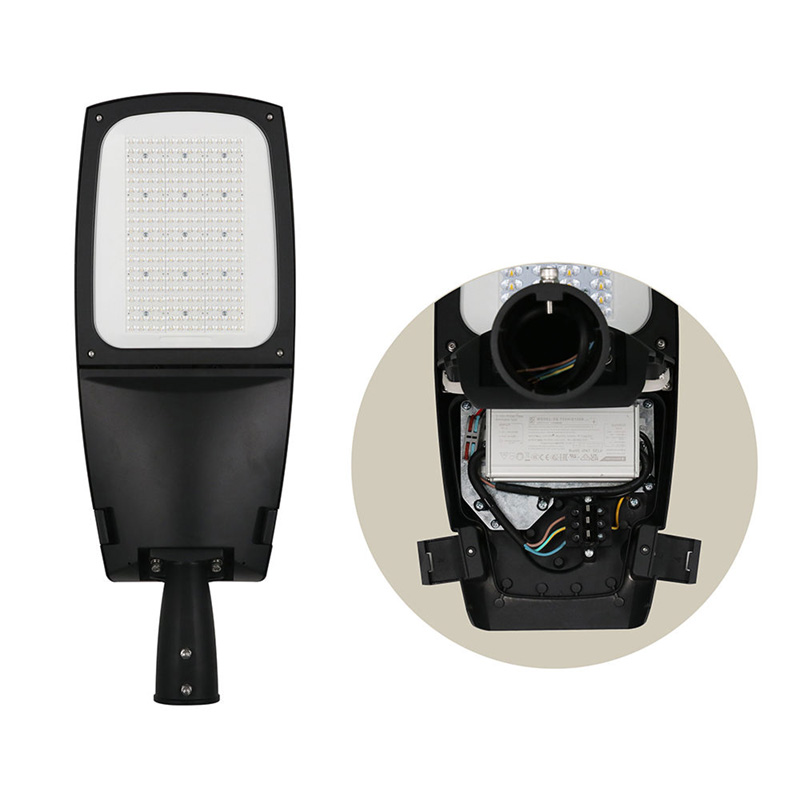

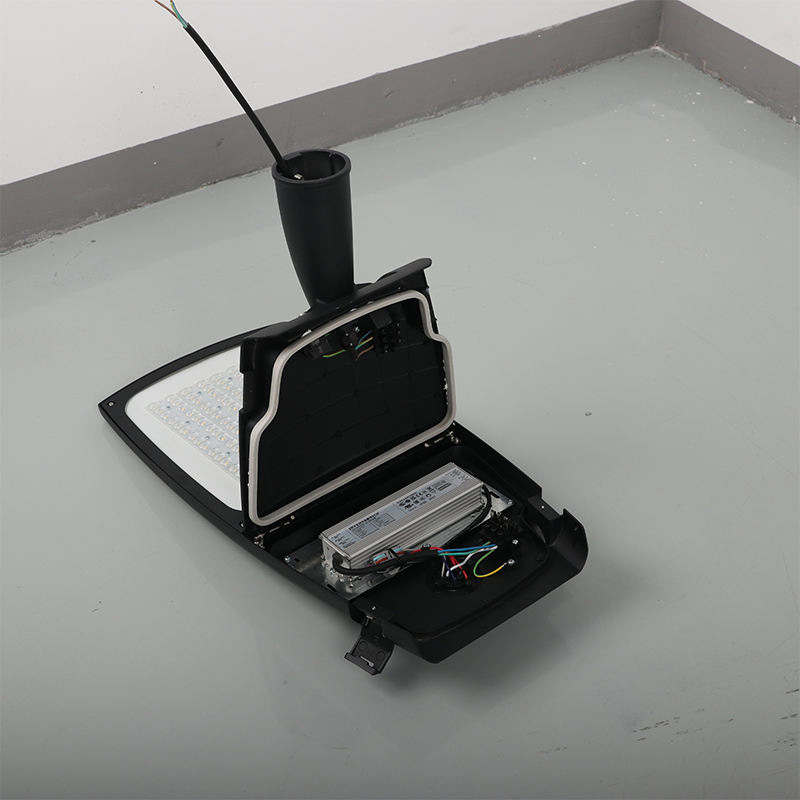

- High quality LED chips, Driver (0-10v/DALI/programmed upon requests), 10kv/20kv spd.
- Class I/Class II is available upon request.

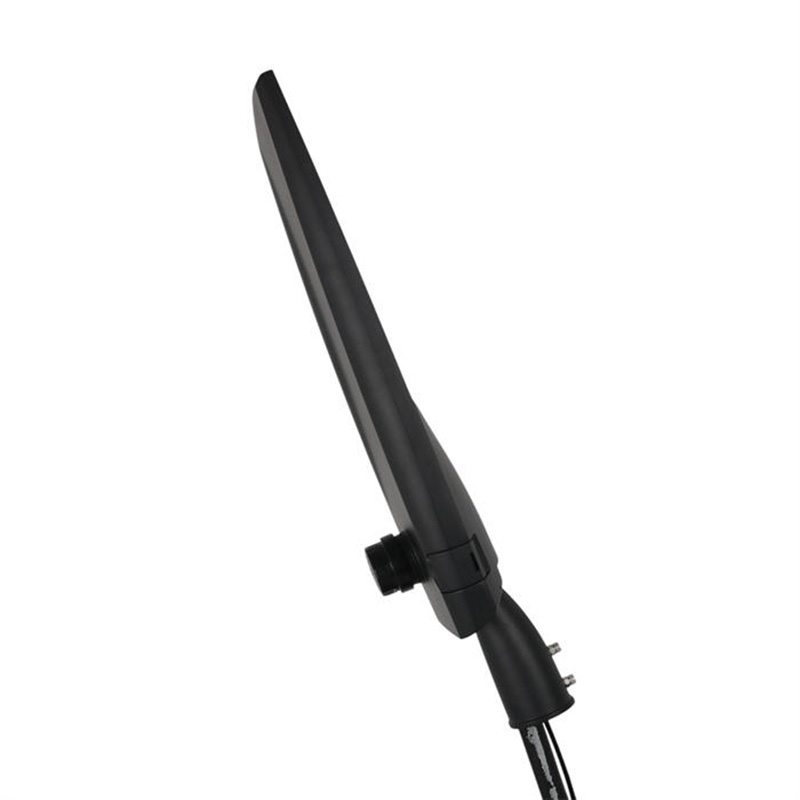

Top-post and side-entry mounting, angle can be adjustable,installation diameter Φ60mm.
- Akzo Anti-uv pure polyester powder painting.
- No photo-biological risk(no risk linked to infrared, blue light or UV) in accordance with EN 62471.

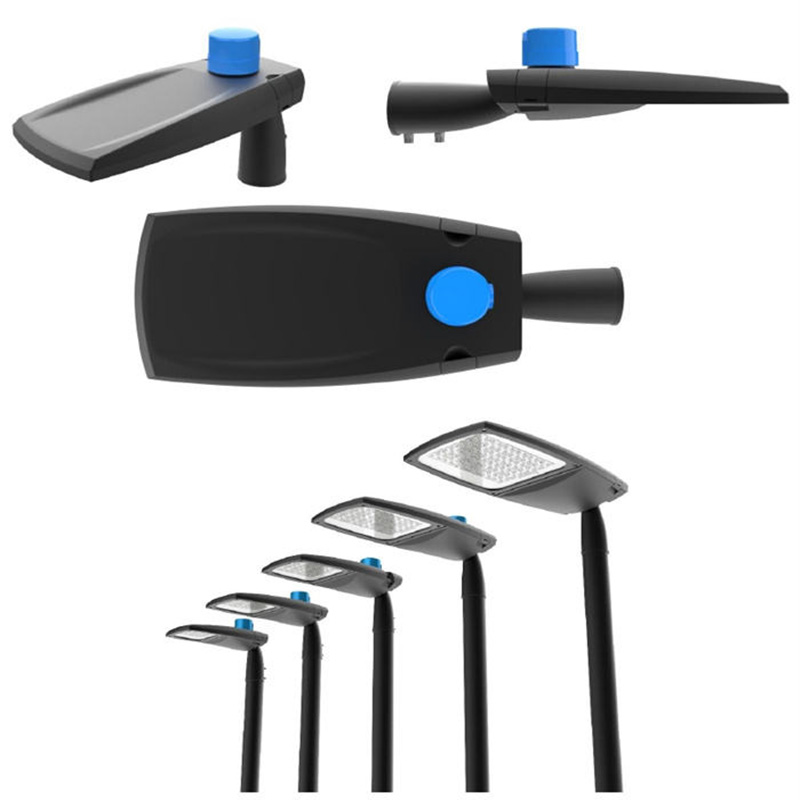

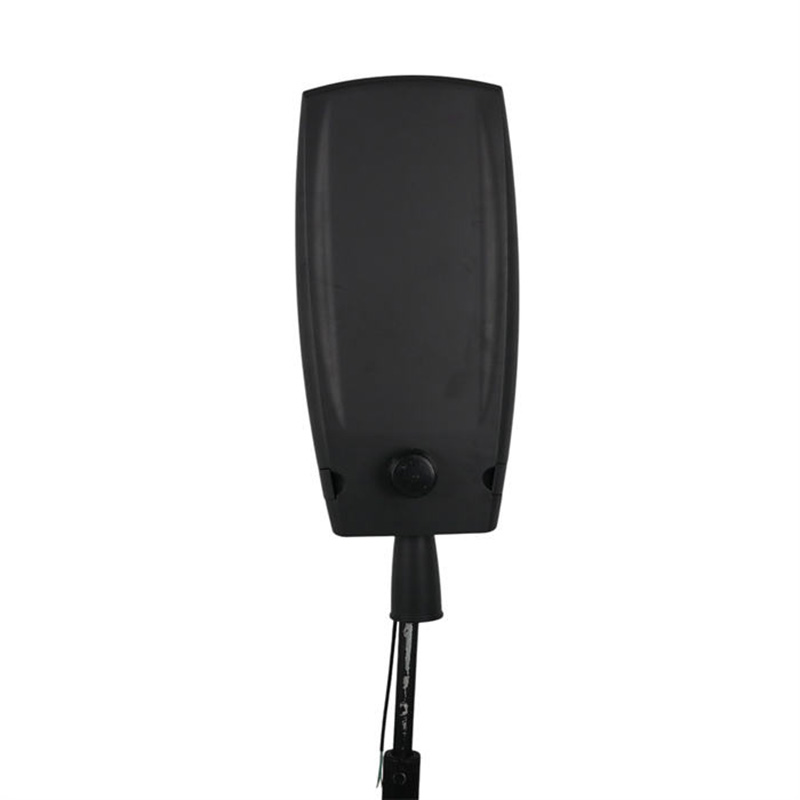

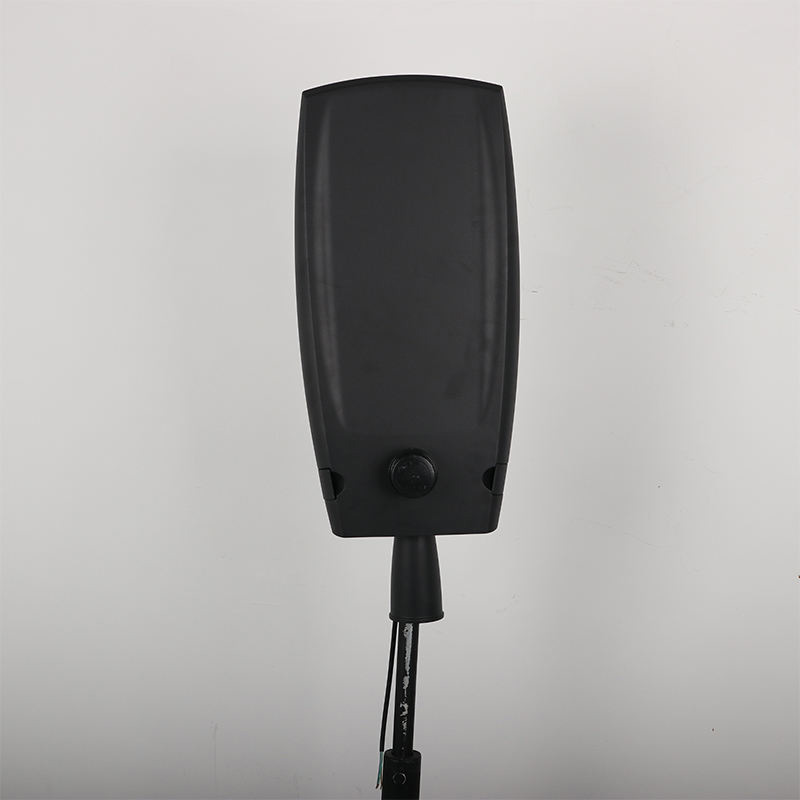

- With Nema/Zhaga socket
Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen (lm/W) | CRI |
OYLS-08-30W | 30 | | 64/24 | 4 | | | |
OYLS-08-40W | 40 | 64/32 | 4 |
OYLS-08-50W | 50 | 64/24，96/36 | 4/6 |
OYLS-08-60W | 60 | 96/48 | 6 |
OYLS-09-80W | 80 | 144/54 | 9 |
OYLS-09-100W | 100 | 144/54 | 9 |
OYLS-09-120W | 120 | 216/72 | 9 |
OYLS-09-150W | 150 | 240/90 | 15 |
OYLS-09-180W | 180 | 240/90 | 15 |
OYLS-09-200W | 200 | 240/90 | 15 |
OYLS-09-240W | 240 | 320/120 | 20 |
OYLS-09-300W | 300 | 384/144 | 24 |
