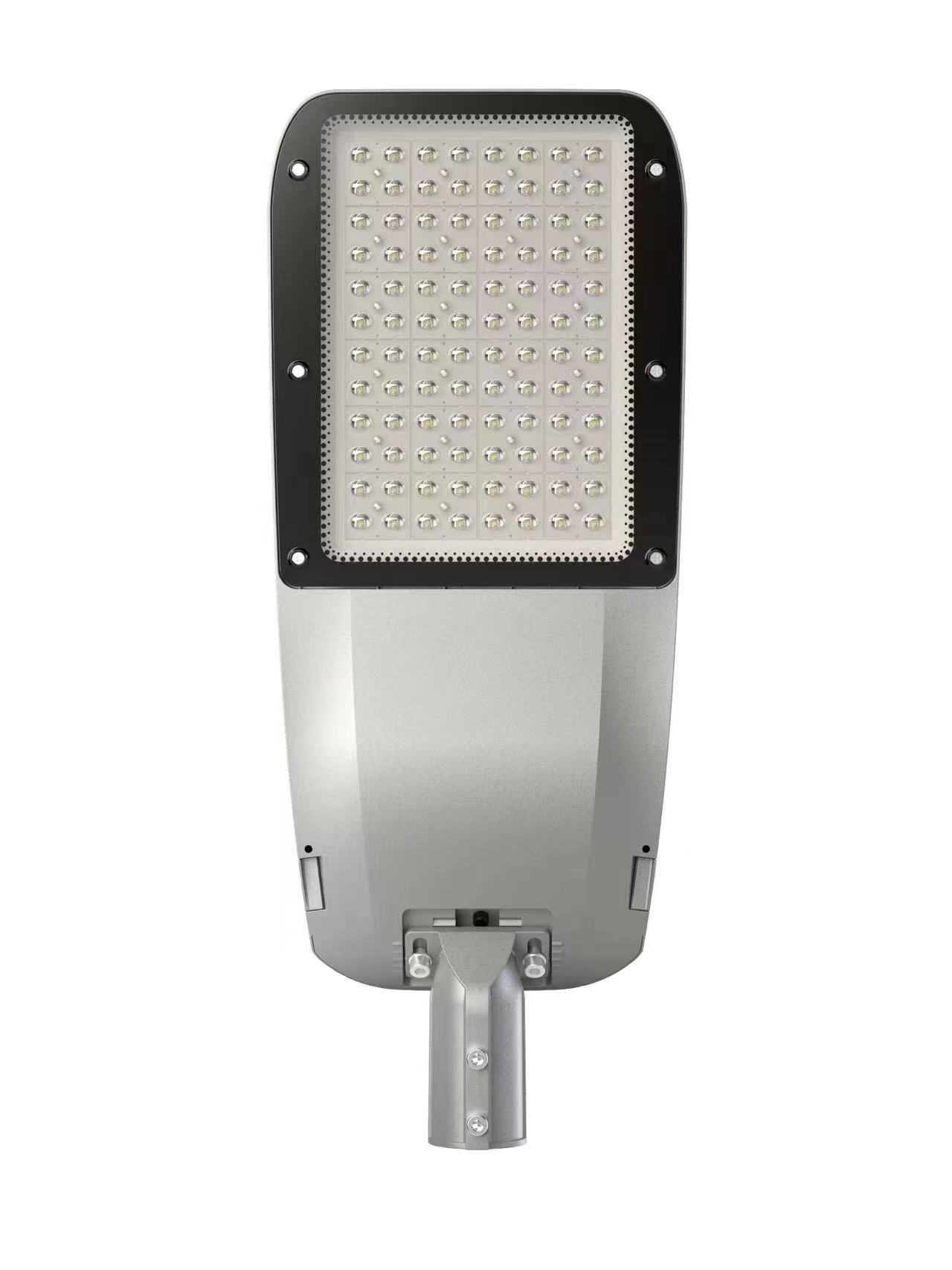

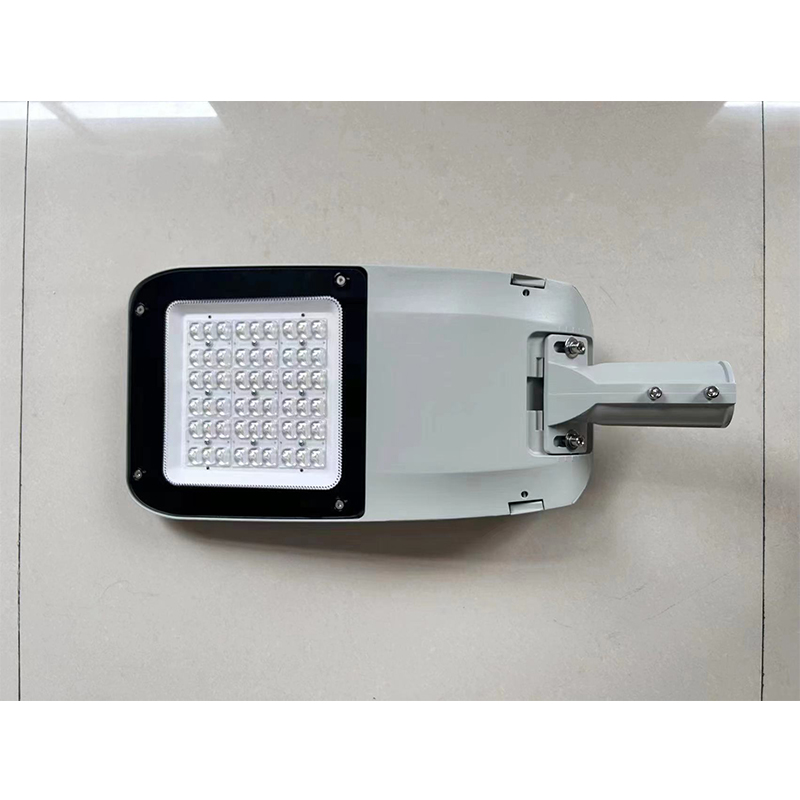

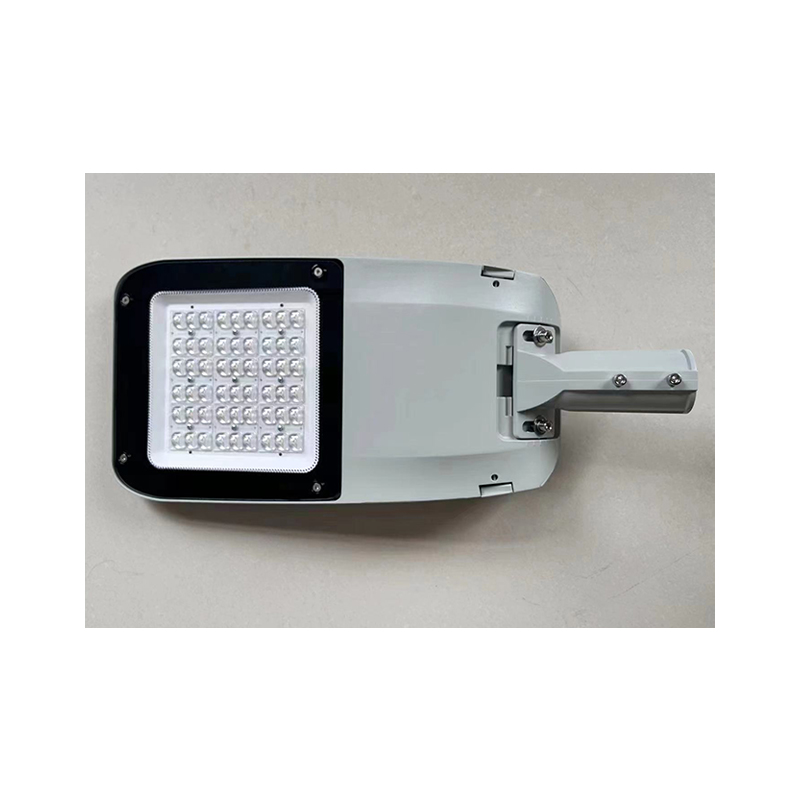

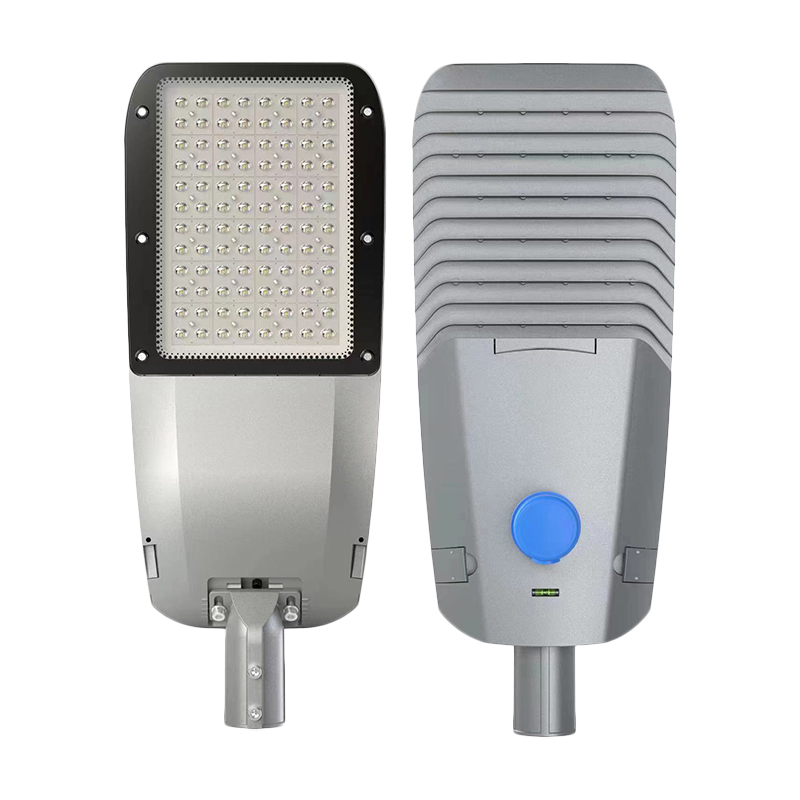

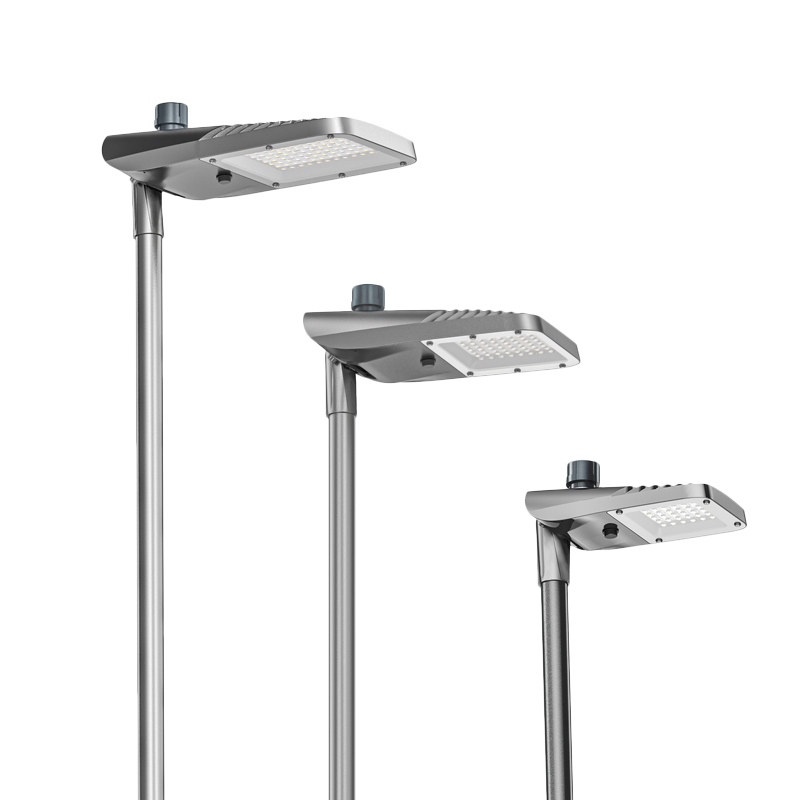

Led Street Light Model SELENE

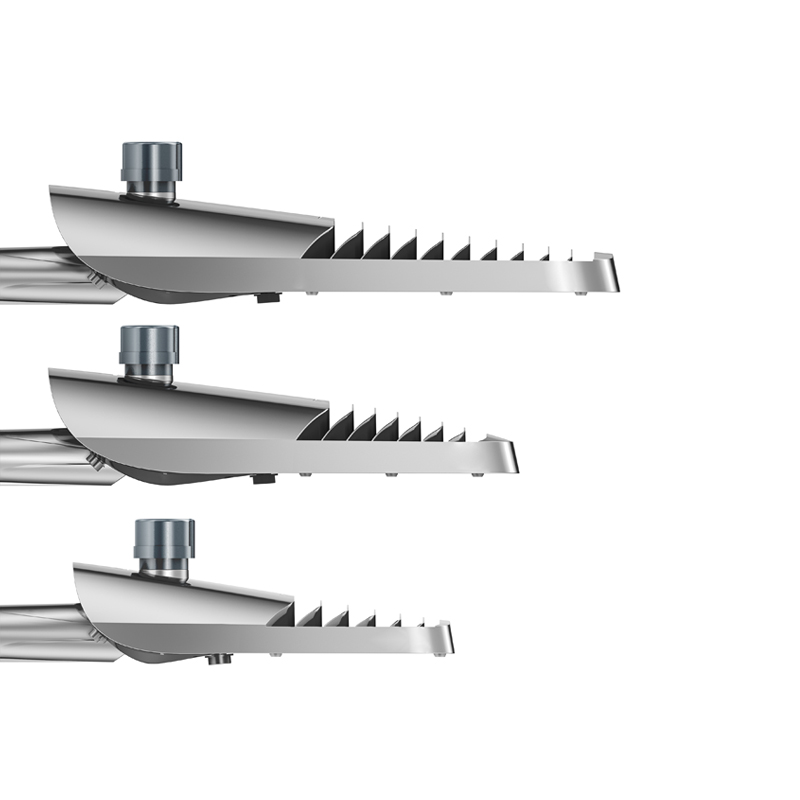

- 2 sizes aluminium die-casting housing design from 20-300w,with super white tempered glass and white Nano reflector.
- Tens of beam angle PC lens with high visual comfortable and uniform lighting distribution to meet different optics requirement.
- High quality LED chips,Driver(0-10V / DALI / programmed upon requests),10kv/20kv spd. - Class I /Class II is available upon request.
-Top-post and side-entry mounting,angle can be adjustable,installation diameter Φ60mm.
- Akzo Anti-UV pure polyester powder
painting.
- No photo-biological risk(no risk linked to infrared,blue light or UV) in accordance with EN 62471. - With Nema/Zhaga

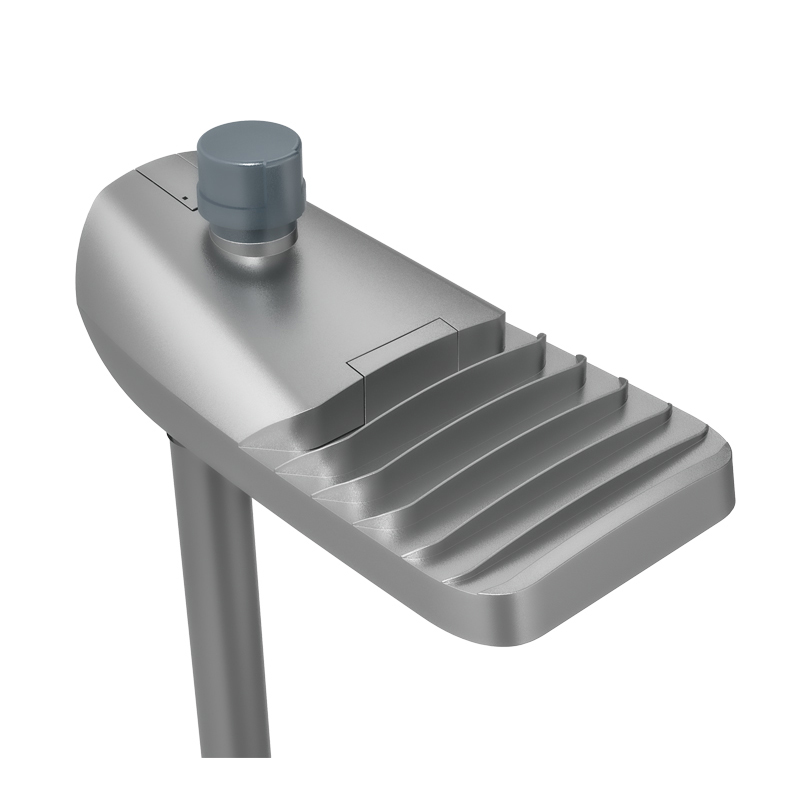

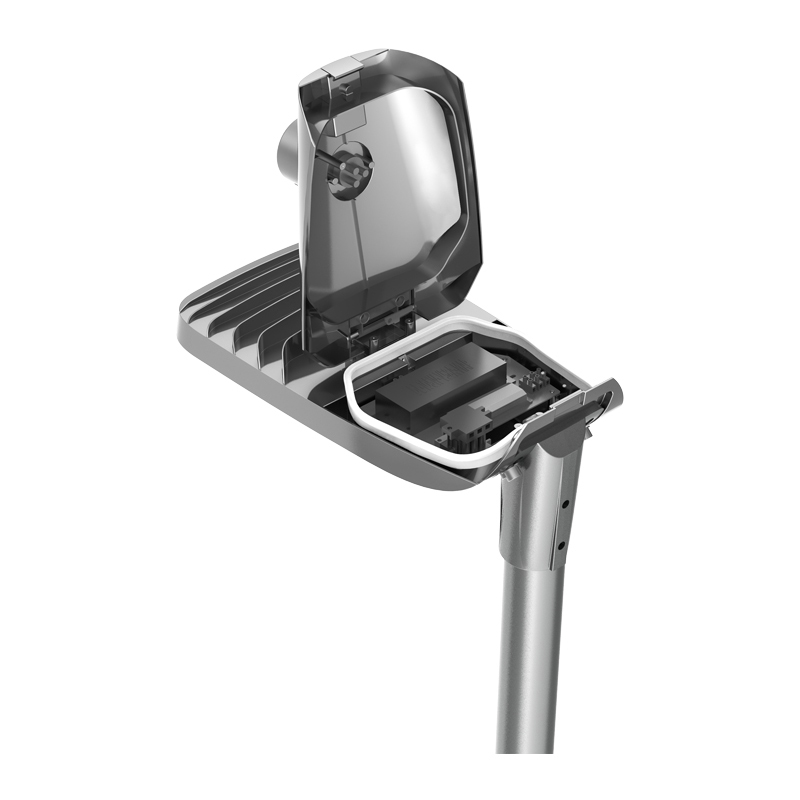

socket,could work with smart-city control. - Tool free maintenance.

sunny@nboyate.com

whatsapp:0086 15888595371

Description

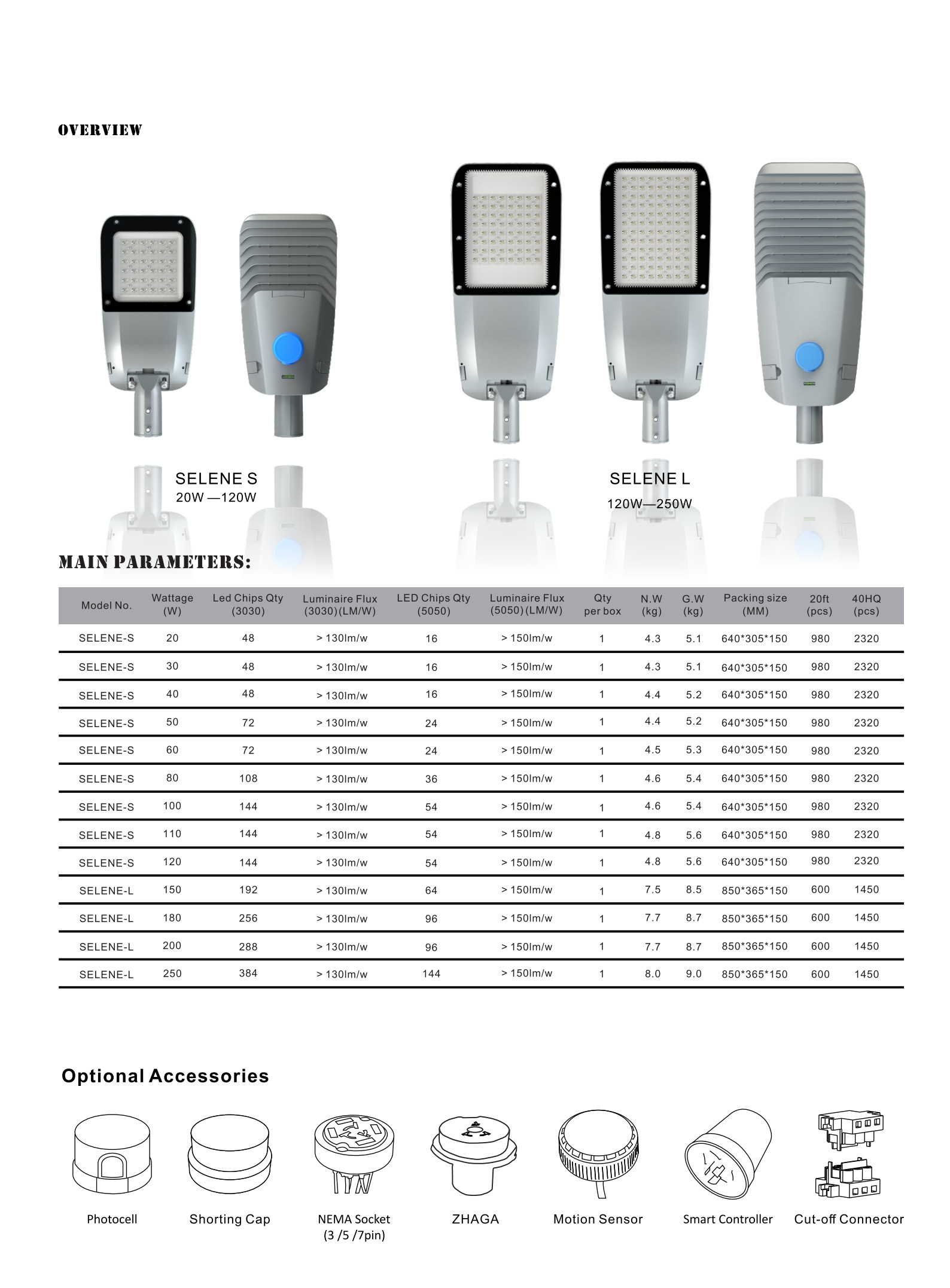

Item No	Power	Led Chips quantity(pcs）	Luminous Efficiency	N.W(kgs)	G.W(kgs)	CCT	IP	IK
SELENE	20W	48	130/150lm/w	4.3	5.1	2700-6500k	66	08
	30W	48	130/150lm/w	4.3	5.1	2700-6500k	66	08
	40w	72	130/150lm/w	4.4	5.2	2700-6500k	66	09
	50w	72	130/150lm/w	4.4	5.2	2700-6500k	66	09
	60w	108	130/150lm/w	4.5	5.3	2700-6500k		09
	80w	144	130/150lm/w	4.6	5.4	2700-6500k	66	09
	100w	144	130/150lm/w	4.8	5.6	2700-6500k	66	09
	120w	144	130/150lm/w	4.8	5.6	2700-6500k	66	09
	150w	192	130/150lm/w	7.5	8.5	2700-6500k	66	09
	180w	256	130/150lm/w	7.7	8.7	2700-6500k	66	09
	200w	288	130/150lm/w	7.7	8.7	2700-6500k	66	09
	250w	384	130/150lm/w	8.0	9.0	2700-6500k	66	09

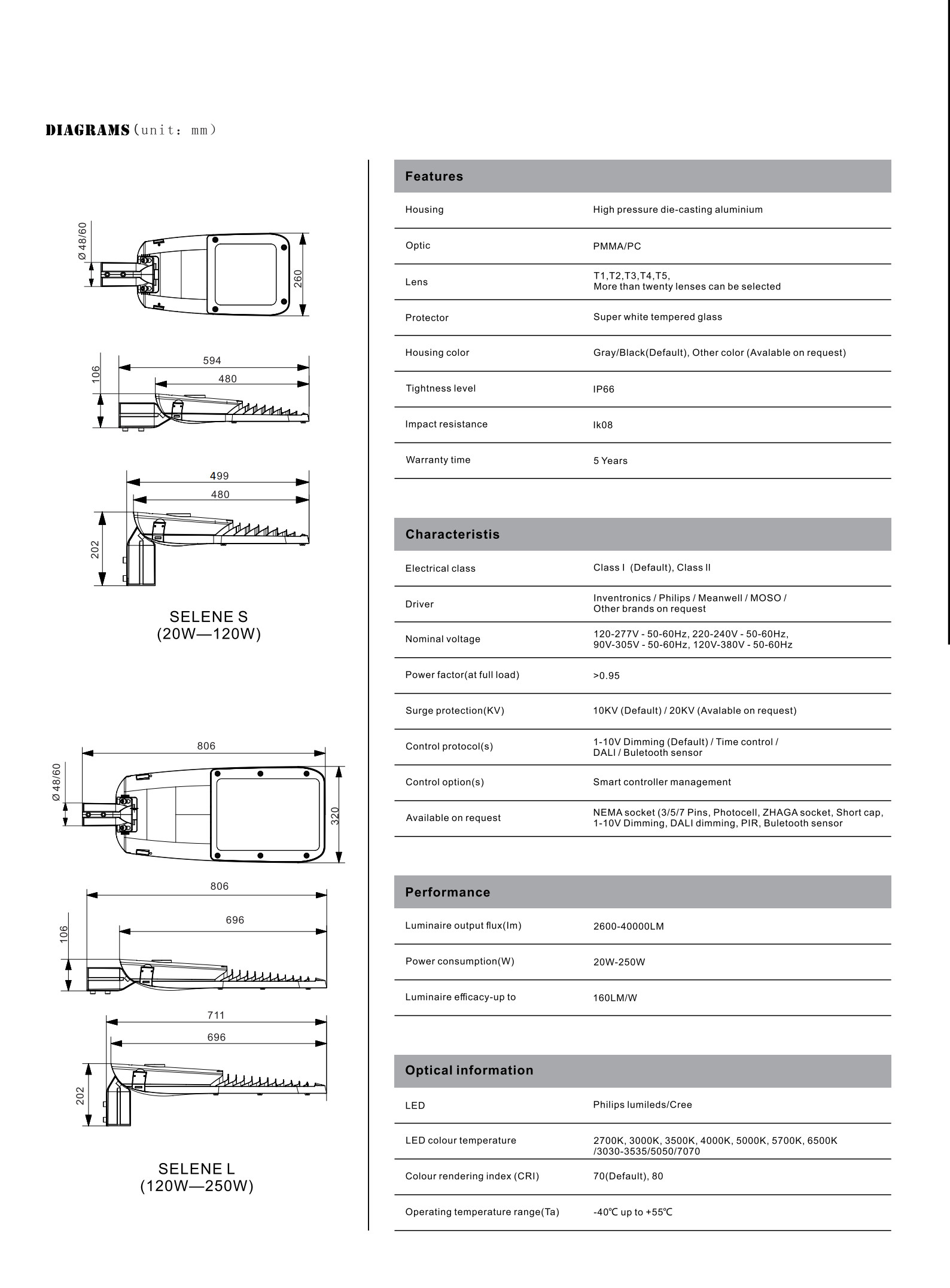

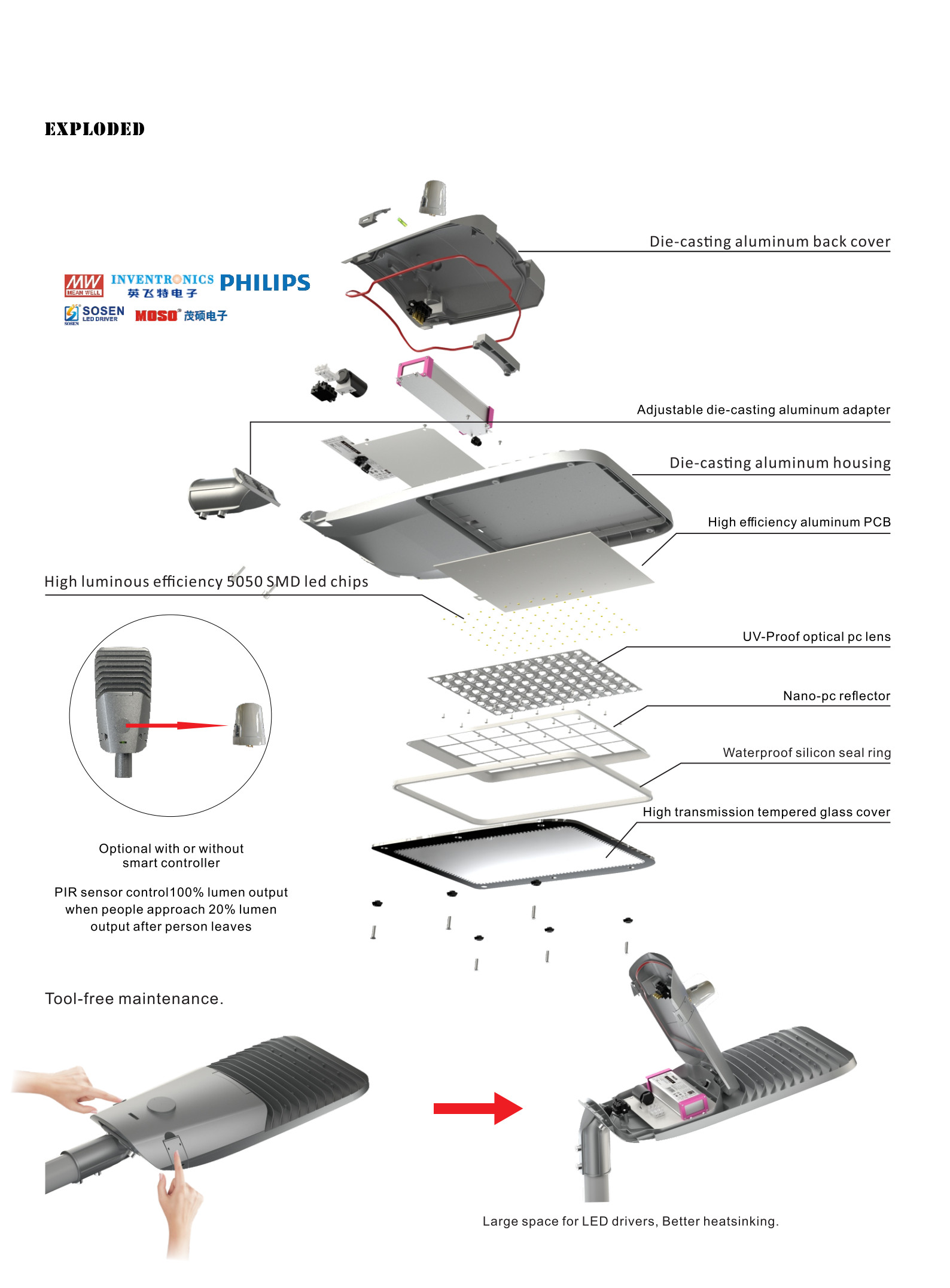

SELENE (2)_2 SELENE (2)_4 SELENE (2)_6 SELENE (2)_7 SELENE (2)_8 SELENE (2)_5 SELENE (2)_1
