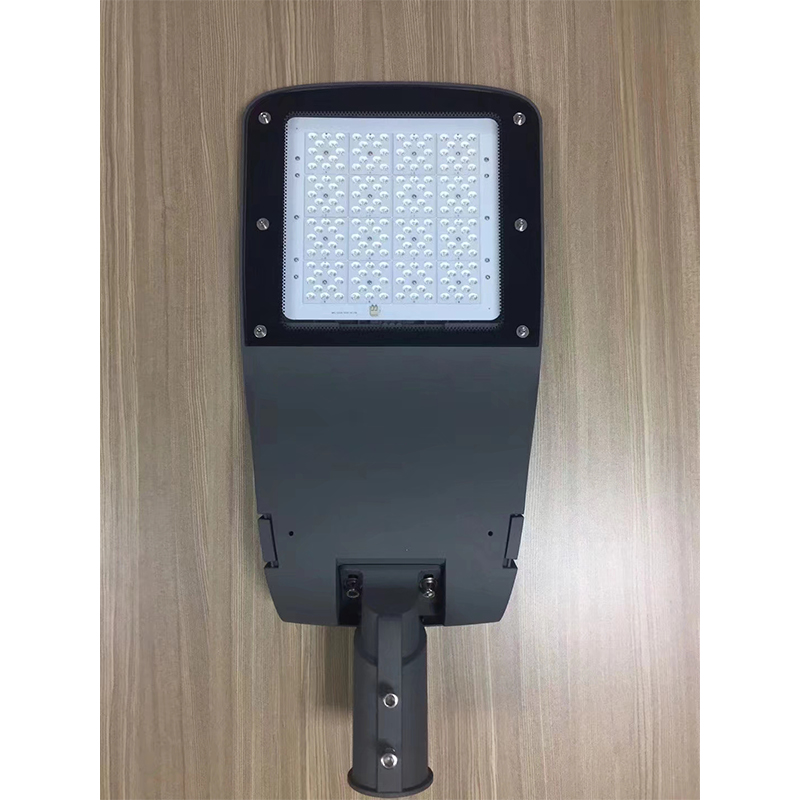

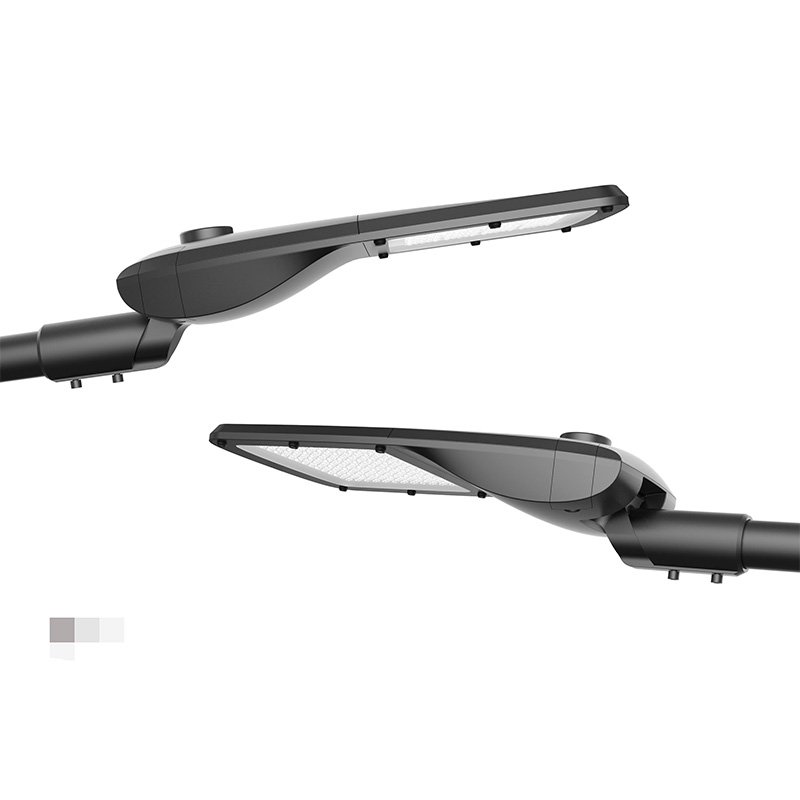

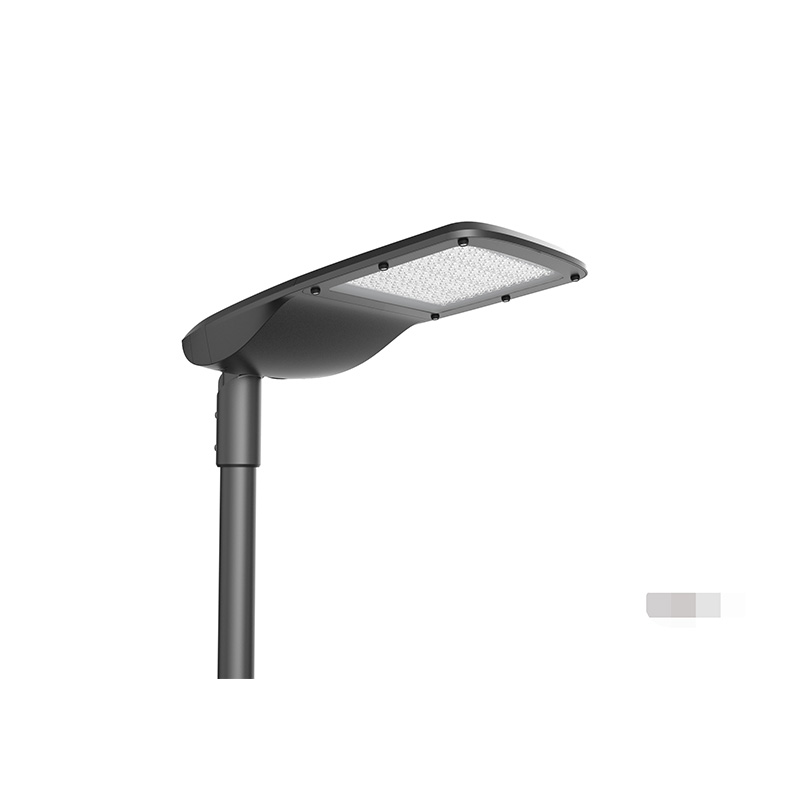

Led Street Light Model OYLS-2018

~3 Sizes moulds, available from 20-300W
~Excellent heat radiation, optical and electrical ability
~Die-cast aluminum body with pure polyester Electrostatic spray
~With 5mm super white toughened glass
~Silicon rubber seal ring
~Stainless screws
~Humanized design concept, easy to install and maintain
~lamps and lantern vertical installation and installed horizontally, adjustable angle 1. When vertical install led light, adjust angle is from 0~15° 2. When horizontal install led light, adjust angle is ±15

sunny@nboyate.com

whatsapp:0086 15888595371

Description

- 3 sizes aluminium die-casting housing design from 20-300w, with super white tempered glass.
- Tens of beam angle PC lens with high visual comfortable and uniform lighting distribution to meet different optics requirement.
- High quality Led Chips,driver(0-10v/DALI/Programmed upon request),10kv/20kv spd.
- Class I/Class II is available upon request.
- Top-post and side-entry mounting,angle can be adjustable,installation diameter Φ60mm.
- Akzo anti-uv pure polyester powder painting.
- No photo-biological risk（no Risk linked to infrared,blue light or UV) in accordance with EN62471.
- With Nema / Zhaga socket,Could work with smart-city control technology.
- Tool free maintenance.

Item No
Power
Led Chips
Luminous Efficiency
Luminous Flux
Optics
CCT
IP

2018-C
40w
3030/5050
130/150lm/w
5200/6000LM
T1/T2
2700-6500k
66
60w
3030/5050
130/150lm/w
7800/9000LM
T2/T3
2700-6500k
66
80w
3030/5050
130/150lm/w
10400/12000LM
T2/T3
2700-6500k
66
Item No
Power
Led Chips
Luminous Efficiency
Luminous Flux
Optics
CCT
IP

2018-B
120w
3030/5050
130/150lm/w
13000/15000LM
T2/T3
2700-6500k
66
180w
3030/5050
130/150lm/w
19500/22500LM
T2/T3
2700-6500k
66
200w
3030/5050
130/150lm/w
26000/30000LM
T2-T4
2700-6500k
66

Item No	Power	Led Chips	Luminous Efficiency	Luminous Flux	Optics	CCT	IP
2018-A	200w	3030/5050	130/150lm/w	27000/30000LM	T2-T4	2700-6500k	66
	250w	3030/5050	130/150lm/w	32500/37500LM	T2-T4	2700-6500k	66
	300w	3030/5050	130/150lm/w	39000/45000LM	T2-T4	2700-6500k	66
