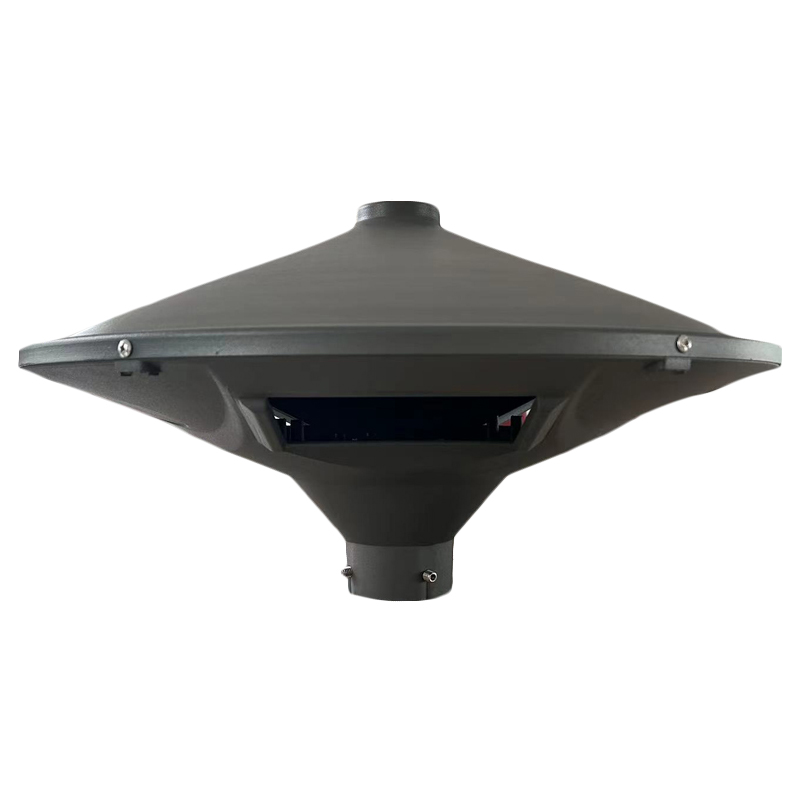

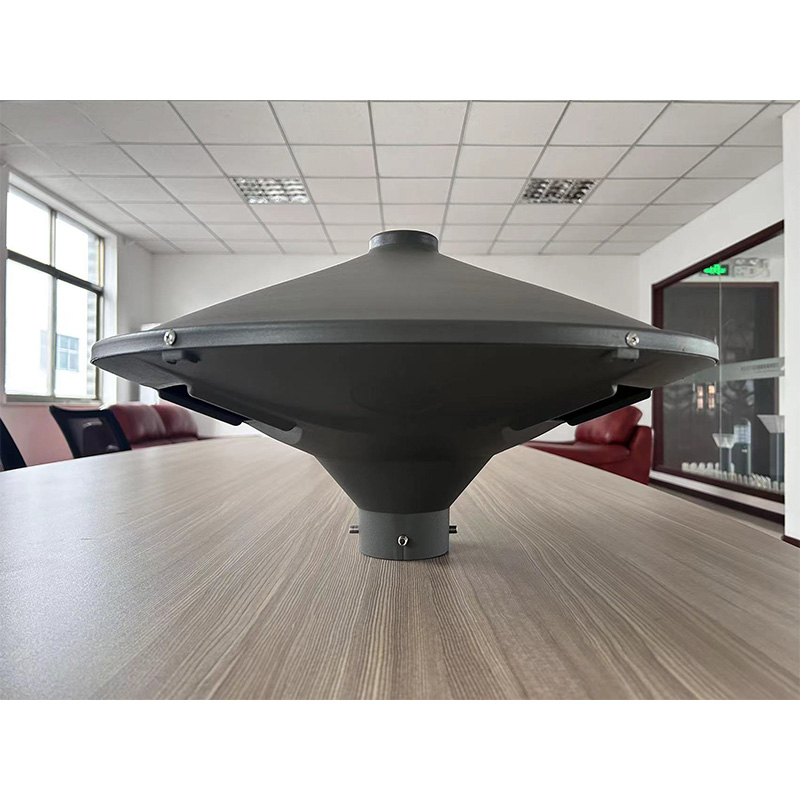

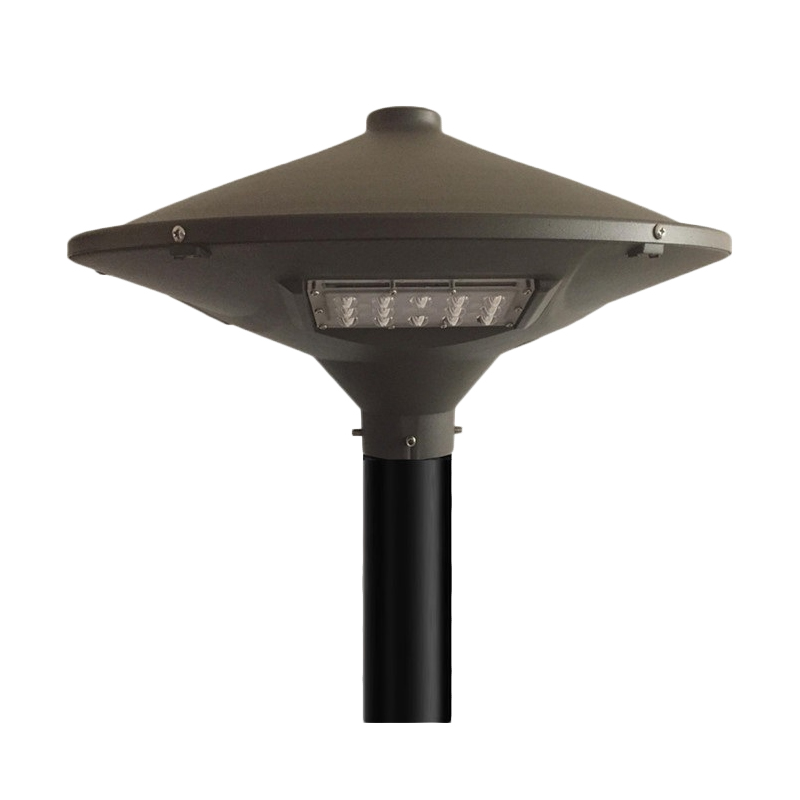

Led Street Light Model OYLS-1018

~available from 30W-60W
~Excellent heat radiation, optical and electrical ability
~Die-cast aluminum body with pure polyester Electrostatic spray
~With 5mm super white toughened glass
~Silicon rubber seal ring
~Stainless screws
~Humanized design concept, easy to install and maintain
~lamps and lantern vertical installation and installed horizontally, adjustable angle 1. When vertical install led light, adjust angle is from 0~15° 2. When horizontal install led light, adjust angle is ±15

sunny@nboyate.com

whatsapp:0086 15888595371

Description

Item No
OYLS-1018-30W
OYLS-1018-60W
Power
30W
60W
Luminaire Flux(LM)
3900
7800
Led Chips
Philips Led (other brand of led upon the request)
Luminaire Efficacy
130-150 LM/W
CCT
4000k (2700k-6500k upon the request)
CRI
70 (80 upon request)
Lifetime
108000H (at 25℃ ambient temperature)
Operating Temperature
-30℃-50℃
Driver
SOSEN/Meanwell/Inventronics (other brand of driver upon request)
Electrical
Class I /Input voltage:100-277VAC/50-60HZ;108-305VAC/50-60HZ;10KV-20KV SPD
Beam angle
TYPE II / TYPE III
Dimming
DALI / 1-10V / PWM / FIVE LEVELS DIMMING
Options
Surge protection device / External cable (different length upon request)
Color
Grey / White / Black (other color upon request)
Waterproof Level
IP65
Impact Resistance
IK08
Standards & Certification
ISO 9001:2015 / CE / ROHS

Item No	OYLS-1018-30W	OYLS-1018-60W
Power	30W	60W
Luminaire Flux(LM)	3900	7800
Led Chips	Philips Led (other brand of led upon the request)
Luminaire Efficacy	130-150 LM/W
CCT	4000k (2700k-6500k upon the request)
CRI	70 (80 upon request)
Lifetime	108000H (at 25℃ ambient temperature)
Operating Temperature	-30℃-50℃
Driver	SOSEN/Meanwell/Inventronics (other brand of driver upon request)
Electrical	Class I /Input voltage:100-277VAC/50-60HZ;108-305VAC/50-60HZ;10KV-20KV SPD
Beam angle	TYPE II / TYPE III
Dimming	DALI / 1-10V / PWM / FIVE LEVELS DIMMING
Options	Surge protection device / External cable (different length upon request)
Color	Grey / White / Black (other color upon request)
Waterproof Level	IP65
Impact Resistance	IK08
Standards & Certification	ISO 9001:2015 / CE / ROHS
