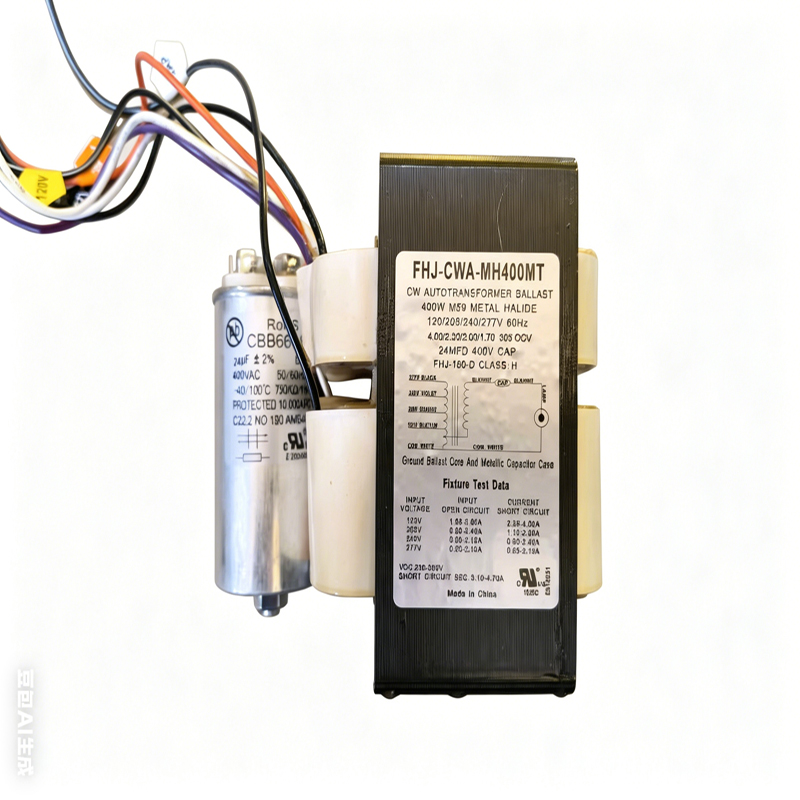

CWA Ballast MH 400W 120/208/240/277V UL listed
Contact Information:
Email: sunny@nboyate.com
Whatsapp: 0086 15888595371
Wechat: 0086 13065832566
| Item | Parameter | Specification |
|---|---|---|
| Basic Information | Model | FHJ-CWA-MH400MT |
| Lamp Type | 400W M59 Metal Halide (CWA Type) | |
| Input Voltage | 120/208/240/277V | |
| Frequency | 60Hz | |
| Regulation | Line Voltage | ±10% |
| Lamp Wattage | ±10% | |
| Electrical Performance | Power Factor (min) | 90% |
| Input Watts | 470W | |
| Nominal Open Circuit Voltage | 305V | |
| Line Current (Amps) | Operating | 4.00 / 2.30 / 2.00 / 1.70 |
| Open Circuit | 3.00 / 1.80 / 1.60 / 1.40 | |
| Starting | 3.43 / 3.38 / 3.35 / 3.28 | |
| Temperature Ratings | Insulation Class | Class H (180°C) |
| Temperature Code | B / C | |
| Min. Starting Temperature | -20°F (-30°C) | |
| Capacitor | Microfarads | 24µF |
| Voltage (min) | 400V | |
| Rated Temperature | 105°C | |
| High Potential Test | 1 Minute | 1600V |
| 1 Second | 2300V | |
| Secondary Circuit | Open Circuit Voltage | 270-330V |
| Shorted Current | 3.50-4.2A | |
| Input Current Range | Open Circuit Current | 2.00-4.0A / 1.10-2.2A / 0.90-1.9A / 0.80-1.7A |
| Short Circuit Current | 2.60-3.8A / 1.30-2.4A / 1.10-2.2A / 0.80-1.8A | |
| Core & Coil | Dimension A | 59mm |
| Dimension B | 110mm | |
| Weight | 5.20kg | |
| Coil Material (Pri./Sec.) | AL/AL | |
| Accessories | Ignitor | No Ignitor Required |
| Remark | Performance specifications are subject to change without notification. |
