CWA Ballast MH 1000W 120/208/240/277/480V UL listed
Contact Information:
Email: sunny@nboyate.com
Whatsapp: 0086 15888595371
Wechat: 0086 13065832566
| Item | Parameter | Specification |
|---|---|---|

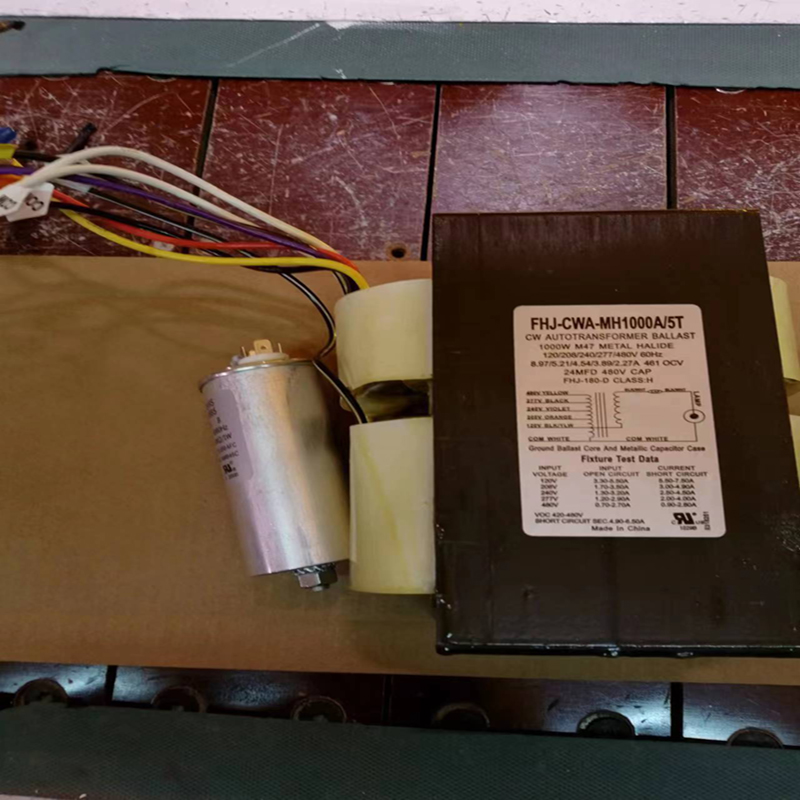

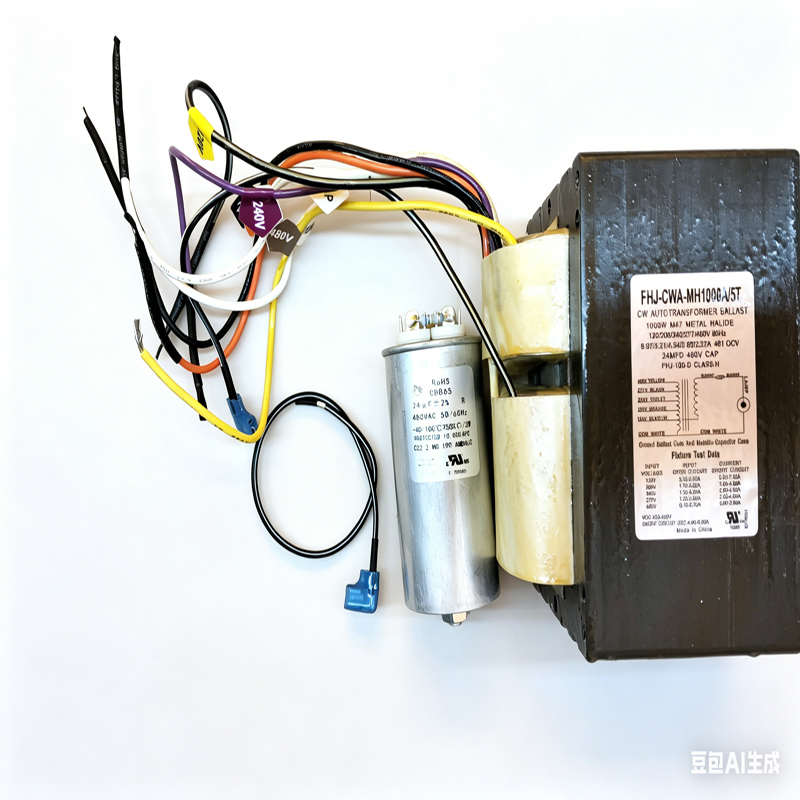

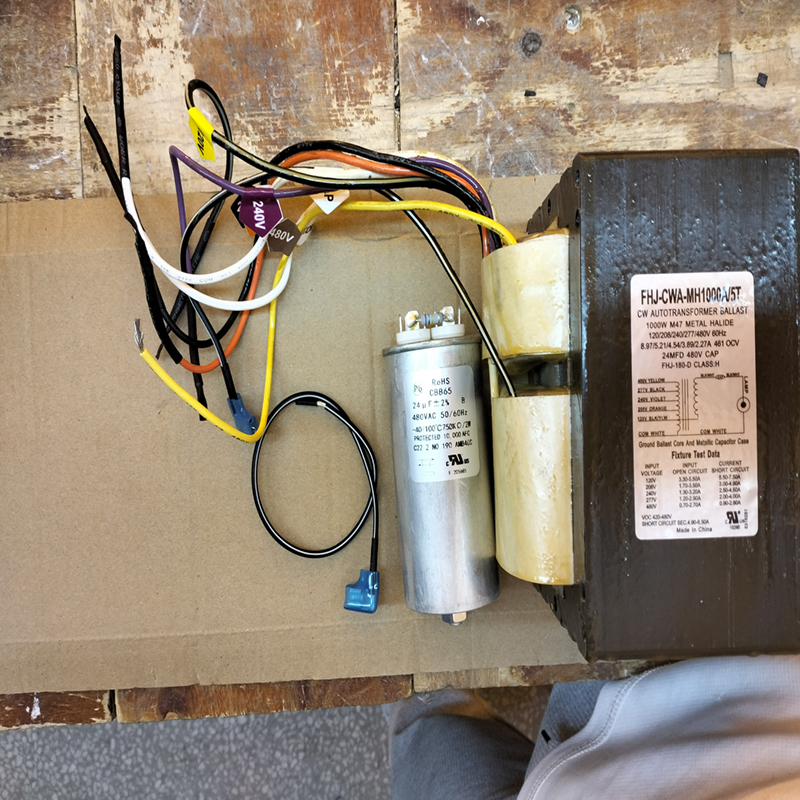

| Basic Information | Model | FHJ-CWA-MH1000/5T |
| Lamp Type | 1000W M47 Metal Halide (CWA Type) | |
| Input Voltage | 120/208/240/277/480V | |
| Frequency | 60Hz | |
| Regulation | Line Voltage | ±10% |
| Lamp Wattage | ±10% | |
| Electrical Performance | Power Factor (min) | 90% |
| Input Watts | 1080W | |
| Nominal Open Circuit Voltage | 450V | |
| Line Current (Amps) | Operating | 9.20 / 5.30 / 4.60 / 4.00 / 2.35 |
| Open Circuit | 4.20 / 2.60 / 2.30 / 2.00 / 0.95 | |
| Starting | 7.30 / 4.30 / 3.70 / 3.30 / 2.10 | |
| Temperature Ratings | Insulation Class | Class H |
| Temperature Code | E / F | |
| Min. Starting Temperature | -20°F (-30°C) | |
| Capacitor | Microfarads | 24µF |
| Voltage (min) | 480V | |
| Rated Temperature | 105°C | |
| High Potential Test | 1 Minute | 1600V |
| 1 Second | 2300V | |
| Secondary Circuit | Open Circuit Voltage | 400-500V |
| Shorted Current | 4.80-6.6A | |
| Input Current Range | Open Circuit Current | 3.50-6.3A / 1.80-3.0A / 1.50-2.8A / 1.40-2.6A / 0.50-1.7A |
| Short Circuit Current | 6.20-8.2A / 3.20-5.0A / 2.00-4.6A / 2.30-4.2A / 1.00-2.7A | |
| Core & Coil | Dimension A | 88mm |
| Dimension B | 140mm | |
| Weight | 9.80kg | |
| Coil Material (Pri./Sec.) | AL/AL | |
| Accessories | Ignitor | No Ignitor Required |
| Remark | Performance specifications are subject to change without notification. |
