Led High Bay Light OYLH-18

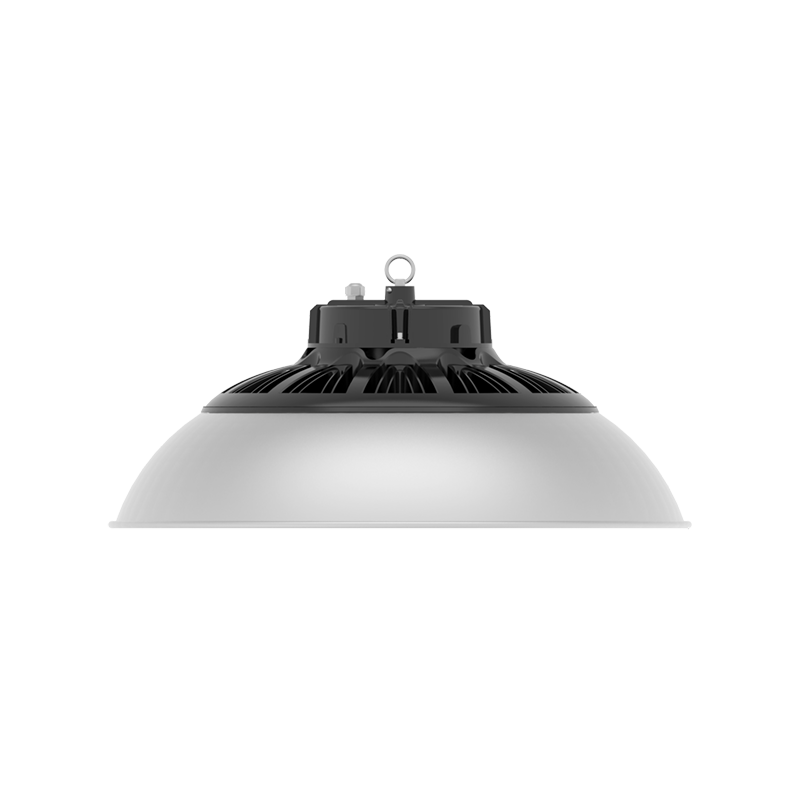

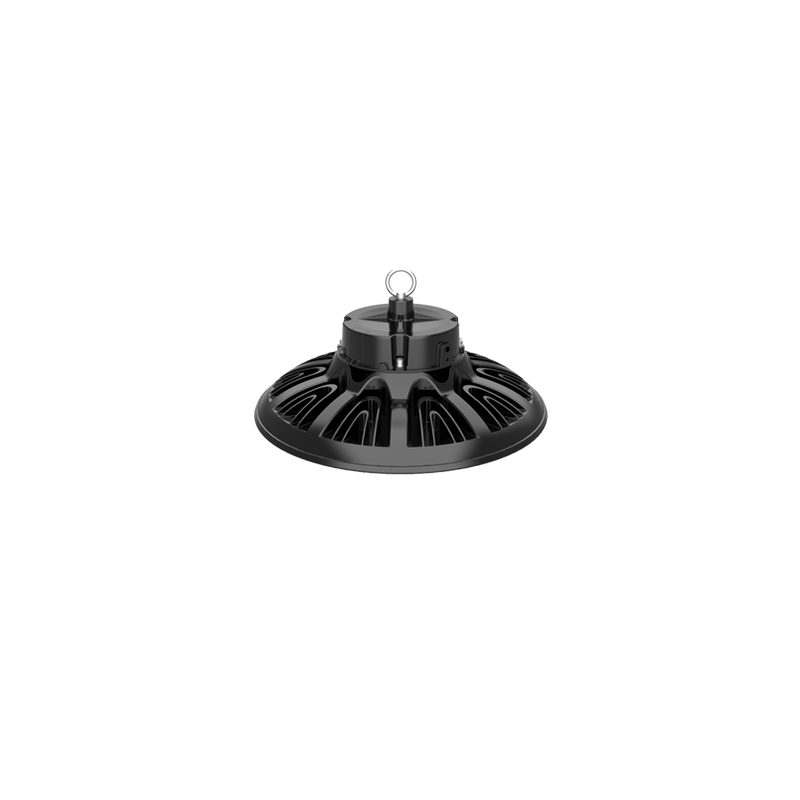

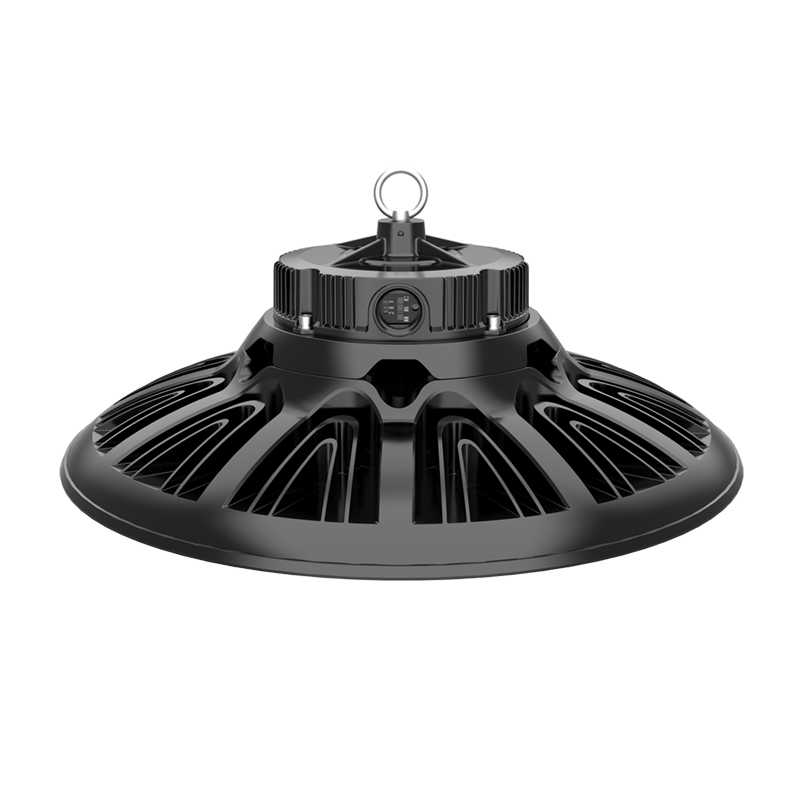

OYLH‑18 UFO LED High Bay Light

The OYLH‑18 UFO LED High Bay Light is a heavy‑duty, high‑performance industrial lighting fixture designed for large‑scale facilities, high‑bay warehouses, manufacturing plants, logistics centers, workshops, and commercial spaces. It offers an unmatched power range from 60W to 500W with flexible power and color temperature adjustment, superior thermal management, and strong protection for harsh working environments.

Key Features & Benefits

Full Power Range 60W–500W
Covers small to ultra‑high power applications, suitable for all mounting heights and lighting demands.
Power & CCT Selectable
Multi‑level power adjustment and 3‑CCT switching (3000K/4000K/5000K/5700K/6500K) for project flexibility and reduced inventory.
Ultra‑High Efficacy
Up to 150lm/W, 170lm/W, 190lm/W for maximum energy savings and bright, uniform illumination.

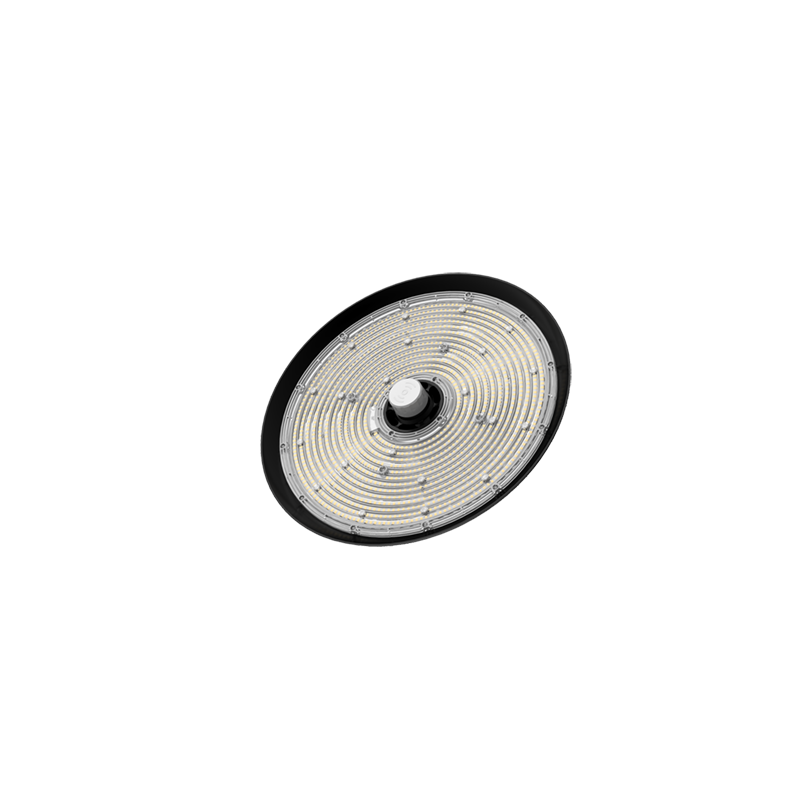

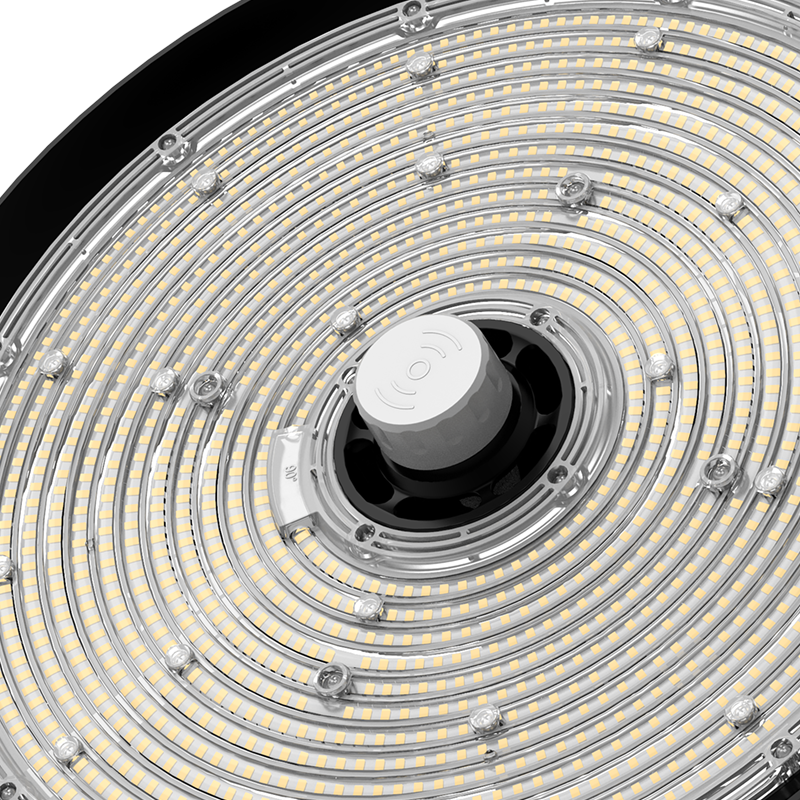

Premium LED & Driver
Lumileds 2835/SAN’AN 2835 LEDs + Philips/SOSEN/MOSO drivers for stable output and long lifetime.
Superior Protection
IP65 waterproof & dustproof, IK08 impact resistance, ideal for dusty, damp, and harsh industrial environments.

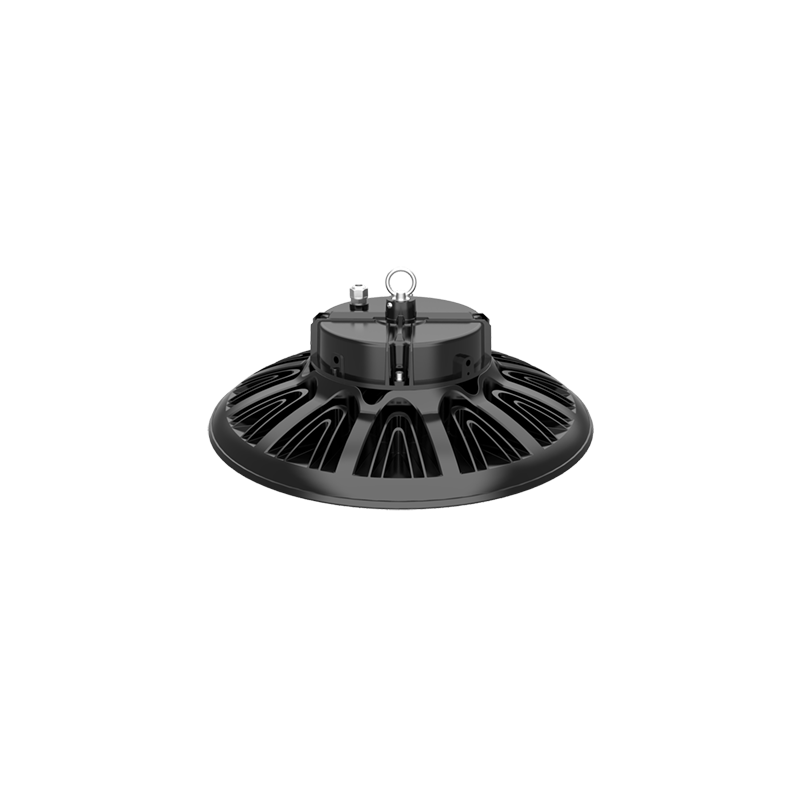

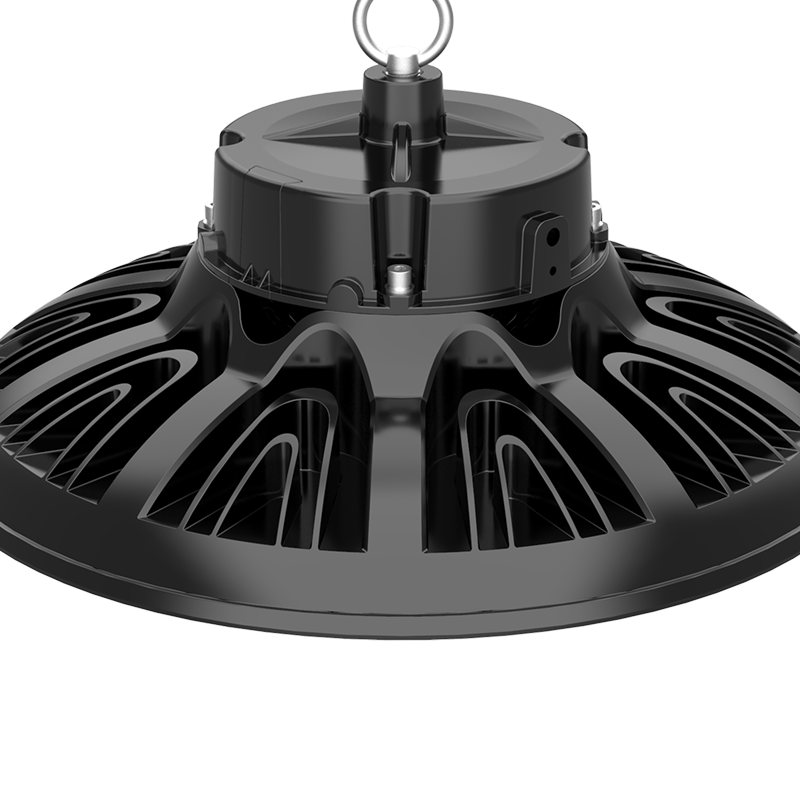

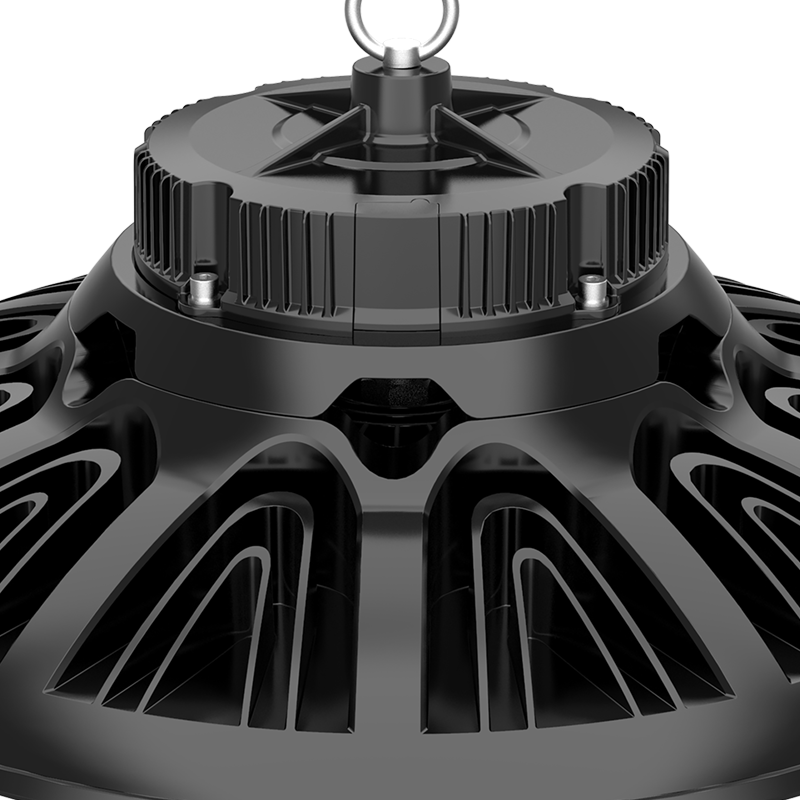

ADC12 Die‑Cast Aluminum
Optimized heat dissipation structure ensures long‑term stability and extends service life to 50,000 hours.

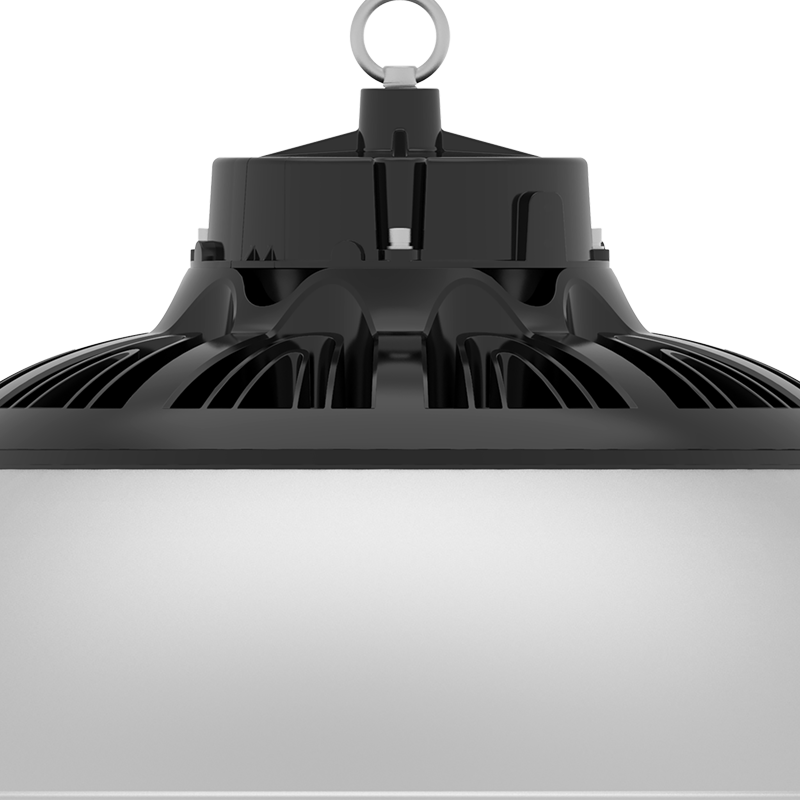

High‑Strength PC Lens
94% light transmittance, shatter‑proof, safe for industrial use.

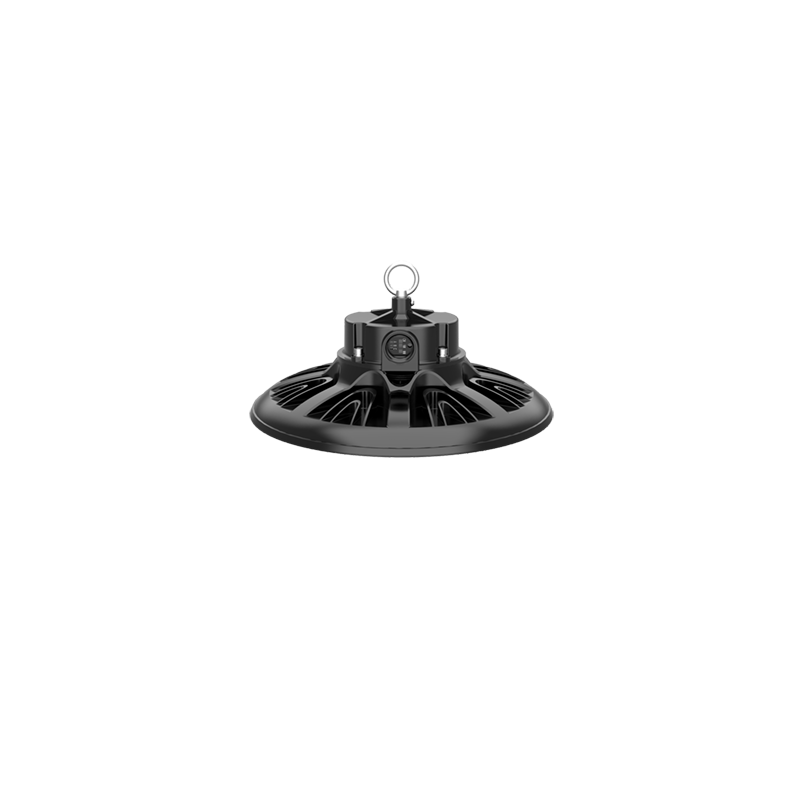

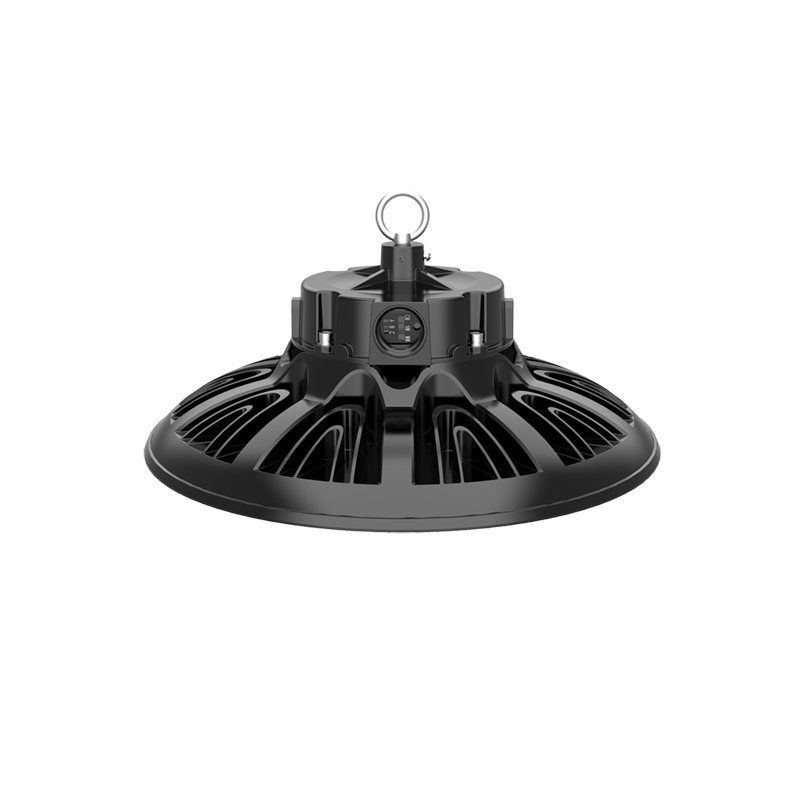

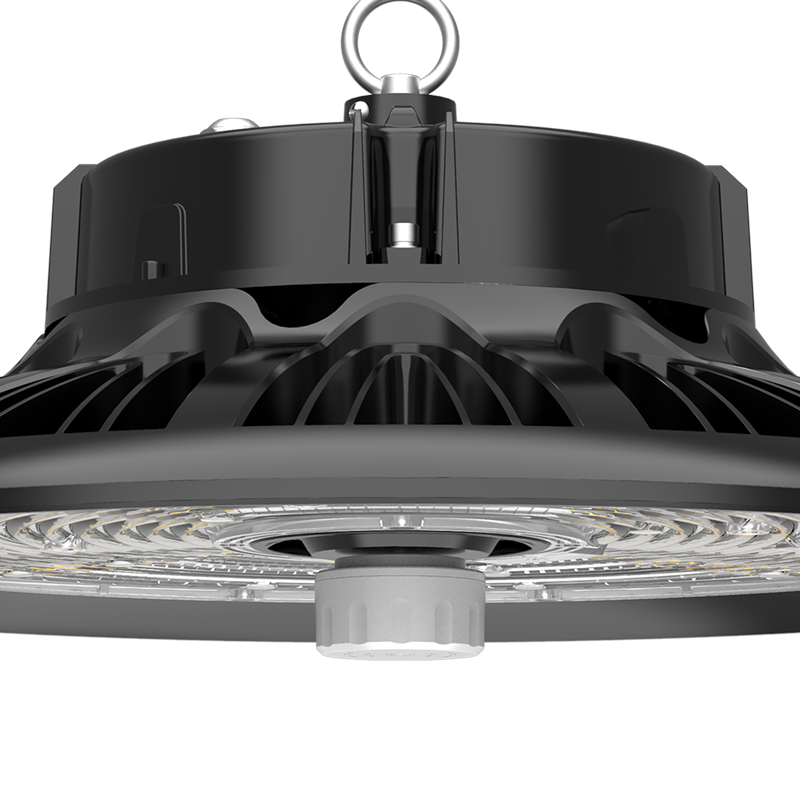

Smart Control Ready
Built‑in Zhaga socket and support for microwave motion sensor for intelligent lighting control.
Flexible Beam Angles
Multiple options: 40°/60°/90°/110°/120° to match different mounting heights and layouts.
Long Warranty
5‑year warranty (SOSEN/MOSO) / 7‑year warranty (Philips driver) for reliable after‑sales support.

sunny@nboyate.com
whatsapp:0086 15888595371
0086 13065832566
wechat:0086 13065832566

Description

This high‑power UFO LED high bay is engineered for large‑scale industrial environments requiring strong, reliable illumination. Its full power range and adjustable parameters make it suitable for both new construction and retrofit projects, delivering consistent performance and long‑term durability.

With ADC12 die‑cast aluminum housing and advanced thermal design, the fixture efficiently dissipates heat to maintain lumen output and extend service life. The IP65 and IK08 ratings ensure stable operation in wet, dusty, and high‑vibration conditions.

Designed for smart industrial lighting, the OYLH‑18 supports Zhaga socket and microwave sensor integration, enabling motion detection, auto dimming, and energy management. These features significantly reduce power consumption and operational costs.

Technical Specifications

Model: OYLH‑18‑UFO
Power: 60W, 100W, 150W, 200W, 240W, 300W, 400W, 500W
Power Adjustable: 60W–500W multi‑level selectable
CCT: 3000K, 4000K, 5000K, 5700K, 6500K (3‑CCT adjustable)
Efficacy: 150/170/190 lm/W
Lumen Flux: 9,000–95,000 lm
Input Voltage: AC100–277V 50/60Hz
LED Brand: Lumileds 2835 / SAN’AN 2835
Driver Brand: SOSEN / PHILIPS / MOSO
CRI: >70 / >80
Power Factor: >0.95
IP Rating: IP65
IK Rating: IK08
Beam Angle: 40°/60°/90°/110°/120°
Lifespan: 50,000 hours (L70)
Warranty: 5 years / 7 years (Philips driver)
Certifications: CE, RoHS, TUV, CB, FCC, SAA, CCC, CQC

Applications

Warehouses, factories, logistics centers, workshops, commercial gyms, exhibition halls, shopping malls, airports, stadiums, logistics parks, and large industrial & commercial high‑ceiling spaces.
