Led High Bay Light OYLH-16

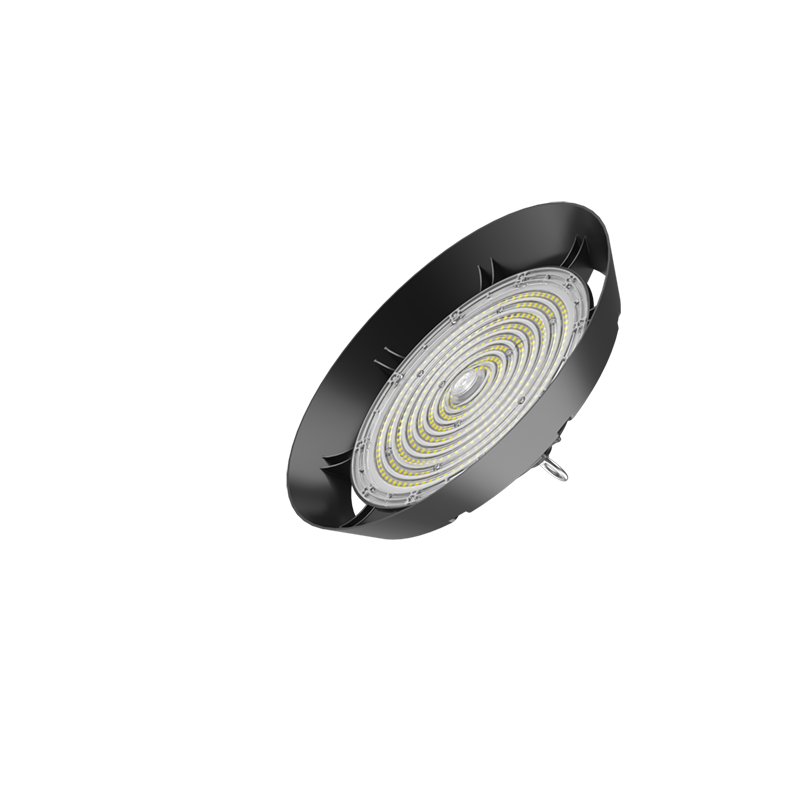

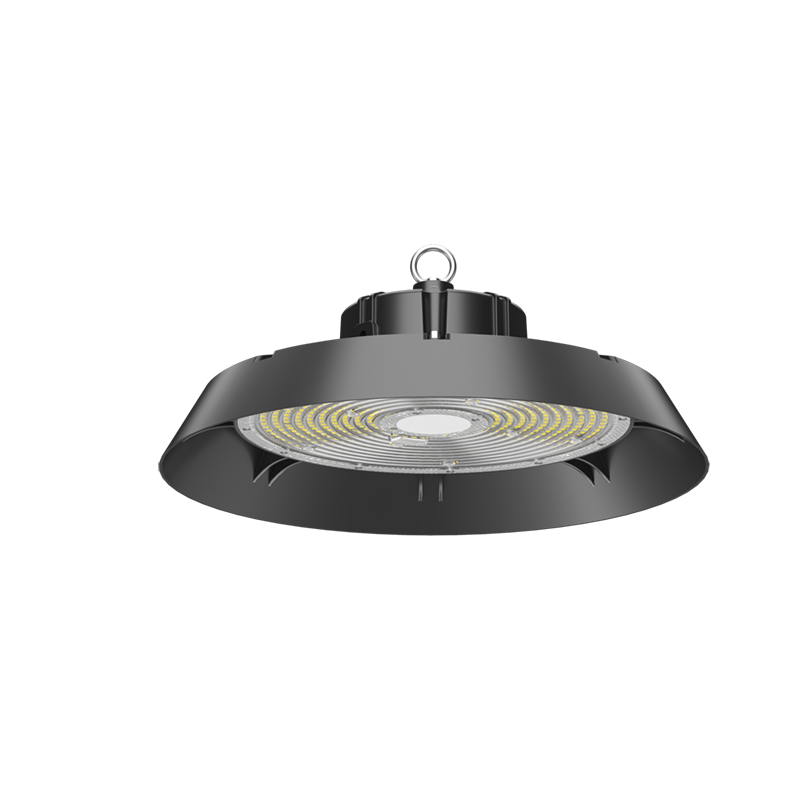

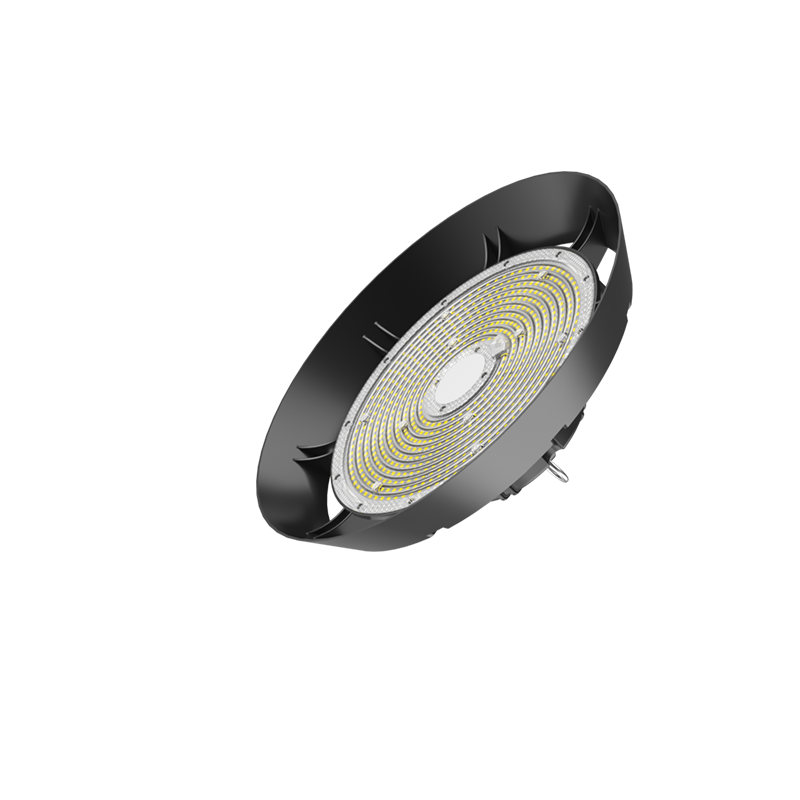

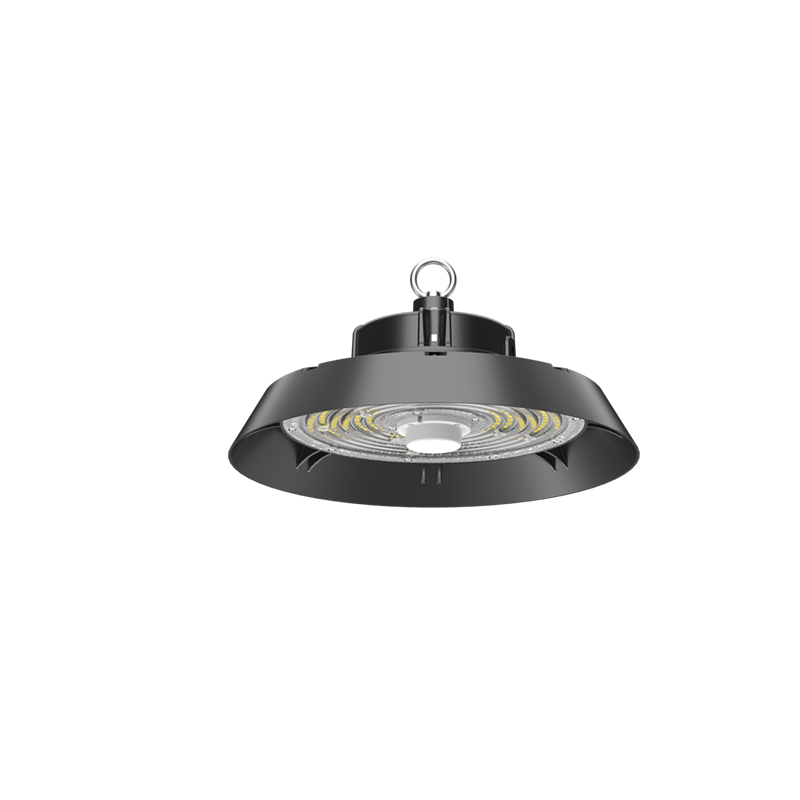

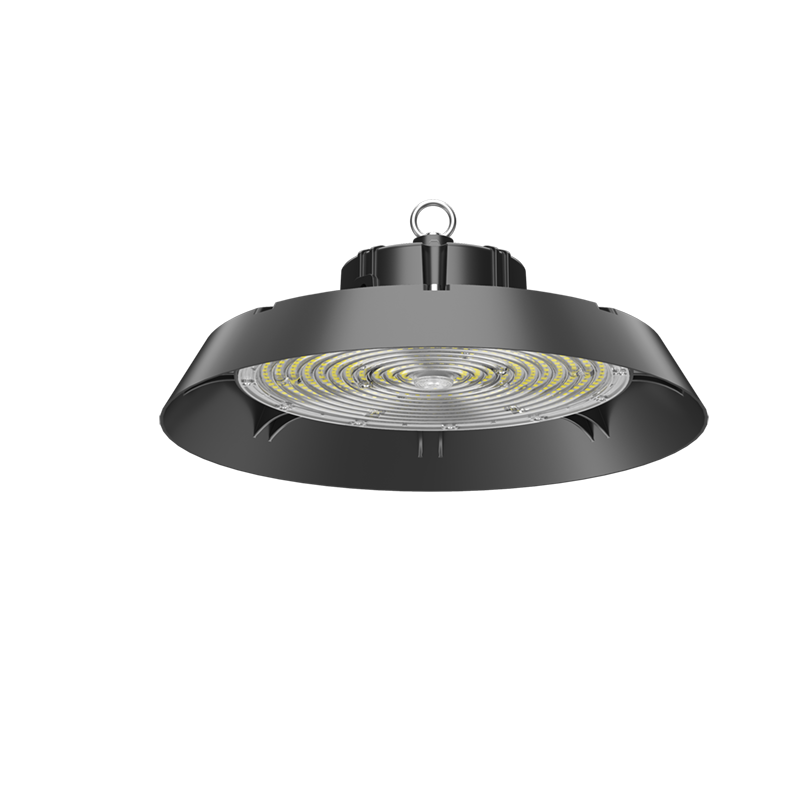

OYLH‑16 Elegant XVI UFO LED High Bay Light

The OYLH‑16 Elegant XVI UFO LED High Bay Light is a high‑performance smart industrial lighting fixture designed for warehouses, factories, workshops, logistics centers, gymnasiums, supermarkets and other large high‑ceiling spaces. It integrates microwave motion sensor, power adjustable and CCT selectable functions to maximize energy savings and meet diverse project demands. Built with premium materials and advanced thermal design, it ensures stable performance and long‑term durability.

Key Features & Benefits

  • Smart Microwave Sensor Control
    Supports ON/OFF, 2‑step dimming and 3‑step dimming modes with adjustable standby time for intelligent energy management.
  • Power & CCT Selectable Design
    Multi‑level power adjustment and color temperature switching to fit different lighting scenarios and reduce inventory cost.
  • Ultra‑High Light Efficacy
    Up to 150lm/W, 170lm/W, 190lm/W for bright, uniform and energy‑efficient illumination.
  • Superior Protection Rating
    IP65 waterproof & dustproof, IK08 high impact resistance, ideal for harsh industrial environments.
  • High‑Strength PC Lens
    94% high transmittance, shatter‑proof polycarbonate lens ensures safe and stable light output.

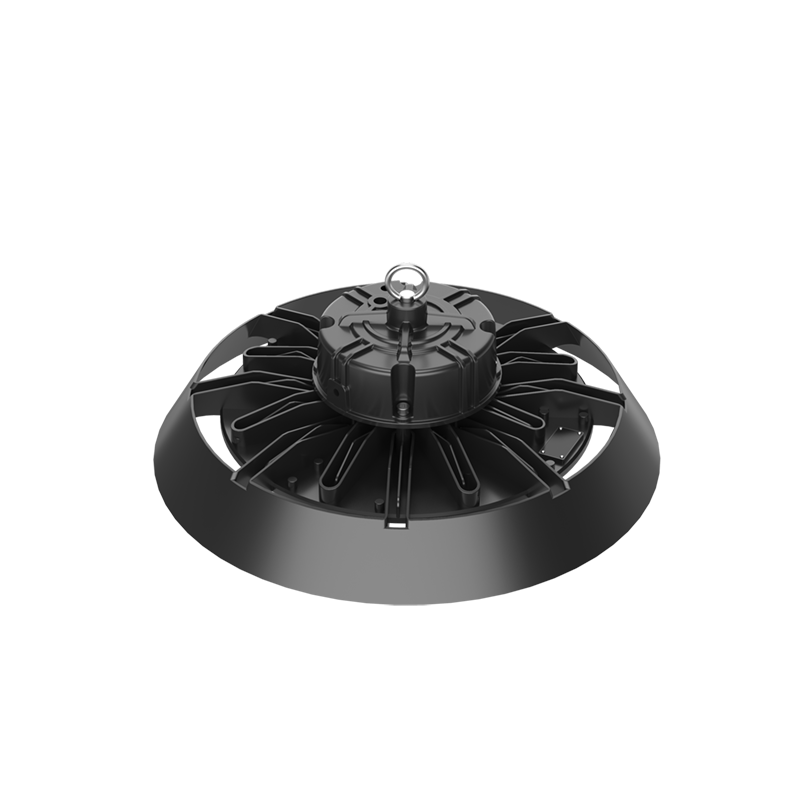

  • ADC12 Thermal Management
    Lightweight ADC12 aluminum housing provides excellent heat dissipation for extended lifespan.
  • Premium LED & Driver
    Top‑brand LED chips and drivers guarantee stable quality, high reliability and long lifetime.
  • Wide Operating Conditions
    AC100–277V wide voltage, working temperature from ‑35°C to +50°C for global application.
  • Long Service Life
    50000 hours lifespan, low maintenance and reduced total cost of ownership.
  • Flexible Beam Angles
    Optional 60°/90°/120° lenses adapt to different mounting heights and layouts.
  • Multiple Installation & Accessories

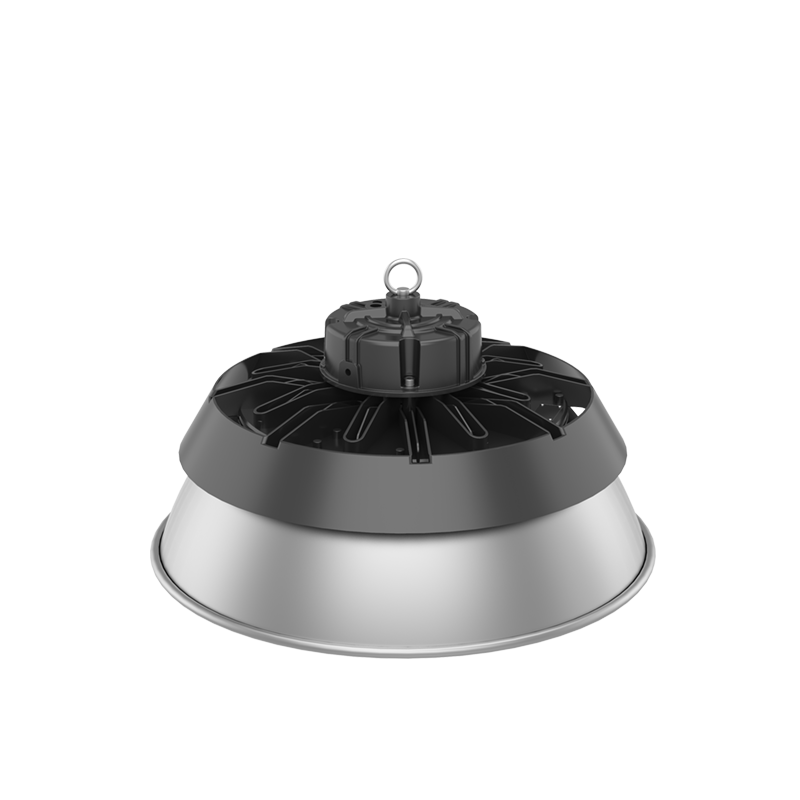

    Hook, chain, suspended mounting; U bracket, pipe mount, safety rope, reflector and emergency kit available.

    sunny@nboyate.com
    whatsapp:0086 15888595371

Get A Free Quote

Description


This smart UFO LED high bay uses advanced microwave sensor technology to automatically adjust brightness based on motion detection, significantly reducing energy consumption in unused areas. The adjustable power and CCT functions make it highly versatile for new projects and retrofits.


With IP65 and IK08 protection ratings, the fixture withstands dust, moisture, impact and vibration in tough industrial environments. The ADC12 aluminum structure and efficient thermal system ensure consistent performance and long service life.


The OYLH‑16 supports multiple intelligent control modes and flexible installation options, making it an ideal choice for modern industrial facilities seeking high efficiency, durability and smart lighting management.


Technical Specifications

  • Model: OYLH‑16‑UFO
  • Power: 80W/100W/120W/150W/200W/240W/300W (selectable)
  • CCT: 3000K/4000K/5000K/5700K/6500K (selectable)
  • Efficacy: 150/170/190 lm/W
  • Input Voltage: AC100–277V 50/60Hz
  • IP Rating: IP65
  • IK Rating: IK08
  • Beam Angle: 60°/90°/120°
  • CRI: Ra>70/80/90
  • Power Factor: >0.95
  • THD: <10%
  • Lifespan: 50000 hours
  • Sensor: Microwave motion sensor (ON/OFF, 2/3‑step dimming)
  • Certificates: CE, RoHS, TUV, CB, FCC, SAA, CCC, CQC
