Led High Bay Light OYLH-15

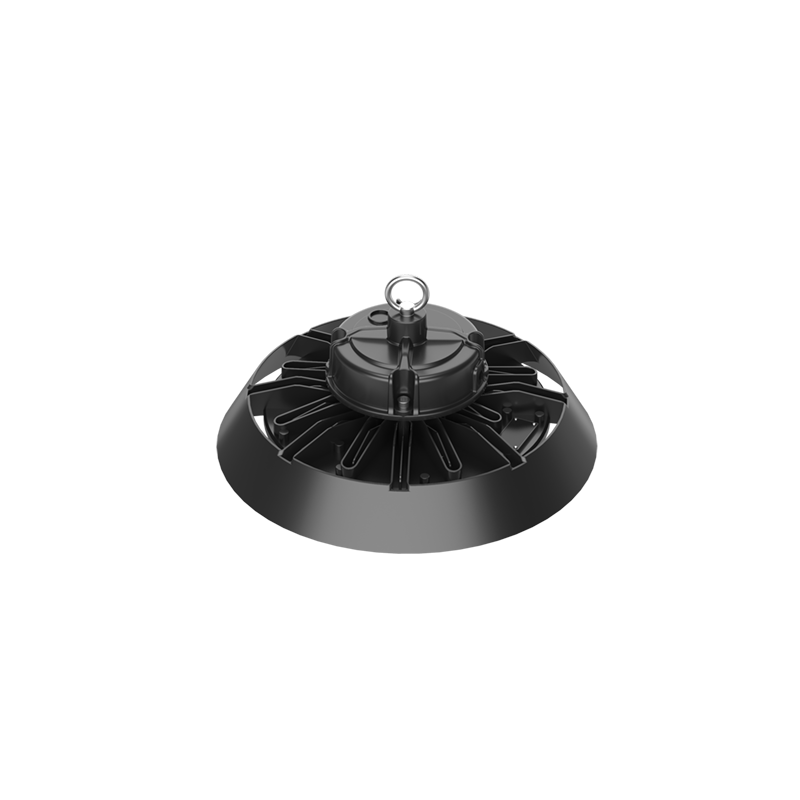

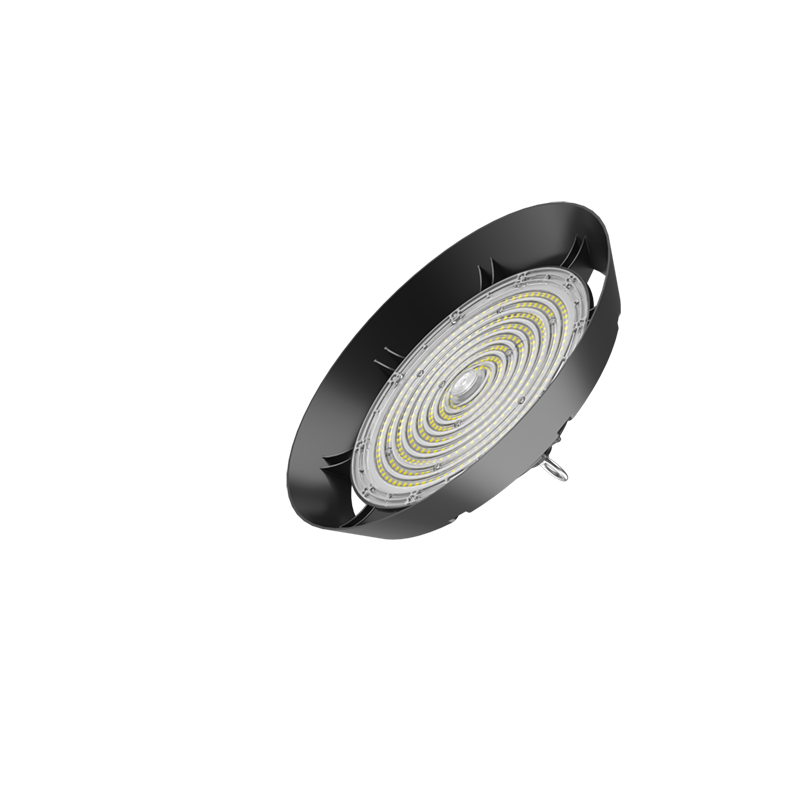

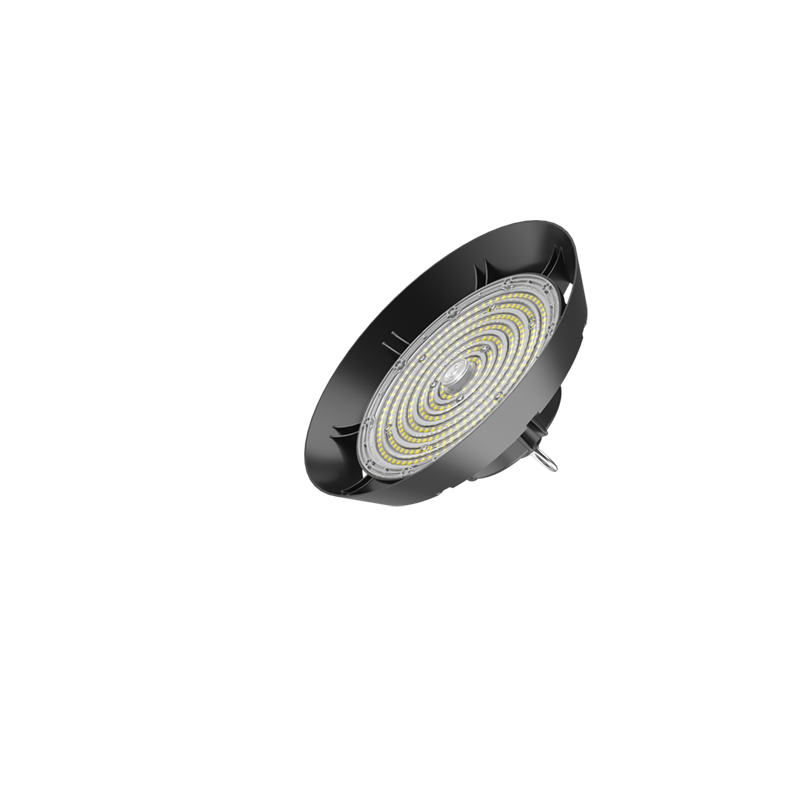

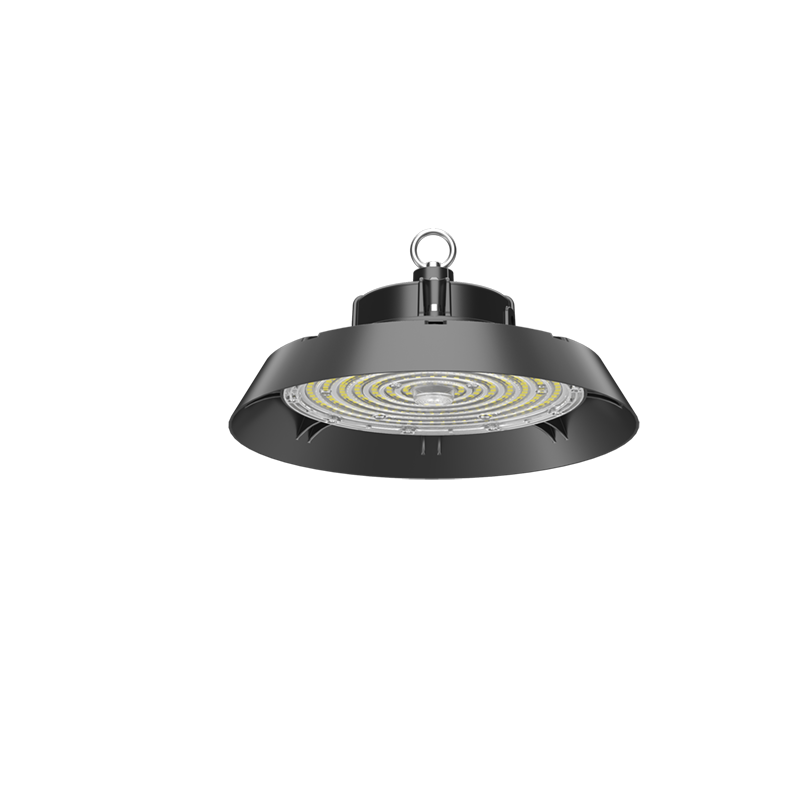

OYLH‑15 Elegant XV UFO LED High Bay Light

The OYLH‑15 Elegant XV UFO LED High Bay Light is a high‑performance industrial lighting fixture designed for warehouses, factories, workshops, logistics centers, gymnasiums, supermarkets and other large high‑ceiling spaces. It features power adjustable and CCT selectable functions to meet diverse project requirements, combining high efficiency, robust protection and flexible configuration.

Key Features & Benefits

  • Power & CCT Selectable Design
    Supports multi‑level power adjustment and color temperature switching, enabling flexible configuration for different lighting scenarios and reducing inventory pressure.
  • Ultra‑High Light Efficacy
    Delivers up to 150lm/W, 170lm/W, 190lm/W for maximum energy savings and bright, even illumination.
  • Superior Protection Performance
    IP65 waterproof and dustproof, IK08 high impact resistance, suitable for harsh industrial environments.
  • High‑Strength PC Lens

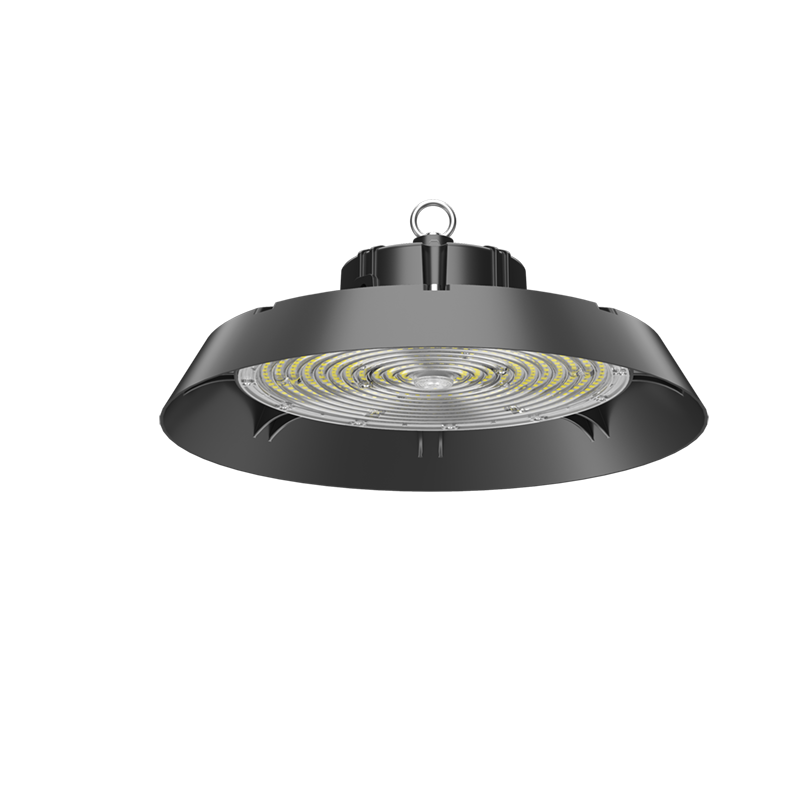

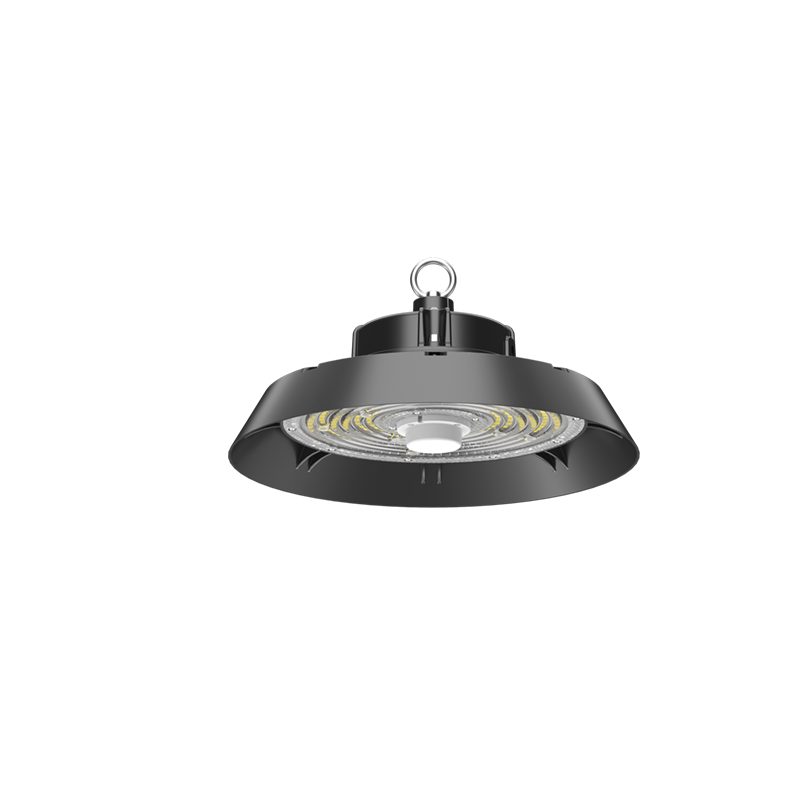

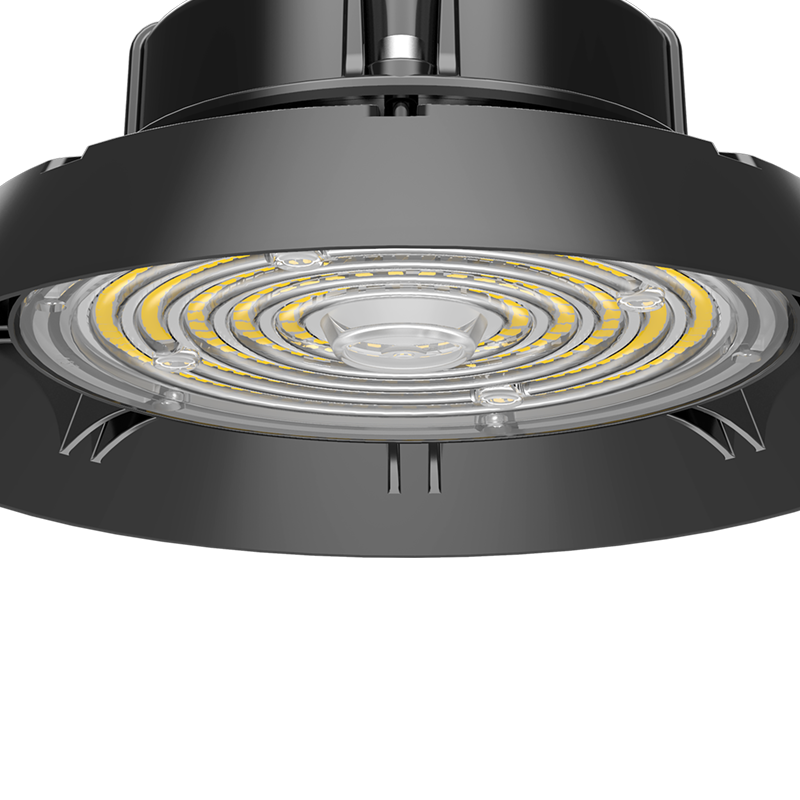

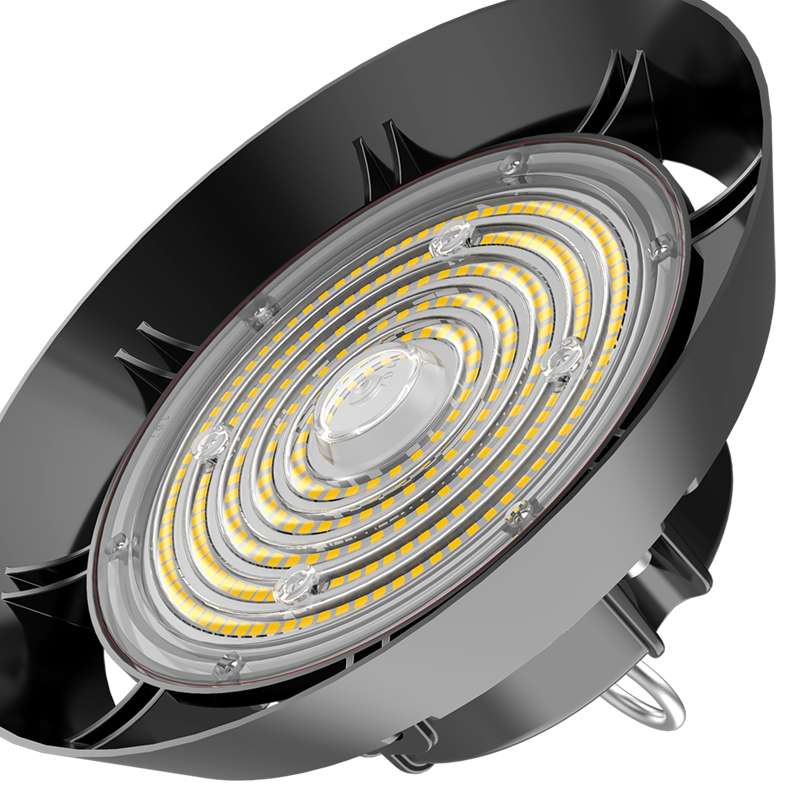

    High‑transmittance polycarbonate lens with 94% light transmittance, shatter‑resistant and ensures stable light output.
  • Excellent Color Rendering
    CRI Ra>70/80/90 for realistic color presentation, improving visibility and work safety.
  • ADC12 Thermal Management

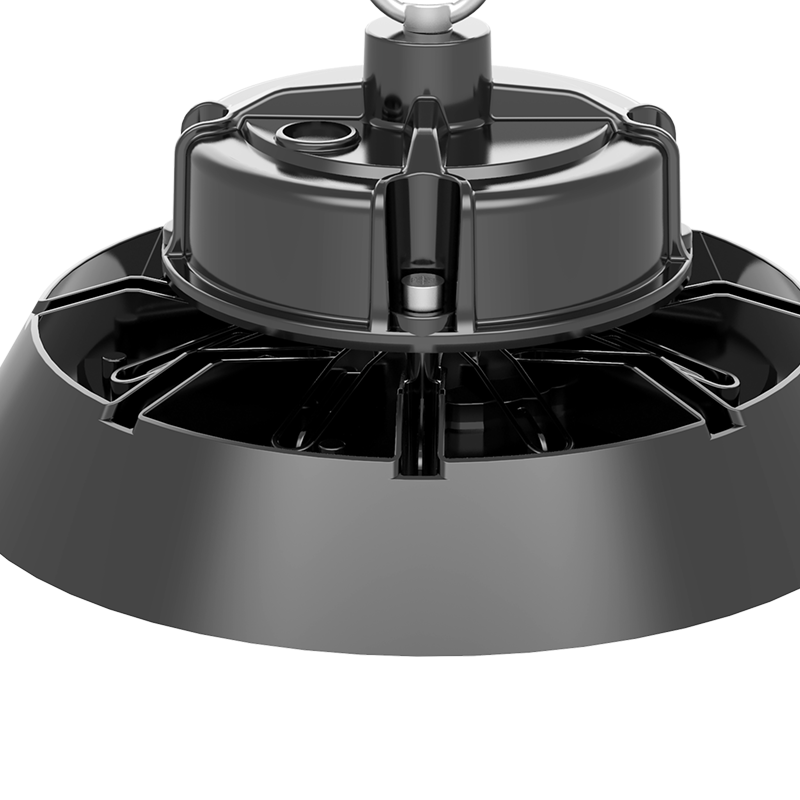

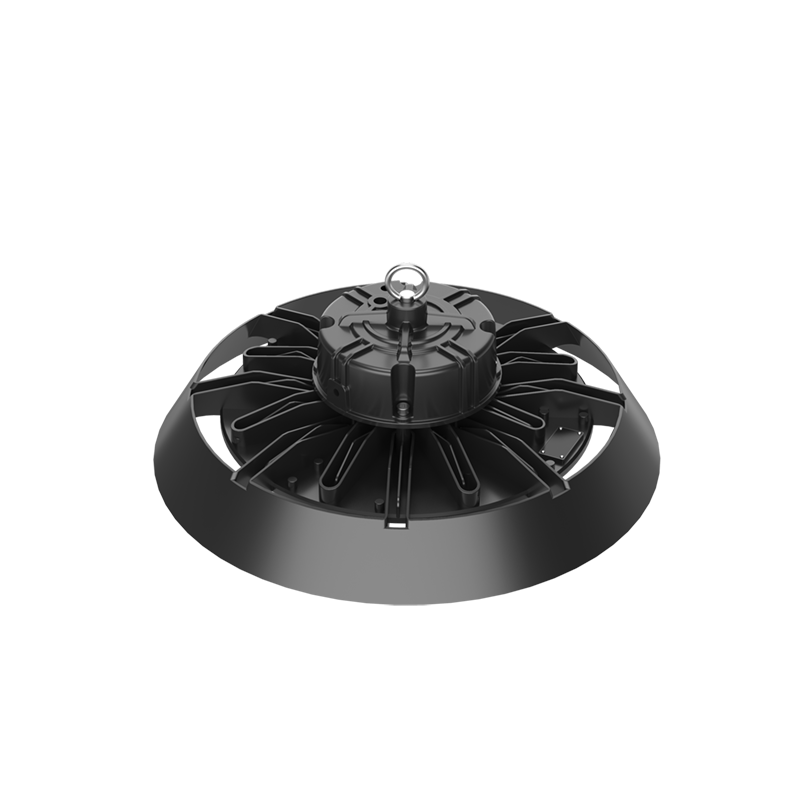

    Lightweight ADC12 aluminum housing provides excellent heat dissipation, ensuring long‑term stability and extended lifespan.
  • Wide Voltage & Temperature Range
    AC100–277V wide input voltage, operating temperature from ‑35°C to +50°C for global application.
  • Long Service Life
    Stable driver and premium LED chips ensure 50000 hours lifespan, lowering maintenance cost.
  • Flexible Beam Angles
    Optional 60°/90°/120° lenses to adapt to different installation heights and lighting layouts.
  • Multiple Installation & Accessories

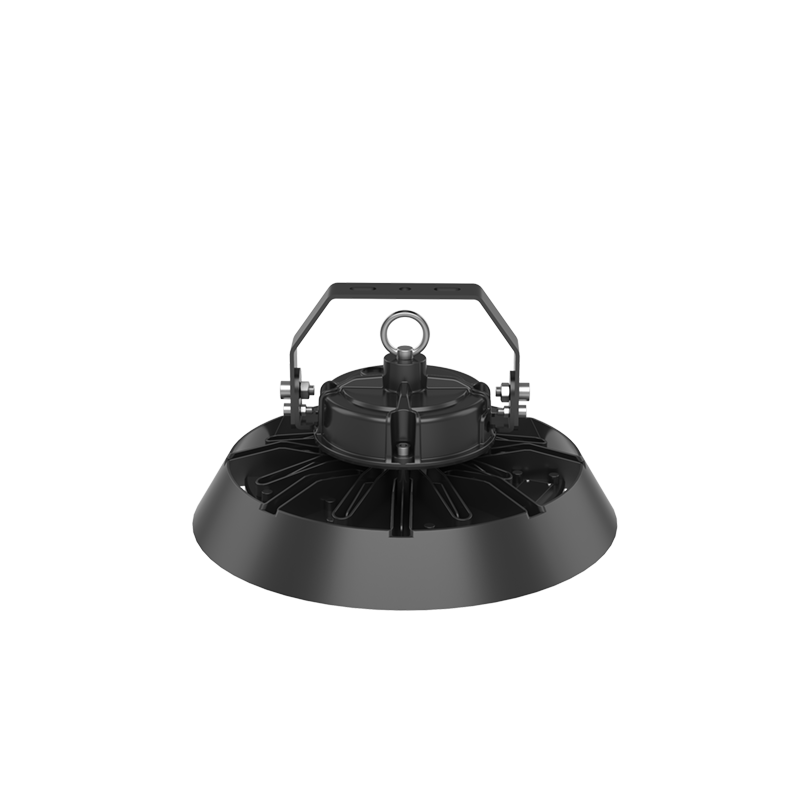

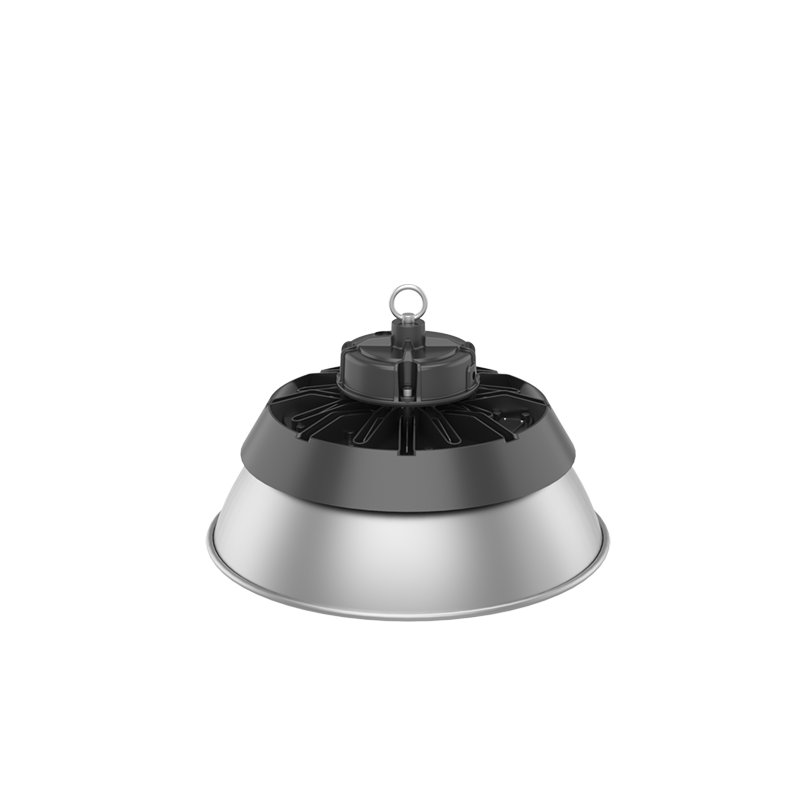

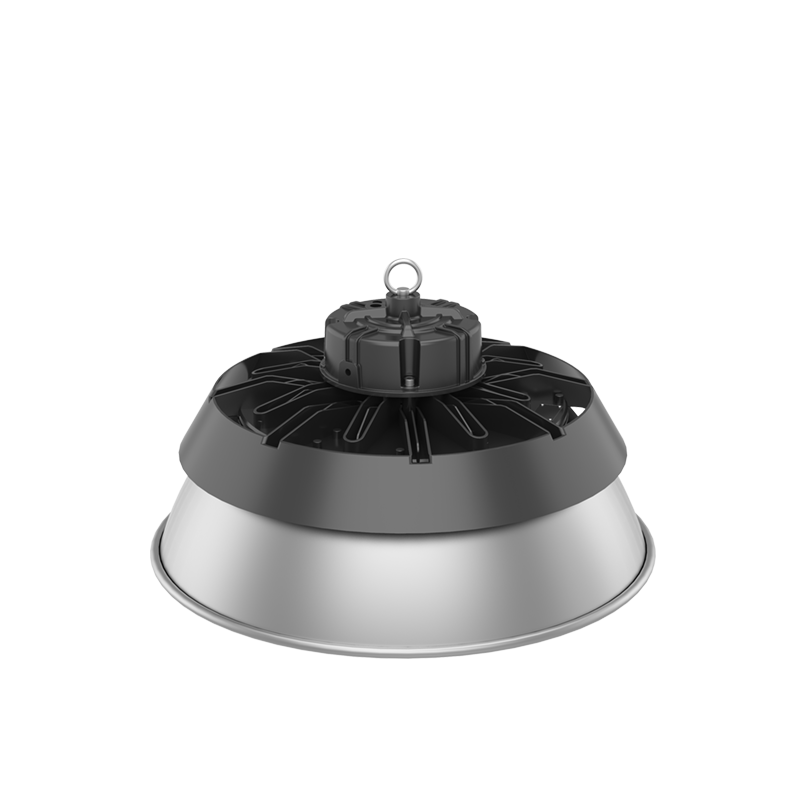

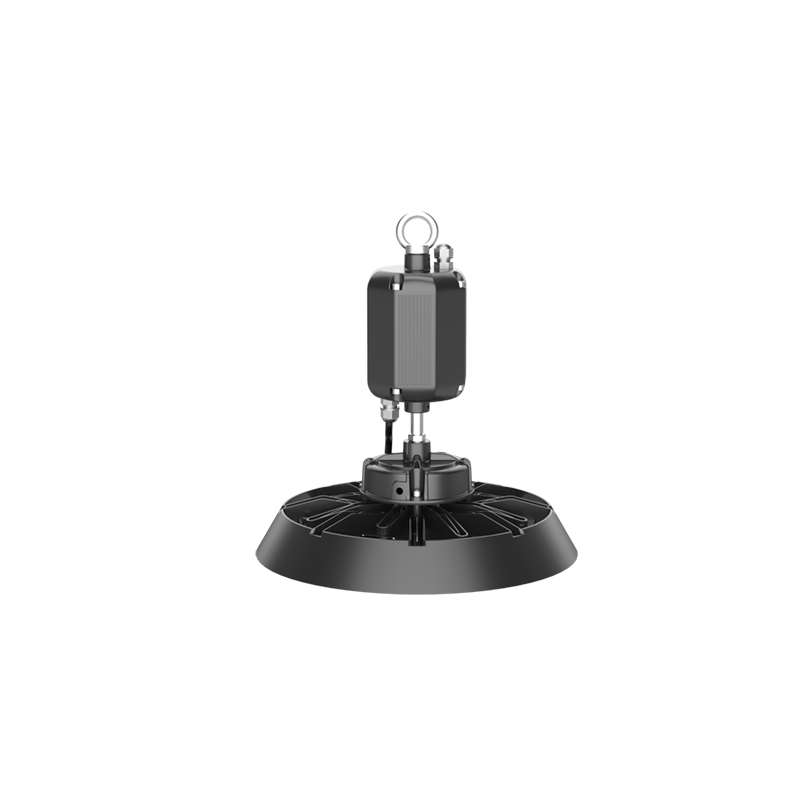

    Supports hook mount, chain mount, suspended mount, U bracket, pipe mount, safety rope, aluminum reflector and emergency kit for versatile installation.

    sunny@nboyate.com
    whatsapp:0086 15888595371

Get A Free Quote

Description


The OYLH‑15 high bay supports multiple installation methods and optional accessories to meet various site demands. Its lightweight structure simplifies installation and transportation, while the high‑efficiency system reduces energy consumption and operational costs significantly.


Technical Specifications

  • Model: OYLH‑15‑UFO
  • Power: 80W/100W/120W/150W/200W/240W/300W (selectable)
  • CCT: 3000K/4000K/5000K/5700K/6500K (selectable)
  • Efficacy: 150/170/190 lm/W
  • Input Voltage: AC100–277V 50/60Hz
  • IP Rating: IP65
  • IK Rating: IK08
  • Beam Angle: 60°/90°/120°
  • CRI: Ra>70/80/90
  • Power Factor: >0.95
  • THD: <10%
  • Lifespan: 50000 hours
  • LED Quantity: 210–1360 PCS 2835
  • Driver Brand: MW/SOSEN/ZH/PHILIPS
  • Certificates: CE, RoHS, TUV, CB, FCC, SAA, CCC, CQC

Applications

Warehouses, manufacturing plants, logistics centers, workshops, commercial gyms, exhibition halls, shopping malls, airports and other industrial & commercial high‑ceiling areas.
