Led High Bay Light OYLH-10

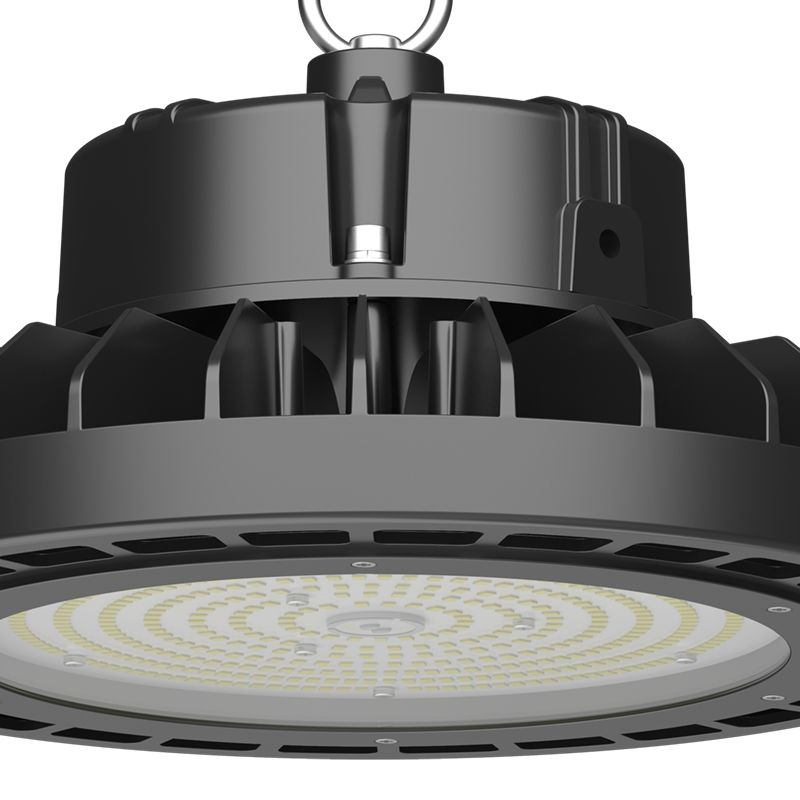

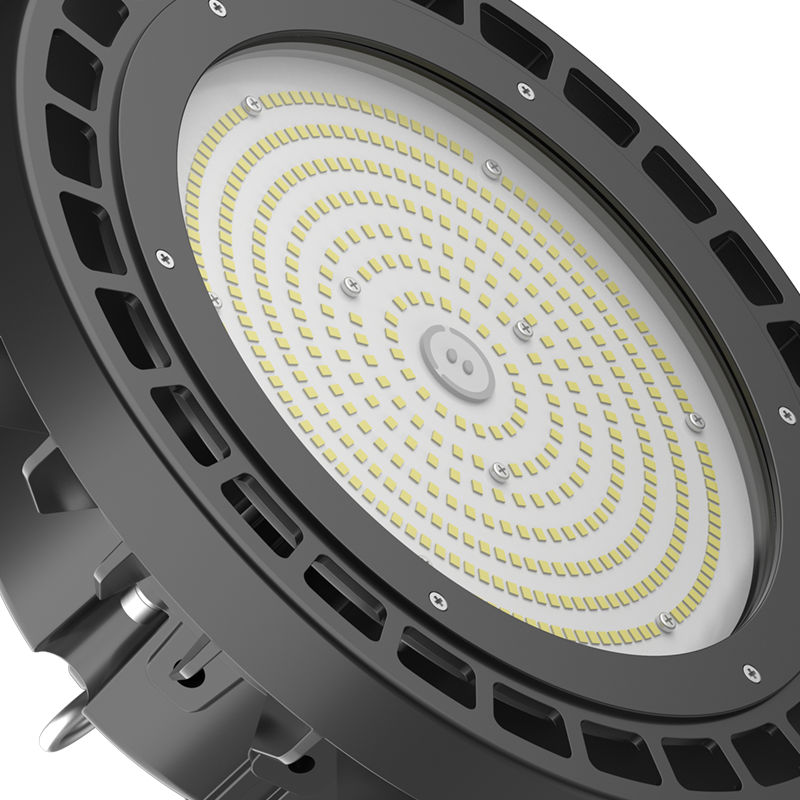

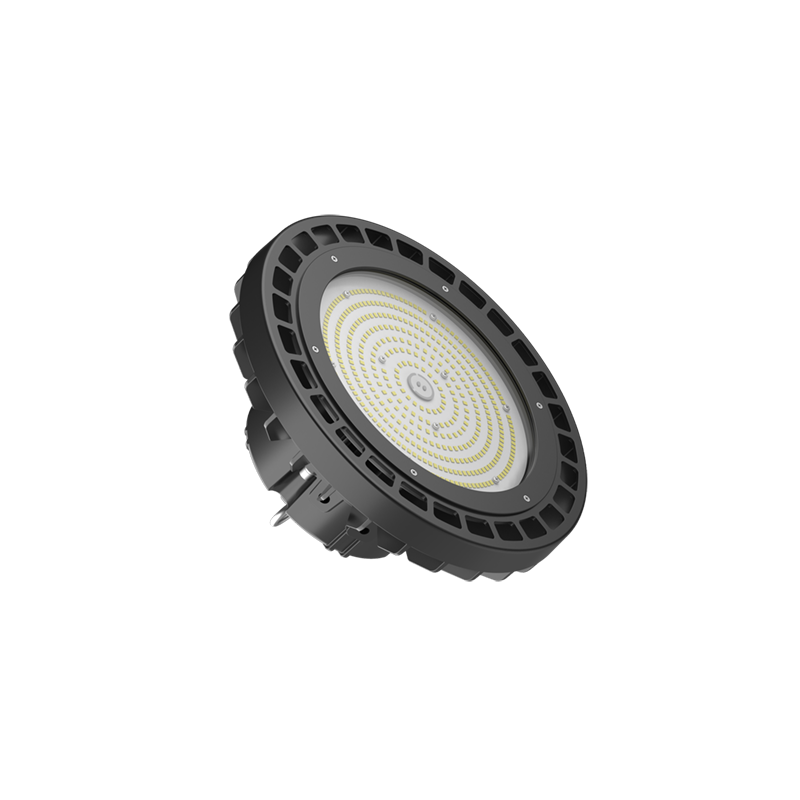

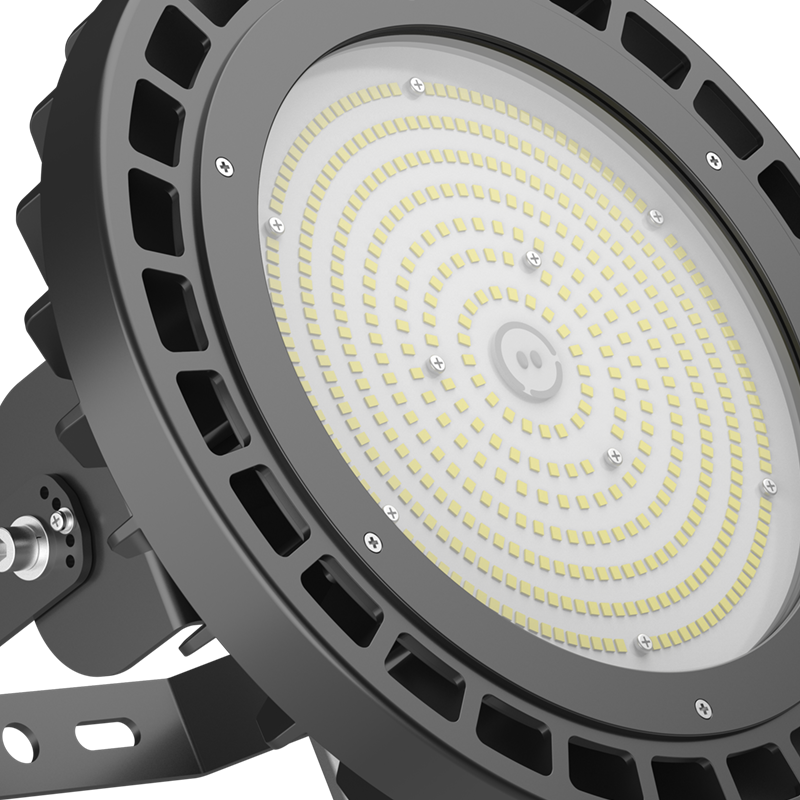

OYLH‑10 Elegant X UFO LED High Bay Light

The OYLH‑10 Elegant X UFO LED High Bay Light is a robust industrial lighting solution engineered for durability, efficiency, and reliable performance in demanding environments. Constructed with ADC12 aluminum alloy and equipped with a tempered glass cover, this fixture delivers exceptional thermal management and strong resistance to impact, dust, and moisture. Designed for warehouses, factories, workshops, shopping centers, and indoor plazas, it combines high efficiency, flexible control, and easy installation.

Key Features & Benefits

  • Premium ADC12 Housing

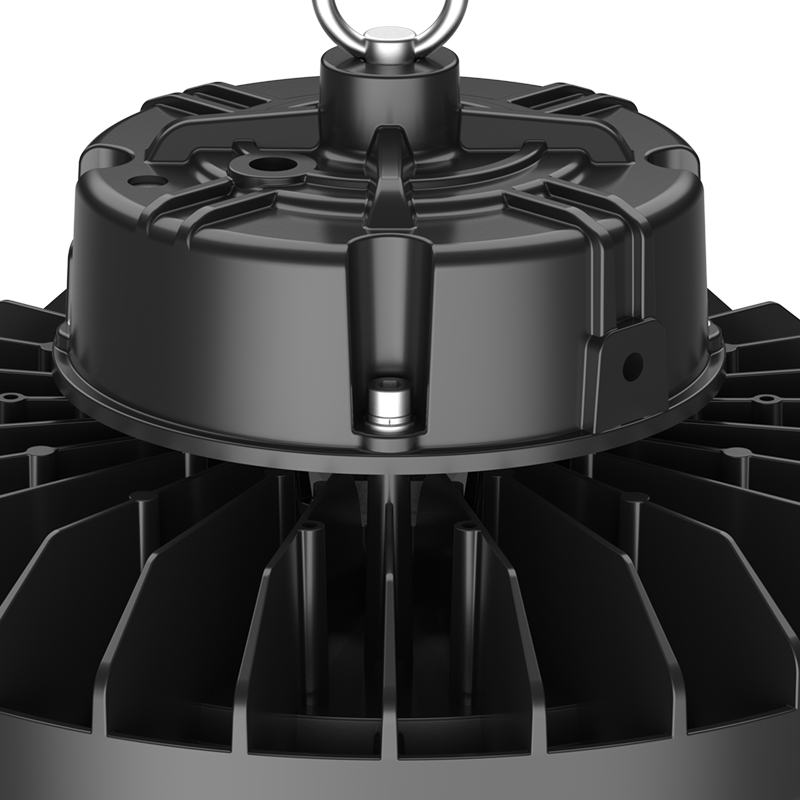

    High‑strength ADC12 aluminum structure provides excellent thermal management, ensuring stable lumen output and extended service life.
  • Tempered Glass Cover
    Impact‑resistant tempered glass is ideal for harsh industrial conditions, offering better durability and protection against breakage.
  • Top‑Tier LED Components
    Equipped with OSRAM / LUMILEDS chips and high‑quality drivers for consistent performance, high reliability, and long lifetime.
  • IP65 Waterproof & Dustproof
    Fully protected against dust and water ingress, suitable for damp, dusty, and harsh working environments.
  • High Efficacy & Performance
    150lm/W high efficiency, CRI >80, power factor >0.95, delivering bright, uniform, and energy‑saving illumination.
  • Wide Operating Temperature
    Stable working from ‑35°C up to +50°C, adaptable to extreme temperature conditions worldwide.
  • Flexible Control Options

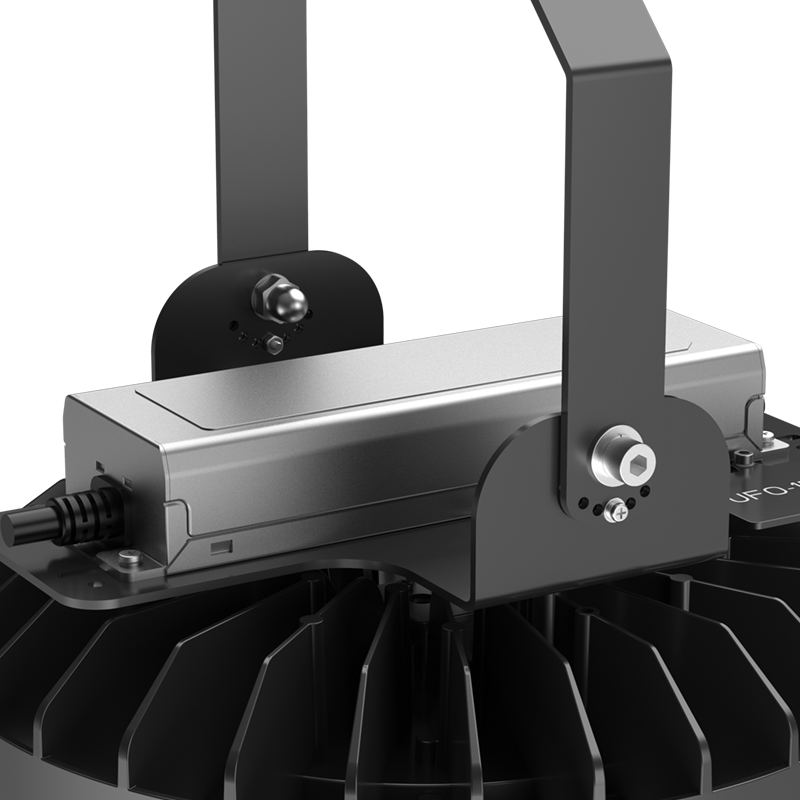

    Supports 1‑10V / DALI dimming, emergency backup kits, safety steel rope, and adjustable mounting brackets for intelligent and safe operation.
  • Multiple Installation Methods

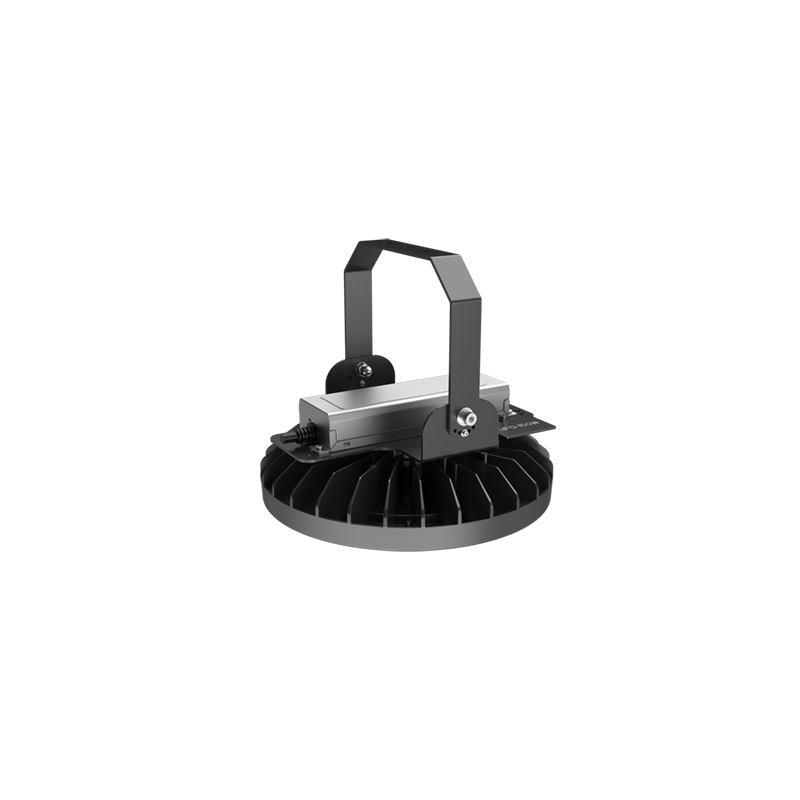

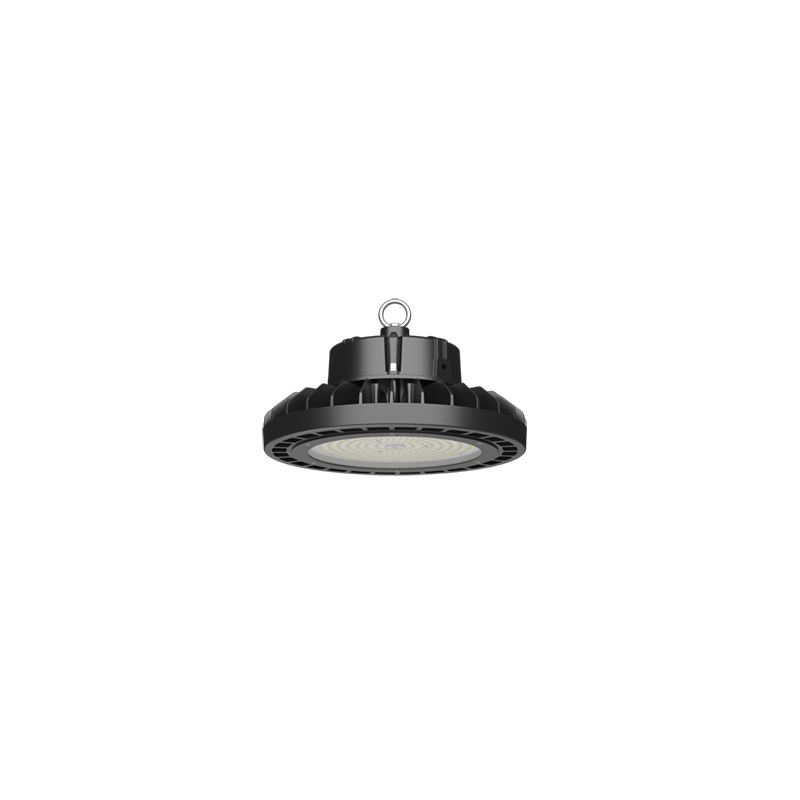

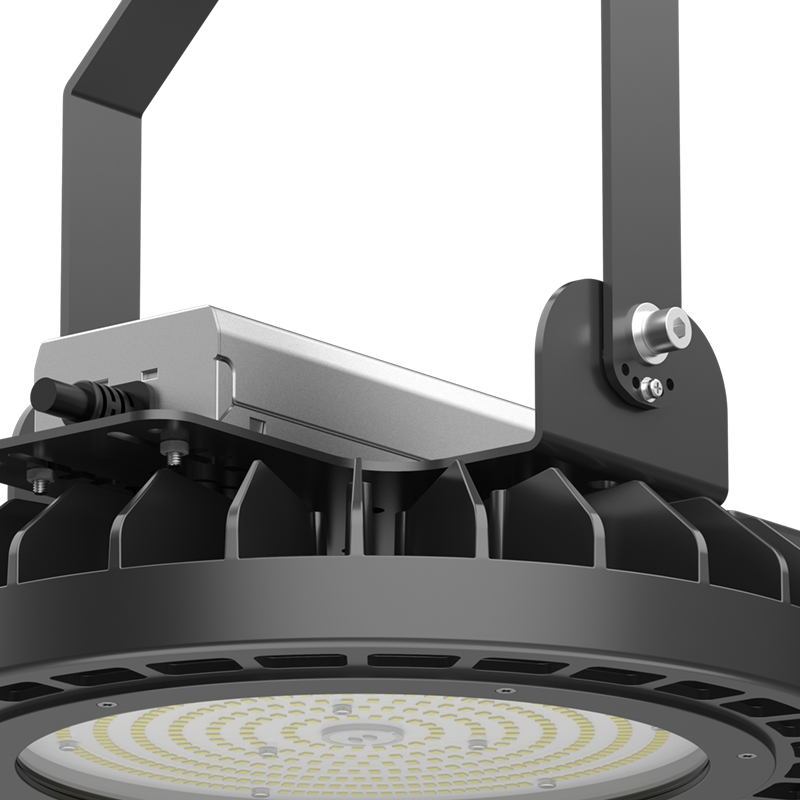

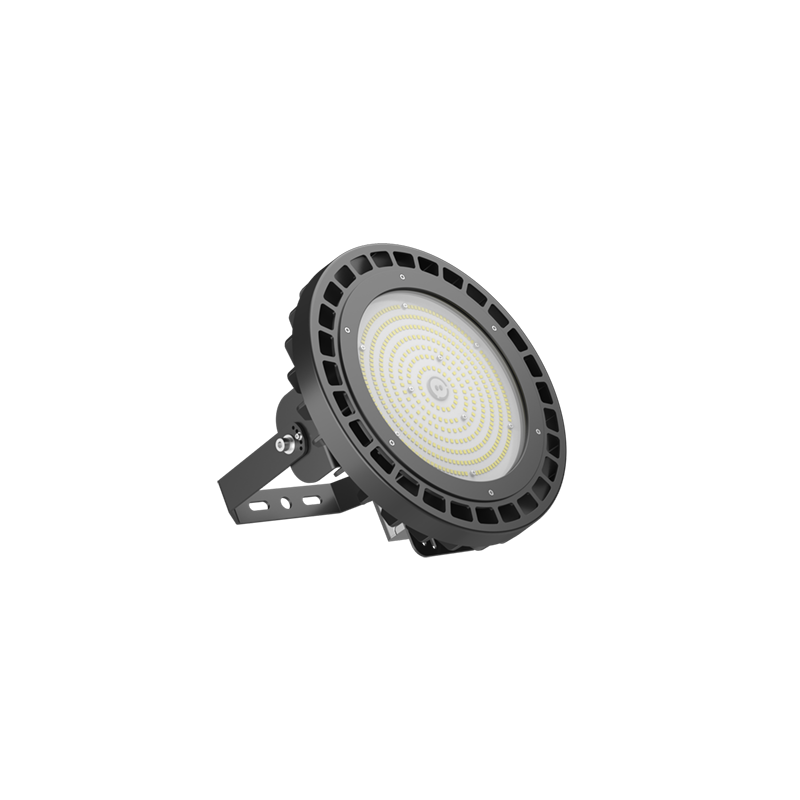

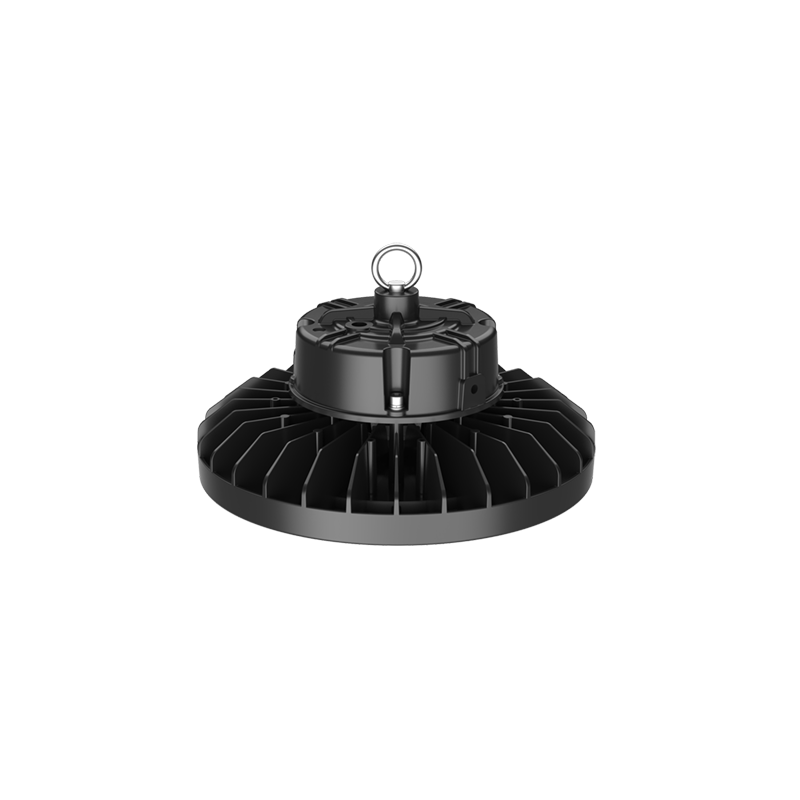

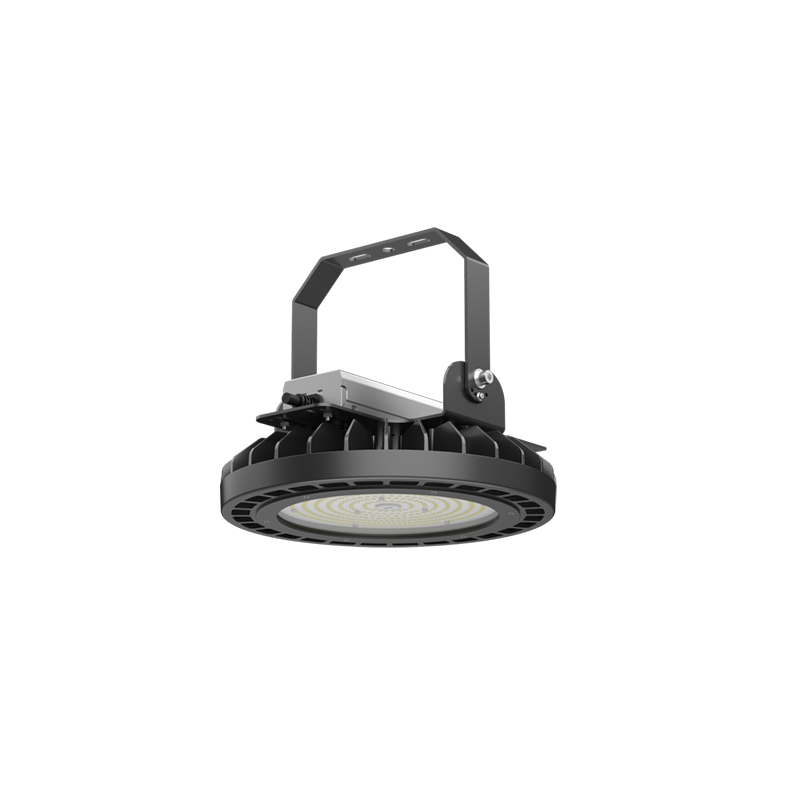

    Hook mount, pipe mount, suspended mount, and U bracket for versatile installation in various high‑ceiling spaces.

    sunny@nboyate.com
    whatsapp:0086 15888595371

Get A Free Quote

Description



This UFO LED high bay is engineered with a heavy‑duty design to withstand harsh industrial conditions. The tempered glass cover and ADC12 thermal structure enhance durability and heat dissipation, ensuring stable lighting performance and reduced maintenance over its long lifespan.


With a wide input voltage and an extended operating temperature range, the OYLH‑10 is suitable for global deployment in various climates and industrial environments. Its IP65 rating guarantees reliable performance even in dusty, humid, or corrosive locations.


Technical Specifications

  • Model: OYLH‑10‑UFO
  • Power: 100W, 150W, 200W, 240W
  • Input Voltage: AC100–277V
  • LED Chip: OSRAM / LUMILEDS
  • Luminous Efficacy: 150lm/W
  • CRI: Ra >80
  • Power Factor: >0.95
  • IP Rating: IP65
  • Beam Angle: 120°
  • Operation Temperature: ‑35°C ~ +50°C
  • Dimension: 280136mm / 320136mm
  • Warranty: 5 years
  • Certificates: CCC, CQC, TUV, CB, FCC, SAA, CE, RoHS

Applications

Warehouses, factories, mechanical workshops, libraries, shopping centres, indoor plazas, logistics centers, gymnasiums, and other industrial & commercial high‑ceiling areas.
