Led High Bay Light OYLH-09

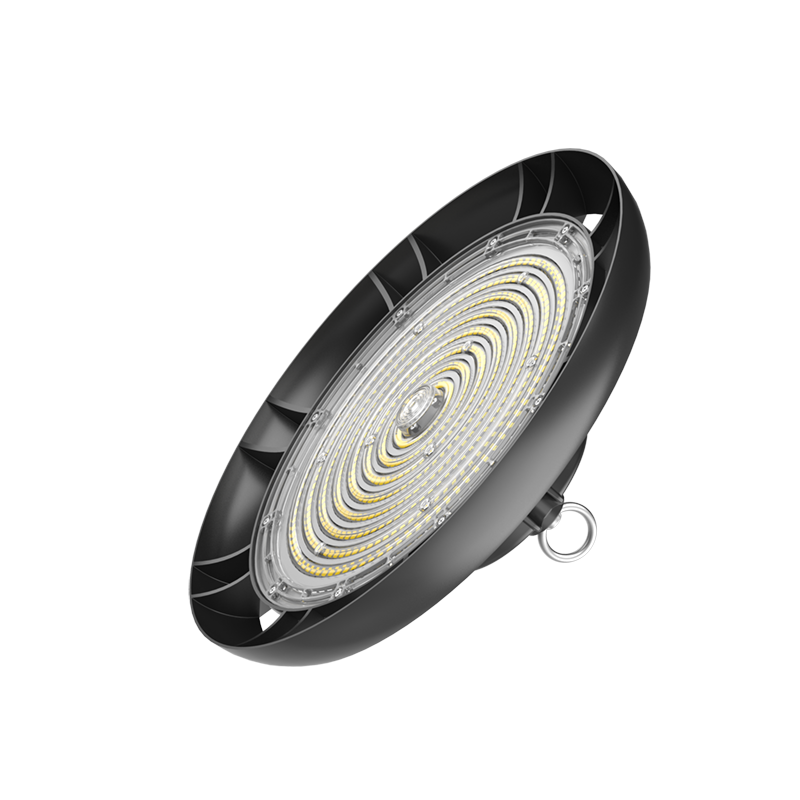

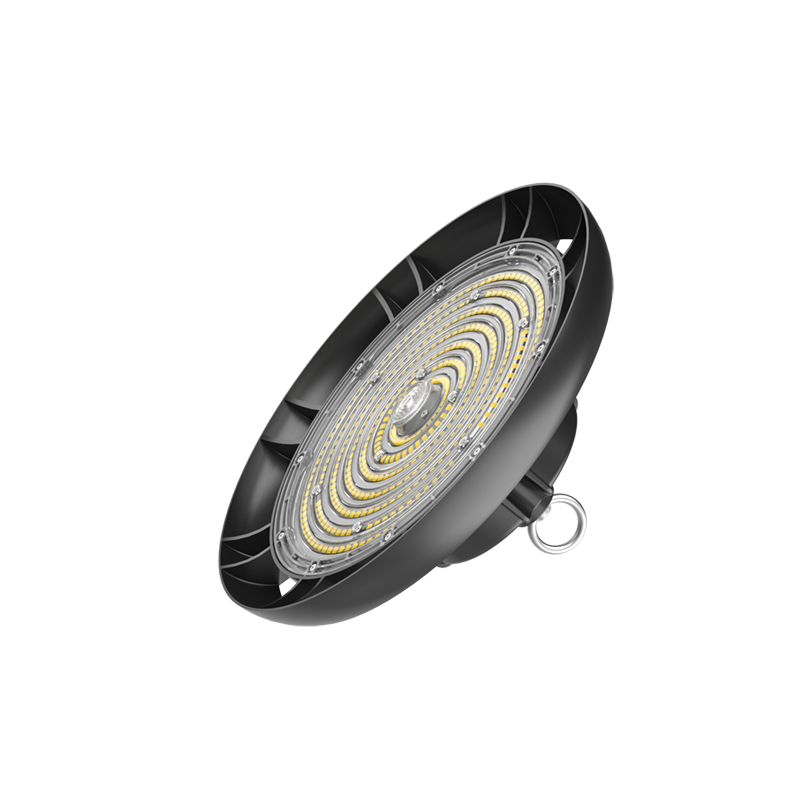

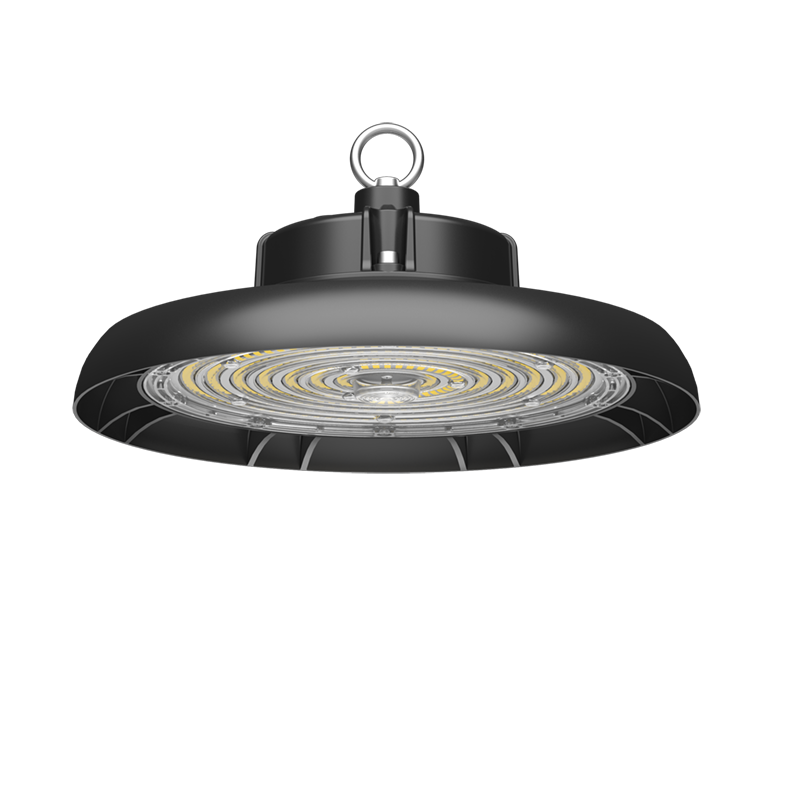

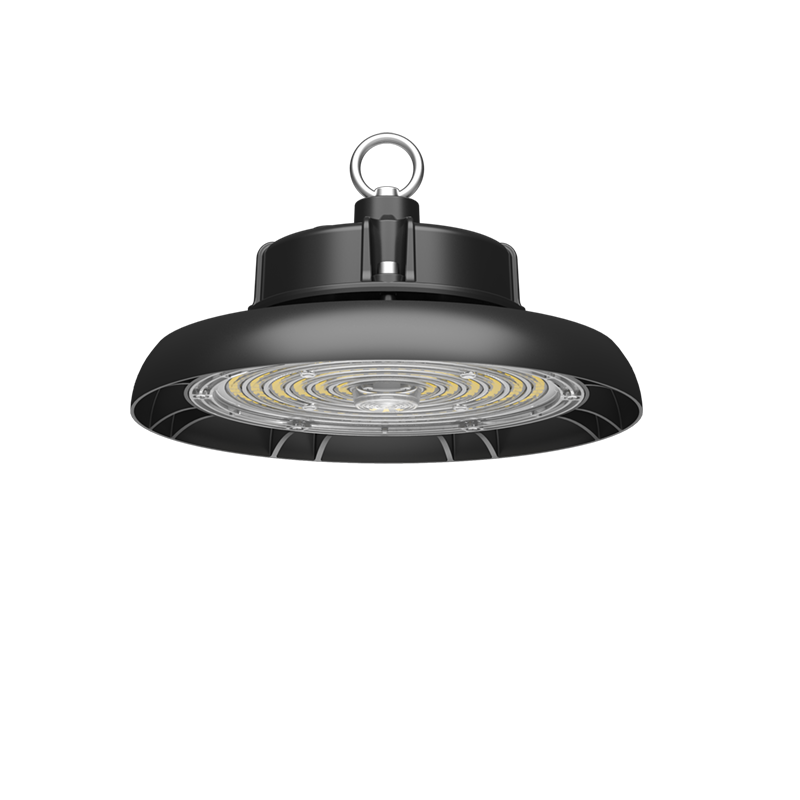

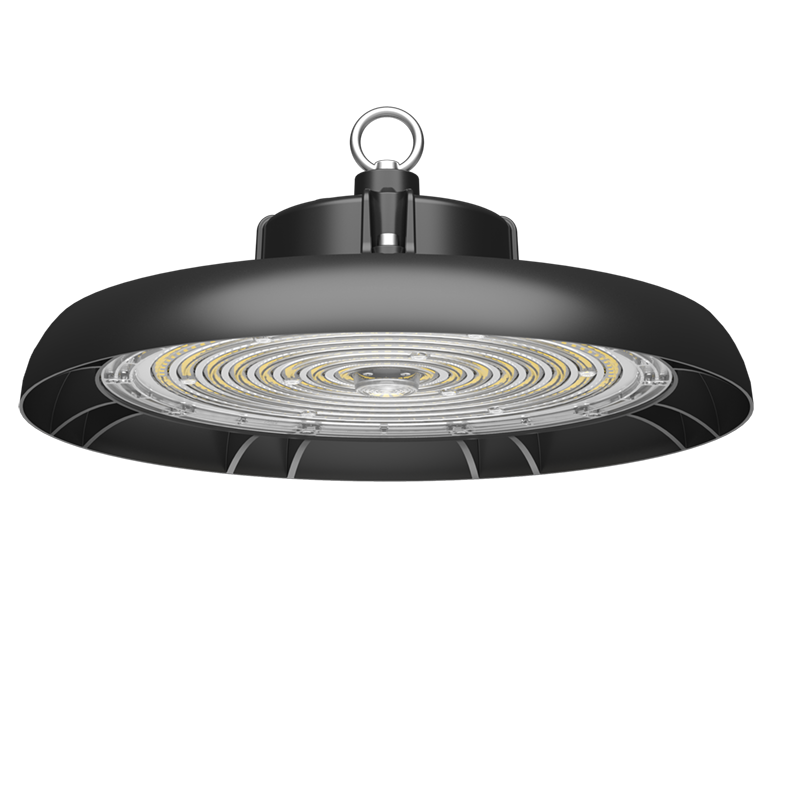

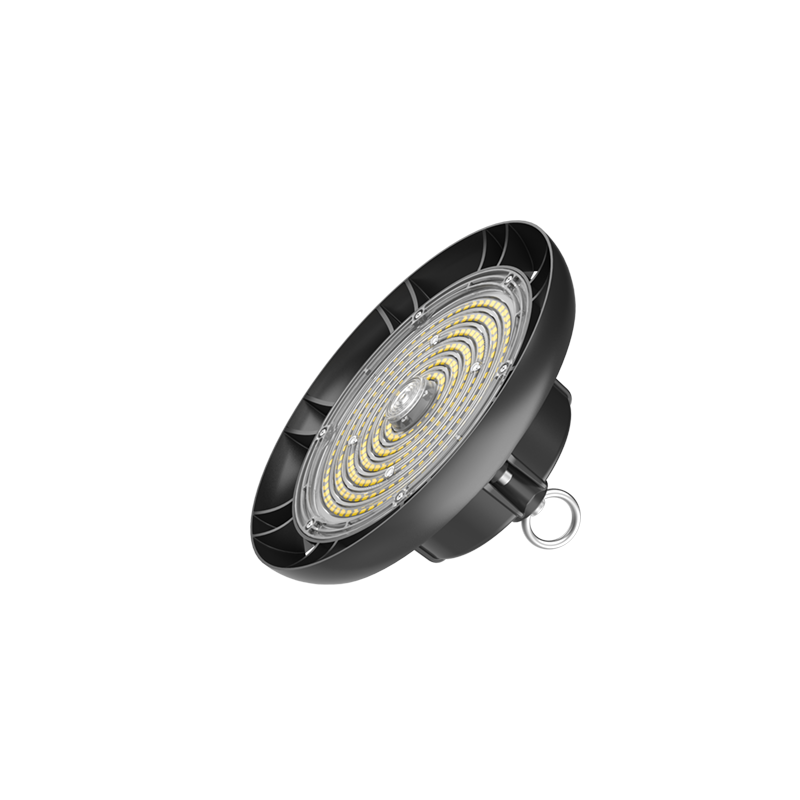

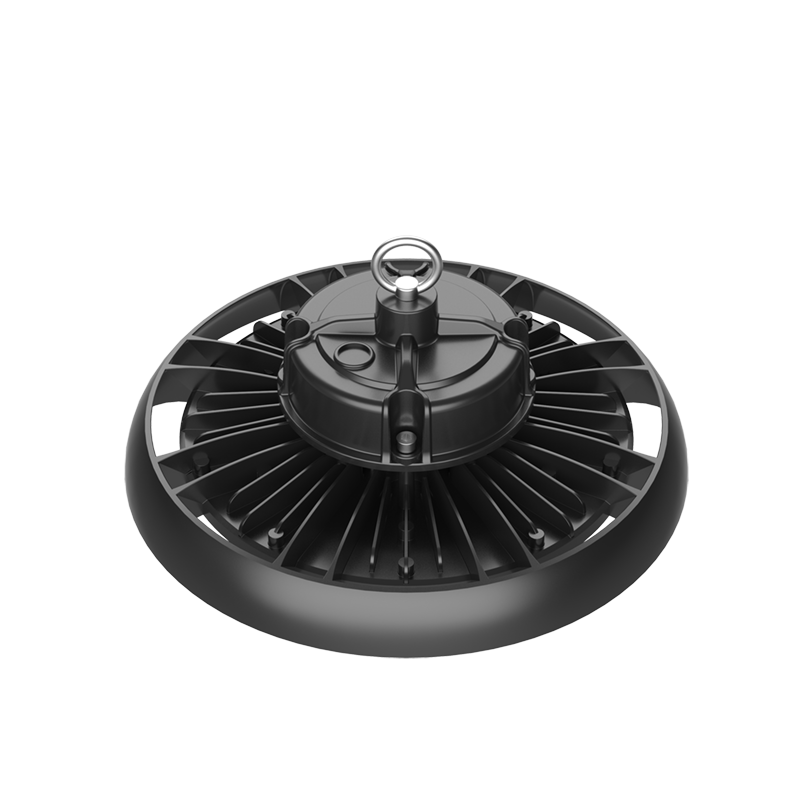

The OYLH‑09 Elegant IX UFO LED High Bay Light is a high‑performance industrial lighting fixture designed for warehouses, factories, workshops, logistics centers, gymnasiums, supermarkets and other large high‑ceiling spaces. It features power adjustable and CCT selectable functions to meet diverse project requirements, combining high efficiency, robust protection and flexible configuration.

Key Features & Benefits

  • Power & CCT Selectable Design
    Supports multi‑level power adjustment and color temperature switching, enabling flexible configuration for different lighting scenarios and reducing inventory pressure.
  • Ultra‑High Light Efficacy
    Delivers up to 150lm/W, 170lm/W, 190lm/W for maximum energy savings and bright, even illumination.
  • Superior Protection Performance
    IP65 waterproof and dustproof, IK08 high impact resistance, suitable for harsh industrial environments.
  • High‑Strength PC Lens
    ADC12 material with 94% light transmittance, shatter‑resistant and ensures stable light output.
  • Excellent Color Rendering
    CRI Ra>70/80/90 for realistic color presentation, improving visibility and work safety.
  • Wide Voltage & Temperature Range
    AC100–277V wide input voltage, operating temperature from ‑35°C to +50°C for global application.
  • Long Service Life
    Stable driver and premium LED chips ensure 50000 hours lifespan, lowering maintenance cost.
  • Flexible Beam Angles
    Optional 60°/90°/120° lenses to adapt to different installation heights and lighting layouts.
  • Multiple Installation & Accessories
    Supports U bracket, pipe mount, safety steel rope, aluminum reflector and emergency kit for versatile installation.

    sunny@nboyate.com
    whatsapp:0086 15888595371

Get A Free Quote

Description

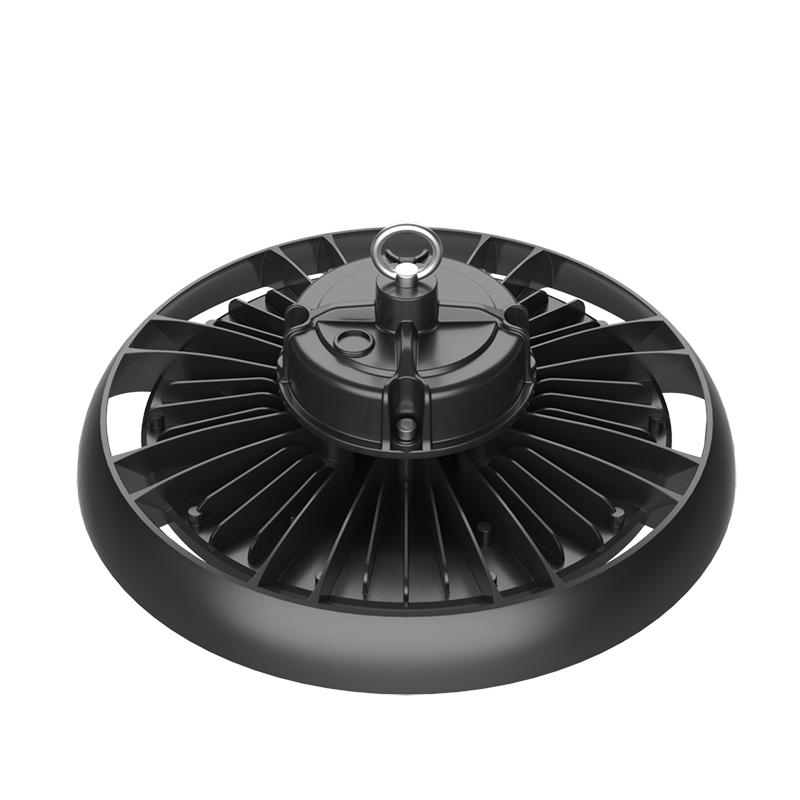

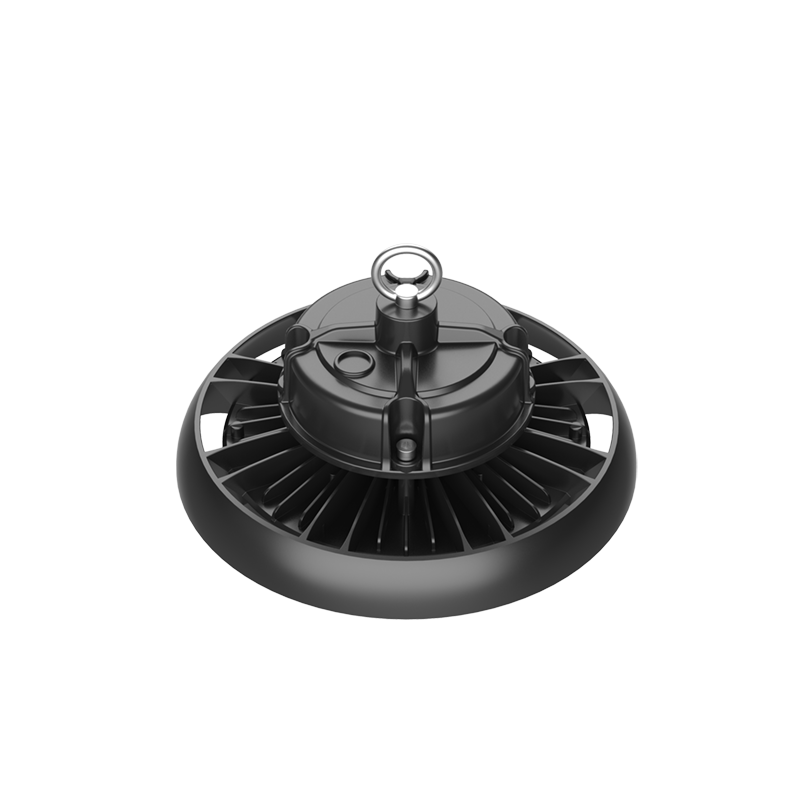

With IP65 and IK08 ratings, the fixture performs reliably in dusty, damp and high‑vibration industrial environments. The durable housing and efficient heat dissipation structure ensure stable performance and extend service life, making it a cost‑effective lighting solution for long‑term use.


Technical Specifications

  • Model: OYLH‑09‑UFO
  • Power: 80W/100W/120W/150W/200W/240W/300W (selectable)
  • CCT: 3000K/4000K/5000K/5700K/6500K (selectable)
  • Efficacy: 150/170/190 lm/W
  • Input Voltage: AC100–277V 50/60Hz
  • IP Rating: IP65
  • IK Rating: IK08
  • Beam Angle: 60°/90°/120°
  • CRI: Ra>70/80/90
  • Power Factor: >0.95
  • THD: <10%
  • Lifespan: 50000 hours
  • Certificates: CE, RoHS, TUV, CB, FCC, SAA, CCC, CQC

Applications

Warehouses, manufacturing plants, logistics centers, workshops, commercial gyms, exhibition halls, shopping malls, airports and other industrial & commercial high‑ceiling areas.
