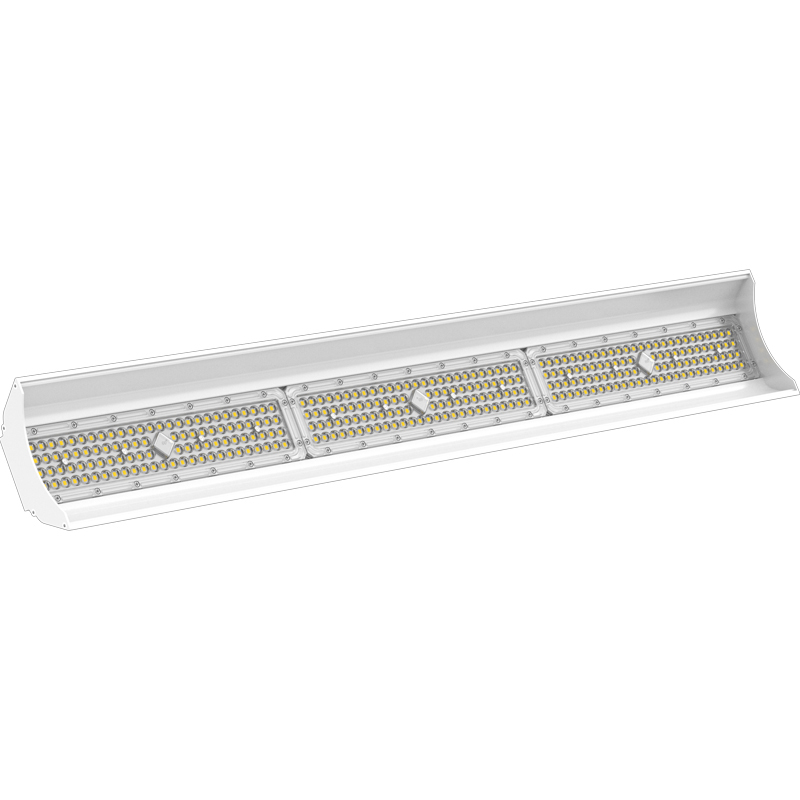

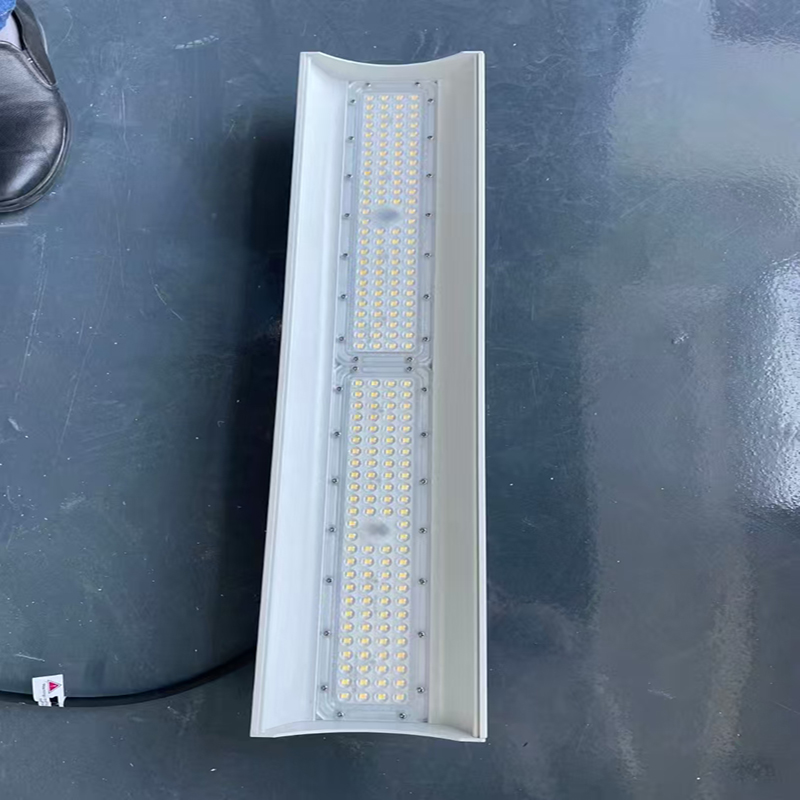

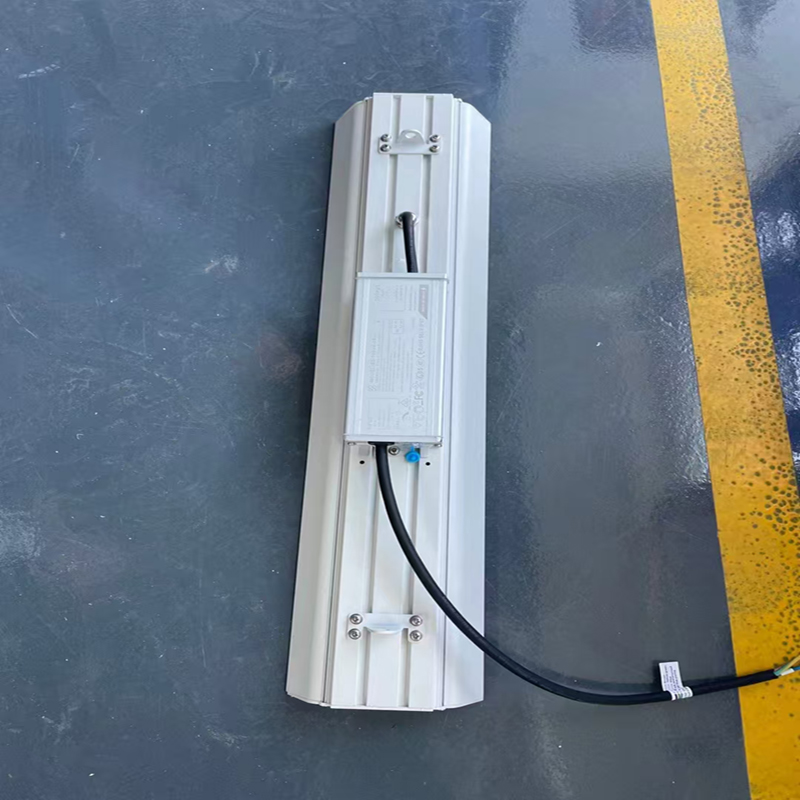

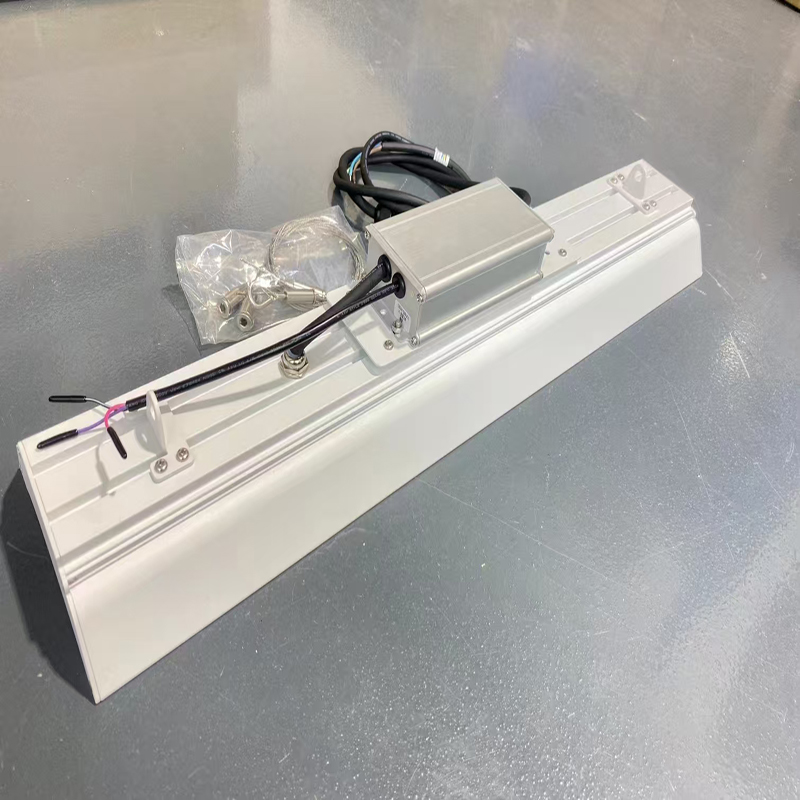

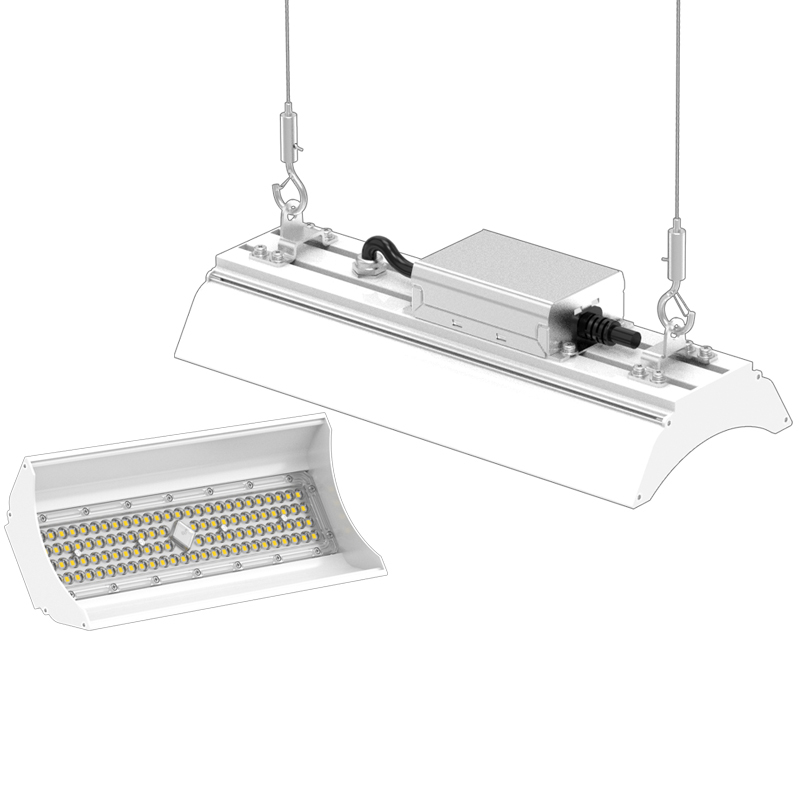

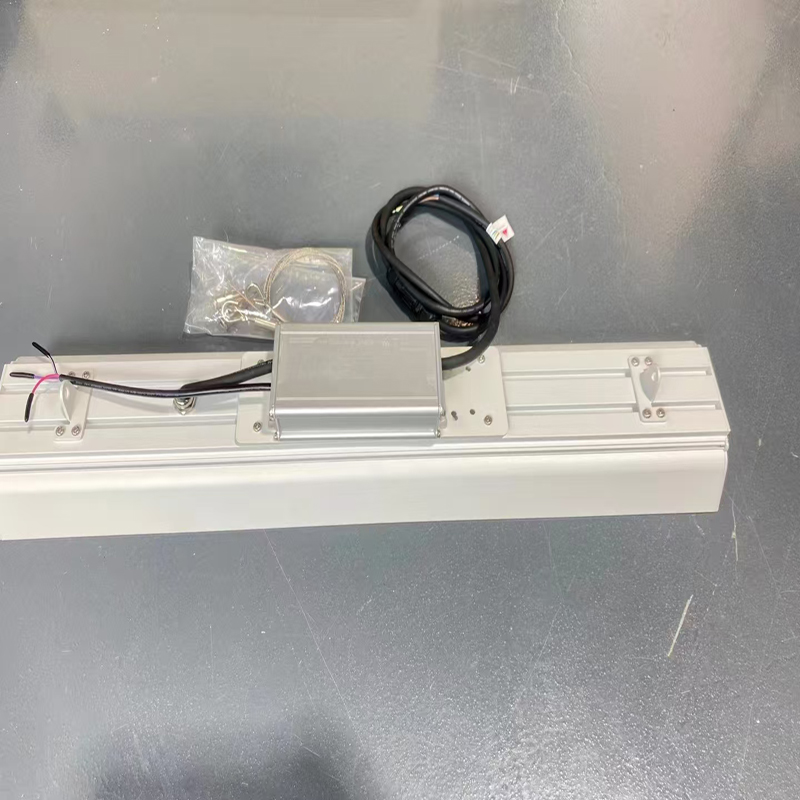

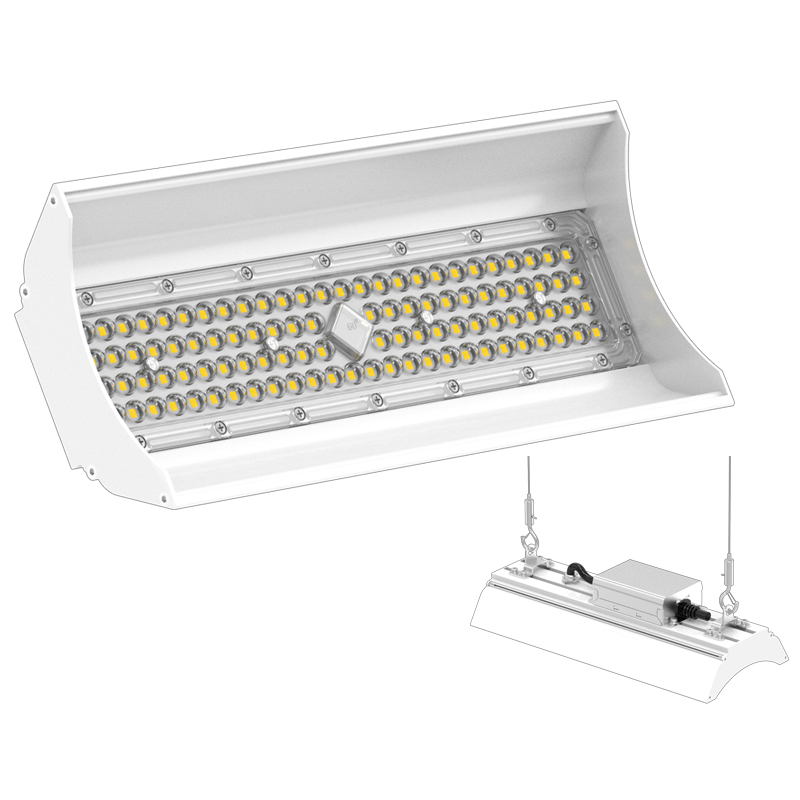

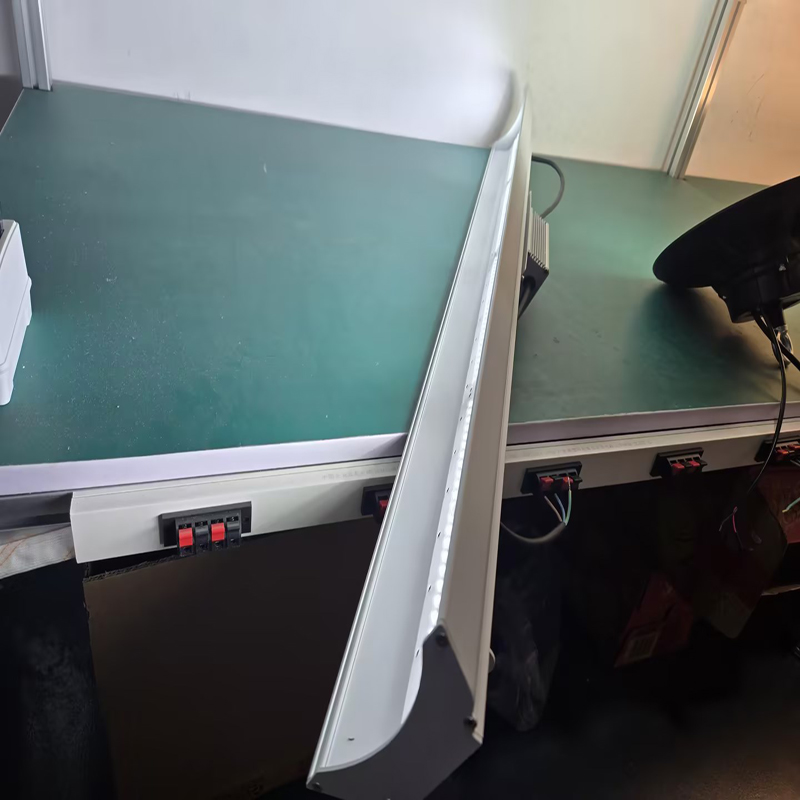

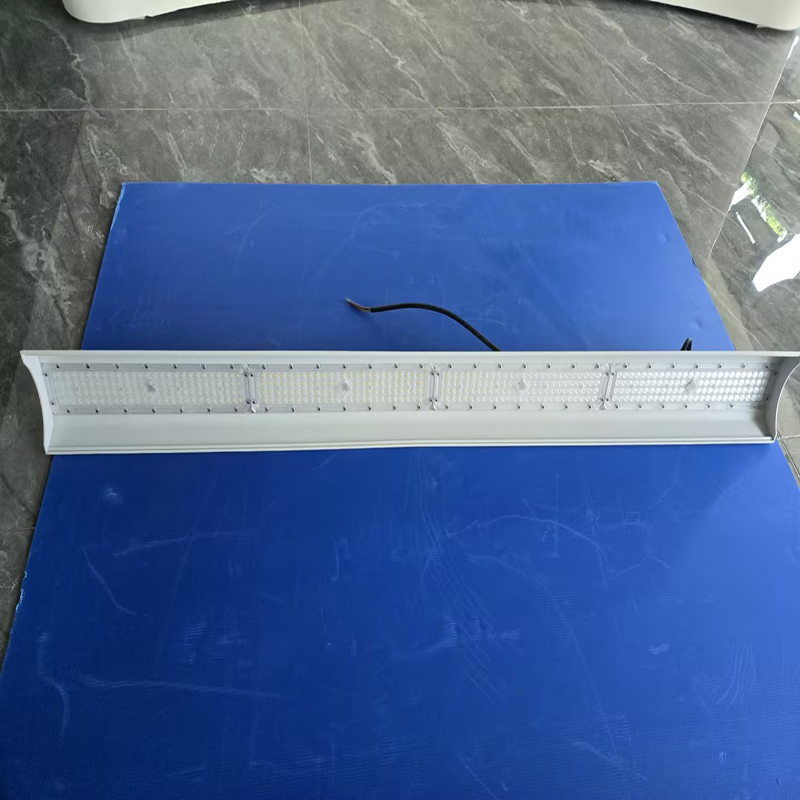

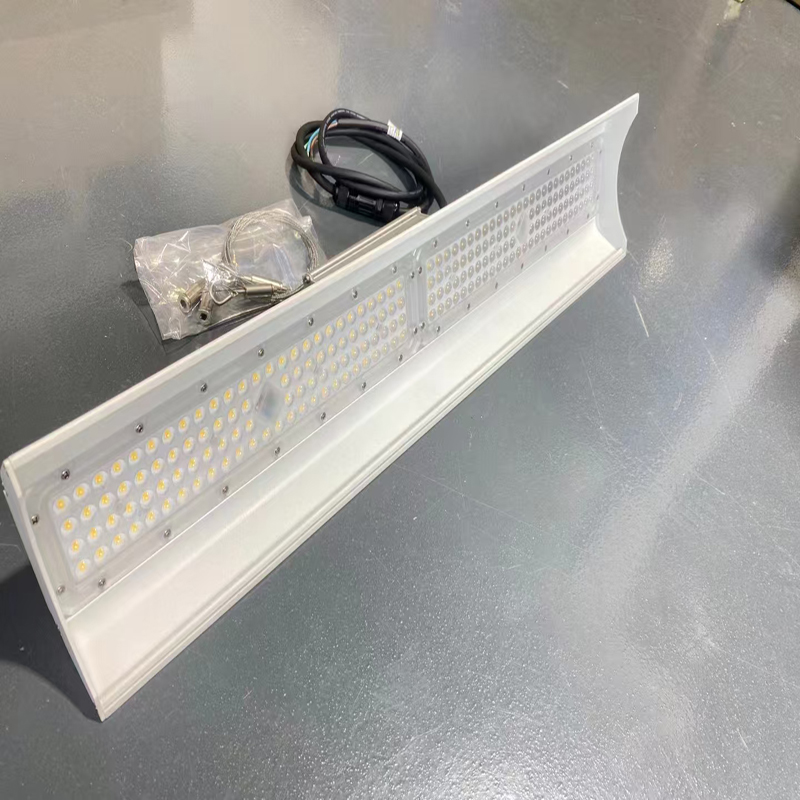

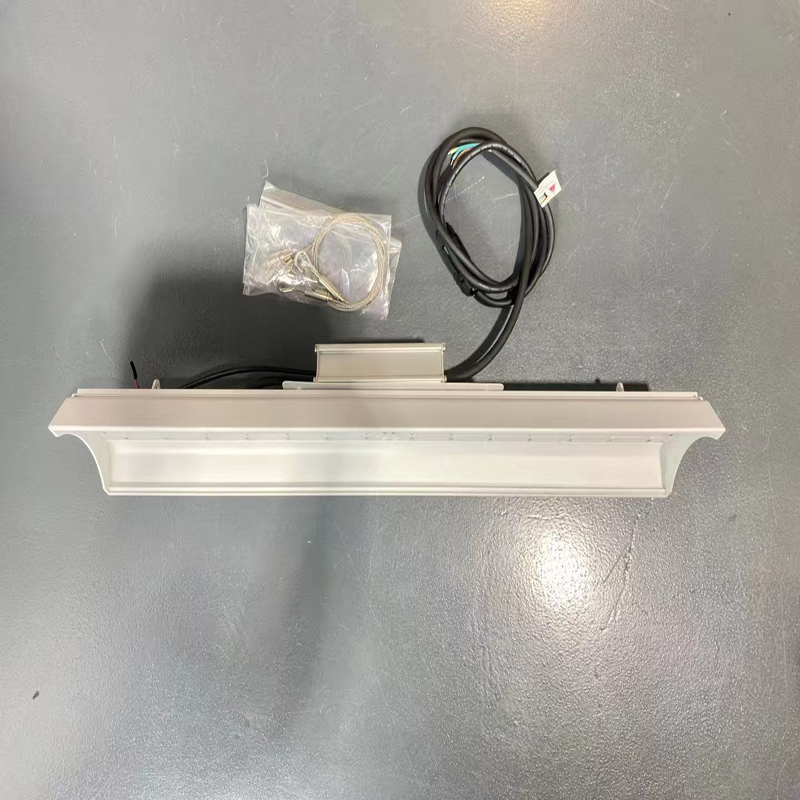

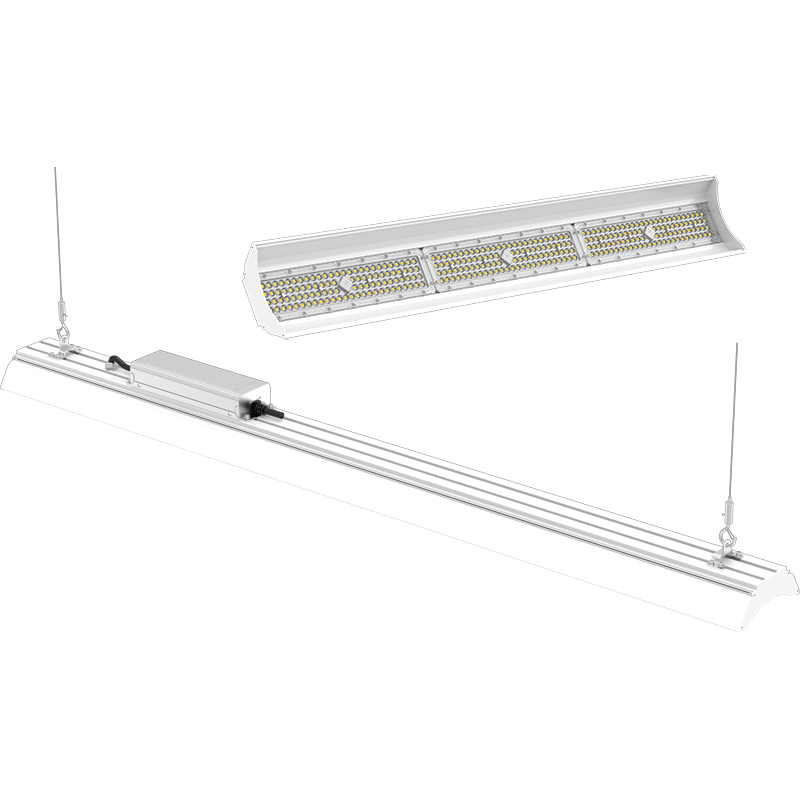

OYLH‑01L Linear LED High Bay Light

Key Features & Benefits

• High Efficacy & Stable Output

  140–150lm/W high efficiency, Lumileds/SAN’AN LED chips, Meanwell/SOSEN/ZH driver, PF >0.95 for optimal energy savings.
• IP66 Waterproof & Dustproof

  Full protection against dust, moisture and corrosion, suitable for damp, dusty and harsh industrial environments.
• Durable Aluminum Housing

  Extruded aluminum structure provides excellent thermal management, ensuring long lifespan and stable lumen output.
• Multiple Beam Options

  Supports symmetric (60°/90°) and asymmetric (80×150°, 90×120°, Asy80°) optical designs for various layout needs.
• Wide Voltage & Temperature

  AC100–277V wide input, stable operation from -35°C to +50°C for global application.
• Long Service Life

  50,000 hours lifespan with a 5‑year manufacturer warranty for low maintenance.
• Slim & Easy Installation

  Low‑profile linear design saves space and simplifies mounting, ideal for retrofit and new construction.

Technical Specifications

• Model: OYLH‑01L
• Power: 50W, 100W, 150W, 200W
• Efficacy: 140–150lm/W
• LED Chip: Lumileds / SAN’AN
• Driver: Meanwell / SOSEN / ZH
• Input Voltage: AC100–277V 50/60Hz
• CCT: 3000K–6500K
• CRI: Ra 70+ / 80+
• Beam Angle: 60°/90°/80×150°/90×120°/Asy80°
• IP Rating: IP66
• THD: <15%
• Driver Efficiency: 92%
• Lifespan: 50,000 hours
• Housing: Aluminum
• Lens: PC
• Warranty: 5 years

Dimension & Weight

• 50W: 305×133×77mm | N.W 1.3KG
• 100W: 605×133×83mm | N.W 2.2KG
• 150W: 905×133×83mm
• 200W: 1205×133×83mm | N.W 3.5KG
