Led High Bay Light OYLH-01

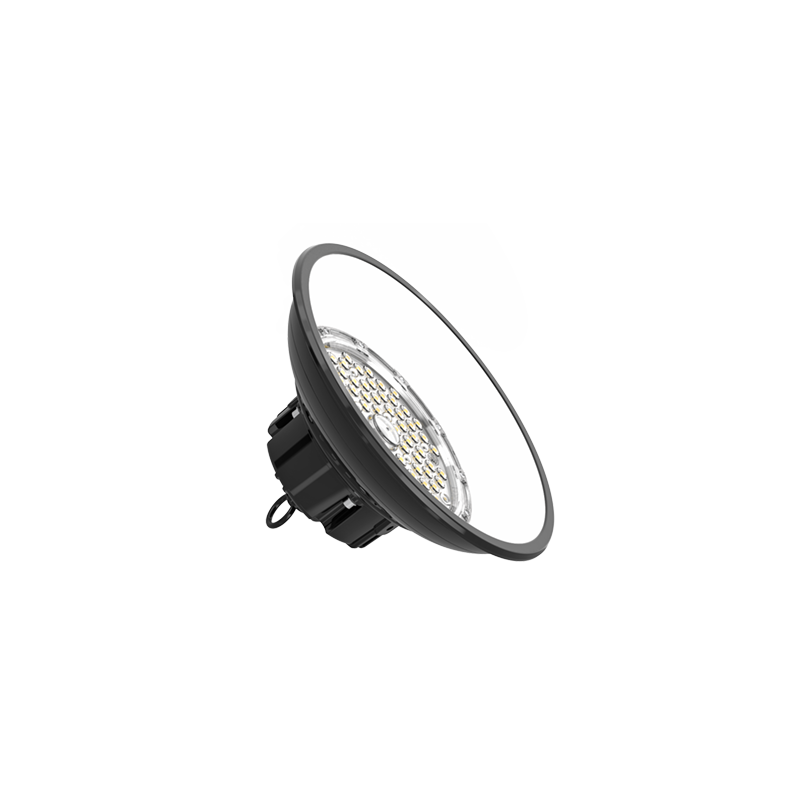

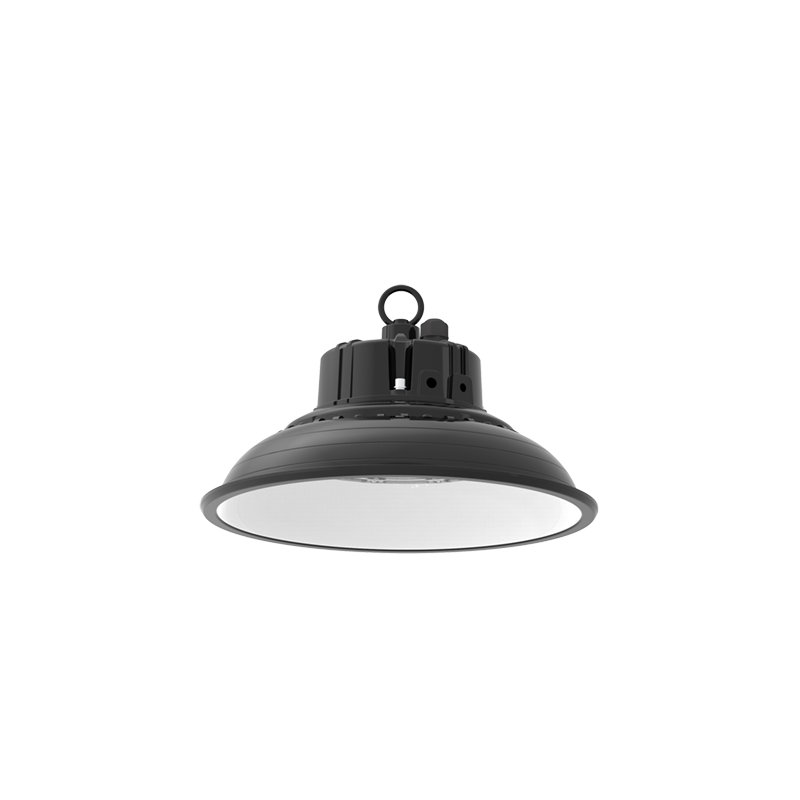

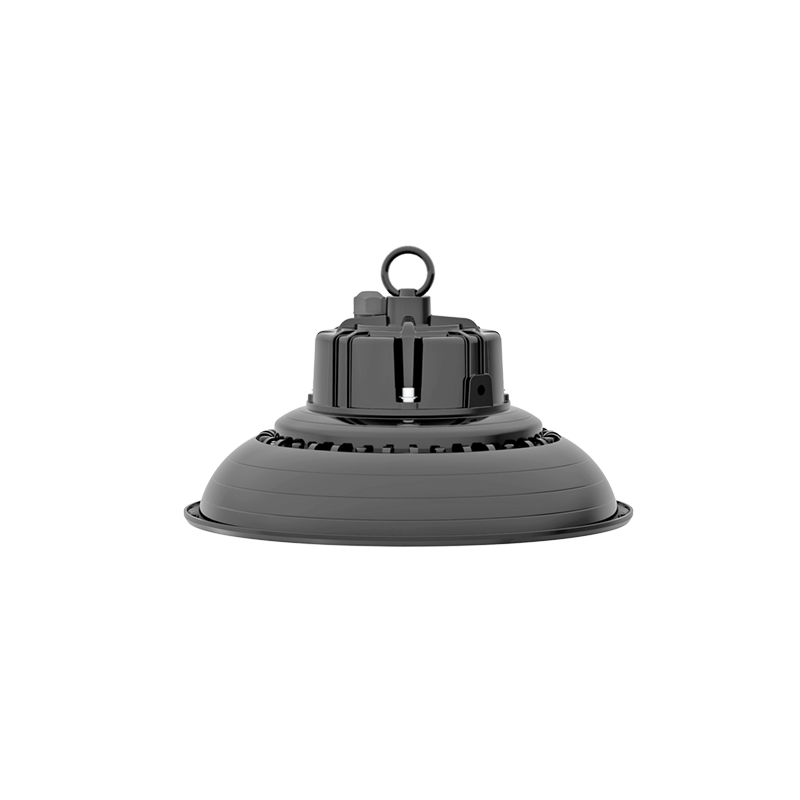

OYLH-01 Elegant I LED High Bay Light

The OYLH-01 Elegant I LED High Bay Light is a high-performance industrial lighting solution designed for warehouses, factories, workshops, logistics centers, gymnasiums and other large high‑ceiling spaces. Adopting high‑quality brand LED chips and drivers, this UFO‑shaped high bay fixture delivers stable output, high luminous efficacy and long‑term reliability for demanding industrial environments.


Key Features & Benefits


High-Efficiency LED System

  • Built with premium LED chips and stable drivers, the fixture provides 14,000–30,000 lumens across 100W, 150W and 200W models, with power factor >0.95 for optimized energy usage.

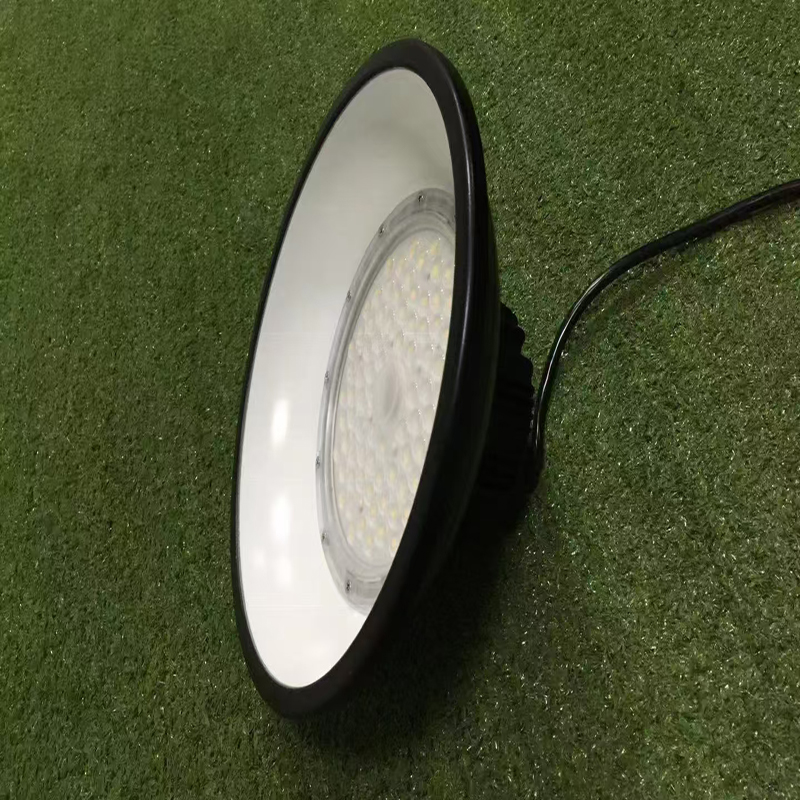

  • Safe & Shatter‑Resistant PC Lens
    Clear polycarbonate lens eliminates lamp breakage risks, making it ideal for industrial applications requiring high safety standards.
  • Superior Thermal Management

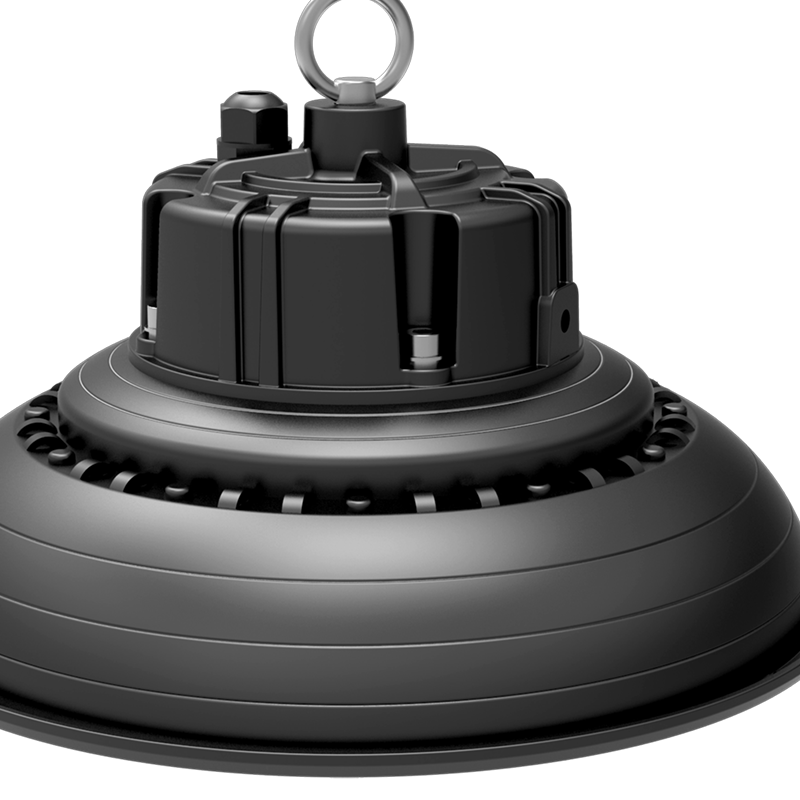

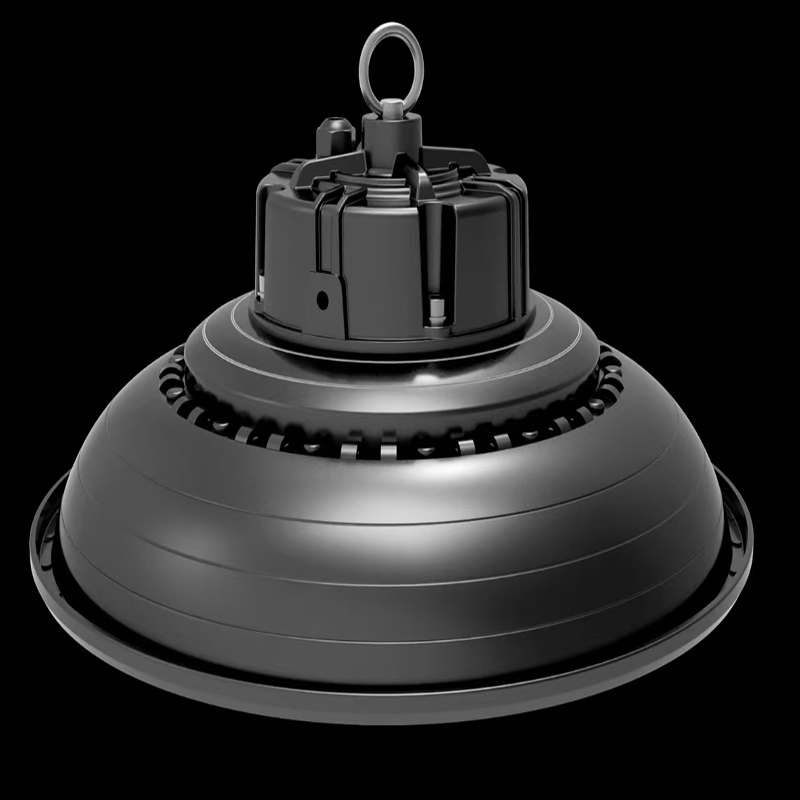

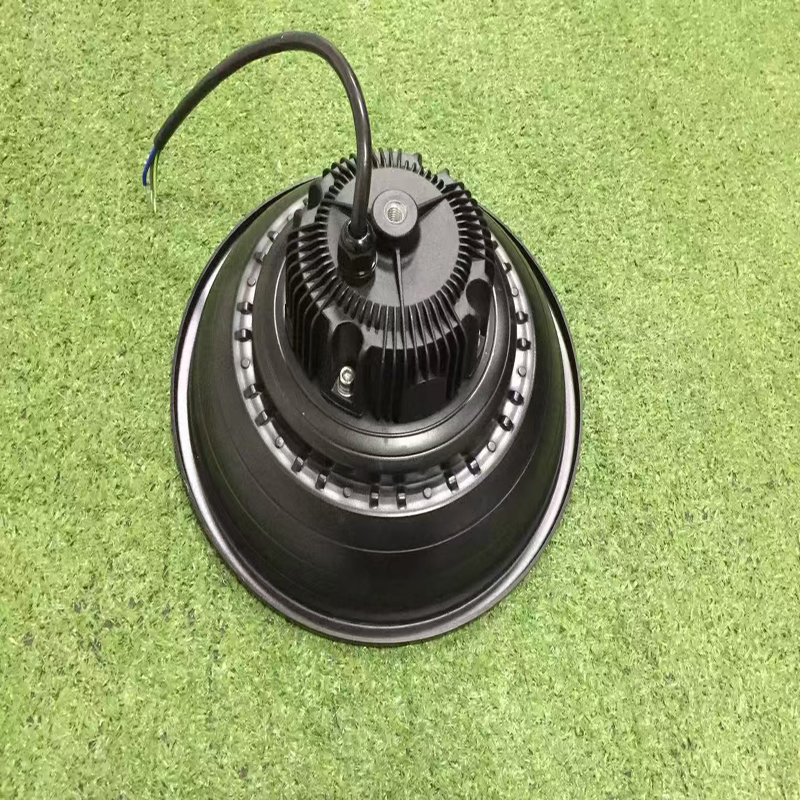

    Optimized die‑cast aluminum alloy housing ensures excellent heat dissipation, extending service life and maintaining stable lumen output.
  • Instant On & Restart
    No warm‑up or cool‑down delay; the light reaches full brightness immediately upon power‑on and supports frequent switching without damage.
  • Strong Durability & Protection
    IP65 waterproof and dustproof, IK08 high impact resistance, stable performance in harsh conditions from -30°C to +50°C.
  • Compact & Easy Transport
    Compact round UFO design reduces packaging size and lowers shipping and storage costs.
  • Flexible Beam Angles
    Optional 60°/90°/110° optical lenses for precise light distribution in different mounting heights and application scenarios.
  • Optional Functions

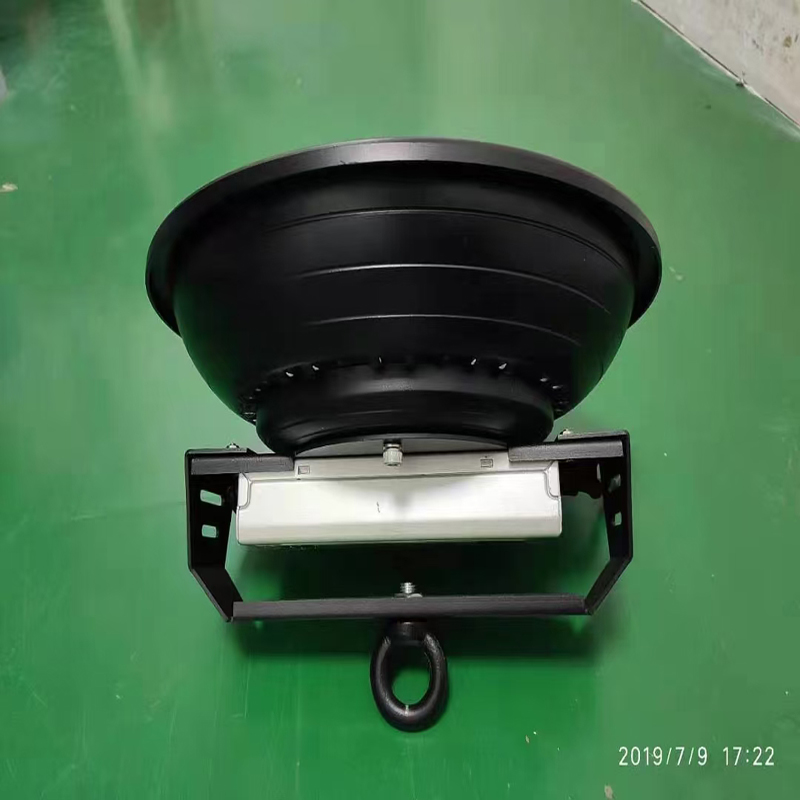

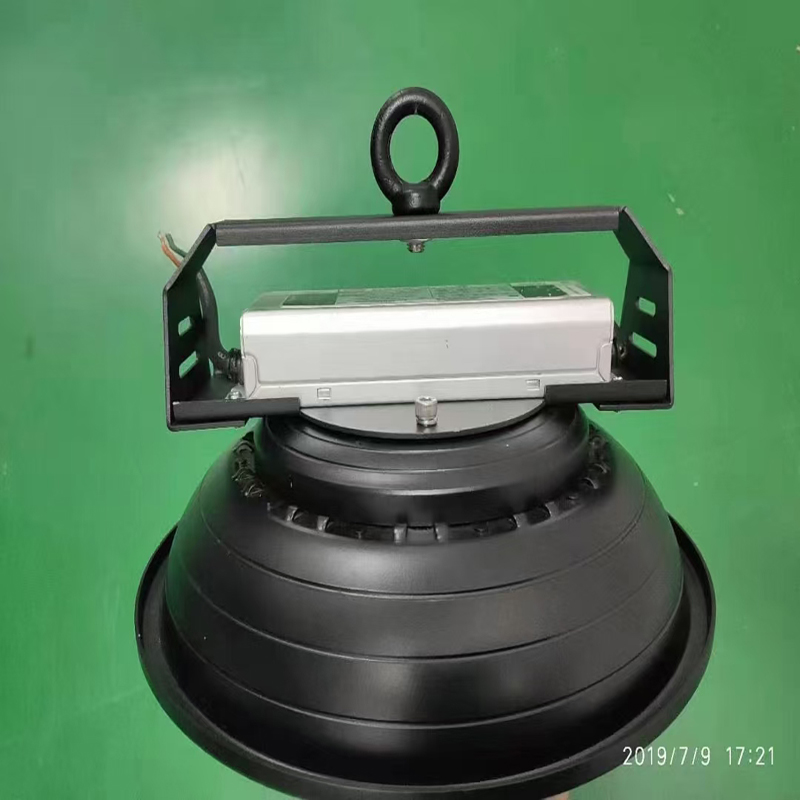

    Support 1-10V dimming, safety rope and adjustable mounting bracket for flexible installation and intelligent control.

Get A Free Quote

Description


The OYLH-01 Elegant I LED High Bay Light is a high‑performance UFO industrial fixture engineered for warehouses, factories, workshops and logistics centers. It uses premium LED chips and drivers to deliver 14,000–30,000 lumens with stable output. Features include a shatter‑resistant PC lens, optimized aluminum housing for excellent thermal management, instant on/off, IP65 waterproof, IK08 impact resistance and optional 60°/90°/110° beam angles. With over 50,000 hours lifespan and a 5‑year warranty, it provides safe, reliable, energy‑saving lighting for harsh industrial environments.


Technical Specifications

  • Power: 100W / 150W / 200W
  • Luminous Flux: 14,000–30,000lm
  • Input Voltage: 100–277V AC
  • CCT: 2700K–6500K
  • CRI: Ra ≥80
  • IP Rating: IP65; IK Rating: IK08
  • L70 Lifespan: >50,000 hours
  • Beam Angle: 60° / 90° / 110°
  • Dimming: Optional 1-10V
  • Operating Temp: -30°C to +50°C
  • Warranty: 5 years

Applications

Warehouses, manufacturing factories, logistics centers, workshops, commercial gyms, exhibition halls, supermarkets and other high‑ceiling indoor spaces requiring durable, efficient and uniform industrial lighting.
