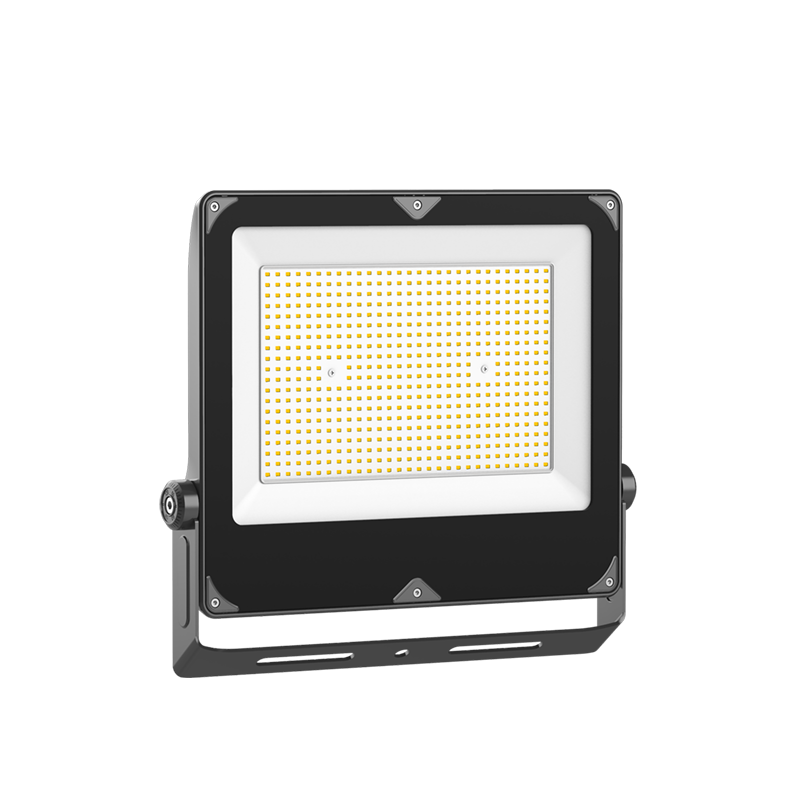

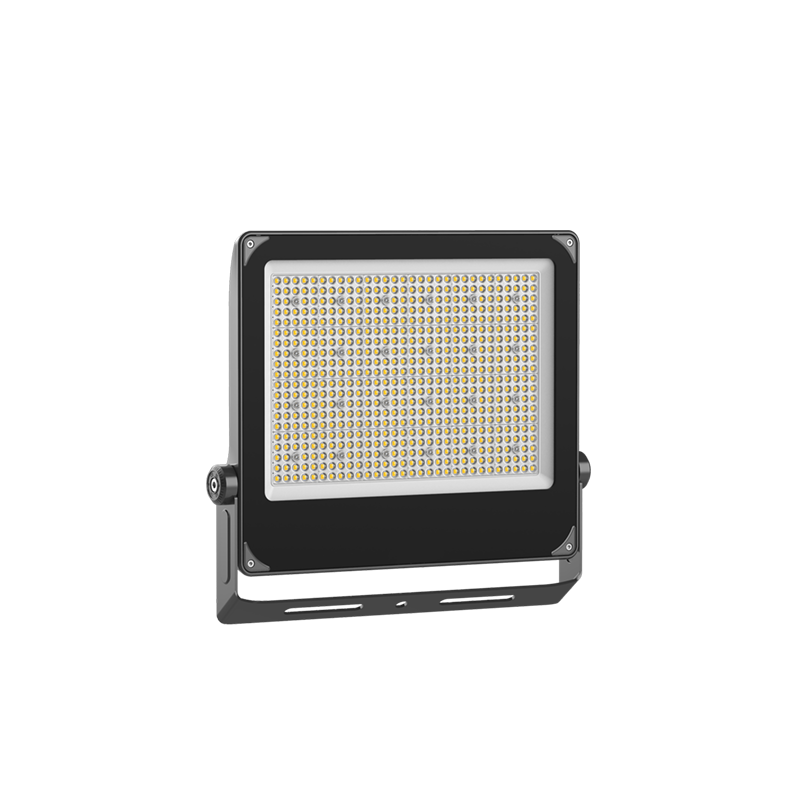

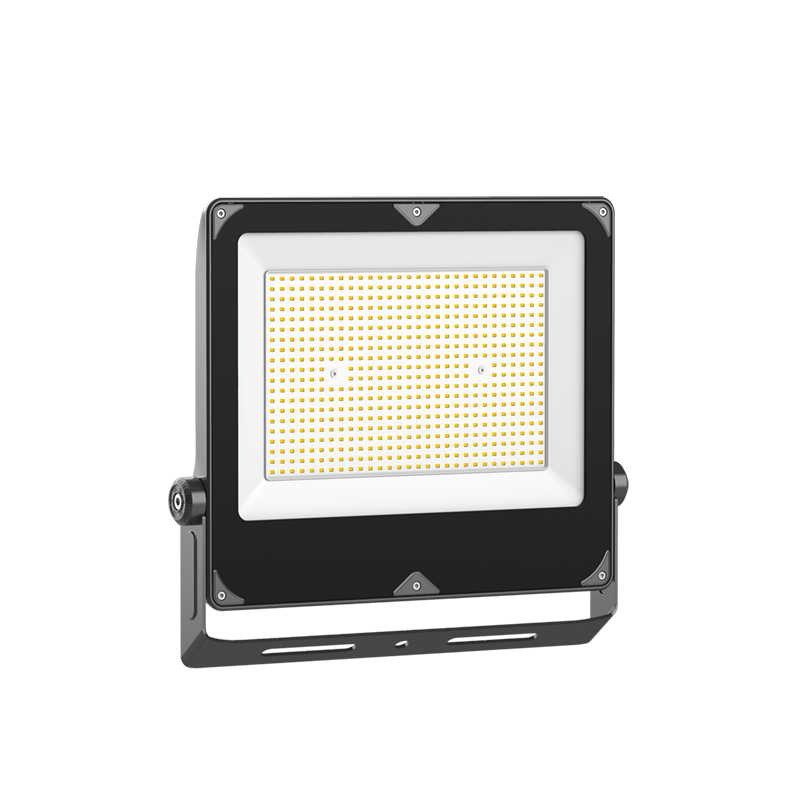

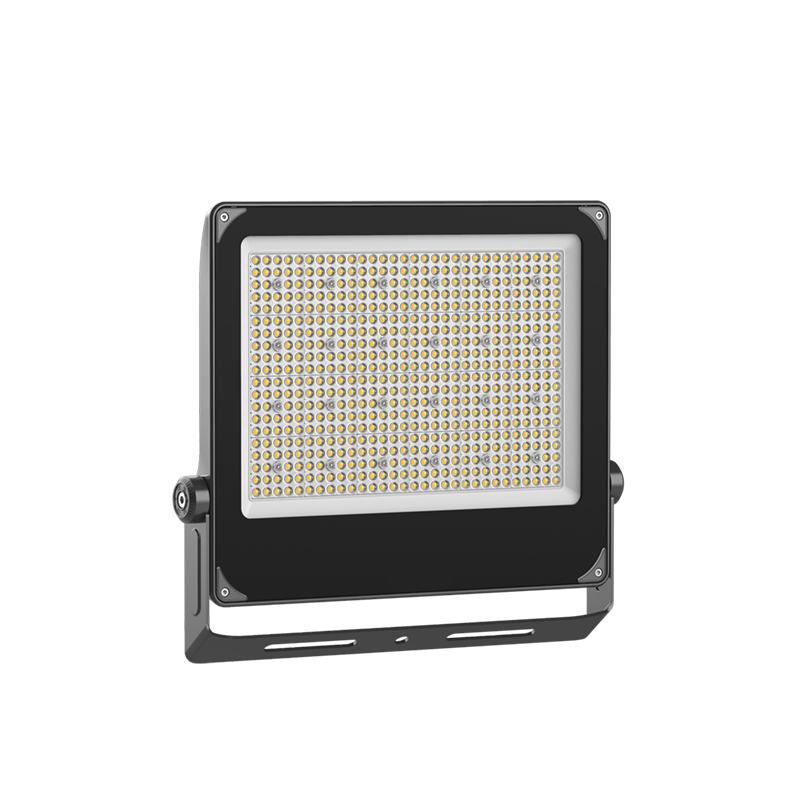

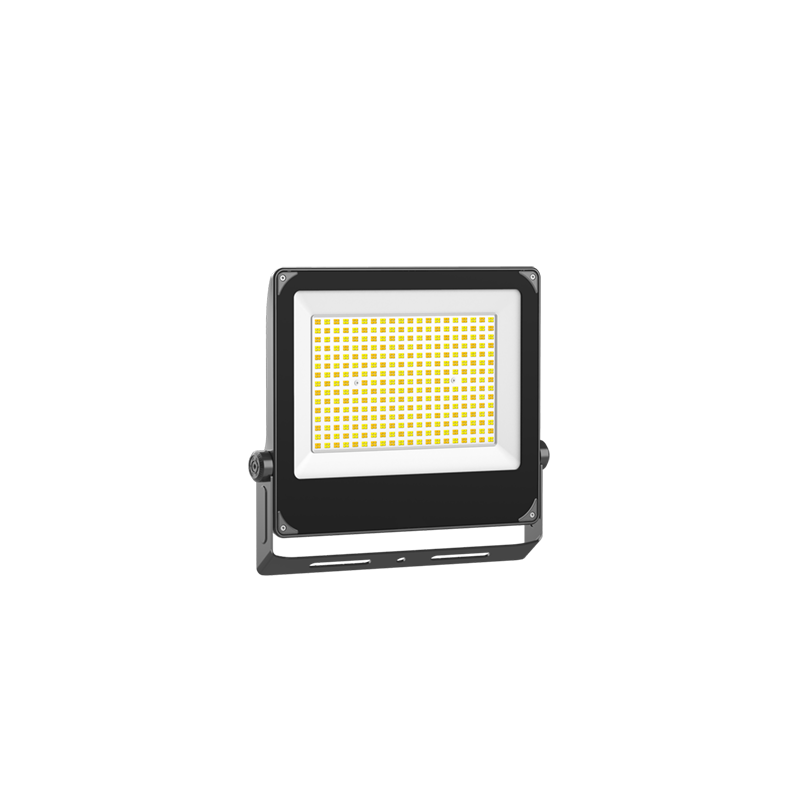

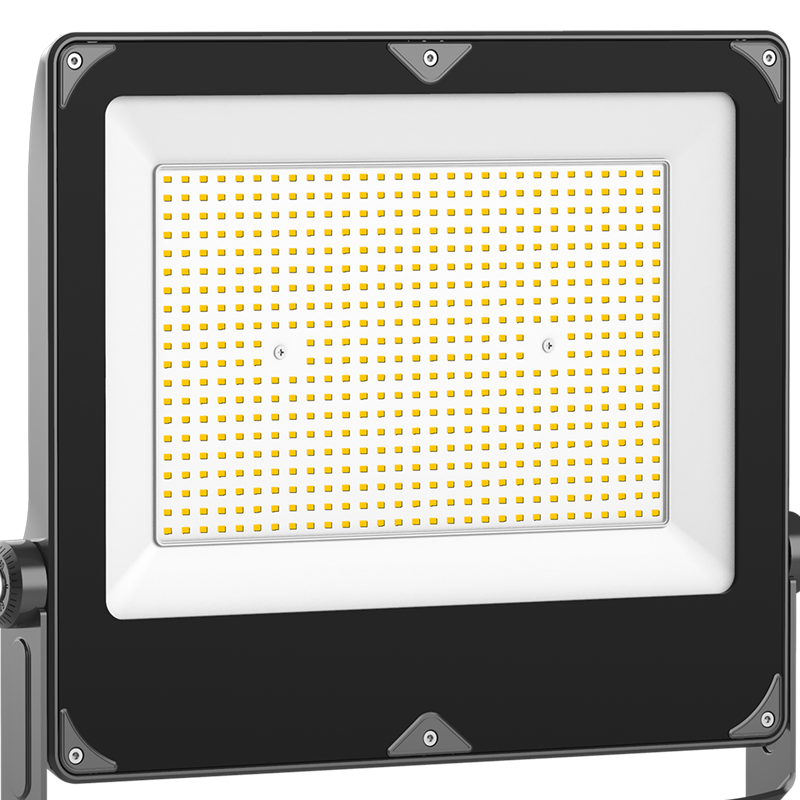

OYLF‑045 is a high‑performance CCT & Power tunable LED floodlight designed for industrial and commercial outdoor use. It combines ultra‑thin structure, excellent thermal management, and flexible adjustability to meet various lighting demands.
Powered by Lumileds 2835 LEDs, it delivers up to 150lm/W high efficacy. With IP66 waterproof and IK08 impact resistance, it performs reliably in harsh environments. The integrated breather valve balances internal temperature and humidity, ensuring long lifetime.
Key Specifications
- Model: OYLF‑045A (30W/50W/100W/150W/200W/250W/300W)
- CCT Adjustable: 3000K/4000K/5000K/5700K/6500K
- Power Adjustable: 100% / 75% / 50%

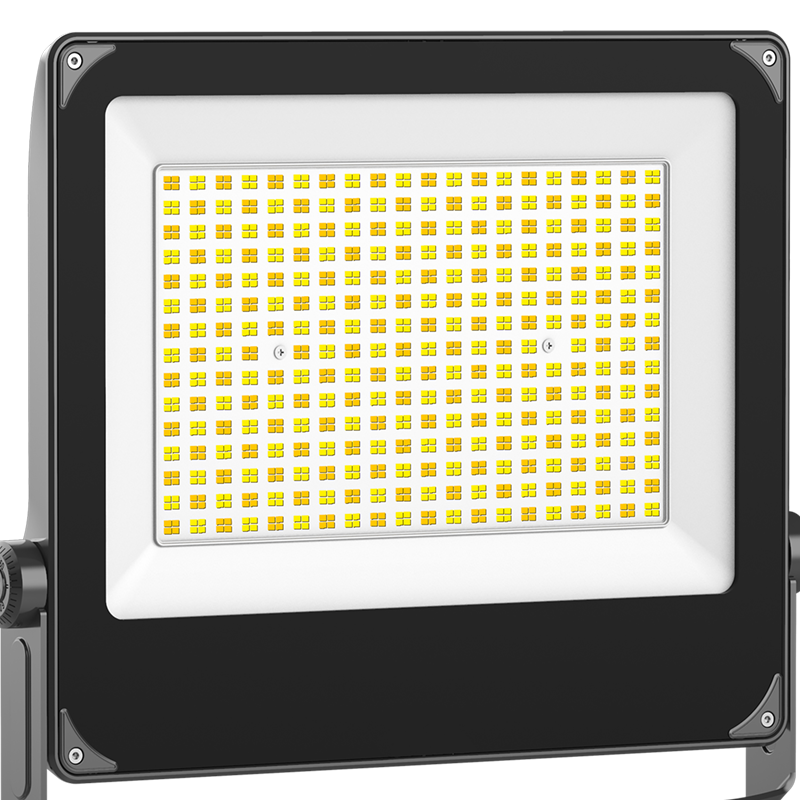

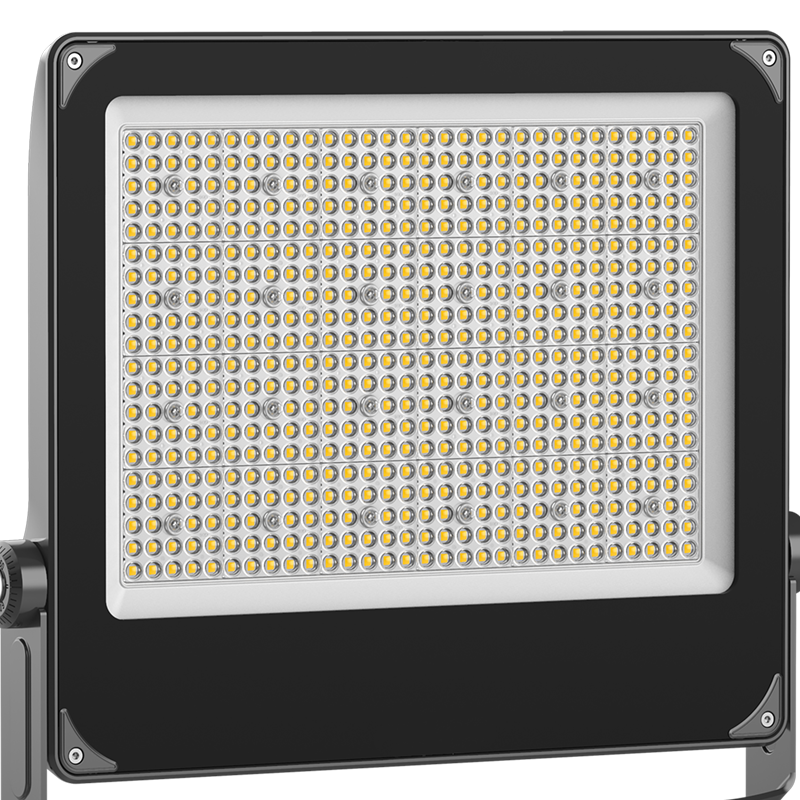

- LED: Lumileds 2835
- Efficacy: 150lm/W
- IP Rating: IP66
- IK Rating: IK08
- Input Voltage: AC100‑277V 50/60Hz
- CRI: >70 / 80
- PF: >0.95
- Beam Angle: 30°/60°/90°/70×150°
- Housing: ADC12 die‑cast aluminum
- Glass: 4mm tempered glass
- Warranty: 5 years
- Operating Temperature: -30°C to +45°C
Key Benefits
- CCT & Power dual adjustable for flexible application
- Ultra‑thin slim design for easy installation

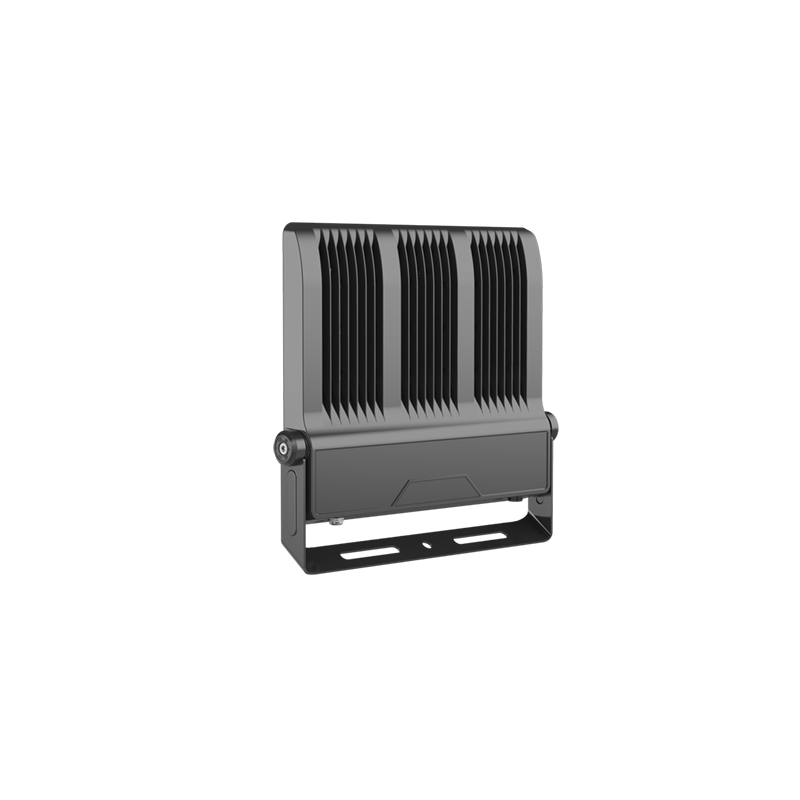

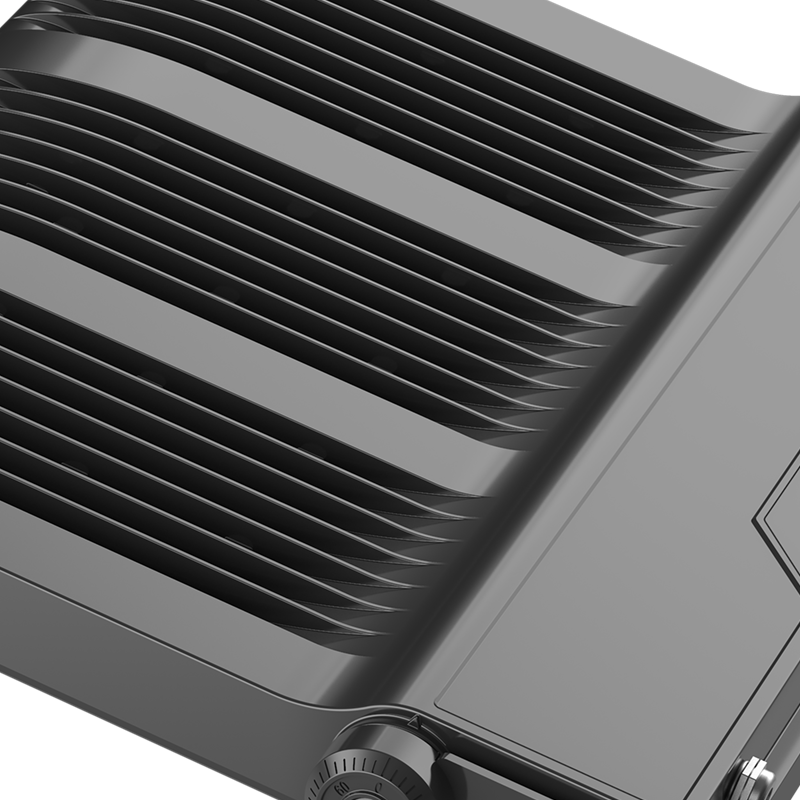

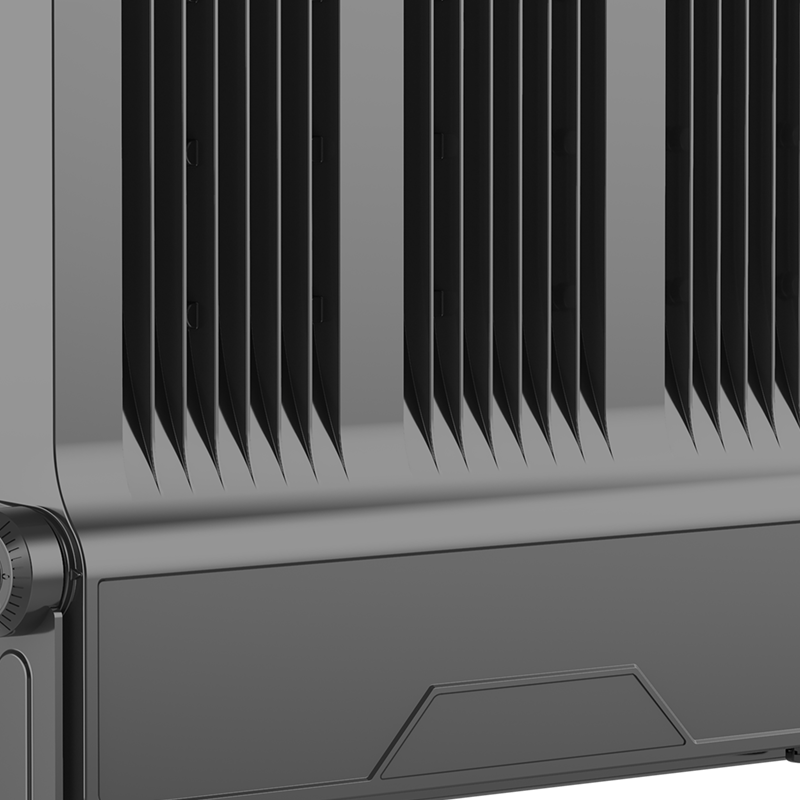

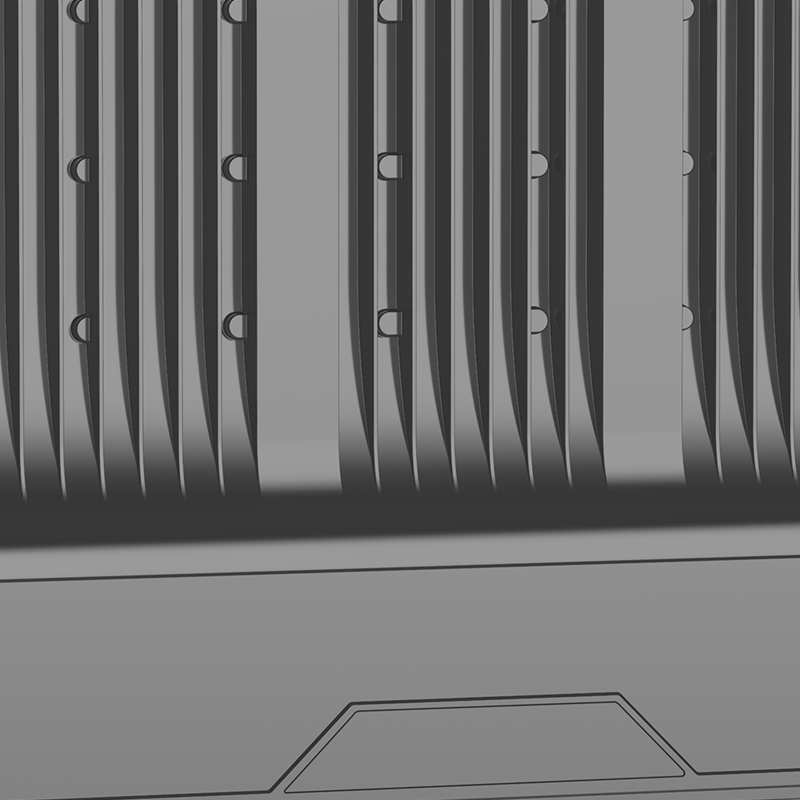

- ADC12 aluminum for excellent heat dissipation
- IP66 & IK08 rated for outdoor & industrial use
- 5‑year warranty for long‑term reliability
- Offset bracket enables fast, secure mounting
- Wide voltage AC100‑277V for global use
Applications
Warehouses, parking lots, building facades, stadiums, construction sites, gardens, industrial areas, commercial projects, landscape lighting.
