Technical Parameter

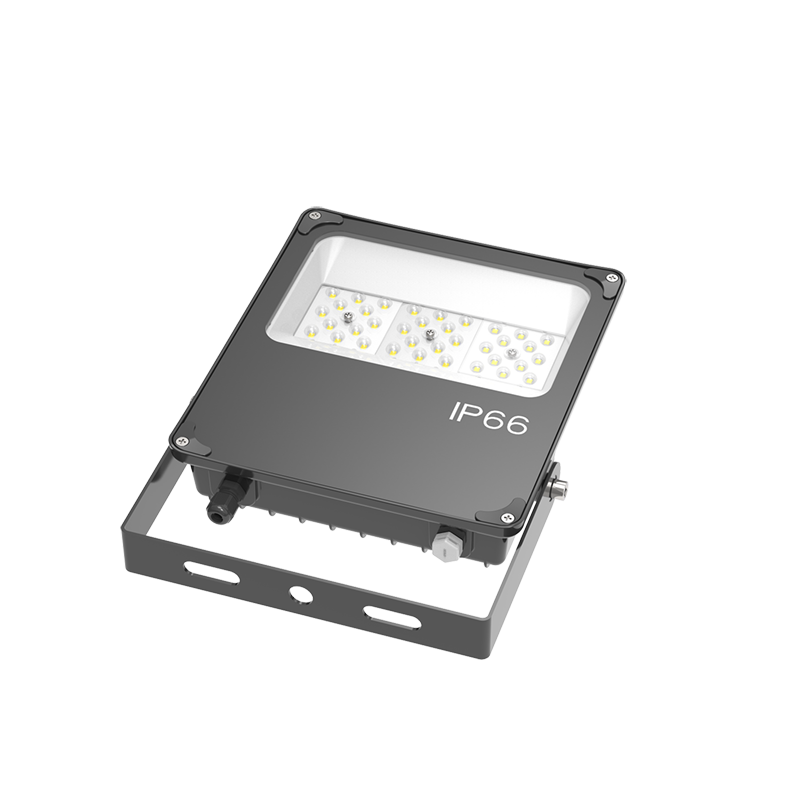

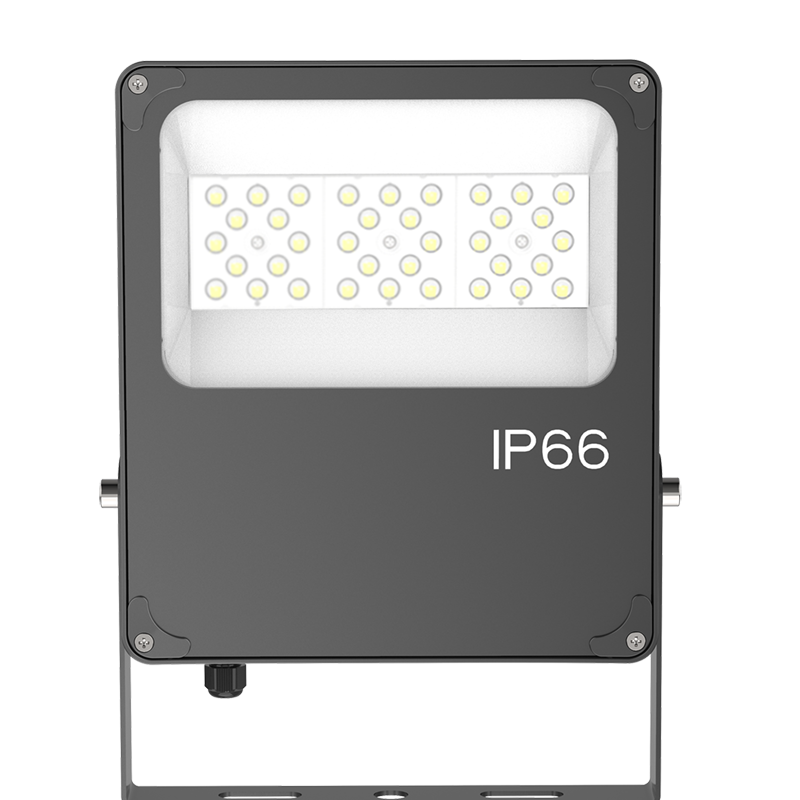

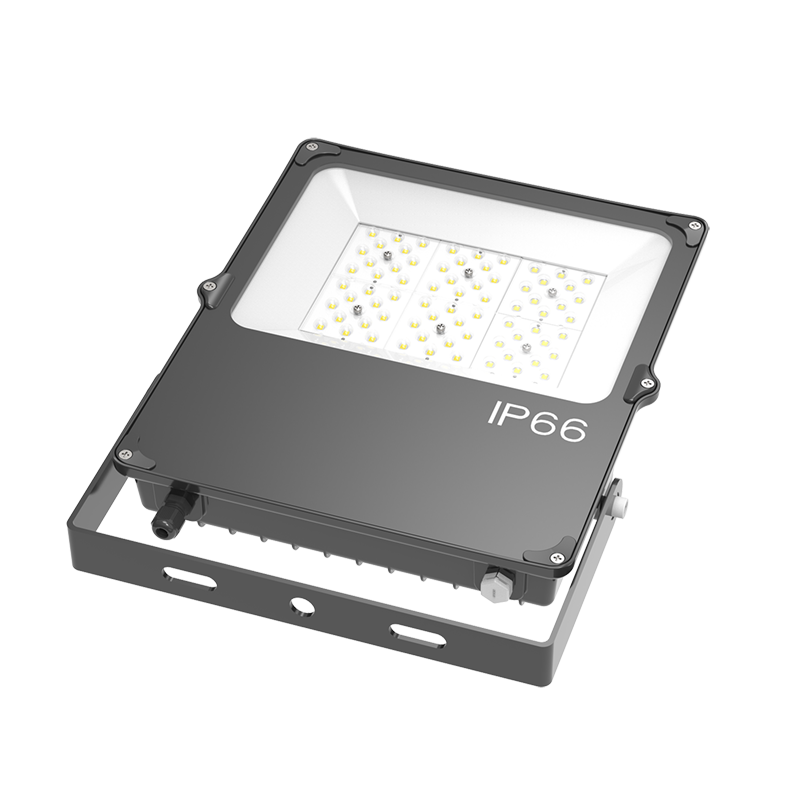

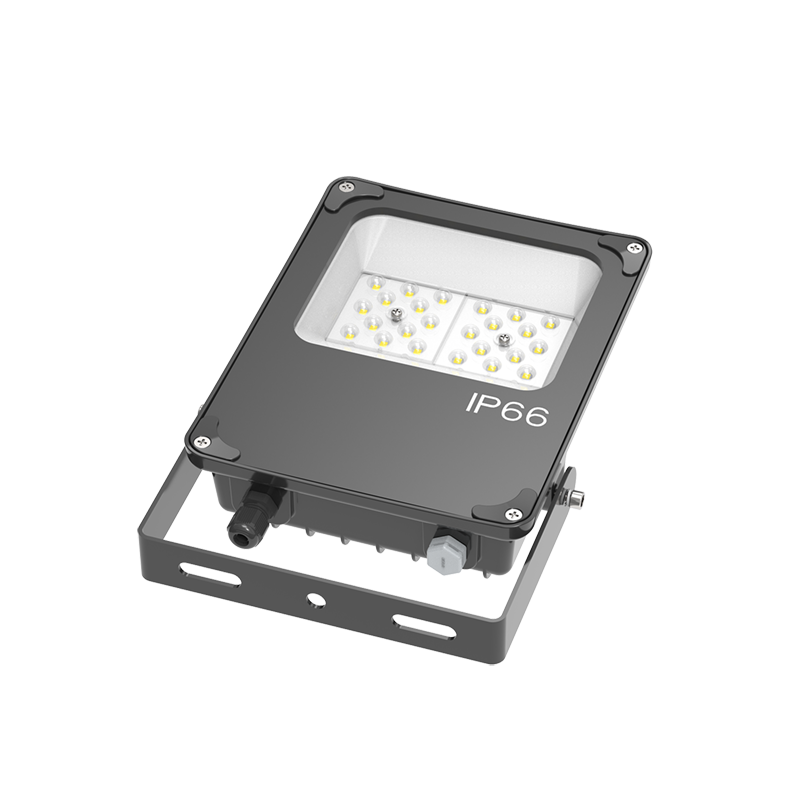

OYLF-015-60W / 100W
- Voltage: AC100V-240V 50/60HZ
- Power: 60W, 100W
- LED Quantity: 288pcs, 360pcs
- Luminous Flux: 18000LM ±5%
- Beam Angle: 30°/60°/90°/120° /T2M/T3M
- Net Weight: 0.98kg, 4.7kg
- Certificate: CE

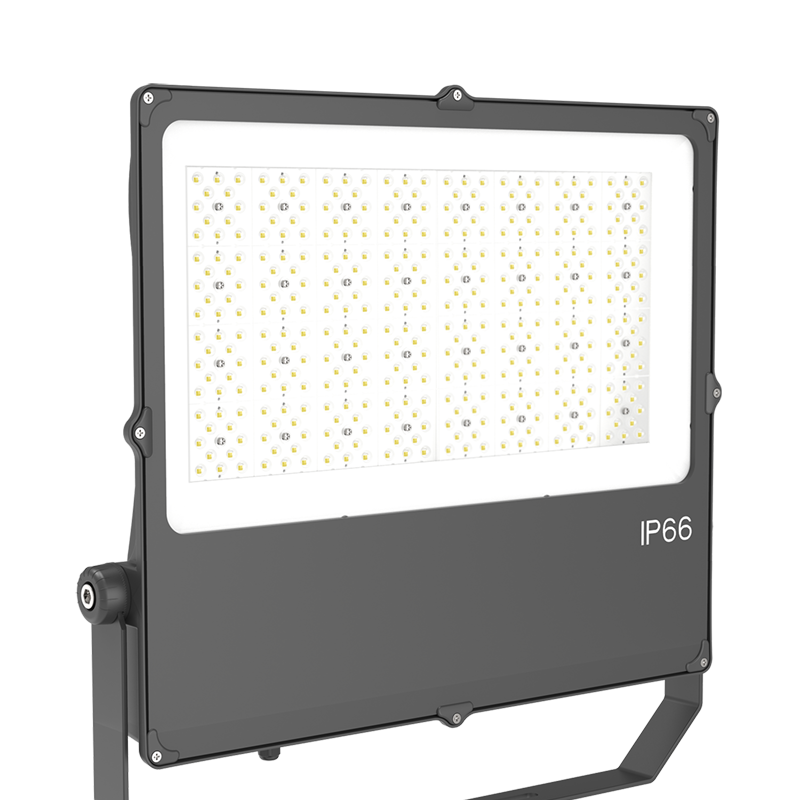

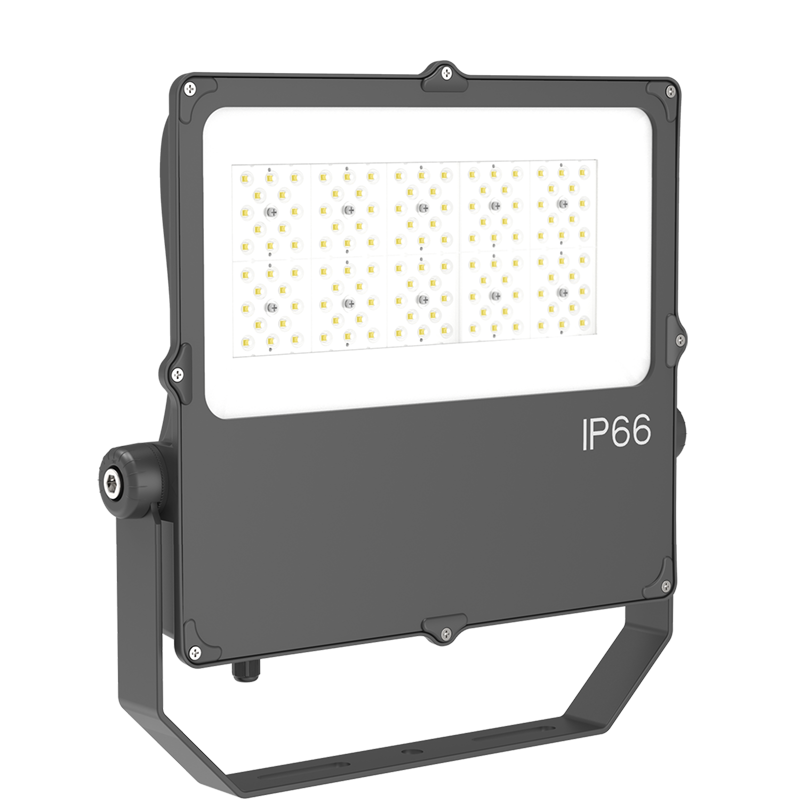

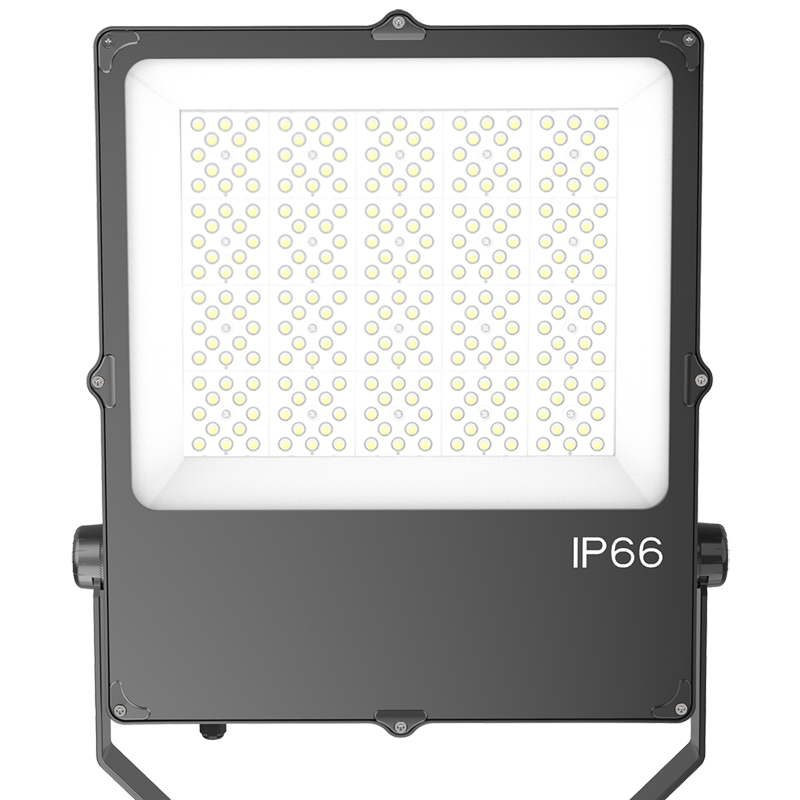

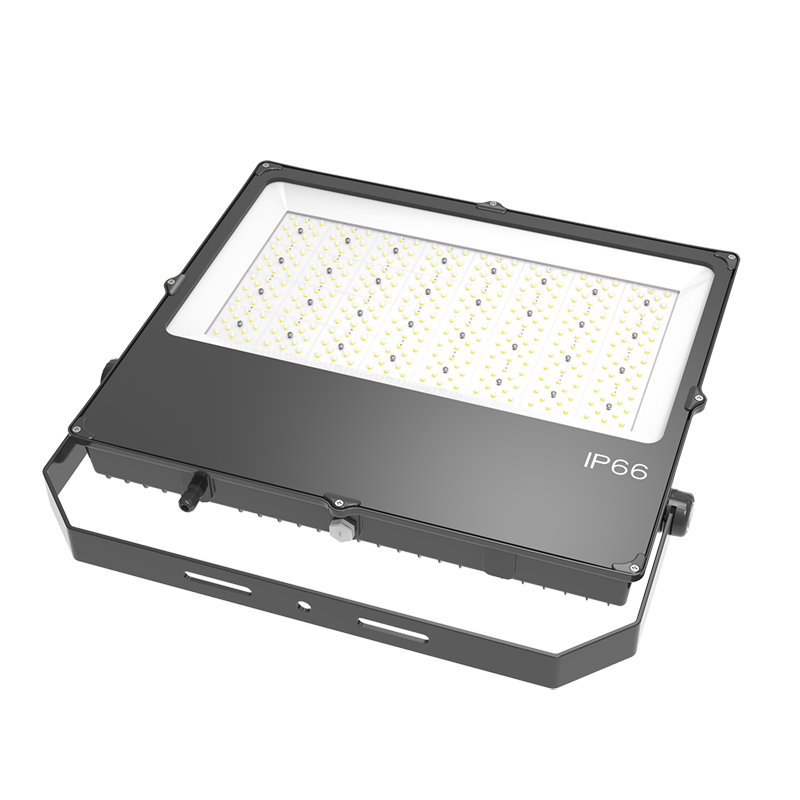

OYLF-015-120W / 150W / 200W / 250W
- Voltage: AC100V-240V 50/60HZ
- Power: 120W, 150W, 200W, 250W
- LED Quantity: 576pcs
- Luminous Flux: 21600LM±5%, 27000LM±5%, 36000LM±5%, 45000LM±5%
- Beam Angle: 30°/60°/90°/120° /T2M/T3M (24-in-one lens)
- Ra>80
- Power Factor (PF): >0.9
- IP Rank: IP66
- Certificate: CE
Mechanical Specifications
- Temperature Range Operating: -40°C~50°C
- Humidity Range Operating: 10% ~ 90%
- Temperature Range Storage: -40°C~70°C
- LED Driver: SOSEN/DONE
- Material: ADC12
Application
Billboard, Road, Tunnel, Bridge and culvert, Square, Building

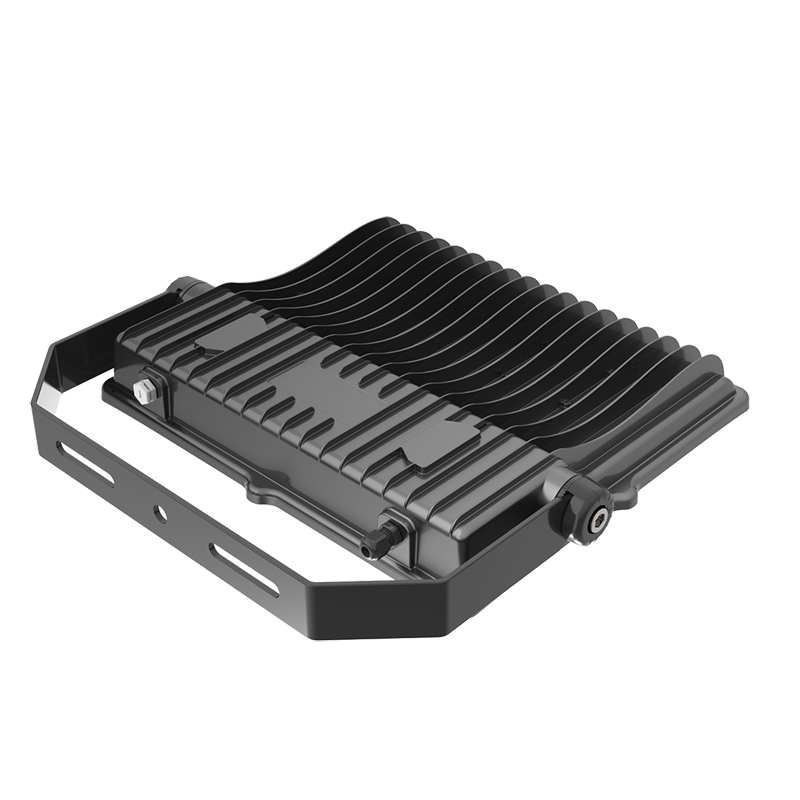

Installation
- Fix the bracket on the wall by screws
- Adjust the lamp body to proper orientation
- Fix the screws that connecting the bracket and the lamp body.
- Connect the wires. Brown wire is L, blue wire is N, and yellow-green wire is G.
Luminous Intensity Distribution
Illumination Cone Curve
Distribution Curve of Meridian
Conical Intensity Distribution Curve of Max Intensity
Unit: cd

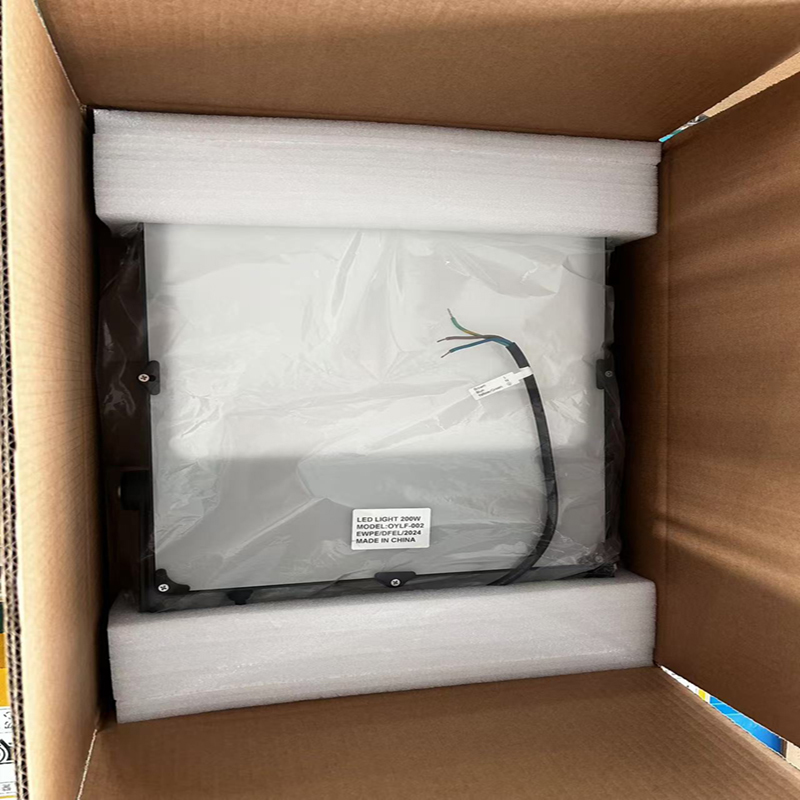

Packing
Inner Boxes, Outer Cartons, EPE
Item No., Carton Size, Quantity, G.W.
Attention
- Please read the manual carefully before installation.
- Please check everything carefully before use. If any abnormalities occured during use, please contact us immediately.
- It is a normal phenomenon that the surface temperature of the lamp get higher during use.
- Please do not disassemble the lamp without permission, or it will be deemed to have waived the warranty service.
- For products with special function, the corresponding sections in this manual is for reference only.
