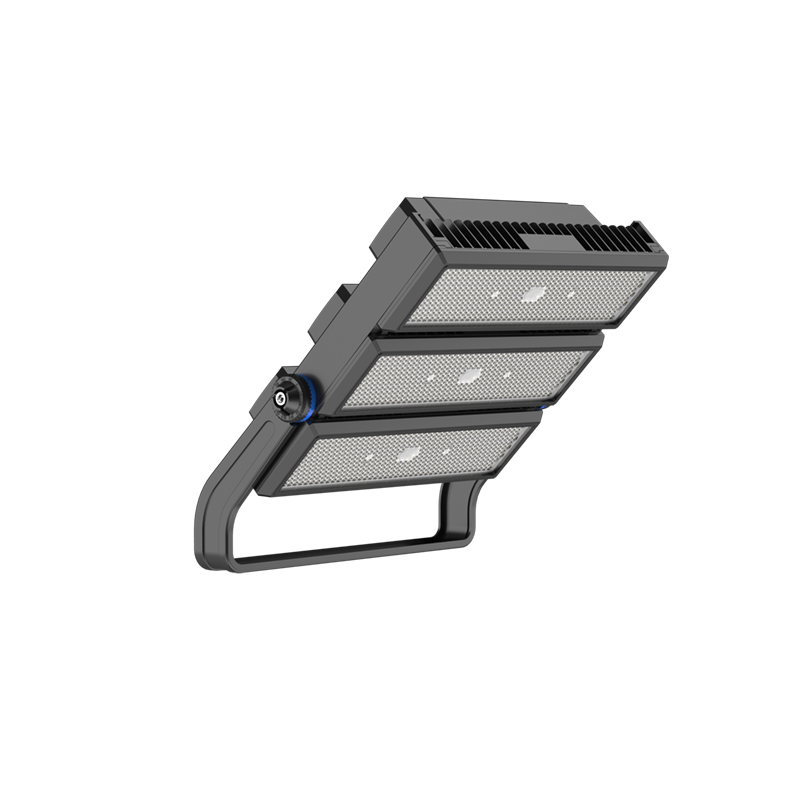

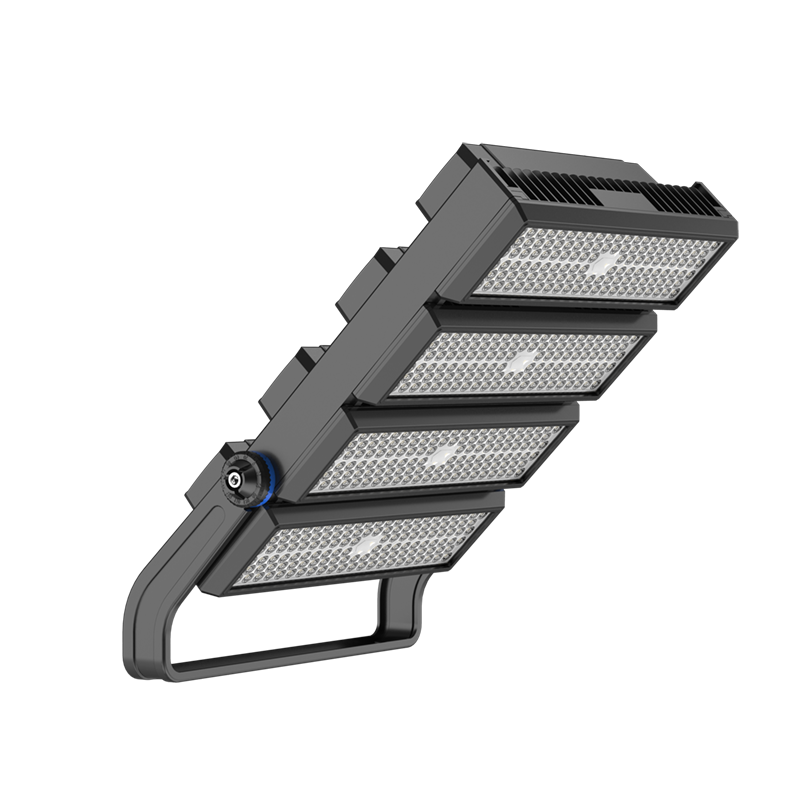

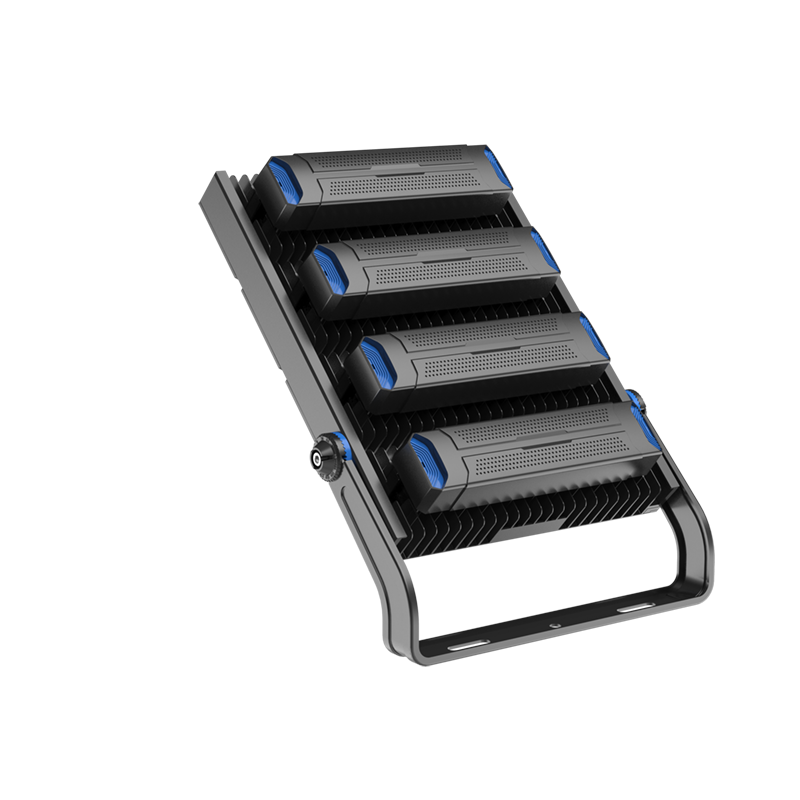

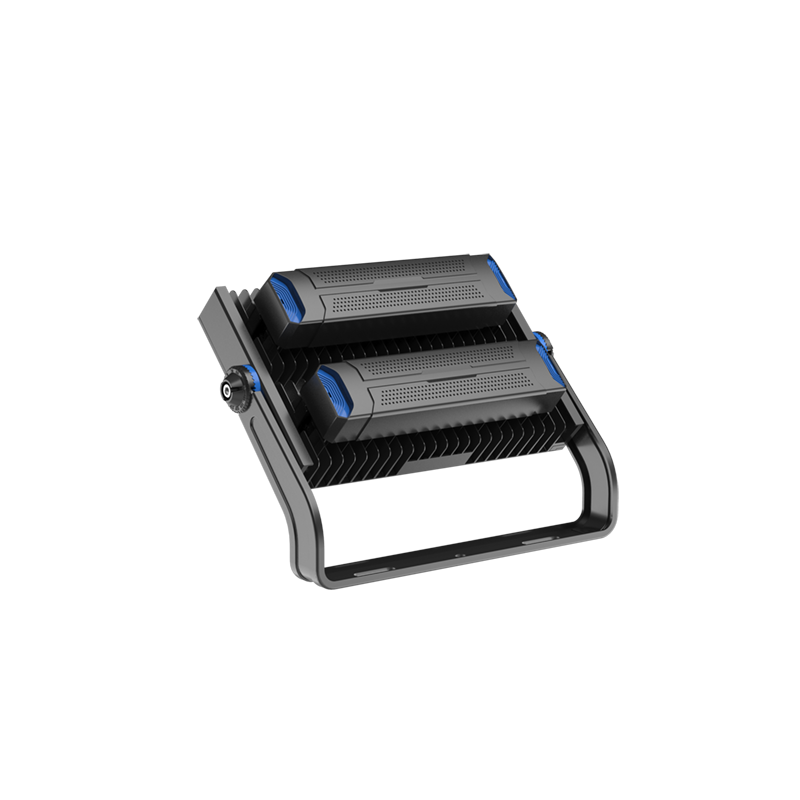

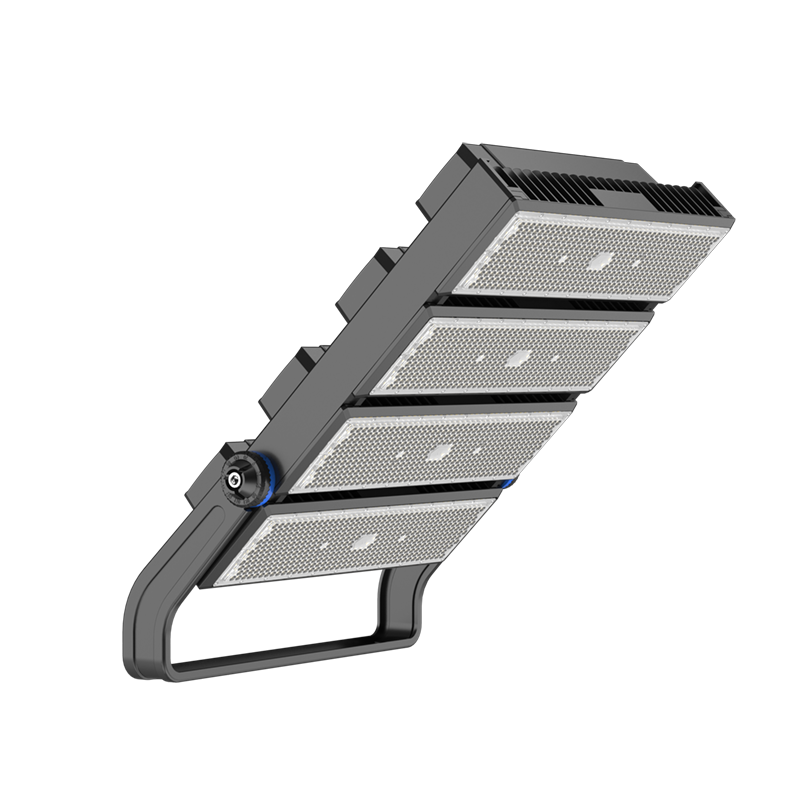

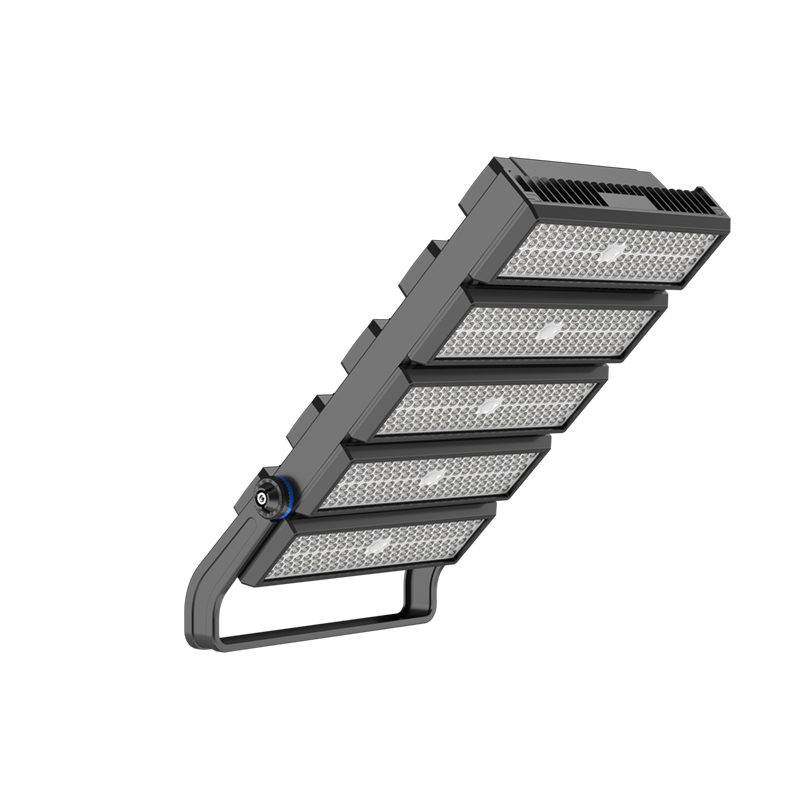

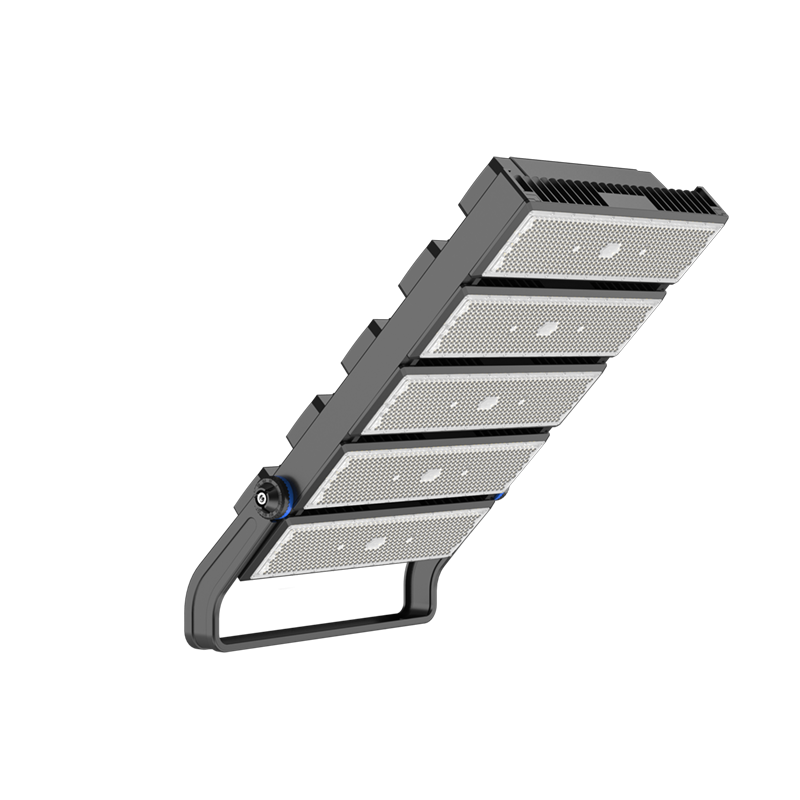

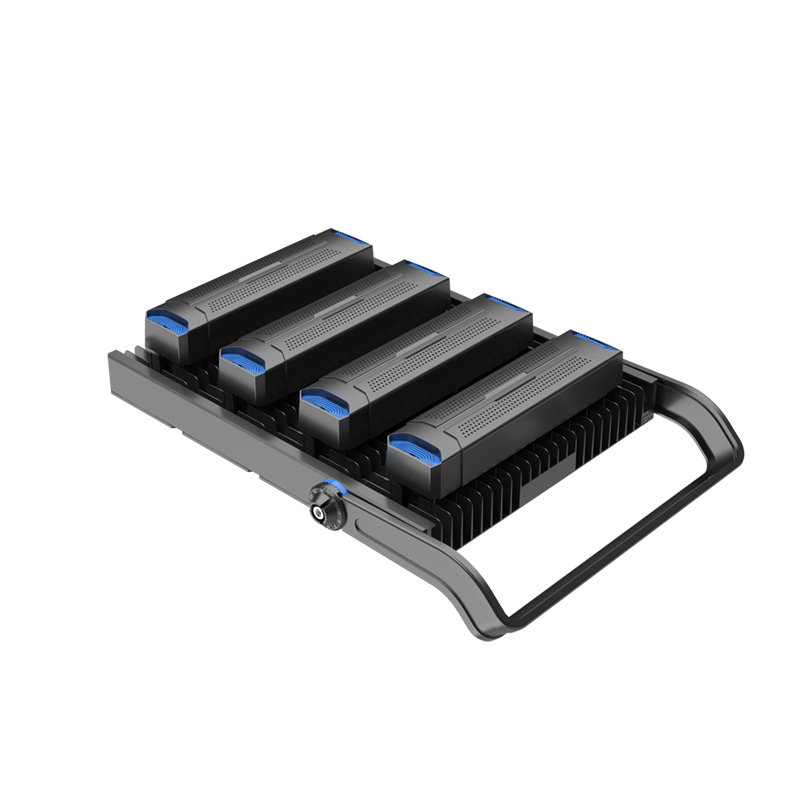

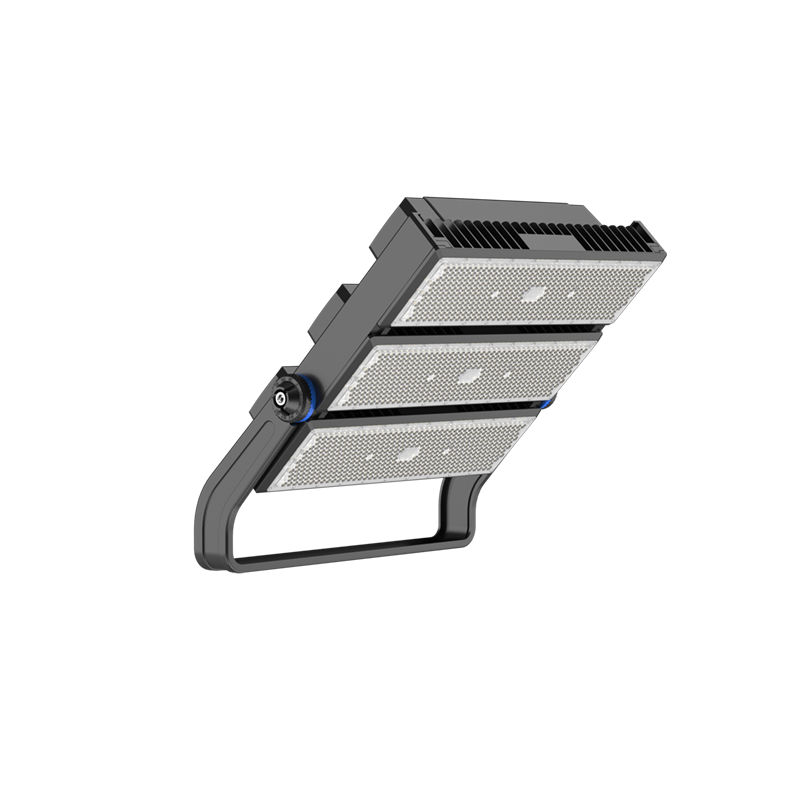

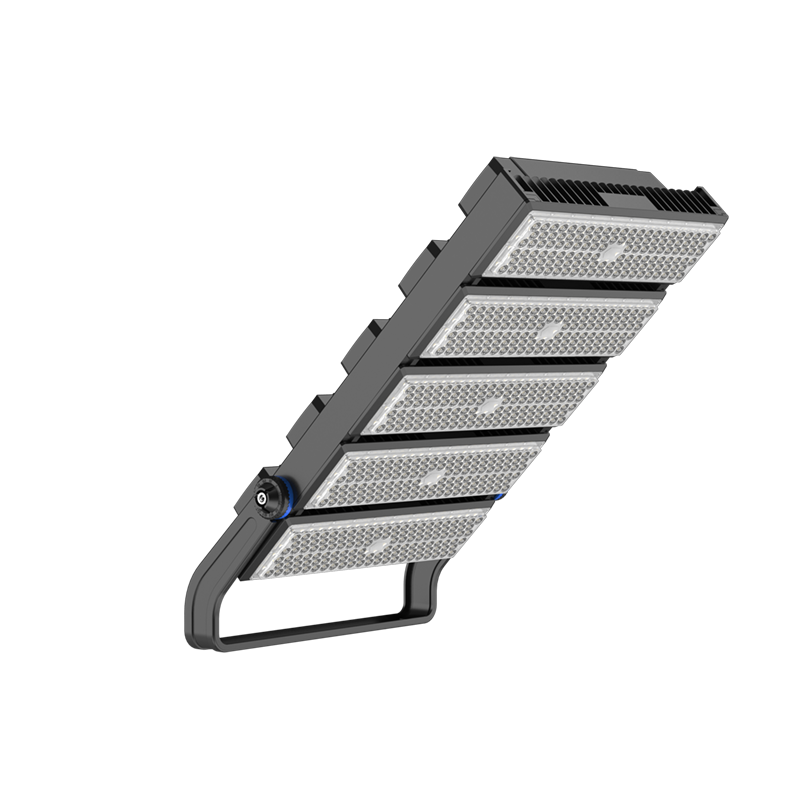

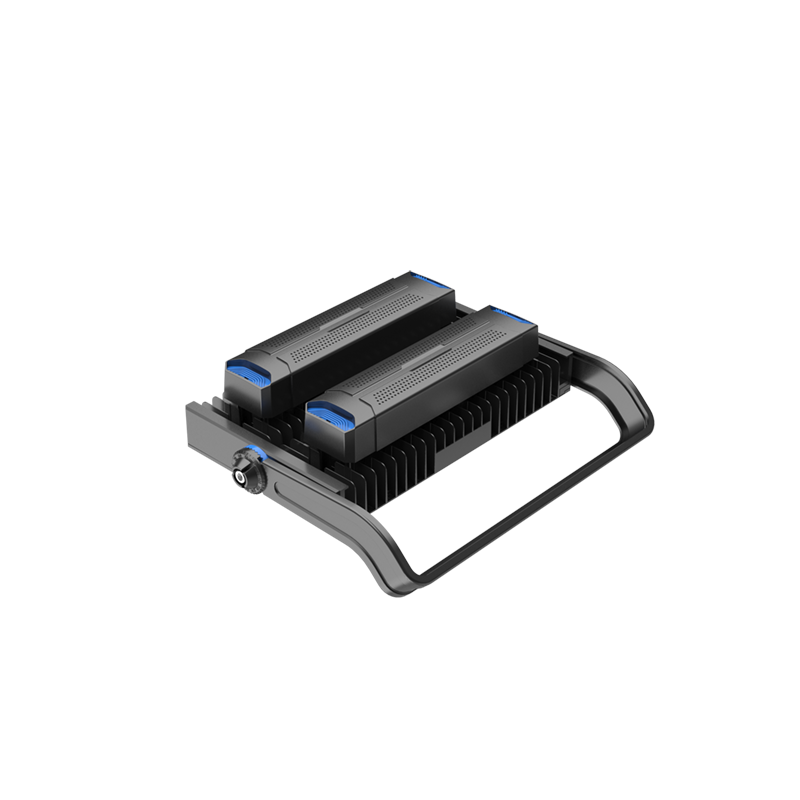

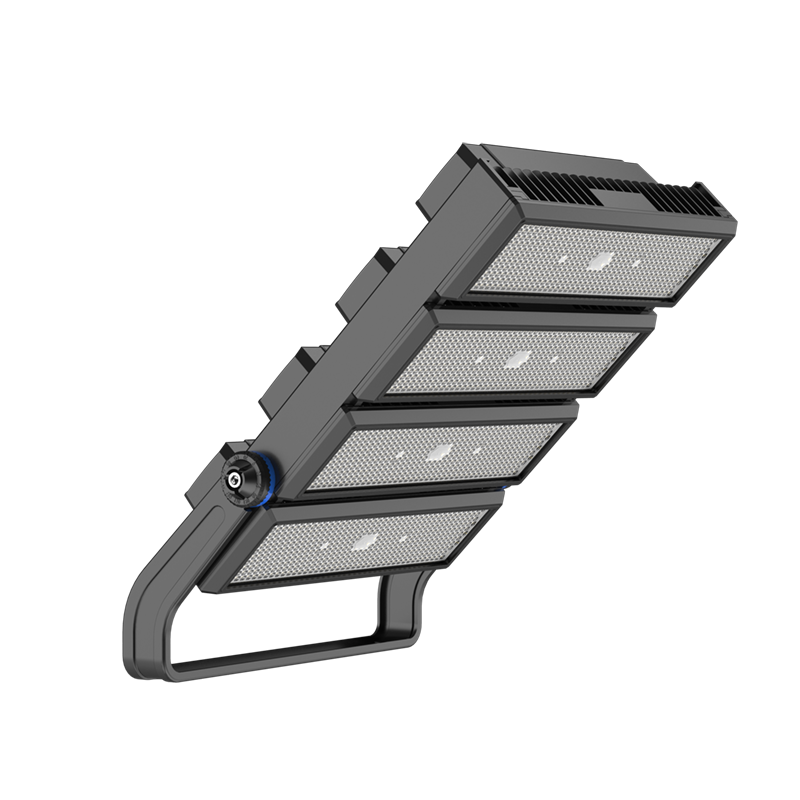

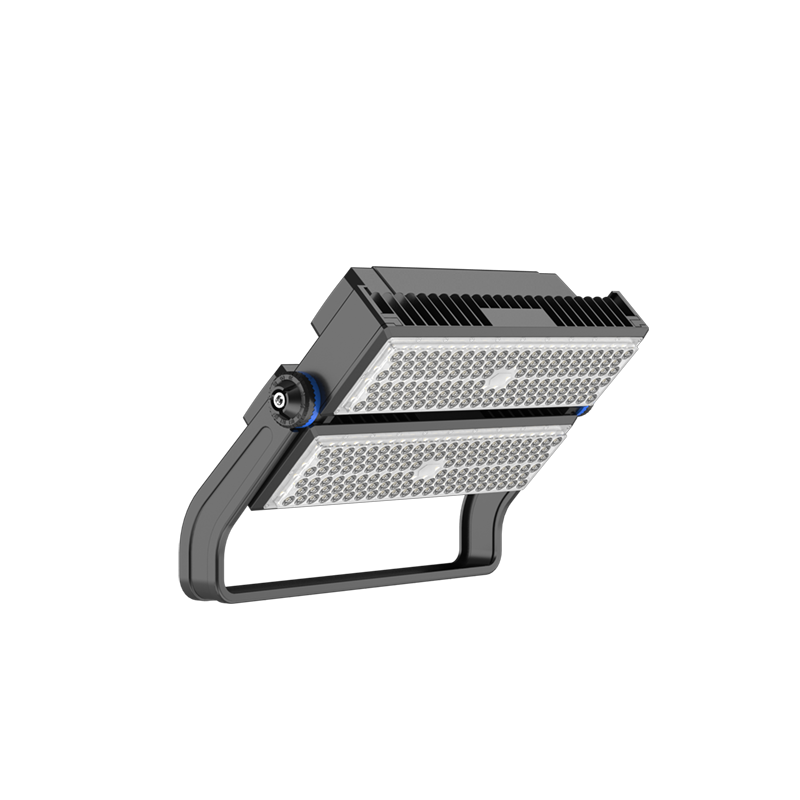

Led Stadium High Mast OYLF-008
Product Overview
(OYLF‑008) is a professional heavy‑duty LED Stadium Light & High Mast Light designed for large‑area outdoor sports lighting, high‑mast illumination, and harsh coastal/industrial environments. Covering a wide power range from 250W to 1500W, it delivers a high efficacy of 150lm/W±5% and supports both symmetric and asymmetric optical distributions to meet professional sports lighting standards.
Built with ADC12 die‑cast aluminum housing, IP66 waterproof, WF2 anti‑corrosion treatment, and a breather valve to balance internal and external humidity, this fixture is engineered to withstand extreme weather, salt spray, high humidity, and long‑term outdoor operation. It adopts premium LUMILEDS/OSRAM LED chips and MEANWELL/SOSEN brand drivers to ensure stable performance, low failure rate, and a long lifespan of 50,000 hours.
Equipped with a 270° adjustable bracket (10° step adjustment) and optional visor to control spill light and reduce light pollution, it is widely used in stadiums, sports centers, football courts, basketball courts, tennis courts, airports, wharves, ports, exhibition centers, and high‑mast lighting projects.
Key Features
1. Full Power Range & High Efficacy
- Power: 250W/300W/480W/600W/720W/900W/1000W/1200W/1500W
- High efficacy: 150lm/W±5%
- LUMILEDS/OSRAM 3737/2835 LEDs for stable & powerful output
2. Professional Optical System
- Beam angles: 10°/15°/25°/45°/60°/90° + Asymmetrical 60°
- Japan TEUIN PC lens / 4mm tempered glass, anti‑UV, high strength
- Optional visor controls upward light & eliminates light pollution
- Perfect for professional sports field & stadium lighting
3. Heavy‑Duty Construction & High Protection
- ADC12 aluminum die‑casting housing, excellent thermal management
- IP66 waterproof & dustproof
- WF2 anti‑corrosion for coastal & harsh environments
- Breather valve balances temp & humidity, prevents condensation
4. Stable Electrical Performance
- Wide voltage: AC100–277V 50/60Hz
- Power factor >0.95, THD<15%, driver efficiency 92%
- MEANWELL/SOSEN drivers for ultra‑high reliability
5. Flexible Installation & User‑Friendly Design
- 270° adjustable bracket with 10° step adjustment
- High‑strength cold‑rolled bracket with integral flanging
- Supports wall mounting, pole mounting, hanging mounting, high mast mounting
- Quick assembly & easy maintenance
6. Certifications & Long Lifespan
- Certifications: CE, CB
- Lifespan: 50,000Hrs
- Ideal for global large‑scale engineering projects
Applications
This LED Stadium High Mast Light is ideal for:
- Professional Sports Lighting: Stadiums, sports centers, arenas
- Ball Courts: Football, basketball, tennis, hockey, baseball, badminton, athletic fields
- High Mast & High Pole Lighting: Airports, wharves, ports, docks, large squares
- Commercial & Industrial: Exhibition centers, logistics parks, industrial zones, tower cranes
- Coastal & Harsh Environment Projects: WF2 anti‑corrosion for seaside & high‑salt areas
Installation Methods
- Wall Mounting
- Pole Mounting
- Hanging Mounting
- High Mast Mounting
