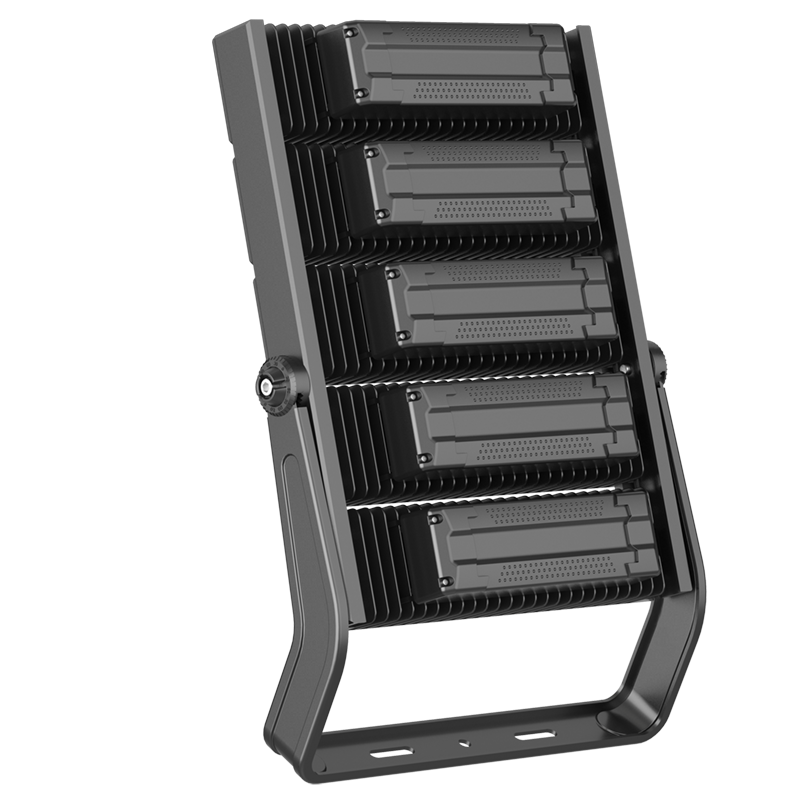

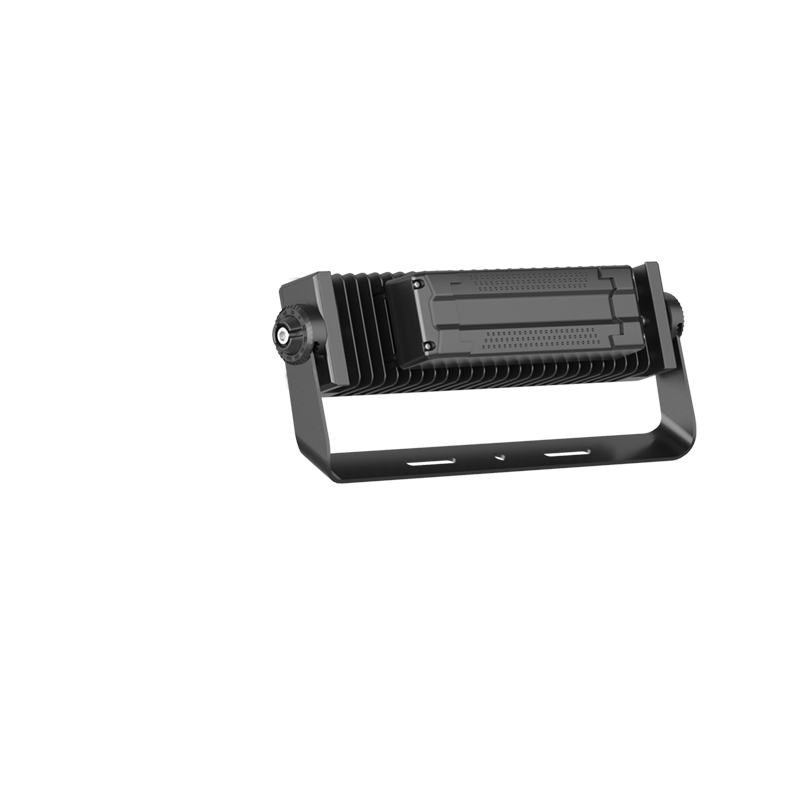

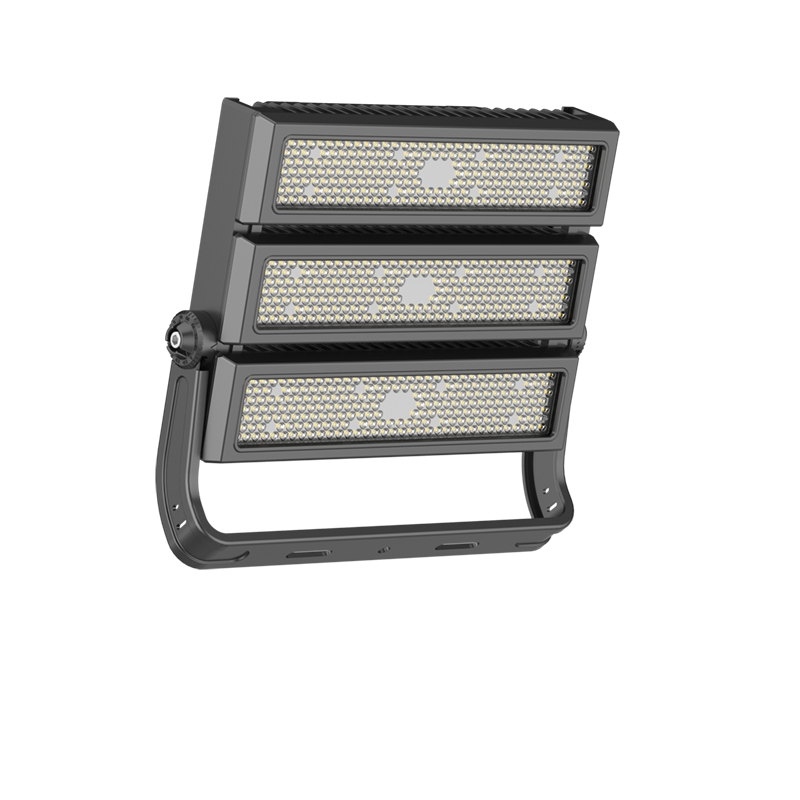

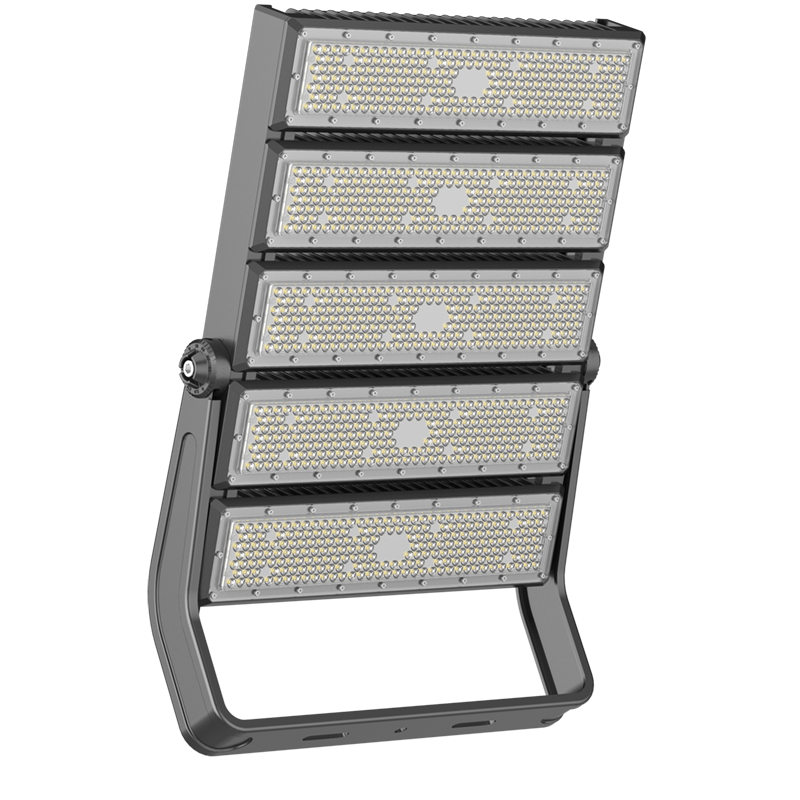

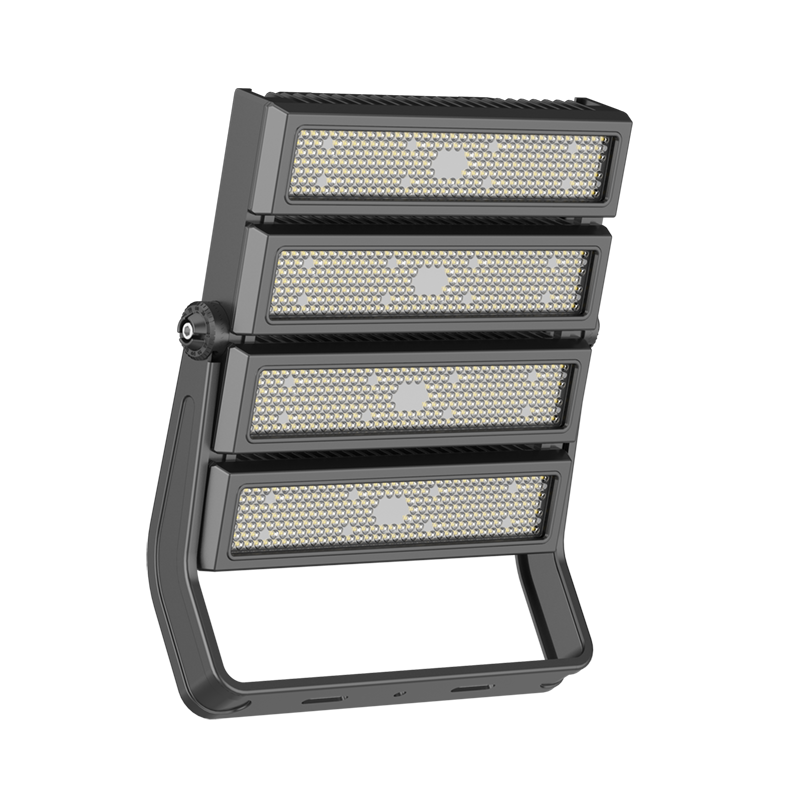

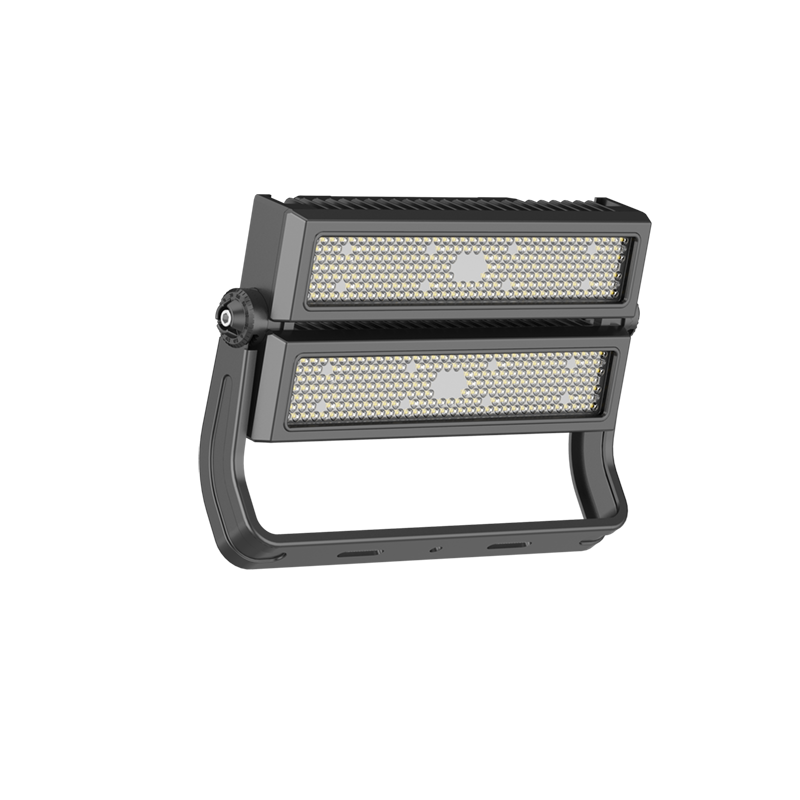

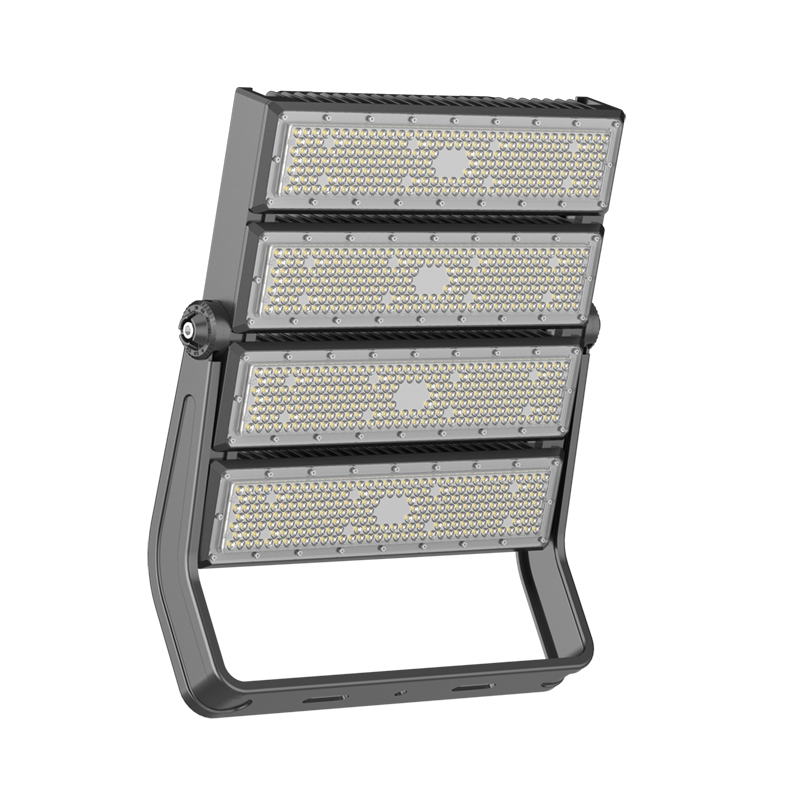

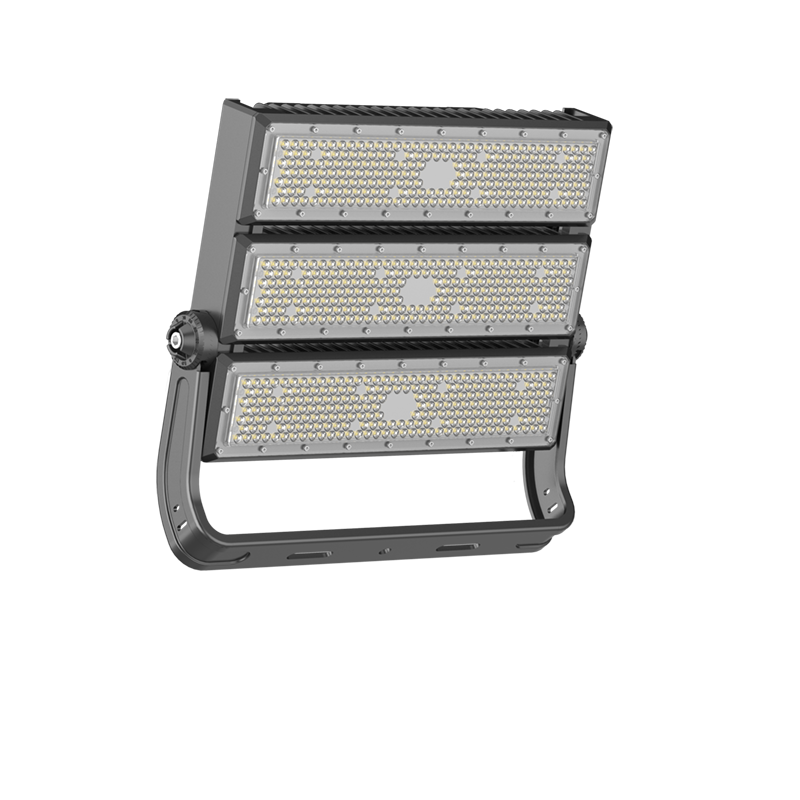

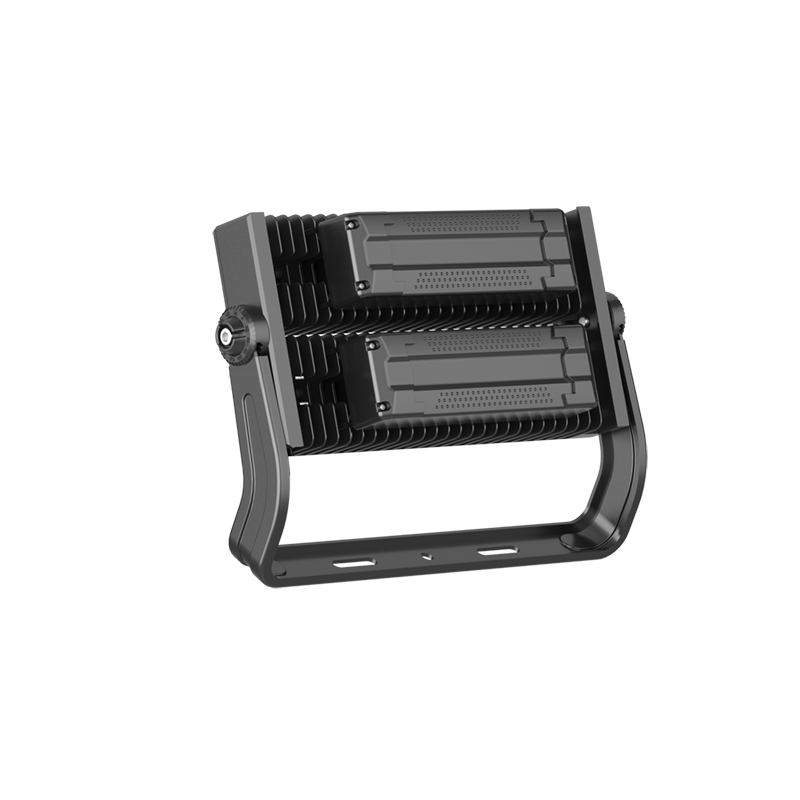

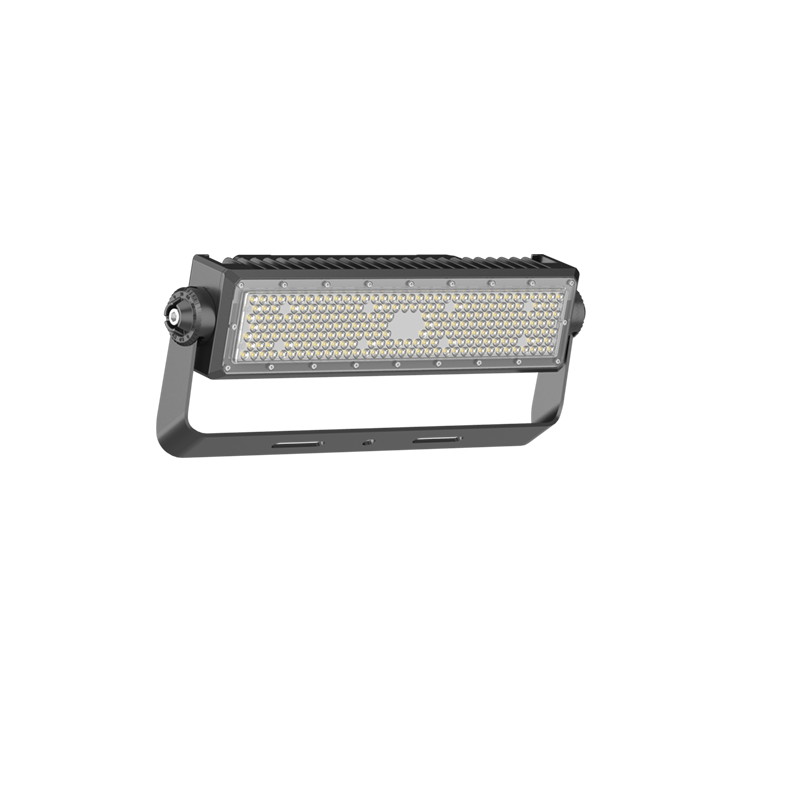

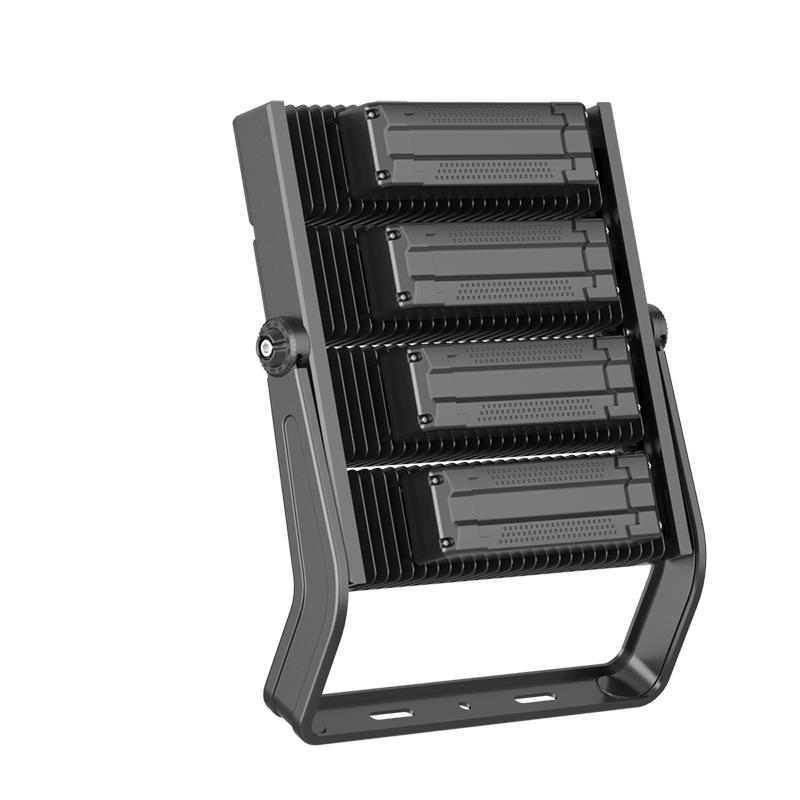

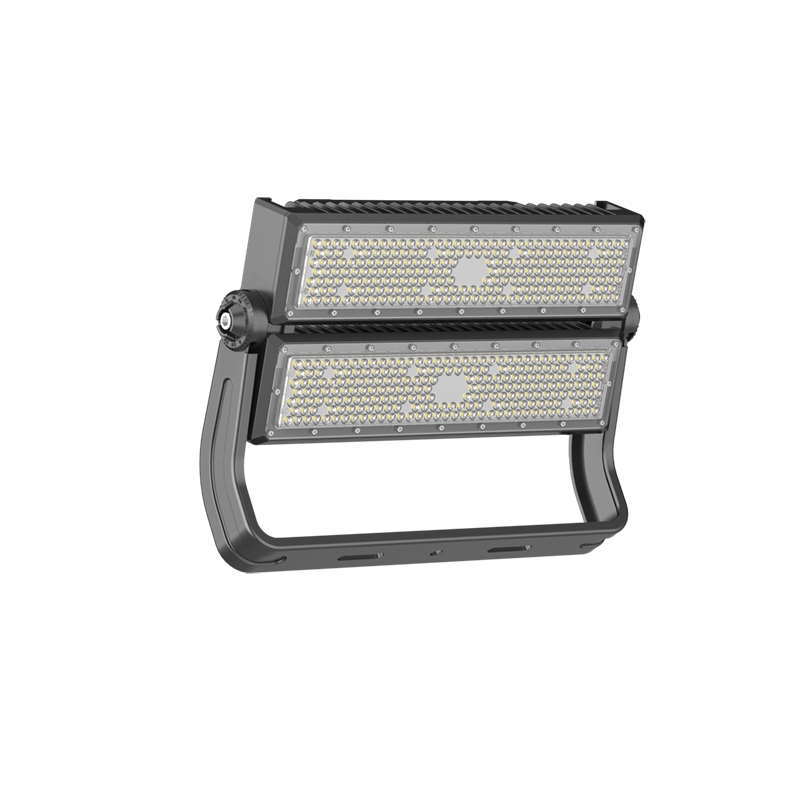

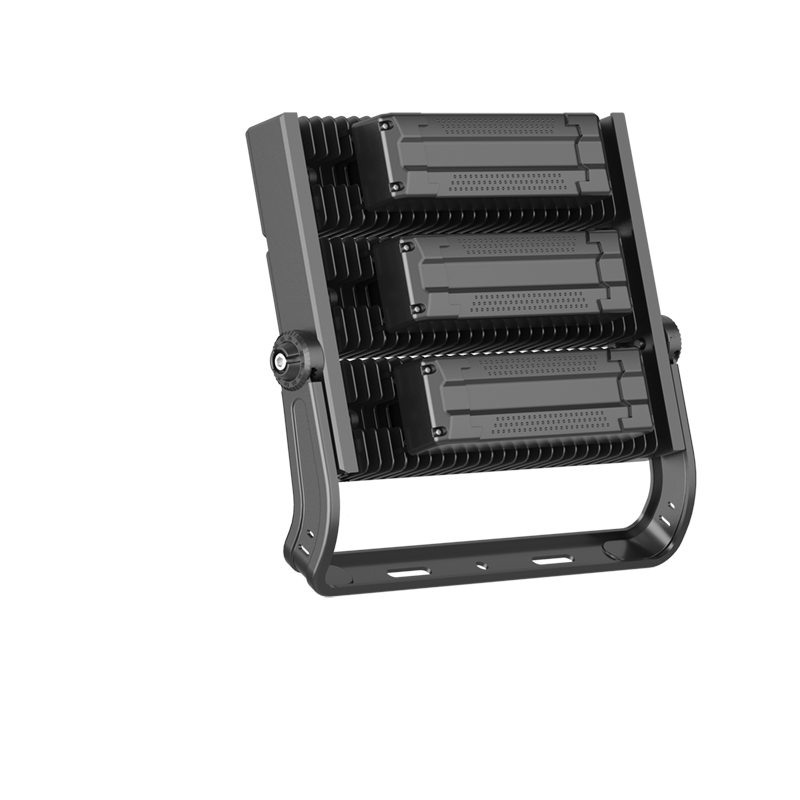

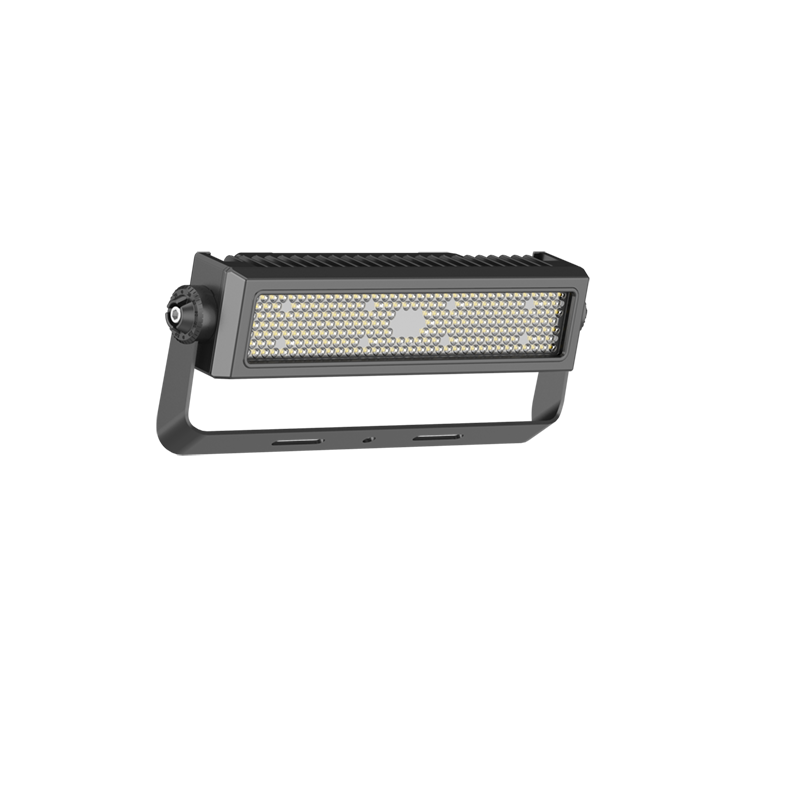

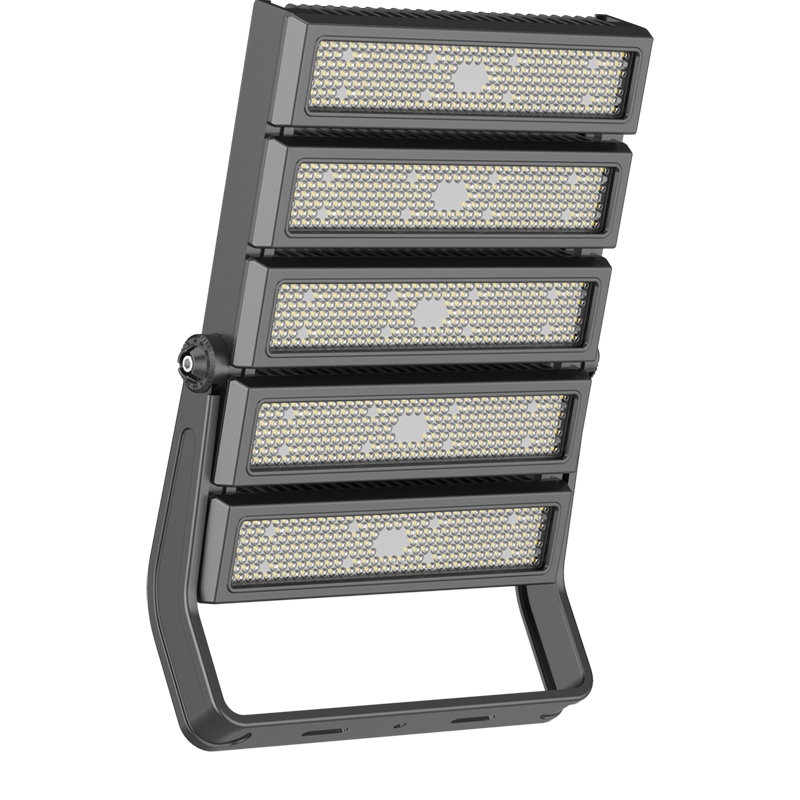

Led Stadium High Mast Light OYLF-005
Product Overview
(OYLF‑005) is a professional, heavy‑duty LED Stadium Light & High Mast Light engineered for large‑area outdoor sports lighting, high‑mast illumination, and harsh coastal/industrial environments. Available in a full power range from 200W to 1200W, it delivers up to 180lm/W high efficacy and supports both symmetric and asymmetric optical distributions to meet professional sports lighting standards.
Built with ADC12 die‑cast aluminum housing, IP66 waterproof, IK08 impact resistance, and WF2 anti‑corrosion treatment, this fixture is designed to withstand extreme weather, high humidity, salt spray, and mechanical impact. It adopts premium LUMILEDS/CREE/SANAN LED chips and Meanwell/Sosen brand drivers to ensure stable performance, long lifespan up to 60,000 hours, and low maintenance cost for large‑scale projects.
The adjustable bracket supports 270° angle adjustment with 10° steps, enabling flexible installation on walls, poles, ceilings, and high masts. With multiple beam angles and anti‑glare design, it is widely used in stadiums, sports centers, football courts, golf courses, airports, wharves, ports, docks, squares, and high‑mast lighting projects.
Key Features
- Full Power Range & Ultra‑High Efficacy
- Power: 200W / 400W / 600W / 800W / 1000W / 1200W
- High efficacy: 150lm/W±5% (up to 180lm/W)
- High brightness 3030/5050 LED chips for uniform & powerful output
- Premium Optical System (Symmetric & Asymmetric)
- Symmetric angles: 30°/35°/45°/60°/90°
- Asymmetric angles: 140°×80° / 120°×40°×60°
- Professional optical design for stadiums, sports fields, and high‑mast projects
- Low glare, reduced light pollution, compliant with sports lighting standards
- Heavy‑Duty Construction & High Protection
- ADC12 aluminum die‑casting housing, high mechanical strength
- IP66 waterproof & IK08 impact resistant
- WF2 anti‑corrosion treatment, ideal for coastal & harsh environments
- 4mm tempered glass / PC lens, UV‑proof & anti‑yellowing
- Excellent Thermal Management
- Compact die‑casting heat sink with optimized airflow
- High thermal conductivity for stable performance & long lifespan
- 60,000hrs service life under continuous operation
- Stable Electrical Performance
- Wide voltage: AC100–277V
- Power factor >0.95, THD<15%, driver efficiency 92%
- Meanwell / Sosen brand drivers for high reliability
- Flexible Installation & User‑Friendly Design
- 270° adjustable bracket with 10° step adjustment
- Embedded cable raceway for neat & safe wiring
- Supports wall mounting, pole mounting, hanging mounting, high mast mounting
- High‑strength cold‑rolled bracket with integral flanging
- Certifications & Warranty
- Certifications: CE, CB
- Lifespan: 60,000Hrs
- Suitable for global market & large‑scale engineering projects
Applications
This LED Stadium High Mast Light is ideal for:
- Professional Sports Lighting: Stadiums, sports centers, arenas
- Ball Courts: Football fields, basketball courts, tennis courts, golf courses
- High Mast & High Pole Lighting: Squares, airports, wharves, ports, docks
- Industrial & Outdoor Facilities: Logistics parks, industrial zones, tower cranes, large parking lots
- Coastal & Harsh Environment Projects: WF2 anti‑corrosion for seaside & high‑salt areas
Installation Methods
- Wall Mounting
- Pole Mounting
- Hanging Mounting
- High Mast Mounting
